Goodman TSTATG1100-2 Owner's Manual

Goodman TSTATG1100-2 Owner's Manual

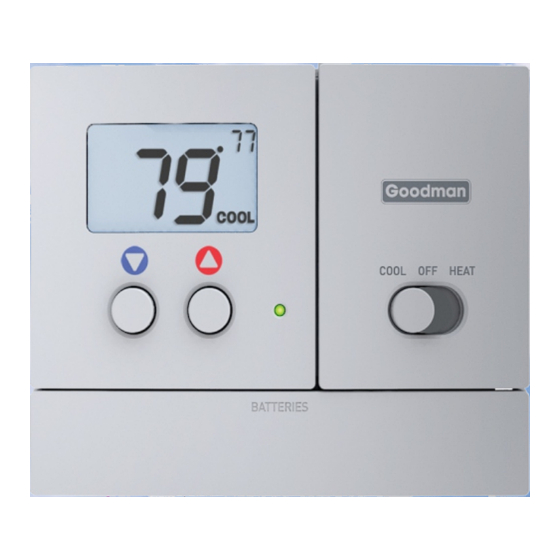

Non-programmable digital thermostat
Hide thumbs Also See for TSTATG1100-2:

Advertisement

Table of Contents

See also: Owner's Manual
Air Conditionin g & Heatin g
Non-Programmable
g
Di
ital Thermostat
Owner 's Manual
Thank goodness for Goodman.
1-Heat & 1-Cool
Gas/Electric Heat Pump
Battery or System Powered
Fahrenheit or Celsius
Fully Electronic
Model TSTATG1100-2
TM

Advertisement

Table of Contents
loading

Related Manuals for Goodman TSTATG1100-2

Summary of Contents for Goodman TSTATG1100-2

  • Page 1 Model TSTATG1100-2 Air Conditionin g & Heatin g Non-Programmable ital Thermostat 1-Heat & 1-Cool Gas/Electric Heat Pump Battery or System Powered Fahrenheit or Celsius Fully Electronic Owner ’s Manual Thank goodness for Goodman.

  • Page 2: Table Of Contents

    OWNER'S MANUAL TSTATG1100-2 Contents Page # Safety Warnings Front Panel Display Normal Operation Fahrenheit or Celsius Preparation Remove Old Thermostat Battery Replacement Wire Connections Jumper Configuration Test Operation Troubleshooting Warranty Page 2...

  • Page 3: Safety Warnings

    OWNER'S MANUAL TSTATG1100-2 Safety Warnings P/N TSTATG1100-2 CAUTION Follow Installation Instructions carefully. DISCONNECT POWER TO THE HEATER - AIR CONDITIONER BEFORE REMOVING THE OLD THERMOSTAT AND INSTALLING WARNING THE NEW THERMOSTAT. CAUTION The two Alkaline “AA” batteries must be replaced at least once every 12 months to ensure proper operation.

  • Page 4: Front Panel

    OWNER'S MANUAL TSTATG1100-2 Front Panel FAN SWITCH DISPLAY On or Auto AUTO HEAT COOL HEAT BATTERY BATTERIES DOOR COOLER & WARMER BUTTONS MODE SWITCH Cool, Off or Heat BI-COLOR LED Heat or Cool demand indicator when system powered: Red = Heat...

  • Page 5: Display

    OWNER'S MANUAL TSTATG1100-2 Display SET TEMP HEAT COOL BATTERY Heat and Cool indicators. In normal operation, Heat or Cool appears, depending on the Mode Switch position. When heat or cool is energized, the Heat or Cool indicator will flash. Current room or set temperature.

  • Page 6: Normal Operation

    OWNER'S MANUAL TSTATG1100-2 Normal Operation FAN SWITCH On or Auto AUTO HEAT COOL HEAT BATTERIES COOLER & WARMER BUTTONS MODE SWITCH Cool, Off or Heat Operation Select Cool or Heat with the Mode Switch. Normally leave the fan switched to Auto.

  • Page 7: Fahrenheit Or Celsius

    OWNER'S MANUAL TSTATG1100-2 Fahrenheit or Celsius AUTO HEAT HEAT COOL HEAT BATTERIES COOLER & WARMER BUTTONS MODE SWITCH Cool, Off or Heat Operation Select Off with the Mode Switch. Press and hold the COOLER and WARMER buttons at the same time until the temperature is displayed in degrees Celsius.

  • Page 8: Preparation

    OWNER'S MANUAL TSTATG1100-2 Preparation Proper installation of the thermostat will be accomplished by following these step by step instructions. If you are unsure about any of these steps, call a qualified technician for assistance. These tools will be required: Flat Blade...

  • Page 9: Remove Old Thermostat

    OWNER'S MANUAL TSTATG1100-2 Remove & Replace Old Thermostat Remove the cover of the old thermostat. If it does not come off easily check for screws. Loosen the screws holding the thermostat base or subbase to the wall, and lift away.

  • Page 10: Battery Replacement

    OWNER'S MANUAL OWNER'S MANUAL TSTATG1100-2 TSTATG1100-2 Battery Replacement The batteries are easily accessible from the battery door located on the bottom front of the thermostat (fig. 1). To open the battery slot, pull out on the battery door (fig. 1) and swing down (fig. 2).

  • Page 11: Wire Connections

    Remove this jumper to control dual transformer systems. Thermal Insulating Sheet A label is provided on the backplate that prevents drafts originating inside the wall from MODEL: TSTATG1100-2 97061606 4Z95 USE SIZE “AA” entering the thermostat. MADE IN CHINA...

  • Page 12: Sample Wiring Diagrams

    OWNER'S MANUAL TSTATG1100-2 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating Residential Gas or Electric Heat, Electric Cool, split systems & package units. For jumper configuration see pages 14 and 15. Common wire optional...
  • Page 13 OWNER'S MANUAL TSTATG1100-2 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating-Heat Pump with O reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. For jumper configuration see page 16.
  • Page 14 OWNER'S MANUAL TSTATG1100-2 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating-Heat Pump with B reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. For jumper configuration see page 17.
  • Page 15 OWNER'S MANUAL TSTATG1100-2 Sample Wiring Diagrams Gas or Electric Heat 3 Wire, 1 Stage Heating Residential Gas or Electric Heat units with a separately controlled fan. For jumper configuration see pages 14 and 15. Common wire optional C O/B Y W G RC RH...
  • Page 16 OWNER'S MANUAL TSTATG1100-2 Sample Wiring Diagrams Gas or Electric Heat 2 Wire, 1 Stage Gas Heat Residential Gas or Millivolt units. For jumper configuration see page 14. Common wire optional C O/B Y W G RC RH Factory installed jumper between...
  • Page 17 OWNER'S MANUAL TSTATG1100-2 Sample Wiring Diagrams Gas or Electric Heat Dual Transformer 5 Wire, 1 Stage Cooling, 1 Stage Heating Residential Gas or Electric Heat, Electric Cool, split systems & package units. For jumper configuration see pages 14 and 15.

  • Page 18: Jumper Configuration

    OWNER'S MANUAL TSTATG1100-2 Jumper Configuration Cooling and Gas Heating Residential Gas, Electric Cool, split systems & package units. ASDF ASDF ASDF GAS/ELEC ELEC Jumper #1 (J1) should be set for GAS (FAN) and Jumper #2 (J2) should be set for GAS for for typical gas furnace heating with electric cooling.
  • Page 19 OWNER'S MANUAL TSTATG1100-2 Jumper Configuration Cooling and Electric Heating Residential Electric Heat units with a separately controlled fan. ASDF ASDF ASDF ELEC GAS/ELEC ELEC Jumper #1 (J1) should be set for ELEC (FAN) and Jumper #2 (J2) should be set for GAS for for typical electric heating with electric cooling.
  • Page 20 OWNER'S MANUAL TSTATG1100-2 Jumper Configuration Cooling and Heating - Heat Pump with O reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. Residential Heat Pumps, split systems & package units, with no auxiliary heat. ASDF...
  • Page 21 OWNER'S MANUAL TSTATG1100-2 Jumper Configuration Cooling and Heating - Heat Pump with B reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. ASDF ASDF ASDF ELEC GAS/ELEC ELEC Jumper #1 (J1) should be set for ELEC (FAN),...

  • Page 22: Test Operation

    OWNER'S MANUAL TSTATG1100-2 Test Operation Turn on the power to the Heating/Air Conditioning system. On the thermostat, slide the Mode Switch to HEAT. Press the COOLER or WARMER button until the set temperature is 10 degrees above room temperature. The HVAC unit should energize in the heating mode (Page 6).

  • Page 23: Trouble Shooting

    OWNER'S MANUAL TSTATG1100-2 Trouble Shooting SYMPTOM: The slide switches on the thermostat are very difficult to move. CAUSE: The backplate of the thermostat is screwed too tightly into a wall that is not perfectly flat. REMEDY: Loosen the screws holding the thermostat into the wall.
  • Page 24 4Z95 Air Conditionin g & Heatin g Goodman Manufacturing Company, L.P ., reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations. Copyright © 2009 • Goodman Manufacturing Company, L.P . • Houston, Texas P/N 88-841 Rev.

  • Page 25: Limited Warranty

    No warranty applies to, and no warranty is offered by Goodman on, Goodman is not responsible for: any thermostat ordered over the Internet.
