Guardian GSI200

ALL MODELS

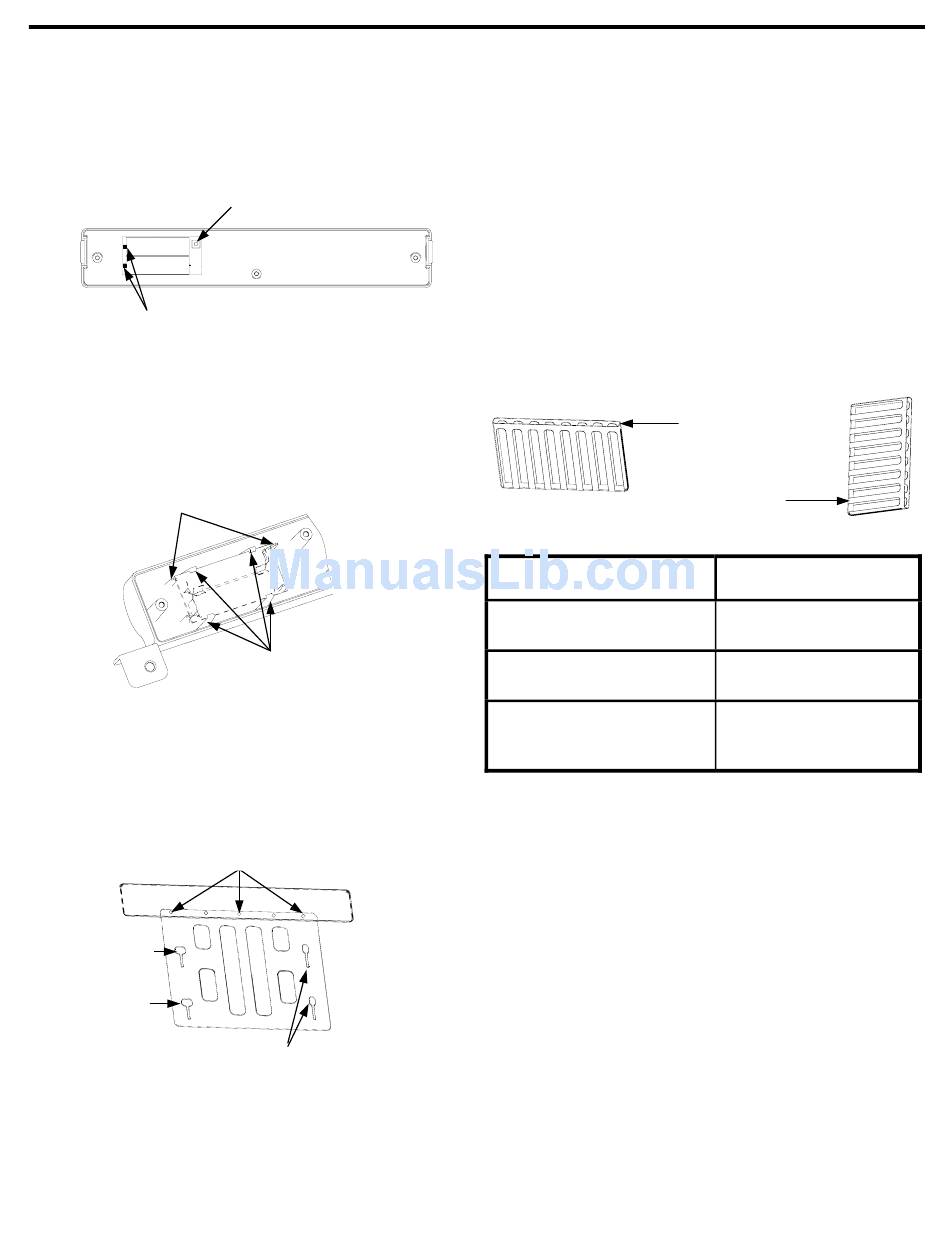

1. Install two (2) AA batteries in timer housing
noting proper polarity (+/-).
Positive Battery Terminals
Verify timer circuit board is in the correct position.
The circuit board is incorrectly positioned if both
lights (red and green) flash at the same time when the
rear cover is installed. Snapping the control board
under all four legs will correctly position the control
board.
Place timer board on
the four supports
2. Verify the small key slots are on the right side
when viewed from the front of the timer housing.
Align sachet holder mounting plate holes with
pins in the timer cover housing and snap into
place.
Attach Sachet
Mounting Plate to Back
Upper Keyhole Slot
Lower Keyhole Slot
3. Use four pan head screws to secure the back
cover/sachet mounting plate to the timer housing.
Assembly Instructions
Reset Button
PT1368
SV3001
Snap the control
board under all four
legs to secure
Cover Pins
Small Keyhole Slots on
right side when viewed
from front
SV2094
Installation Instructions
4. Attach sachet holder to mounting plate.
Final assembly will be with sachet holder opening
facing up.
a. Rotate sachet holder 90° clockwise.
b. Refer to table to determine if upper or lower
keyhole slots are used. Place left side pin in
the sachet mounting plate keyhole.
c. Rotate sachet holder 90° counterclockwise and
place right side pin in keyhole slot.
d. Push sachet holder down into keyhole slots to
secure.
SV2089
Model
Q, J or B
200/280/320/370/420
Q, J or B 450/600/800/
1000/1300/1600/1800
QuietQube Models
Q600C/Q800C/Q1000C
IB600C/IB800C/IB1000C
5. Remove front cover from ice machine.
6. Clean and sanitize ice machine and bin/dispenser.
6
Final Position Is
With Opening
Facing Up
Rotate 90° To Attach
Left Side, Then Rotate
To Final Position To
Attach Right Side
Correct Keyhole Slot
Use lower keyhole slots
Use upper keyhole slots
Use upper keyhole slots
SV2096
