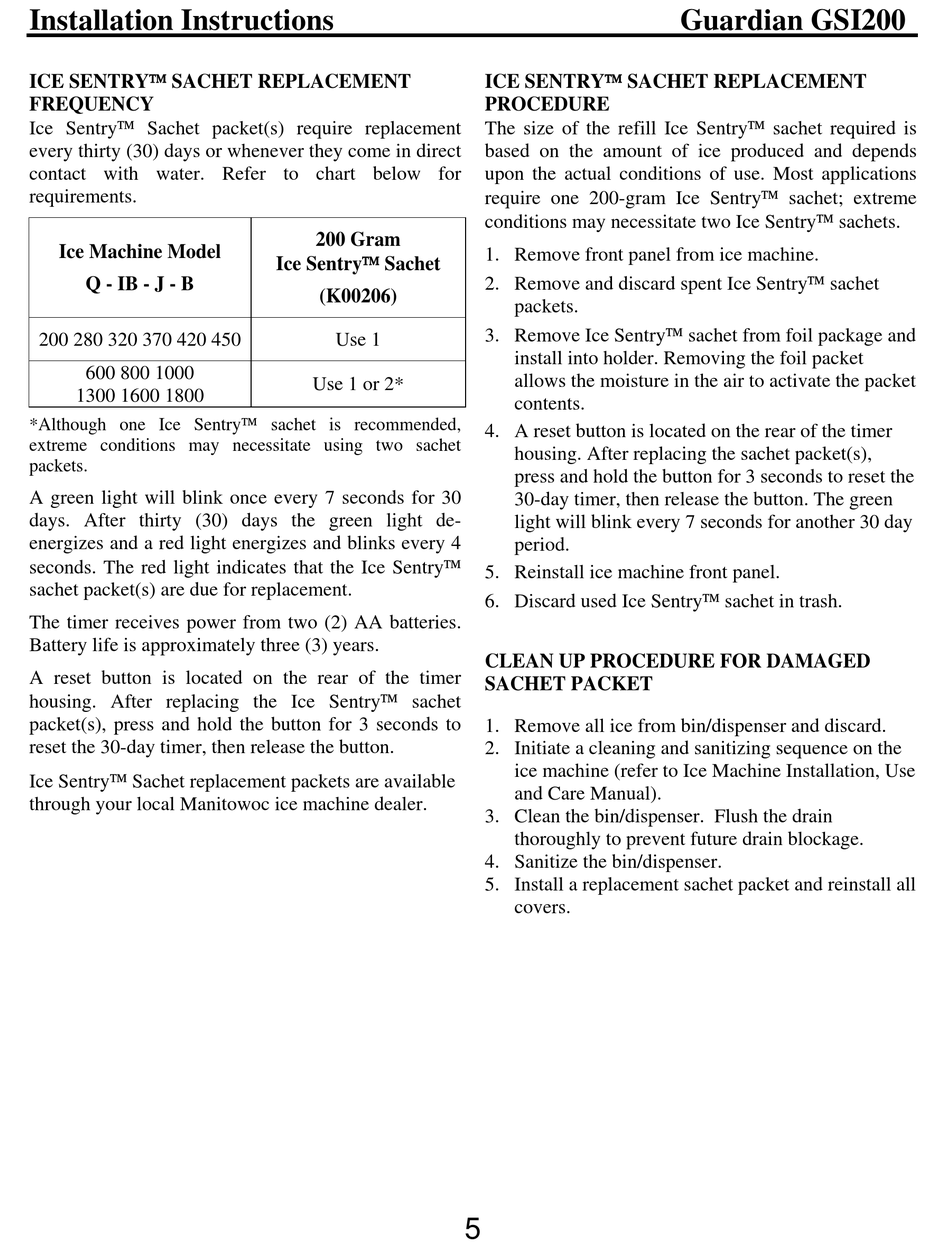

Installation Instructions
ICE SENTRY SACHET REPLACEMENT
FREQUENCY
Ice Sentry Sachet packet(s) require replacement
every thirty (30) days or whenever they come in direct
contact with water. Refer to chart below for
requirements.
Ice Machine Model
Q - IB - J - B
200 280 320 370 420 450
600 800 1000
1300 1600 1800
*Although one Ice Sentry sachet is recommended,
extreme conditions may necessitate using two sachet
packets.
A green light will blink once every 7 seconds for 30
days. After thirty (30) days the green light de-
energizes and a red light energizes and blinks every 4
seconds. The red light indicates that the Ice Sentry
sachet packet(s) are due for replacement.
The timer receives power from two (2) AA batteries.
Battery life is approximately three (3) years.
A reset button is located on the rear of the timer
housing. After replacing the Ice Sentry sachet
packet(s), press and hold the button for 3 seconds to
reset the 30-day timer, then release the button.
Ice Sentry Sachet replacement packets are available
through your local Manitowoc ice machine dealer.
200 Gram
Ice Sentry Sachet
(K00206)
Use 1
Use 1 or 2*
ICE SENTRY SACHET REPLACEMENT
PROCEDURE
The size of the refill Ice Sentry sachet required is
based on the amount of ice produced and depends
upon the actual conditions of use. Most applications
require one 200-gram Ice Sentry sachet; extreme
conditions may necessitate two Ice Sentry sachets.
1. Remove front panel from ice machine.
2. Remove and discard spent Ice Sentry sachet
packets.
3. Remove Ice Sentry sachet from foil package and
install into holder. Removing the foil packet
allows the moisture in the air to activate the packet
contents.
4. A reset button is located on the rear of the timer
housing. After replacing the sachet packet(s),
press and hold the button for 3 seconds to reset the
30-day timer, then release the button. The green
light will blink every 7 seconds for another 30 day
period.
5. Reinstall ice machine front panel.
6. Discard used Ice Sentry sachet in trash.
CLEAN UP PROCEDURE FOR DAMAGED
SACHET PACKET
1. Remove all ice from bin/dispenser and discard.
2. Initiate a cleaning and sanitizing sequence on the
ice machine (refer to Ice Machine Installation, Use
and Care Manual).
3. Clean the bin/dispenser. Flush the drain
thoroughly to prevent future drain blockage.
4. Sanitize the bin/dispenser.
5. Install a replacement sachet packet and reinstall all
covers.
5
Guardian GSI200
