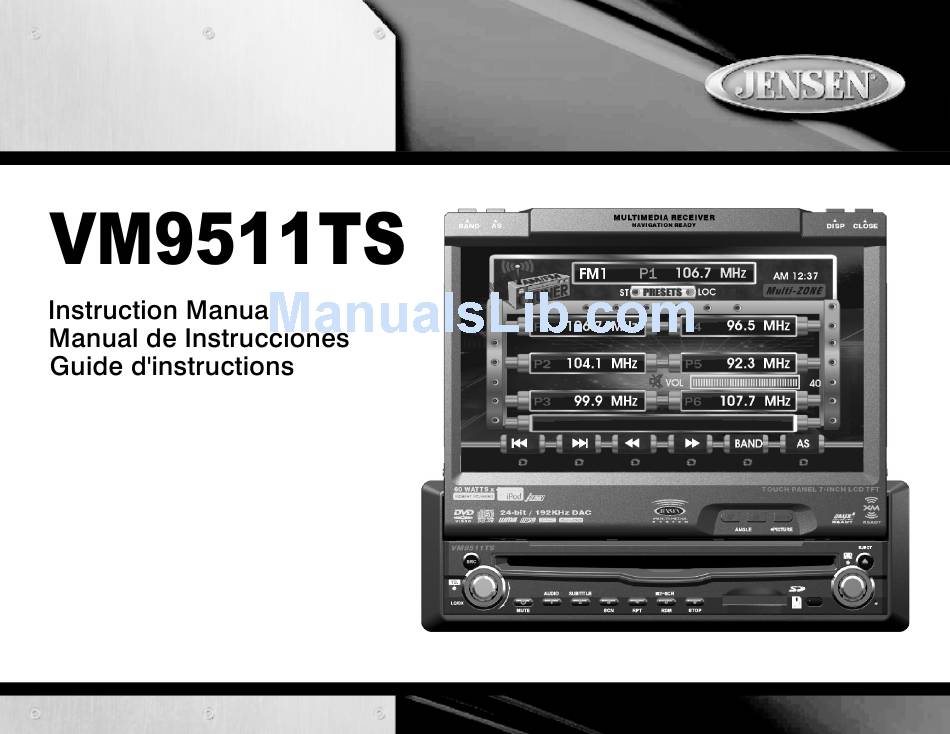

Instruction Manual
Advertisement
Table of Contents
Related Manuals for Jensen VM9511TS
Summary of Contents for Jensen VM9511TS
-
Page 2: Table Of Contents
Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VM9511TS Mobile Multimedia AM/FM/DVD Receiver for maximum enjoyment. -
Page 3: Preparation
VM9511TS PREPARATION Congratulations on your purchase of the Jensen VM9511TS Mobile Multimedia AM/FM/DVD Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen VM9511TS installed by a reputable installation shop. -
Page 4: Optional Accessories
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to installation. NOTE: If the VM9511TS is to be installed in a vehicle equipped with an on-board drive or navigation computer, DO NOT disconnect the battery cable. - Page 5 VM9511TS WIRING DIAGRAM...
- Page 6 VM9511TS WIRING DIAGRAM - MULTIMEDIA CONNECTIONS *TERK XMDJEN100 cables (sold separately) **TERK XMD1000 Direct Tuner and antenna (sold separately) ***NAV100 (sold separately)
-
Page 7: Installation
MP3 player, etc., to your VM9511TS without removing the radio. To install the iAUX , connect it to the AUX-IN cables on the back of the VM9511TS (see the Wiring Diagram on page 3), and then install the iAUX in a location convenient for plugging in auxiliary devices. -
Page 8: Controls And Indicators
1. 9. 2/SUBTITLE DVD Mode: Press once to select the subtitle language during playback. TUNER Mode: Press once to play preset radio station channel 2. Press and hold to store the current radio station in preset channel 2. VM9511TS... - Page 9 VM9511TS CONTROLS AND INDICATORS 10. 3/SCN DVD Mode: Press once to start scan playback. TUNER Mode: Press once to play preset radio station channel 3. Press and hold to store the current radio station in preset channel 3. 11. 4/RPT DVD Mode: Press once to start repeat playback.
- Page 10 VM9511TS CONTROLS AND INDICATORS LCD Display/Indicators 1. Disc Indicator Illuminated when disc is loaded 2. DVD Playback Indicators (SCN/RPT/RDM/ALL) The following DVD playback indicators become Illuminated when the corresponding function is active: • SCN: scan playback • RPT: repeat playback •...
-
Page 11: Front Zone Remote Control
VM9511TS FRONT ZONE REMOTE CONTROL NOTE: Your remote control may differ slightly from the one pictured here. The above diagram is for illustrative purposes only. - Page 12 Selects FM/AM band Stops playback VM9511TS iPod Displays XM Setup Menu Selects Photo mode Selects Music mode Toggles on/off audio out- Toggles on/off audio out- Turns the power on/off...
- Page 13 VM9511TS Button Name Ref# GOTO Goes to specific time Goes to specific time frame and playback frame and playback Slow playback/slow Slow playback/slow rewind playback rewind playback ZOOM Zooms in/out on an Zooms in/out on an image image Displays set-up parame-...
-
Page 14: Multi-Zone Remote Control
Pauses playback/Starts playback Selects the next track/chapter for playback Goes to specific time frame and playback Slow playback/slow rewind playback VM9511TS NOTE: Your remote control may differ slightly from the one pictured here. The above diagram is for illustrative purposes only. -
Page 15: Using The Tft Monitor
VM9511TS USING THE TFT MONITOR Open/Close TFT Monitor Open TFT Monitor Press the OPEN button (1) on the front panel or press the ) button (25) of the front zone remote control to activate the mechanism that moves the display panel into the viewing position. -
Page 16: Monitor Movement Mechanism
Monitor swiv- ing in verti- obstruction els back to the els back to the cally point unit unit After the protective procedure is executed, normal operation is resumed by pressing the OPEN button (1) or disconnecting and reconnecting the power. VM9511TS... -
Page 17: Operating Instructions
VM9511TS OPERATING INSTRUCTIONS Power On / Off Press the /MUTE button (7) to turn the unit on. The buttons on the front of the unit light up and “WELCOME” appears briefly in the LCD panel (23), followed by the current mode status. If the TFT screen is open, only the current mode status is displayed. -
Page 18: System Setup Menu
• AM Frequency Spacing - 9kHz • AM Frequency Band - 531kHz~1602kHz • FM Frequency Spacing - 200kHz • FM Frequency Band - 88.1MHz~107.9MHz VM9511TS Table 7: General Setup Menu Features Setting Options Function China • AM Frequency Spacing - 9kHz •... -
Page 19: Exiting The System Setup Menu
VM9511TS Returning to the System Setup Menu To return to the System Setup menu, move to “BACK”, then press the >/|| button (18) on the remote control. ASP (Audio Sound Processing) Config Menu The ASP Config Menu allows you to make fine audio adjustments. -
Page 20: Multi-Zone Operation
MULTI-ZONE OPERATION Independent sources can be played simultaneously on the VM9511TS. For example, a video game console can be seen on the front screen while DVD video is available to rear passengers. NOTE: If DVD is selected as the front source and SD Card is selected for the rear source, then both sources will switch to SD Card. -
Page 21: Tuner Operation
18. Touch this area to return to the MAIN MENU Alternate TFT Tuner Display The VM9511TS offers an alternate display for the AM / FM tuner interface that is less bright than the default tuner display and is more appropriate for night driving. -
Page 22: Xm Radio Operation
Channel Guide is the default search mode. To access Category Guide, press the TITLE button (2) on the remote control or touch CAT on the touch screen. To return to VM9511TS Channel Guide, press the SUBTITLE button (9) on the remote control. -
Page 23: Direct Tuning
VM9511TS Category Guide Mode When Category Mode is selected, “Search Mode” and “CATEGORY” appear in the top half of the user interface. • While in Search Mode, to switch between Channel and Category search modes, press the CH or CAT buttons in the touch screen. -
Page 24: Dvd/Vcd Video Operation
• DVD: Repeat Title, Repeat Chapter, Repeat Off • VCD (PBC Off): Repeat Single, Repeat Off • MP3: Repeat Single, Repeat Folder, Repeat Off VM9511TS NOTE: For VCD play, the repeat function is not available if PBC is on. Sectional Repeat Function (A-B) Use the A-B function to define a specific area of a disc to repeat. -
Page 25: Playback Information
VM9511TS Fast Forward/Fast Reverse Press the >> button (14) on the remote control or the /\ button (18) on the joystick to fast forward. Keep pressing and releasing the button to increase the rate from “2X” to “4X”, “8X”, and “20X”. Continue pressing the >> or /\ button to fast reverse. -
Page 26: General Disc Information
Region 4: Australia, New Zealand, Middle and South America, South Pacific Ocean Islands/ Oceania • Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe, North Korea, North Africa, North-West Asia • Region 6: Mainland China • ALL: All regions VM9511TS... -
Page 27: Dvd/Disc Setup Menu
VM9511TS DVD/DISC SETUP MENU NOTE: A DVD/disc must be loaded into the mechanism and playing prior to accessing the DVD Setup menu. While the DVD/disc is playing, press the DVD SETUP button (30) on the remote to access the DVD Setup menu. -
Page 28: Audio Menu
AUDIO Menu The VM9511TS has a built-in Pink Noise generator to help set the relative speaker levels for multi-channel audio playback. Table 15: AUDIO Menu Features Setting Options Function Pink Stop output of pink noise Noise Left Left channel pink noise... - Page 29 VM9511TS Table 17: Pro-Logic II Menu Features Setting Options Function Decode Mode Play original audio format. Pro-Logic Use Pro-Logic II decoding method. Pro-Logic Play mono output with surround II Matrix effect. Pro-Logic Enhance movie surround effects. II Movie Pro-Logic Play surround music effects.
-
Page 30: Dvd/Disc Audio Operation
Instructions for TFT control and Insert/Eject are the same for DVD, CD and MP3 operation. Please see the DVD/Disc Video Operation section for information about these topics. The VM9511TS will play music or other audio files from the following disc media: • CD-DA •... - Page 31 VM9511TS NOTE: When burning MP3 / WMA files onto a DVD disc, use the 2X or 4X burning option, if available. This slower burning speed will help eliminate buffer errors and increase disc reading reliability. Also, use folders when burning large numbers of songs / files to a disc for easy music navigation.
-
Page 32: Sd Card Reader Operation
JPEG files may cause the RANDOM / REPEAT function to work incorrectly. To ensure the proper playback of music, movie, and JPEG files, place all media files inside folders on the data storage media. VM9511TS... -
Page 33: Ipod Operation
(18) on the joystick to return to the previous menu. Video Playback While iPod video can be viewed on the VM9511TS screen, you must use the iPod to control video playback options. Press the AUDIO button (5) on the remote control to access the iPod VIDEO mode. -
Page 34: Tv Tuner Operation
(19) on the joystick to tune to the previous stored station. Direct Channel Selection Use the numeric keypad on the remote control (29) to enter a specific TV station. Display Current Channel Press the INFO button (10) on the remote control to display information regarding the current TV station. VM9511TS... -
Page 35: Navigation System
VM9511TS NAVIGATION SYSTEM The VM9511TS is "navigation ready." Before accessing any navigation features, you must purchase and install the NAV100 module. All installation and operating instructions will be included with the NAV100 navigation module. Once the NAV100 is connected and operating properly, the NAVI source mode will become active. -
Page 36: Troubleshooting
Use correct aspect ratio setting Press OPEN key to restart monitor movement Connect the auto antenna control cable properly Connect the auto antenna control cable properly Turn LOCAL function off Eject current disc and insert new one VM9511TS Corrective Action... -
Page 37: Error Messages
VM9511TS Problem Disc does not play back Disc is warped or scratched Disc is dirty or wet Laser pickup is dirty Incompatible disc is used Disc rating exceeds Parental Lock rating limit Disc region code is not compatible with unit... -
Page 38: Care And Maintenance
LCD panel. Should this occur, the screen will not operate properly until the moisture has evaporated. We suggest you use a cleaning disc in this unit more frequently than in the unit in your home due to the environmental conditions of the vehicle. VM9511TS... -
Page 39: Specifications
VM9511TS SPECIFICATIONS CEA Power Ratings Main Amplifier Power Output: 18 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 70dBA below reference. (Reference: 1 watt, 4-ohms) Dynamic Power: 88 watts into 4-ohms, all channels driven Frequency Response: 20Hz to 20kHz, -3dB.
