- Page 1 VM9022 Installation and Operation Manual Watts Peak Watts en Crête ® Vatios el Máximo video 60W x 4...
-
Page 3: Table Of Contents
CONTENTS Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VM9022 Mobile Multimedia Receiver for maximum enjoyment. -
Page 5: Preparation

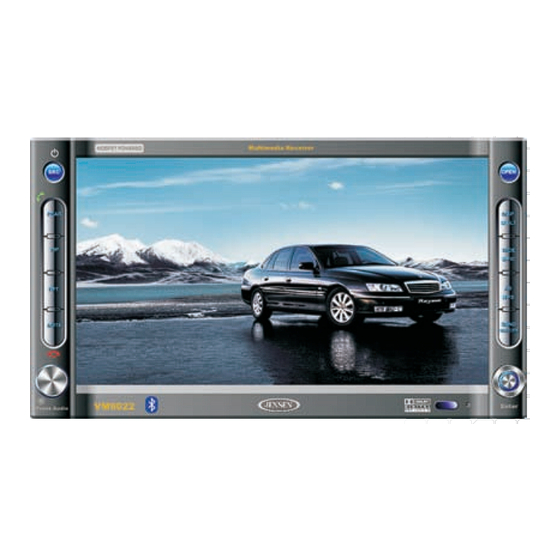

VM9022 PREPARATION Congratulations on your purchase of the Jensen VM9022 MediaLink Mobile Multimedia Receiver. • Under Dash Interface Allows Portable Media Devices to It’s a good idea to read all of the instructions before beginning be Connected the installation. We recommend having your Jensen VM9022 •... -
Page 6: Tools And Supplies
VM9022 What’s in the Box Tools and Supplies WARNING! To prevent damage to the mechanism inside Left and Right Double DIN Mounting Brackets You will need these tools and supplies to install your this unit, avoid impact to the TFT monitor. Double DIN Half Sleeve Install Bracket VM9022: Remote Control with Battery... - Page 7 VM9022 WIRING DIAGRAM Media Module Cable / BLACK *NOTE: External MZ-TFT Touch A/V System See the Screen (Sold Separately) Multimedia NAV Bus Connections Diagram for additional connections through the MZ-TFT MediaLink. CAMERA *MediaLink Cell Phone Cell Phone HEADPHONE MULTIZONE * Satellite Receiver Connections Auto Antenna...
- Page 8 VM9022 MEDIALINK AND SATELLITE CONNECTIONS SAT Radio SAT L SAT R *SAT Cable Kit: JXMC or XMDJEN100 (sold separately) **XM or Sirius satellite tuner (sold separately) MediaLink 3.5mm - Audio VIDEO LEFT RIGHT NOTE: GEN 5 iPod recommended for best performance. iPod Video iPod iPod Mini...
-
Page 9: Installation
VM9022 INSTALLATION ISO DIN Installation CAUTION: For proper operation of the CD player, the This unit is designed to fit into a 2.0 DIN dashboard opening, chassis must be mounted within 30° of horizontal. Make found in many imported cars. The unit has threaded holes in sure the unit is mounted within this limitation. - Page 10 VM9022 The 4 tabs on the trim ring will snap into four holes on top and bottom of the mounting sleeve. CAUTION! Be careful not to damage the car wiring. Complete wiring as illustrated in the wiring diagram on page 3. Once the wiring is complete, reconnect the battery negative terminal.
-
Page 11: Anti-Theft Feature
VM9022 ANTI-THEFT FEATURE The VM9022 is equipped with an anti-theft feature requiring Touch the keypad icon next to the blue box in the the user to enter a password upon initial power on. “Password” field to open the on-screen keypad. 02:40 SETUP RADIO... -
Page 12: Controls And Indicators
VM9022 CONTROLS AND INDICATORS Button Operation 1. OPEN Press to activate the automatic mechanical system and move the TFT monitor into viewing position. Press again to close the TFT. 2. DISP/TILT Press to cycle through information available on the TFT screen. - Page 13 VM9022 CONTROLS AND INDICATORS 13.Pause/Play/Enter Press to pause or resume playback or to confirm current selection. 14. (right joystick) DVD/Disc Mode: Press once to enter the next chapter or track. TUNER Mode: Press once to auto-search the next available radio station. MENU Mode: Press once to move the cursor to the right.
-
Page 14: Remote Control
VM9022 REMOTE CONTROL The VM9022 Remote controls both the front and rear zones. To switch from front to rear zone, move the F/R switch (32) located on the right side of the controller. NOTE: Your remote control may differ slightly from the one pictured here. - Page 15 VM9022 Table 1: Remote Control Functions Button Function Name Ref# TUNER CD/MP3 SATELLITE iPod MENU Enters the main menu of the Turns on/off PBC when play- Displays diagnostics screen Displays iPod menu disc ing VCD TITLE Enters the title menu of the Plays first ten seconds of each Category list in CG mode disc...
- Page 16 VM9022 Table 1: Remote Control Functions Button Function Name Ref# TUNER CD/MP3 SATELLITE iPod ||>/BAND Slow Forward/Slow Reverse Play/pause Selects AM/FM Band. Play/pause Selects SAT1, SAT2 or SAT3 X2, X4, X8 band. Displays Brightness/Contrast Displays Brightness/Contrast Displays Brightness/Contrast Displays Brightness/Contrast Displays Brightness/Contrast Displays Brightness/Contrast Controls...
-
Page 17: Using The Tft Monitor
VM9022 USING THE TFT MONITOR Open/Close TFT Monitor Aspect Ratio Parameter Adjustment Procedure Enter Picture Quality Setting Mode: Press the WIDE button (28) on the remote control or WIDE/ Open TFT Monitor Press the PIC button (24) on the remote control or press PIC button (7) on the monitor to adjust the aspect ratio as Press the OPEN button (1) on the front panel or press the and hold the WIDE/PIC button (7) on the monitor. -
Page 18: Operating Instructions
VM9022 OPERATING INSTRUCTIONS Power On / Off Auxiliary Devices Source Menu External peripheral devices can be connected to this unit via To access the SOURCE MENU, touch the TFT screen in the Press the /SRC button (6) (or any other button on the front top left corner of the screen. -
Page 19: System Reset
VM9022 To adjust an audio feature: • REAR: Touch to view the Rear Zone screen. Control options appear below the PIP image, depending on the Use the left/right joystick buttons to highlight the audio source. feature to be adjusted. Press the joystick Enter button on the control panel (13) or remote control (18) to select the highlighted option. -
Page 20: Multi-Zone Operation
VM9022 MULTI-ZONE OPERATION Independent sources can be played simultaneously on the Changing the Rear Zone Source Turning the Rear Screen Off VM9022. For example, a video game console can be seen on To access the SOURCE MENU, touch the TFT screen in the Touch the OFF button (on the SOURCE MENU) to suspend the front screen while DVD video is available to rear top left corner of the screen. -
Page 21: Setup Menu
VM9022 SETUP MENU To access system settings, press the SETUP button (31) on Audio Sub-menu Features Setting Options Function the remote control or touch the button on the screen to Clock Adjust (HH:MM) The clock appears in the top right Setting Options Function... - Page 22 VM9022 only by entering the correct password. Once the password is Bluetooth Sub-menu Features Setting Options Function entered, rating is available for setup. Setting Options Function Tuner Region AM Frequency Spacing - 10kHz AM Frequency Band - Setting Options Function Bluetooth Enable Bluetooth function.
-
Page 23: Exiting The System Setup Menu
VM9022 Exiting the System Setup Menu Setting Options Function To exit setup mode and resume normal playback, press the Camera Normal SETUP button (31) on the remote control or touch the BACK Mirror Reverse the camera image as if button on the screen. looking through a rear-view mirror. -
Page 24: Tuner Operation
VM9022 TUNER OPERATION Tuner TFT Display Manual Tuning : Touch to tune forward one step 15. BAND: Touch to change between AM/FM bands To increase or decrease the tuning frequency one step: 16. AS: Touch to automatically store stations • Touch the buttons on screen. - Page 25 VM9022 close the menu). The preset number and station appears highlighted. Recalling a Station Select a band (if needed). Touch an on-screen preset button (6) to select the corresponding stored station. 87.5 90.1 98.1 106.1 107.9 102.9 Auto Store (AS/PS) To select six strong stations and store them in the current band: Select a band (if needed).
-
Page 26: Satellite Radio Operation
VM9022 SATELLITE RADIO OPERATION 13. CAT -: Select previous channel in current category only Touch the preset number in which you would like to 14. Touch to enter channel directly using keypad on screen store the current station (or press EXIT to cancel and Listeners can subscribe to XM®... - Page 27 VM9022 01:02 SAT1 CH001 XM Preview Preview ######## 001 XM Preview 004 The 40s 005 The 50s 006 The 60s 007 The 70s DIAG Title: www.xmradio.com • While in Search Mode, to switch between Channel and Category search modes, press the CH or CAT buttons on the touch screen.
-
Page 28: Dvd/Vcd Video Operation
VM9022 DVD/VCD VIDEO OPERATION Controlling Playback Repeat Playback Press the RPT button (19) on the control panel, the RPT NOTE: When properly installed, DVD video cannot be To access the on-screen controls, touch the screen. Touch displayed on the main TFT screen unless the parking the 1/2 button to view a second page of controls button (7) on the remote control, or the button on screen... -
Page 29: Moving Through Chapters
VM9022 Press the Enter (joystick) button to confirm your selection To exit the screen without making a selection, touch Exit. To information on the screen, including the media playing and and begin playback. You can also select a title using the clear your entry and start over, touch Clear. -
Page 30: General Disc Information
VM9022 General Disc Information Table 4: Disc Properties Symb Max Play 12cm Disc Properties Time (MPEG 2 Single side single layer (DVD-5) Method) Single side double layer (DVD-9) 133 minutes Double side single layer (DVD-10) 242 minutes Double side double layer (DVD-18) 266 minutes 484 minutes (MPEG 1... -
Page 31: Dvd/Cd Audio Operation
VM9022 DVD/CD AUDIO OPERATION Instructions for TFT control and Insert/Eject are the same for Current track and total number of tracks on disc Repeat Playback DVD and CD operation. Please see the DVD/Disc Video Elapsed playing time/length of track Touch the button on screen, press the RPT button on the Operation section for information about these topics. -
Page 32: Direct Track Entry
VM9022 Direct Track Entry To select a track directly, touch the button on screen to display the direct entry menu. TRACK: _ _ / ## Exit Clear Enter the desired track number using the on-screen number pad, and then press the Enter (arrow) button. To exit the screen without making a selection, touch Exit. -
Page 33: Mp3/Wma Operation
VM9022 MP3/WMA OPERATION Instructions for TFT control and Insert/Eject are the same for Loading an SD Card MP3 Playing Order DVD and MP3 operation. Please see the DVD/Disc Video When selected for play, files and folders (Folder Search, File To Insert an SD card, you must first press the OPEN button Operation section for information about these topics. - Page 34 VM9022 MP3 User Interface 17. Touch to view the SOURCE MENU and select a new Random Play Select playback source Press the RDM button (33) on the remote control to play the The on-screen indicators and touch key areas for MP3 18.
-
Page 35: Ipod Operation
VM9022 iPod OPERATION iPod User Interface front panel or remote control (8) until the iPod menu appears select video media to be displayed on the TFT monitor. To on the screen. exit PHOTO mode, touch the screen. The on-screen indicators and touch key areas for iPod playback are outlined below. -
Page 36: Bluetooth Operation
VM9022 BLUETOOTH OPERATION About Bluetooth • To ensure the best conversation quality/performance, Current connection status/device connected stay within one meter of the head unit when talking. Current time Bluetooth is a short-range wireless radio connectivity • To “disconnect” the mobile phone from the head unit, Bluetooth menu technology that is developed as a cable replacement for turn the Bluetooth connectivity off on the mobile phone. -
Page 37: Call Transfer
VM9022 Pairing the Bluetooth System with Call Transfer To end the conversation, press the button. The screen will Your Mobile Phone and Head Unit display the call duration for 3 seconds, and then return to the While talking, to transfer audio from the head unit back to the previous mode. -
Page 38: Bluetooth Setup
VM9022 Touch to highlight the number you want to dial and then • A2DP: Stream audio from your Bluetooth compatible audio player and listen to the music through your touch the button. VM9022. Play/pause, song selection, etc. are not possible. NOTE: Some mobile phones do not support Phone Book •... -
Page 39: Troubleshooting
VM9022 TROUBLESHOOTING Table 6: Troubleshooting Problem Cause Corrective Action GENERAL Unit will not power on Radio Fuse blown Install new fuse with correct rating Car battery fuse blown Install new fuse with correct rating Illegal operation Press the RESET button located in the bottom right corner of the front panel Remote control does not function Battery depleted Replace battery with new one... -
Page 40: Error Messages
VM9022 Table 6: Troubleshooting Problem Cause Corrective Action Disc does not play back Disc is warped or scratched Use disc in good condition Disc is dirty or wet Clean disc with soft cloth Laser pickup is dirty Clean laser pickup with cleaning disc Incompatible disc is used Use compatible disc Disc rating exceeds Parental Lock rating limit... -
Page 41: Care And Maintenance
VM9022 Care and Maintenance Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and non- neutral detergent (such as alcohol) may result in scratching or discoloration. Do not get water or cleaning fluids on the unit. If the temperature inside the player gets too hot, a protective circuit automatically stops play of the disc. -
Page 42: Specifications
VM9022 SPECIFICATIONS Fuse: 20-Amp, Mini ATM Type DVD/CD Player Compatible Disc Media: DVD + R / RW (Single and Dual DIN Chassis Dimensions: 7" X 7" X 4" (178mm x 178mm x Layer) and CD-R / RW 100mm) Compatible Formats: CD-DA, MP3, WMA, VCD, SVCD, AVI, CEA Power Ratings MPEG 2, XviD, DivX and Kodak picture CD (JPEG). -
Page 43: Limited Warranty
Limited Warranty DO NOT RETURN THIS PRODUCT TO THE STORE CD or Multimedia Radios/Headunits Audiovox Electronics Corporation (“the Company”) is committed to Limitations quality and customer service, and are pleased to offer you this THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY Warranty. - Page 44 Audiovox Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.jensen.com © 2007 Audiovox Ver. 081607 Printed in China...
