Hyundai H-CD7002 Instruction Manual

Portable vcd/cd/mp3 player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

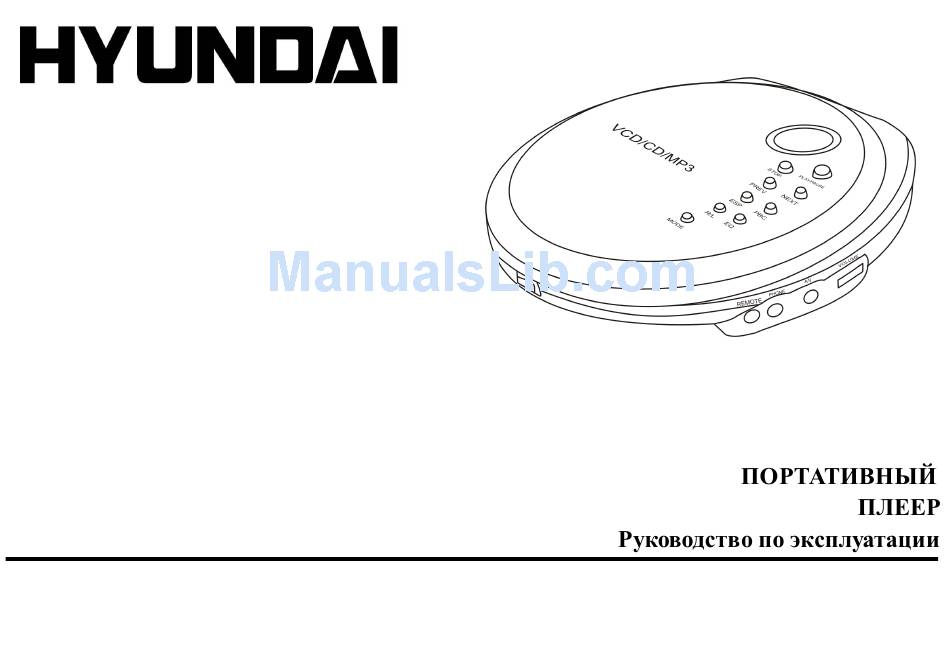

H- CD7002
PORTABLE
VCD/CD/MP3 PLAYER
VCD/CD/MP3
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CD7002

Summary of Contents for Hyundai H-CD7002

  • Page 1 H- CD7002 PORTABLE VCD/CD/MP3 PLAYER VCD/CD/MP3 Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ............................2 Important safeguards .............................3 Function................................

  • Page 3: Important Safeguards

    Important safeguards CAUTION THE PLAYER HAS A LOW POWER LASER DEVICE. THE LASER RADIATION IS INVISIBLE. AND LOOKING AT IT STRAIGHT MAY INJURE YOUR EYES! SO PLEASE OPERATE THE PLAYER ACCORDING TO THIS USER S MANUAL. AVOID EXPOSURE LASER BEAM! THE PLAYER S POWER WILL TURN OFF WHEN THE COVER IS OPENED.

  • Page 4: Function

    This can result in condensation inside the system and cause serious damage to the machine. Wait around two hours to allow it to reach room temperature. Function · Battery Energy Saving Function: Video Output is automatically shut off when playing VCD disc with batteries.

  • Page 5: Accessories

    Accessories Please check if the following accessories are accompanied with: 1. Unit 1 pc 2. AC Adaptor 1 pc 3. A/V Cable 1 pc 4. Wireless remote control 1 pc 5. Earphones 1 pc 6. Manual 1 pc 7. Wired control 1 pc Preparation The unit is shipped with a dummy CD transit card inside the CD compartment.
  • Page 6 If wired control is needed, connect the terminals of wired control with PHONE jack on the unit, then connect the terminal of earphone with PHONE jack on the wired control. If wired control with LCD is needed, connect the terminals of wired control with PHONE Jack and REMOTE jack, then connect the terminal of earphone with PHONE jack on the wired control.
  • Page 7 Caution of dry battery · Please adopt heavy-duty alkaline battery. · DON T recharge a dry battery. · DON T use rechargeable battery and dry battery at the same time. · DON T use a new battery and a used one at the same time. ·...

  • Page 8: Illustration Of Player S Operation

    Illustration of player s operation 1. LCD 2. PLAY button 3. PAUSE button 4. NEXT/FF button 5. VOL+ / VOL - 6. AUDIO/VIDEO jack 7. Phone jack 8. Remote jack for wired control with LCD 9. EQ button 10. Open switch 11.

  • Page 9: Wired Control

    Wired control Introducing the buttons and jacks of the wired control: 1. PREV 2. ESP 3. NEXT 4. LCD 5. STOP 6. VOL - 7. PLAY/PAUSE 8. EARPHONE JACK 9. VOL + 10. HOLD Note: · The operations of the buttons on Wired control are as same as buttons on Panel of the unit.

  • Page 10: Introduction Of Lcd

    Introduction of LCD 1. CD: Appears the when playing disc is CD. 2. VCD: appears when the playing disc is VCD. 3. MP3: appears when the playing disc is MP3. 4. REP: indicates the repeat mode (repeat one or repeat all). 5.
  • Page 11 120-129 130-139 140-149 150-159 160-169 170-179 180-189 190-199 200-209 210-219 220-229 Etc. 8. Indicates the track s playing time (minute: second). 9. Indicates the status of anti-shock.

  • Page 12: How To Operate

    How to operate 1. Play/pause Press the button and the unit will begin to play the disk. Pressing it again will pause the playing. Note: · To power on the device press the PLAY button on the unit. The PLAY button on the wired control cannot power on the device.
  • Page 13 5. FF/FB Playing CD or VCD, keep pressing PREV or NEXT button for reading the disc fast backward or fast forward, and release the button for normal playing. 6. Repeat playing At playing state, press the MODE button to switch REPEAT ONE , REPEAT ALL and CANCEL REPEAT .
  • Page 14 · Intro Playing Mode At stop state (with power on), press MODE button two times, then press PLAY/PAUSE button and unit will play in INTRO mode: play every song s first 10 seconds (In MP3 playing, this function is disable). At this time press PLAY/PAUSE button again to resume normal playing.
  • Page 15 When Playing VCD with batteries, video output is shut off automatically. Keeping pressing EQ button for 3 seconds to turn the video output on. 10. Volume control Press VOL+ or VOL- button to control volume. 11. Audio output select Press R/L button repeatedly to cycle audio output mode with Stereo Left Channel Right Channel Stereo.

  • Page 16: Remote Control

    Remote control 1. DIGITAL KEY 1-10 17. MUTE 2.VIEW. 18. ZOOM 3. RESUME 19. NEXT 4. OSD 20. PREV 5. STEP 21. N/P 6. VOL - 22. STOP 7. VOL + 23. BATTERY PROTECTOR 8. FB 9. FF 10. R/L 11.PLAY/PAUSE 12.
  • Page 17 1. Digital key When playing continuously Mode is selected and pressing a Digital Button (1-10) on Remote control to play the selected song directly. If playing VCD in Menu, the Digital Button is available only when the Menu is shown on TV. Pressing a Digital Button to start playing the selected song.
  • Page 18 5. Step In playing VCD, press the STEP button for step playing. 6. Volume control Adjust volume by pressing VOL+ button for increasing and VOL- button for decreasing. 7. FF/FB When playing VCD, press FF/FB button and FF/FB Mode is selected. It includes four classes: ×1×2×3×4. Press FF/FB button five times or press PLAY/PAUSE for normal Playing.
  • Page 19 12. Return In menu playing mode (PBC on), press the button for returning to menu. In continues Playing Mode (PBC off), press the button to 9 PICTURES VIEW . 13. Repeat In playing state, press the button for repeat one songs, repeat all songs or cancel repeat play. 14.
  • Page 20 18. P/N Press for selection the video output mode between PAL NTSC. 19. Power off: This product turn the power off automatically if the following occur: - At stop state with no button pressed over 10 seconds or - The upper cover has been opened over 4 seconds or - At stop state, press STOP button again.

  • Page 21: Handling Compact Discs

    Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·...

  • Page 22: Troubleshooting Guide

    Troubleshooting guide Trouble Reason How to solve Check if Audio Cable is connected Audio Cable is not connected properly. No Audio Output properly. Set TV or amplifier TV set or amplifier is wrong. properly Video Cable is not connected properly. The Check if Video Cable is connected No Video Output AV of TV set is not selected...
  • Page 23 stopped and audio out continues to be played. 1.There is something between Remote 1. Remove something between Control and Unit. Remote Control and Unit. Infrared Remote 2.Remote control does not face the receiver 2. Make Remote Control face to the Control doesn t on Unit.

  • Page 24: Specification

    Specification Channel: 2 (left / right and stereo) Frequency Response: 20~20kHz ±3dB L / R unbalance: 1.5dB Sample frequency: 44.1 kHz Power: DC 4.5V, 600mA Temp. range: 0~40 º Anti-shock: CD: 40 seconds Channel Isolation: 70dB MP3: 120 seconds S/N: 80dB Wow.
  • Page 25 ..............................25 ..........................26 ...............................27 ..............................28 ...........................29 .............................32 ............................33 ............................36 ......................40 ..................33 ........................45 ..............................46 .....................47 ........................50...
  • Page 26 · · ·...
  • Page 27 · · · · · · · · MP3/VCD/DVCD/CD/CD-R/CD-RW...
  • Page 28 · - MP3 120 - CD 40 · · · PAL/NTSC · · · ·...
  • Page 29 OPEN PHONE CD/AUX INPUT VIDEO VIDEO PHONE PHONE PHONE REMOTE , PHONE...
  • Page 30 · OPEN , · 2 AA · · · · · · · · · ·...
  • Page 31 : 4,5 , , 600 ·...
  • Page 32 / FF EQ ( / FB ESP (« »)
  • Page 33 2. ESP ·...
  • Page 34 1. CD 2. VCD VCD; 3. MP3 MP3; 4. REP 5. PROG ·...
  • Page 35 ( XX 1 99 100-109 110-119 120-129 130-139 140-149 150-159 160-169 170-179 180-189 190-199 200-209 210-219 220-229...
  • Page 36 PREV NEXT PREV NEXT 5.FF/FB PREV NEXT...
  • Page 37 MODE REPEAT ONE ), REPEAT ALL ( CANCEL REPEAT ( HOLD ON , « », MP3 « » · MODE, PLAY/PAUSE, MODE PLAY/PAUSE , PLAY/PAUSE...
  • Page 38 · MODE PROG PLAYING MODE . PREV NEXT MODE PLAY/PAUSE , VCD, PLAY/PAUSE PROG.. ESP. · : PAL NTSC. · : STANDARD CLASSICALITY ROCK AND ROLL JAZZ POPULARITY STANDARD, EQ off EQ4 , « »...
  • Page 39 · VOL+ VOL- -> ->...
  • Page 40 1-10 4. OSD ( 6. VOL- 7. VOL + 21. P / N 8. FB 9. FF 10. R/L 13. PBC (0-10) select 10+...
  • Page 41 PLAY/PAUSE OSD. STEP VOL+ VOL-...
  • Page 42 7. FF/FB FF/FB , FF/FB. : ×1 ×2 ×3 ×4. FF/FB PLAY/PAUSE 8. R/L R/L, PLAY/PAUSE PAUSE PLAY. TIME. « ». 11. PBC...
  • Page 43 (PBC (PBC 9 PICTURES VIEW ( SLOW : 1/2, 1/4, 1/8, 1/16. PLAY/PAUSE Next Prev...
  • Page 44 PREV/NEXT PREV NEXT 18.P/N NTSC. STOP.
  • Page 45 · · · · · · · ·...
  • Page 49 "HOLD" "HOLD".
  • Page 50 : 2 ( : 20~20 ± : 44,1 : 4.5 , , 600 : 0~40 º : CD: 40 MP3: 120 S/N: : 10 ): 140×130×24 : 1. : 5 90%(...
