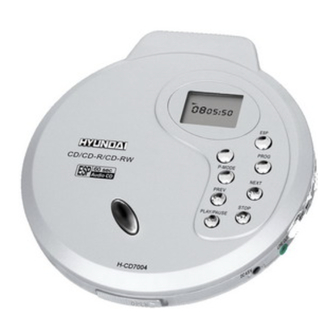

H- CD7004
POPTABLE CD PLAYER
CD
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CD7004 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai H-CD7004

Summary of Contents for Hyundai H-CD7004

  • Page 1 H- CD7004 POPTABLE CD PLAYER Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents..............................2 Important safeguards ..............................

  • Page 3: Important Safeguards

    Important safeguards CAUTION THE PLAYER HAS A LOW POWER LASER DEVICE. THE LASER RADIATION IS INVISIBLE. AND LOOKING AT IT STRAIGHT MAY INJURE YOUR EYES! SO PLEASE OPERATE THE PLAYER ACCORDING TO THIS USER S MANUAL. AVOID EXPOSURE TO THE LASER BEAM! THE PLAYER S POWER WILL TURN OFF WHEN THE COVER IS OPENED.

  • Page 4: Accessories

    · AC adaptor will power the player automatically when the adaptor and dry batteries are used at the same time. · Don t use AC adaptor that is supplied not by our company because it may cause damage. · Do not connect the player to the power supply if you have just moved it from a cold to a warm environment. This can result in condensation inside the system and cause serious damage to the machine.

  • Page 5: Preparation

    Preparation 1. Listening with earphones Connect the plug the stereo earphones into the phones Jack (on the side of set) DO NOT PLUG THE EARPHONES INTO THE AUX OUT JACK! Caution: · Hearing experts advise against exposure to continuous extended play at loud volume levels while using earphones, possible hearing loss may result.
  • Page 6 3. Power supply This player requires 2 AA size batteries to start operation if not by AC adaptor 4. Inserting the batteries · Open the battery cover by softly pushing " open ". · Insert batteries according to " + " or "-" polarities. ·...
  • Page 7 Cautions: · Pull out AC: DC adaptor or remove the battery in the player when it is not in use for a long time. Do not use the adaptor of other brands or it the same time with the battery. ·...

  • Page 8: Illustration Of Player S Operation

    Illustration of player s operation 1. LCD DISPLAY 13. PREV 2. ESP 14. P. MODE 3. PROG 4. NEXT 5. EARPHONE OUT 6. HOLD SWITCH 7. VOLUME 8. LINE OUT 9. DC 4.5V JACK 10. STOP 11. OPEN SWITCH 12. PLAY/PAUSE...

  • Page 9: How To Operate

    How to operate 1. Playing a disc 1.Plug the cord from the headphones into the phones jack on the right side of set. 2.Slide the door open button to open the CD door. 3.Hold the disc with LABEL SIDE UP and press it onto the spindle until it "Clicks" into place. 4.Close the CD door (it will latch shut), press the play button ("power On), the disc will begin to spin, the display will show the total tracks and total playing time Then it will begin playing track number 1 and the display will show "01 ".
  • Page 10 Notes: · Do not plug the headphones into the Aux Out Jack. The sound will be very low and the volume control will not work. · Display will show the dash inside the basket flashes, reminding that you are in the ESP mode.
  • Page 11 4. Forward and backward track search (or changing songs) Press the Search Button during play to go to the desired track. - search forward - search backward Press the search button to skip to the next track on the disc. Press the search button to the beginning of the track currently playing.
  • Page 12 6. Auto power off function The power turns off automatically when all tracks on a disc have been played or 30 seconds after the Stop Button is pressed to stop play. The power turns off immediately after the CD Door is opened (The display will show track &...
  • Page 13 The digital data equivalent lo approximately of music is stored in " read-ahead " memory buffer before it is decoded and played. The mark changes to the mark indicating that the data buffer (basket) is full. When the set is subject to a shock or a bump during play, the data stored in memory continues to be decoded and played.
  • Page 14 · If during ESP play, you press Pause, or Search buttons, the memory basket will empty itself temporarily. 8. Repeat play a) Repeat play-single track Plays one song over and over till you press Stop. During play press the P-Mode Button once the symbol REPEAT is display. The song currently playing will repeat over and over until you press stop To stop repeat play, press the "P-Mode"...
  • Page 15 9. Intro play This plays the first 10 seconds of all songs in sequential order: 1. During play, press the P-Mode Button till the word INTRO flash in the display 2. Press PLAY/PAUSE buttons, the word INTRO will stop flashing and the first 10 seconds of each song on the CD will play and then the set will stop.
  • Page 16 Programming example Program number Track number During programming, the word PROGRAM will flash in the display. To play in your preferred order, follow steps below: 1. Press the Program button. 2. Press the search button to select track number, for example 3. 3.

  • Page 17: Wired Controller

    Wired controller 1. Location of controls 1- play/pause 2- stop/off 3- search button (forward) 4- volume button 5- hold button 6- search button (backward) 7- earphone jack 2. How to use Wired Controller Illustration for how to connect Wired Controller Note: ·...

  • Page 18: Handling Compact Discs

    Handling compact discs · This set is desired to play only compact discs bearing this identification logo (logo must say DIGITAL AUDIO). Other discs may not conform to the CD standard and may not play properly. · Dirty, scratched or warped discs may cause skip ping or noise. ·...
  • Page 19 2. Cleaning the lens A dirty lens will cause sound skipping. If the lens is very dirty, the play work Open the CD door and clean the lens as follows: a) Dirty or dry particles on the lens. Using a camera lens brush/blower, blow on the lens a few times, then wipe it lightly with the brush to remove dust.

  • Page 20: Troubleshooting Guide

    Troubleshooting guide Trouble Reason How to solve Tracks Replace both batteries with fresh alkaline Batteries too weak (they may test OK change or set does batteries. Battery life with fresh batteries is on the tester but they are weak). not play normally. about 12 hours.
  • Page 21 Disc inserted incorrectly. Re-insert disc with label wide facing up. Defective compact disc Try another compact disc CD door not closed Close lid security Disc will not play. Moisture has formed inside the CD Take out the CD and leave the CD door open deck.

  • Page 22: Specification

    Specification Frequency resumes, Hz 20-20000 Channels: 2 (L+R stereo) Cross talk: 60 dB S / N: 70 dB Vibration: Minimal Reading: 10 sec R /L balance: 1.5 dB Sampling: 44.1 kHz Power: DC 4.5 V 600 mA Humidity: 0-40 º C Size: 146 x 134 x 24 mm...
  • Page 23 ................................23 ............................24 ................................25 ...........................26 ..............................29 ..............................30 ....................40 ..........................41 ................................42 ....................44 ..........................47...
  • Page 24 · · ·...
  • Page 25 · · · ·...
  • Page 26 PHONE ( AUX! · (3.5 RCA, CD/AUX · · AUX.
  • Page 27 · Open . · · · ·...
  • Page 28 · · · · · ·...
  • Page 29 2. ESP 4.5 , 14. .
  • Page 30 CD ( «01». ESP ( Stop.
  • Page 31 , 30 Stop. · AUX. · ESP. · NO DISK , · ·...
  • Page 32 · PLAY...
  • Page 33 · Hold Off .
  • Page 34 ESP - « » 60 ESP ( ESP. ESP. ESP. « »...
  • Page 35 ESP plus ESP. ESP. ·...
  • Page 36 · · ESP, -Mode REPEAT. P-Mode REPEAT. P-Mode , REPEAT ALL.
  • Page 37 P-Mode , REPEAT ALL. P-Mode , INTRO. PLAY/PAUSE, INTRO PLAY, INTRO P-Mode SHUFF. PLAY/PAUSE,...
  • Page 38 PROGRAM. PROG.. PROG..
  • Page 39 PLAY, PROGRAM PROGRAM ). · ·...
  • Page 40 ·...
  • Page 41 · · · · · ·...
  • Page 45 AUX). AUX. AUX) ESP.
  • Page 46 ESP. OFF. HOLD . HOLD .
  • Page 47 20-20000 S/N: 44.1 4.5 , , 600 0 40 146 134 24...
