Hyundai H-CD7011 Instruction Manual

Portable vcd/mp3/cd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H-CD7011
PORTABLE
VCD/MP3/CD PLAYER
VCD/MP3/CD
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CD7011 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai H-CD7011

Summary of Contents for Hyundai H-CD7011

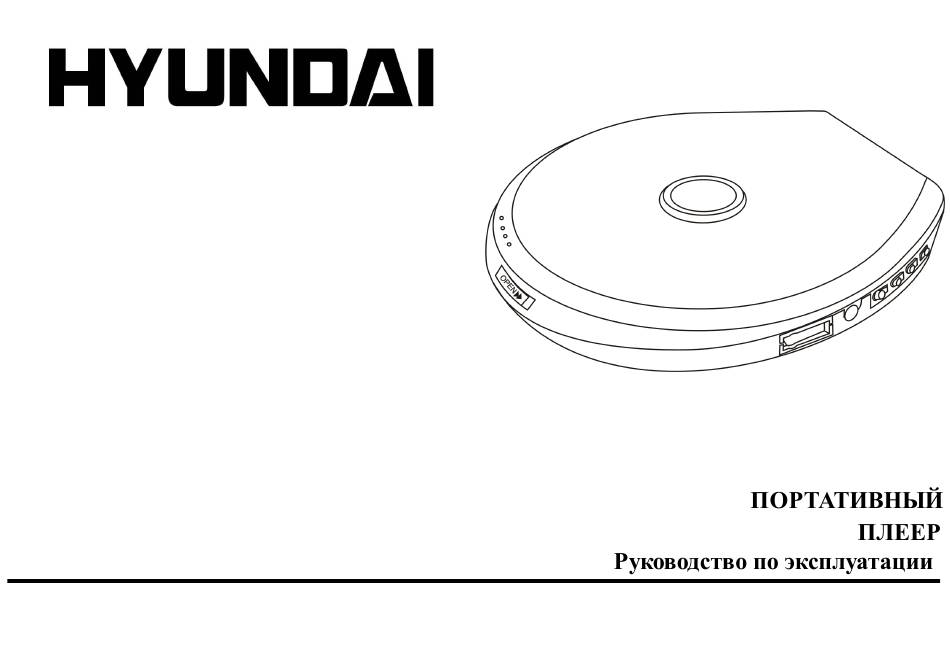

  • Page 1 H-CD7011 PORTABLE VCD/MP3/CD PLAYER VCD/MP3/CD Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ............................2 Important safeguards .............................3 Function................................

  • Page 3: Important Safeguards

    Important safeguards CAUTION THE PLAYER HAS A LOW POWER LASER DEVICE. THE LASER RADIATION IS INVISIBLE. AND LOOKING AT IT STRAIGHT MAY INJURE YOUR EYES! SO PLEASE OPERATE THE PLAYER ACCORDING TO THIS USER S MANUAL. AVOID EXPOSURE TO THE LASER BEAM! THE PLAYER S POWER WILL TURN OFF WHEN THE COVER IS OPENED.

  • Page 4: Function

    This can result in condensation inside the system and cause serious damage to the machine. Wait around two hours to allow it to reach room temperature. Function · Battery Energy Saving Function: Video Output is automatically shut off when playing VCD disc with batteries.

  • Page 5: Accessories

    Accessories Please check if the following accessories are accompanied with: 1. Unit 1 pc 2. AC Adaptor 1 pc 3. A/V Cable 1 pc 4. Wireless remote control 1 pc 5. Earphones 1 pc 6. Manual 1 pc 7. Wired control 1 pc 8.
  • Page 6 1. How To Connect Connect one terminal of Audio cable with PHONE jack on the unit and the other with Jack of CD/AUX INPUT or Audio Jack of TV set. When playing VCD, connect one terminal of Video cable with VIDEO Jack on the unit and the other with VIDEO Jack of TV set or one of any type of monitor.
  • Page 7 2. Power supply The player needs to be powered by 2 Ni-MH batteries or AC adaptor. 3. Inserting the batteries into the unit · Open the upper cover of the player, press the cover of battery compartment marking OPEN , push it up and open the cover of battery compartment.
  • Page 8 · Remove all the batteries when the player will be left unused for a long time. · In case of leakage of batteries, clean battery compartment before inserting new batteries. · Always observe local environmental laws on waste batteries. 4. How to recharge rechargeable batteries ·...
  • Page 9 5. How to use AC adaptor The player has AC adaptor, which is for indoor use. Please connect AC adaptor with the player and then put AC adaptor in AC socket to use AC adaptor. The output power and polarity of the AC adaptor is shown as below: Output: 4.5V DC, 600mA Positive Negative...

  • Page 10: Illustration

    Illustration 1. CD COVER 2. PREV 3. STOP 4. PLAY/PAUSE 5. VIDEO OUT 6. EARPHONE/WIRED-CONTROLLER JACK 7. OPEN SWITCH 8. EXTRA-BATTERY JACK 9. DC 4.5V JACK 10. NEXT 11. HOLD SWITCH...

  • Page 11: Wired Control

    Wired control Introducing the buttons and jacks of the wired control: 1. PREV 2. ESP 3. NEXT 4. LCD 5. STOP 6. VOL - 7. PLAY/PAUSE 8. EARPHONE JACK 9. VOL + 10. HOLD Note: · The operations of the buttons on Wired control are as same as buttons on Panel of the unit.

  • Page 12: Introduction Of Lcd

    Introduction of LCD 1. CD: Appears the when playing disc is CD. 2. VCD: appears when the playing disc is VCD. 3. MP3: appears when the playing disc is MP3. 4. REP: indicates the repeat mode (repeat one or repeat all).
  • Page 13 120-129 130-139 140-149 150-159 160-169 170-179 180-189 190-199 200-209 210-219 220-229 Etc. 8. Indicates the track s playing time (minute: second). 9. Indicates the status of anti-shock.

  • Page 14: How To Operate

    How to operate 1. Play/pause Press the button and the unit will begin to play the disk. Pressing it again will pause the playing. 2. Stop Pressing the button will stop the playing and press it again to turn the power off (at charge off state). 3.
  • Page 15 6. Hold Slide the HOLD Switch to ON position and all the buttons on the player or on the wired controller will be disable, this may avoid influence by mistaking pressing buttons. Note: · The HOLD Switch on player can not lock buttons on wired controller, and vice versa. ·...
  • Page 16 directory is flashing on LCD. You can select desired directory by pressing PREV or NEXT button, and the player will play the first song of the selected directory automatically. 9. How to select playing mode · Random Playing Mode At stop state (with power on), press ESP button one time, then press PLAY/PAUSE button, the player will play the disc in a random way.
  • Page 17 Note: · When playing MP3, PROG playing can select songs of the first directory only). 10. Audio Mode Select At playing state, pressing MUTE button on wireless remote control repeatedly, and the audio output of the player will be changed as the following mode: STANDARD (EQ OFF) CLASSICALITY ROCK AND ROLL JAZZ POPULARITY, it is corresponding to EQ1 to EQ4 and EQ OFF , showing on LCD.

  • Page 18: Remote Control

    Remote control 1. DIGITAL KEY 1-10 14. RETURN 2.VIEW 15. REPEAT 3. RESUME 16. SLOW 4. OSD 17. MUTE 5. STEP 18. ZOOM 6. VOL - 19. NEXT 7. VOL + 20. PREV 8. FB 21. P/N 9. FF 22. STOP 10.
  • Page 19 1. Digital key When playing continuously Mode is selected and pressing a Digital Button (1-10) on Remote Controller to play the selected song directly. If playing VCD in Menu, the Digital Button is available only when the Menu is shown on TV. Pressing a Digital Button to start playing the selected song.
  • Page 20 4. OSD In playing VCD, the track and its playing time and the disc format is shown on TV s upper-left corner. Press OSD button, the volume level and upper information will be show on TV, and press button again for OSD cancel.
  • Page 21 9. Play/pause At stop state (with power on), press PLAY/PAUSE button to start playing disk. Press the button again for scanning between PAUSE PLAY. 10. Time Press TIME button and is shown on TV screen. Input time with minute:second (It must be lesser than the total time of the disk or track), the unit will play the disk at the spot what you selected.
  • Page 22 14. Slow When playing VCD, press SLOW button for slow playing. It has 4 classes: 1/2, 1/4, 1/8, 1/16. Press SLOW button five times or press PLAY/PAUSE button for normal playing. 15. Mute This function is combined with EQ, press it repeatedly to scan as following: Mute Mute off Standard Classicality Rock and Roll Jazz Popularity Mute.
  • Page 23 17. Prev/next In normal playing mode, press the PREV/NEXT button for playing the previous track or next track. When the unit is playing the 1st track, if pressing the PREV button, the unit will play the last track of the disk. At this time, if pressing the NEXT button it will play the 1st track.
  • Page 24 on the battery tray). - Push the battery tray in the battery compartment. Notes: · Some functions of Remote Controller can be used only in playing VCD. · Before using remote controller, please pull out the BATTERY PROTECTOR.

  • Page 25: Handling Compact Discs

    Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·...

  • Page 26: Troubleshooting Guide

    Troubleshooting guide Trouble Reason How to solve Check if Audio Cable is connected Audio Cable is not connected properly. No Audio Output properly. Set TV or amplifier TV set or amplifier is wrong. properly Video Cable is not connected properly. The Check if Video Cable is connected No Video Output AV of TV set is not selected...
  • Page 27 stopped and audio out continues to be played. 1.There is something between Remote 1. Remove something between Control and Unit. Remote Controller and Unit. Infrared Remote 2.Remote Control does not face the 2. Make Remote Control face to the Control doesn t receiver on Unit.

  • Page 28: Specification

    Specification Frequency Response: 20~20kHz ±3dB Channel: 2 (left / right and stereo) L / R unbalance: 1.5dB Sample frequency: 44.1 kHz Power: DC 4.5V, 600mA Temp. range: 0~40 ºC Anti-shock: CD: 60 seconds Channel Isolation: 65dB MP3: 120 seconds VCD: 0 seconds S/N: 75dB Wow.
  • Page 29 ................................29 ............................30 ..............................31 ................................32 ...........................33 ..............................37 ....................38 ..........................39 ..............................41 ........................45 ..........................51 ................................52 ....................53 ..........................56...
  • Page 30 · · ·...
  • Page 31 · · · · · · · · MP3/VCD/DVCD/CD/CD-R/CD-RW · - MP3 120 - CD 60 - VCD 0 ·...
  • Page 32 · · · · · ·...
  • Page 33 OPEN PHONE CD/AUX INPUT VIDEO VIDEO PHONE PHONE PHONE , PHONE...
  • Page 34 2 Ni-MH OPEN 2 Ni-MH · · · · ·...
  • Page 35 · · · · · · · PLAY/PAUSE , · PLAY/PAUSE C ON , · STOP · PLAY/PAUSE C OFF · ·...
  • Page 36 : 4,5 , , 600 ·...
  • Page 37 4.5 ,...
  • Page 38 2. ESP ·...
  • Page 39 1. CD 2. VCD VCD; 3. MP3 MP3; 4. REP 5. PROG ·...
  • Page 40 ( XX 1 99 100-109 110-119 120-129 130-139 140-149 150-159 160-169 170-179 180-189 190-199 200-209 210-219 220-229...
  • Page 41 PREV NEXT 4.FF/FB PREV NEXT REPEAT REPEAT ONE ( ), REPEAT ALL ( CANCEL REPEAT (...
  • Page 42 HOLD ON , · · HOLD PLAY HOLD HOLD HOLD PLAY. « », MP3 « » ESP , Directory number . PREV NEXT PLAY/PAUSE...
  • Page 43 ESP, PLAY/PAUSE, PLAY/PAUSE , PLAY/PAUSE PROG PLAYING MODE . PREV NEXT PLAY/PAUSE , VCD, PLAY/PAUSE PROG.. ·...
  • Page 44 : STANDARD (EQ OFF) CLASSICALITY ROCK AND ROLL JAZZ POPULARITY, EQ off - EQ4 , VOL+ VOL-...
  • Page 45 1-10 4. OSD ( 6. VOL- 7. VOL + 8. FB 9. FF 10. R/L 13. PBC 21. P / N...
  • Page 46 (0-10) select 10+ PLAY/PAUSE OSD.
  • Page 47 «STEP» VOL+ VOL- 7. FF/FB FF/FB , FF/FB. : ×1 × 2 × FF/FB PLAY/PAUSE 8. R/L PLAY/PAUSE PAUSE PLAY. TIME. « ».
  • Page 48 11. PBC (PBC (PBC 9 PICTURES VIEW ( SLOW : 1/2, 1/4, 1/8, 1/16. PLAY/PAUSE...
  • Page 49 Next Prev PREV/NEXT PREV NEXT 18.P/N NTSC. STOP.
  • Page 50 · ·...
  • Page 51 · · · · · ·...
  • Page 55 "HOLD" "HOLD".
  • Page 56 : 2 ( : 20~20 ± : 44,1 : 4.5 , , 600 : 0~40 : CD: 60 MP3: 120 VCD: 0 S/N: : 10 ): 140×130×18 : 1. : 5 90%(...
