Hyundai H-CD7012 Instruction Manual

Portable vcd/mp3/cd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H-CD7012
PORTABLE
VCD/MP3/CD PLAYER
VCD/MP3/CD
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CD7012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai H-CD7012

Summary of Contents for Hyundai H-CD7012

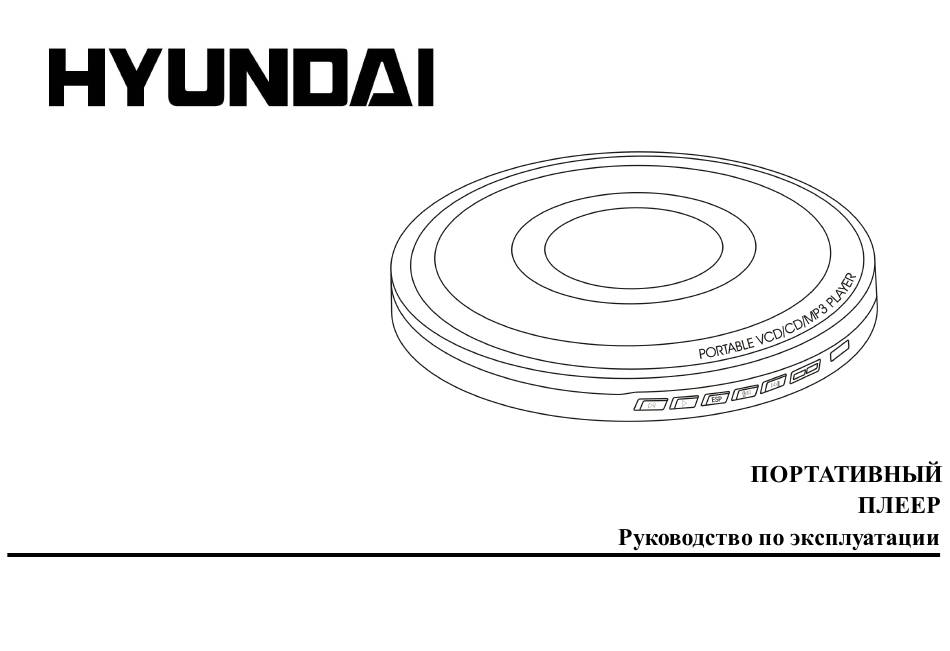

  • Page 1 H-CD7012 PORTABLE VCD/MP3/CD PLAYER VCD/MP3/CD Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..............................2 Important safeguards............................

  • Page 3: Important Safeguards

    Important safeguards CAUTION THE PLAYER HAS A LOW POWER LASER DEVICE. THE LASER RADIATION IS INVISIBLE. AND LOOKING AT IT STRAIGHT MAY INJURE YOUR EYES! SO PLEASE OPERATE THE PLAYER ACCORDING TO THIS USER S MANUAL. AVOID EXPOSURE TO LASER BEAM! THE PLAYER S POWER WILL TURN OFF WHEN THE COVER IS OPENED.

  • Page 4: Function

    environment. This can result in condensation inside the system and cause serious damage to the machine. Wait around two hours to allow it to reach room temperature. Function · Battery Energy Saving Function: Video Output is automatically shut off when playing VCD disc with batteries.

  • Page 5: Accessories

    Accessories Please check if the following accessories are accompanied with: 1. Unit 1 pc 2. AC Adaptor 1 pc 3. A/V Cable 1 pc 4. Wireless remote control 1 pc 5. Earphones 1 pc 6. Manual 1 pc 7. Wired control 1 pc 8.
  • Page 6 1. How To Connect Connect one terminal of Audio cable with PHONE jack on the unit and the other with Jack of CD/AUK INPUT or Audio Jack of TV set. When playing VCD, connect one terminal of Video cable with VIDEO Jack on the unit and the other with VIDEO Jack of TV set or one of any type of monitor.
  • Page 7 2. Power supply The player needs to be powered by 2 Ni-MH batteries or AC adaptor. 3. Inserting the batteries into the unit · Open the upper cover of the player, press the cover of battery compartment marking OPEN , push it up and open the cover of battery compartment.
  • Page 8 4. How to recharge rechargeable batteries · Insert rechargeable batteries into battery compartment. · Connect AC adapter with the product. · Place a disc in the player and press PLAY/PAUSE button to playback the disc. · When the disc is playing, keep press the PLAY/PAUSE button over 3 second, C ON will show on LCD. It means beginning to recharge batteries.
  • Page 9 5. How to use AC adaptor The player has AC adaptor, which is for indoor using. Please connect AC adaptor with the Player and then put AC adaptor in AC socket to use AC adaptor. The output power and polarity of the AC adaptor is shown as below: Output: 4.5V DC, 600mA Positive Negative...

  • Page 10: Illustration

    Illustration 1. OPEN SWITCH 10. CD COVER 2. REMOTE RECEIVER 11. EXTRA-BATTERY IN 3. MODE 12. DC 4.5V IN 4. EQ 13. VIDEO OUT 5. NEXT 14. EARPHONE/WIRED- 6. PREV CONTROLLER JACK 7. ESP 15. HOLD SWITCH (on the back) 8.

  • Page 11: Wired Control

    Wired control Introducing the buttons and jacks of the wired control: 1. PREV 2. ESP 3. NEXT 4. LCD 5. STOP 6. VOL - 7. PLAY/PAUSE 8. EARPHONE JACK 9. VOL + 10. HOLD Note: The operations of the buttons on Wired control are as same as buttons on panel of the unit.

  • Page 12: Introduction Of Lcd

    Introduction of LCD 1. CD: Appears the when playing disc is CD. 2. VCD: appears when the playing disc is VCD. 3. MP3: appears when the playing disc is MP3. 4. REP: indicates the repeat mode (repeat one or repeat all). 5.
  • Page 13 120-129 130-139 140-149 150-159 160-169 170-179 180-189 190-199 200-209 210-219 220-229 Etc. 8. Indicates the track s playing time (minute: second). 9. Indicates the status of anti-shock.

  • Page 14: How To Operate

    How to operate 1. Play/pause Press the button and the unit will begin to play the disk. Pressing it again will pause the playing. 2. Stop Pressing the button will stop the playing and press it again to turn the power off (at charge off state). 3.
  • Page 15 6. Repeat playing At playing state, you can select REPEAT ONE , REPEAT ALL and CANCEL REPEAT by pressing the MODE button. 7. Hold Slide the HOLD switch to ON position and all the buttons on the player or on the wired control will be disable, this may avoid influence by mistaking pressing buttons Note: ·...
  • Page 16 9. Directory select When playing MP3, keep pressing ESP button for 3 seconds to get into directory selection mode, the playing directory is flashing on LCD. You can select desired directory by pressing PREV or NEXT button, and the player will play the first song of the selected directory automatically. 10.
  • Page 17 Note: · When MP3 Playing, press ESP button to turn over to the next table of content. 11. Video System Select When Playing VCD, press ESP button for 3 seconds to select video output system: PAL NTSC. 12. Audio Mode Select At playing state, pressing EQ button repeatedly, and the audio output of the player will be changed as the following mode: STANDARD (EQ OFF) CLASSICALITY ROCK AND ROLL JAZZ POPULARITY,...

  • Page 18: Remote Control

    Remote control 1. DIGITAL KEY 1-10 15. REPEAT 2.VIEW 16. SLOW 3. RESUME 17. MUTE 4. OSD 18. ZOOM 5. STEP 19. NEXT 6. VOL - 20. PREV 7. VOL + 21. N/P 8. FB 22. STOP 9. FF 23. BATTERY PROTECTOR 10.
  • Page 19 1. Digital key When playing continuously Mode is selected and pressing a Digital Button (1-10) on Wireless remote contol to play the selected song directly. If playing VCD in Menu, the Digital Button is available only when the Menu is shown on TV. Pressing a Digital Button to start playing the selected song.
  • Page 20 5. Step In playing VCD, press the STEP button for step playing. 6. Volume control Adjust volume by pressing VOL+ button for increasing and VOL- button for decreasing. 7. FF/FB When playing VCD, press FF/FB button and FF/FB Mode is selected. It includes four classes: ×1×2×3×4. Press FF/FB button five times or press PLAY/PAUSE for normal Playing.
  • Page 21 12. Return In menu playing mode (PBC on), press the button for returning to menu. In continues Playing Mode (PBC off), press the button to 9 PICTURES VIEW . 13. Repeat In playing state, press the button for repeat one song, repeat all songs or cancel repeat play. 14.
  • Page 22 17. Prev/next In normal playing mode, press the PREV/NEXT button for playing the previous track or next track. When the unit is playing the 1st track, if pressing the PREV button, the unit will play the last track of the disk. At this time, if pressing the NEXT button it will play the 1st track.

  • Page 23: Handling Compact Discs

    Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·...

  • Page 24: Troubleshooting Guide

    Troubleshooting guide Trouble Reason How to solve Check if Audio Cable is connected Audio Cable is not connected properly. No Audio Output properly. Set TV or amplifier TV set or amplifier is wrong. properly Video Cable is not connected properly. The Check if Video Cable is connected No Video Output AV of TV set is not selected...
  • Page 25 Video output is stopped and audio The quality of the disc is poor. Replace the disc with a new one out continues to be played. 1.There is something between Wireless 1. Remove something between remote control and Unit. Wireless remote control and Unit. Wireless remote 2.Wireless remote control does not face the 2.

  • Page 26: Specification

    Specification Channel: 2 (left / right and stereo) Frequency Response: 20~20kHz ±3dB L / R unbalance: 1.5dB Sample frequency: 44.1 kHz Power: DC 4.5V, 600mA Temp. range: 0~40 ºC Anti-shock: CD: 60 seconds Channel Isolation: 65dB MP3: 120 seconds VCD: 0 seconds S/N: 75dB Wow.
  • Page 27 ..............................27 ..........................28 ...............................29 ..............................30 ...........................31 .............................34 ..................35 ..........................36 ............................38 ......................42 ........................48 ..............................49 ....................50 ........................53...
  • Page 28 · · ·...
  • Page 29 · · · · · · · · MP3/VCD/DVCD/CD/CD-R/CD-RW · - MP3 120 - CD 60 - VCD 0...
  • Page 30 · · · PAL/NTSC · · · · ·...
  • Page 31 OPEN PHONE CD/AUX INPUT VIDEO VIDEO PHONE PHONE PHONE , PHONE...
  • Page 32 Ni-MH · OPEN , · 2 Ni-MH · · · · · · · ·...
  • Page 33 · · · · · PLAY/PAUSE , · PLAY/PAUSE C ON , · STOP · · PLAY/PAUSE C OFF ·...
  • Page 34 : 4,5 , , 600 · 4. EQ ( 7. ESP (« ») 4.5 ,...
  • Page 35 2. ESP...
  • Page 36 1. CD 2. VCD VCD; 3. MP3 MP3; 4. REP 5. PROG ·...
  • Page 37 ( XX 1 99 100-109 110-119 120-129 130-139 140-149 150-159 160-169 170-179 180-189 190-199 200-209 210-219 220-229...
  • Page 38 PREV NEXT PREV NEXT 5.FF/FB PREV NEXT...
  • Page 39 MODE REPEAT ONE ( ), REPEAT ALL ( CANCEL REPEAT ( HOLD ON , · HOLD · HOLD PLAY HOLD HOLD HOLD PLAY. « », MP3 « »...
  • Page 40 ESP , Directory number . PREV NEXT PLAY/PAUSE · MODE, PLAY/PAUSE, · MODE PLAY/PAUSE , PLAY/PAUSE · MODE PROG PLAYING MODE . PREV NEXT MODE PLAY/PAUSE , VCD, PLAY/PAUSE PROG..
  • Page 41 : PAL NTSC. : STANDARD (EQ OFF) CLASSICALITY ROCK AND ROLL JAZZ POPULARITY, EQ off - EQ4 , VOL+ VOL-...
  • Page 42 1-10 4. OSD ( 6. VOL- 21. P / N 7. VOL + 8. FB 9. FF 10. R/L 13. PBC...
  • Page 43 (0-10) select 10+ PLAY/PAUSE OSD.
  • Page 44 «STEP» VOL+ VOL- 7. FF/FB FF/FB , FF/FB. : ×1 × 2 × FF/FB PLAY/PAUSE 8. R/L R/L, PLAY/PAUSE PAUSE PLAY. TIME. « ».
  • Page 45 11. PBC (PBC (PBC 9 PICTURES VIEW ( SLOW : 1/2, 1/4, 1/8, 1/16. PLAY/PAUSE...
  • Page 46 Next Prev PREV/NEXT PREV NEXT 18.P/N NTSC. STOP.
  • Page 47 · ·...
  • Page 48 · · · · · ·...
  • Page 52 "HOLD" "HOLD".
  • Page 53 : 2 ( : 20~20 ± : 44,1 : 4.5 , , 600 : 0~40 : CD: 60 MP3: 120 VCD: 0 S/N: : 10 ): 140×130×18 : 1. : 5 90%(...
