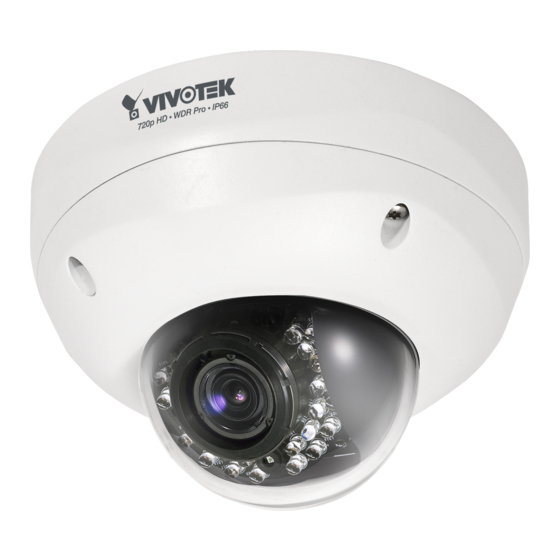

Page 1 FD8335H Fixed Dome Network Camera User’s Manual 720P HD • P-Iris • WDR Pro IP66 Vandal-proof Rev. 1.0...
Page 2: Table Of Contents
Ready to Use �� 19 Completion �� 20 �� Accessing the Network Camera Using Web Browsers �� 21 Using RTSP Players �� 24 Using 3GPP-compatible Mobile Devices �� 25 Using VIVOTEK Recording Software �� 26 �� Main Page �� Client Settings �� Configuration System >...
Page 3 VIVOTEK Technical Specifications �� 195 Technology License Notice �� 196 Electromagnetic Compatibility (EMC) �� 197 User's Manual - 3...
Page 4: Overview
This function enables the FD8335H to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more� The P-iris lens controls the iris with extreme precision;...
Page 5: Read Before Use
Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server� Package Contents ■ FD8335H ■ Mounting Plate ■ Alignment sticker/Ceiling Hole Template Sticker ■ L-type Hex key wrench / Moisture absorber / Screws / Hex Nut / Double-side tape / AV cable ■...
Page 6: Physical Description
VIVOTEK Physical Description Inner View Lens IR LEDs (18 units, effective up to 15m) Black Cover Tilt Adjustment Screw Focus Assist Button Micro SD/SDHC Card Slot Jumpers Reset Button Video Output Microphone NTSC Internal 60Hz Audio/Video Out External 50Hz (green)
Page 7 VIVOTEK DI/DO Diagram Please refer to the following illustration for the connection method� PIN 8 Power+12V PIN 7 Digital output +12V PIN 3 Digital input PIN 6 DI-: Common Ground NOTE: The maximum output load from pins #7 & 8 is 50mA.
Page 8 VIVOTEK Hardware Reset Recessed Reset Button The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation� If the system problems remain after reset, restore the factory settings and install again�...
Page 9: Installation
VIVOTEK Installation Removing Dome Cover First, use the included T20 hex key wrench to loose the four screws and detach the dome cover from the camera base� Follow the steps below to install the camera either to a ceiling or a wall�...
Page 10 VIVOTEK Waterproof Connector Sealing Nut (A) Housing (B) Seals (C) Seal (D) Screw Nut (E) Hex Nut (F) Assembling Steps 1� Disassemble the components of the Refer to the pin definition to connect them waterproof connector into parts (A) ~ (F) to the general I/O terminal block.
Page 11 VIVOTEK Connecting RJ45 Ethernet Cable RJ45 Cable Dimension (unit: mm) Recommended cable gauge: 24AWG (0.51 mm) Assembling Steps Rubber Seal 1� Drill a hole on the rubber seal Plug plug and insert an Ethernet ca- ble through the opening� 2� Strip part of the sheath from the Ethernet cable�...
Page 12 VIVOTEK IMPORTANT! Record the MAC address under the camera base before installing the camera� Tips: Replace the side opening cover with the included side outlet bushing if you want to route cables from the side of camera� The 1/2" protection conduits and tubing, if applied, are separately purchased�...
Page 13: Wall Mount
VIVOTEK Wall mount 1� Attach the supplied alignment sticker to the wall� 2� Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the wall� Then hammer the four supplied plastic anchors into the holes�...
Page 14: Ceiling Mount
VIVOTEK Ceiling mount 1� Attach the supplied alignment sticker to the ceiling� 2� Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the ceiling� Then hammer the four supplied plastic anchors into the holes�...
Page 15: Network Deployment
VIVOTEK Network Deployment General Connection (without PoE) Non-PoE Switch Pin 2 Black Pin 1 AC 24V±10% Ethernet 1� Connect RJ45 Ethernet cable to a switch� 2� Connect the AC cables from the terminal Use a Category 5 Cross Cable when your block as an alternate power source�...
Page 16 VIVOTEK When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch� PoE Power Injector (optional) Non-PoE Switch 16 - User's Manual...
Page 17 VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below� 1� Connect your Network Camera behind a router, the Internet environment is illustrated below�...
Page 18: Software Installation
After your network environment is analyzed, please click Next to continue the program� 3� The program will search for all VIVOTEK network devices on the same LAN� 4� After a brief search, the installer window will prompt� Click on the MAC and model name that matches the one printed on the product label�...
Page 19: Ready To Use
VIVOTEK Ready to Use 1� A browser session with the Network Camera should prompt as shown below� 2� You should be able to see live video from your camera� You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras� For its installation details, please refer to its related documents�...
Page 20: Completion
VIVOTEK To adjust the zoom factor and focus range 1� Loosen the zoom controller and then adjust zoom factor by moving the controller left and right� Upon completion, tighten the zoom controller screw� 2� Loosen the focus controller and then adjust focus range by moving the controller left and right�...
Page 21: Accessing The Network Camera
3� The live video will be displayed in your web browser� 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below� Follow the instructions to install the required plug-in on your computer�...
Page 22 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 75�...
Page 23 VIVOTEK IMPORTANT! • Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser� • If you encounter this problem, try execute the Iexplore.exe program from C:\ Windows\SysWOW64. A 32-bit version of IE browser will be installed.
Page 24: Using Rtsp Players
VIVOTEK Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player 1� Launch the RTSP player� mpegable Player 2�...
Page 25: Using 3Gpp-Compatible Mobile Devices
VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 15�...
Page 26: Using Vivotek Recording Software
Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com� 26 - User's Manual...
Page 27: Main Page
VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window� Resize Buttons VIVOTEK INC. Host Name...
Page 28 VIVOTEK Focus Assist_ There are two options for you to fine-tune the camera focus. You can either connect the camera to an analog display device, camera tester, or adjust the focus through networking� Please follow the steps below: Focus Assist Button AV Out ■...
Page 29 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 32� Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
Page 30 VIVOTEK Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available. Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP (*�bmp) format�...
Page 31 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time 2011/02/25 17:08:56 Video (HTTP-V) Title and Time Video 17:08:56 2011/06/25 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 75�...
Page 32: Client Settings
VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings� H.264 / MPEG-4 Media Options H.264/MPEG-4 Media Options...
Page 33: Mp4 Saving Options
VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here, you can specify the storage destination and file name. Folder: Specify a storage destination for the recorded video files.
Page 34: Configuration
Click Configuration on the main page to enter the camera setting pages� Note that only Administrators can access the configuration page. VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users�...
Page 35: System > General Settings
VIVOTEK Advanced Mode Navigation Area Configuration List Click to switch to Basic Mode Firmware Version Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode � If you want to set up advanced...
Page 36 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off�...
Page 37: System > Homepage Layout
Theme Options (the second tab on this page)� The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo at the top of your homepage�...
Page 38 VIVOTEK Theme Options Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings�...
Page 39 VIVOTEK ■ Follow the steps below to set up the customed homepage: 1� Click Custom on the left column� 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3� The palette window will pop up as shown below�...
Page 40: System > Logs
VIVOTEK System > Logs Advanced Mode This section explains how to configure the Network Camera to send the system log to a remote server as backup� Log server settings Follow the steps below to set up the remote log: 1� Select Enable remote log�...
Page 41: System > Parameters
VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order� The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit�...
Page 42: System > Maintenance
Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2� Click Browse… and specify the firmware file.
Page 43 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings� Network: Select this option to retain the Network Type settings (please refer to Network Type on page 57)� Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
Page 44 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST� When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
Page 45 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 � Update custom language file: Click Browse… and specify your own custom language file to upload.
Page 46: Security > User Account
VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts� Root Password The administrator account name is “root”, which is permanent and can not be deleted� If you want to add more accounts in the Manage User column, please apply the password for the “root”...
Page 47: Security > Https (Hypertext Transfer Protocol Over Ssl)
VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level�...
Page 48 VIVOTEK 5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the ad- dress bar and press Enter on your keyboard� Some Security Alert dialogs will pop up� Click OK or Yes to enable HTTPS�...
Page 49 VIVOTEK Create certificate and install : Select this option if you want to create a certificate from a certification authority. 1� Select this option from a method pull-down menu� 2� Click Create certificate to generate the certificate. 3� The following information will appear in a pop-up window after clicking Create� If you see the following Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups�...
Page 50 VIVOTEK 4. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate. 5. Copy the contents of the Certificate request (in PEM format). Use the contents to apply for a 3rd-party certification authority such as Symantec VeriSign.
Page 51 VIVOTEK NOTE: NOTE ► How do I cancel the HTTPS settings? 1� Click on the Remove certificate button� 2� If you are currently running a secure connection The webpage will redirect to a non-HTTPS page automatically� Enable HTTPS Check this item to enable HTTPS communication, then select a connection option: "HTTP &...
Page 52: Security > Access List
VIVOTEK Security > Access List Advanced Mode This section explains how to control access permission by verifying the client PC’s IP address� General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2)� The default value is 10� If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player)�...
Page 53 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access� Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player)�...
Page 54 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List�...
Page 55 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request� ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS� Please follow the steps below to enable 802.1x settings: 1�...
Page 56 VIVOTEK 3� When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802�1x enabled switch� The devices will then start the authentication automatically� NOTE: ► The authentication process for 802.1x: 1� The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server)�...
Page 57: Network > General Settings
Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1� You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN� Please refer to Software Installation on page 18 for details�...
Page 58 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses�...
Page 59 VIVOTEK NOTE: NOTE ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera� ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 60 VIVOTEK 4� In the Networking Services dialog box, select Universal Plug and Play and click OK� 5� Click Next in the following window� 6� Click Finish� UPnP is enabled� ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 61 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings� Please note that this only works if your network environment and hardware equipment support IPv6� The ® browser should be Microsoft Internet Explorer 6�5, Mozilla Firefox 3�0 or above�...
Page 62 VIVOTEK Please follow the steps below to link to an IPv6 address: 1� Open your web browser� 2� Enter the link-global or link-local IPv6 address in the address bar of your web browser� 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4�...
Page 63 VIVOTEK Port HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535� Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535�...
Page 64 To stop talking, click again� FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535�...
Page 65: Network > Streaming Protocols
VIVOTEK Network > Streaming protocols Advanced Mode HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 75 for details� Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
Page 66 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1 or 2> For example, when the Access name for stream 2 is set to video2�mjpg: 1� Launch Mozilla Firefox or Netscape� 2� Type the above URL command in the address bar� Press Enter�...
Page 67 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted�...
Page 68 VIVOTEK Multicast settings for stream 1 & 2: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for stream 1 or 2� Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address�...
Page 69 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device� One URL can only be mapped to one MAC address�...
Page 70 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers� It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
Page 71 4� Select Enable DDNS and click Save to enable the setting� ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...
Page 72 VIVOTEK Network > QoS (Quality of Service) Advanced Mode Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network� Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications.
Page 73 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer)� The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint)� This is a 6-bit field that provides 64 different class IDs�...
Page 74: Network > Snmp (Simple Network Management Protocol)
VIVOTEK Network > SNMP (Simple Network Management Protocol) Advanced Mode This section explains how to use the SNMP on the network camera� The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices� It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 75: Media > Image
VIVOTEK Media > Image Advanced Mode This section explains how to configure the image settings of the Network Camera� It is composed of the following four columns: General settings, Picture settings, Exposure, and Privacy mask� General settings Show information in videos and snapshots Timestamp and video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below�...
Page 76 VIVOTEK Day/Night Settings Switch to B/W in night mode Select this to enable the Network Camera to automatically switch to Black/White during night mode� Turn on external IR illuminator in night mode Select this to turn on an external IR illuminator (connected via Digital Output lines) when the camera detects low light condition and enters the night mode�...
Page 77 VIVOTEK Preference On this page, you can tune the White balance, Image adjustment and WDR enhanced � Sensor Setting 1: For normal situations Sensor Setting 2: For special situations White balance: Adjust the value for the best color temperature. ■ You may follow the steps below to adjust the white balance to the best color temperature.
Page 78 VIVOTEK WDR: This function allows users to identify more details of objects in the high contrast environment especially for details in the shaded area� You may check Enable WDR checkbox, and then adjust the sensitivity (low, high) and the strength (low, medium, high) to reach the best image quality�...
Page 79 VIVOTEK Measurement Window: This function allows user to set measurement window(s) for low light compesation� ■ Full view: Calculate the full range of view and offer appropriate light compesation� ■ Custom: This option allows you to manually add a specific window as a measuring area. The measuring window refers to “weighted window“...
Page 80 VIVOTEK You can click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the settings� If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile of exposure settings page as shown below.
Page 81 VIVOTEK Advanced Mode Privacy mask Click Privacy Mask to open the settings page� On this page, you can block out sensitive zones to address privacy concerns� 2010/12/09 17:08:56 2010/12/09 17:08:56 ■ To set the privacy mask windows, follow the steps below: 1�...
Page 82: Media > Video
VIVOTEK Media > Video Advanced Mode Stream settings This Network Camera supports multiple streams with frame size ranging from 300 x 200 to 1280 x 800� The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Rate" (size of the live view window)�...
Page 83: Media > Video
VIVOTEK Media > Video NOTE: ► All the items in the “Region of Interest” should not be larger than the “Output Frame Size“ (current maximum resolution)� ■ The parameters of the multiple streams: Region of Interest Output frame size Stream 1...
Page 84 VIVOTEK Click the stream item to display the detailed information� The maximum frame size will follow your settings in the above Viewing Window sections� This Network Camera offers real-time H�264, MPEG-4 (Stream #2) and MJPEG compression standards H.264 / MPEG-4 (Triple Codec) for real-time viewing�...
Page 85 VIVOTEK The frame rate will decrease if you select a higher resolution� ■ Intra frame period Determine how often to plant an I frame� The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
Page 86 VIVOTEK JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip� Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage� Because the media contents are a combination of JPEG images, no audio data is transmitted to the client�...
Page 87: Media > Audio
VIVOTEK Media > Audio Advanced Mode Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
Page 88: Ptz > Ptz Settings
VIVOTEK PTZ > PTZ settings Advanced Mode This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation� There are two ways to enable the function: 1. Digital: Control the e-PTZ operation. It allows users to quickly move the focus to a target area for close-up viewing without moving the camera physically�...
Page 89 VIVOTEK Auto pan/patrol speed: Select the speed from 1~5 (slow/fast) to set up the Auto pan/patrol speed control� When completed with the e-PTZ settings, click Save to enable the settings on this page� Home page in E-PTZ Mode 2010/12/10 17:08:56 x3.3...
Page 90 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol� Please follow the steps below to set up a patrol schedule: 1� Select the preset locations on the list, and click � 2� The selected preset locations will be displayed on the Patrol locations list�...
Page 91 VIVOTEK Home page in the e-PTZ Mode The Preset positions will also be displayed on the home page� Select one from the Go to drop-down list, and the Network Camera will move to the selected preset position� Patrol button: Click this button, then the Network Camera will patrol among the selected preset positions continuously�...
Page 92: Event > Event Settings
VIVOTEK Event > Event settings Advanced Mode This section explains how to configure the Network Camera to responds to particular situations (event)� A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications� Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices�...
Page 93 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this option to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
Page 94 VIVOTEK ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with� To enable this function, you need to configure the Tampering Detection option first. Please refer to page 108 for detailed information�...
Page 95 VIVOTEK Add server To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the Add server media files to) when a trigger is activated.
Page 96 VIVOTEK To verify if the email settings are correctly configured, click Test� The result will be shown in a pop-up window� If successful, you will also receive an email indicating the result� Click Save server to enable the settings� Note that after you set up the first event server, the new event server will automatically display on the Server list�...
Page 97 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests� If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
Page 98 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated� Please refer to NAS server on page 112 for details� Click Save server to enable the settings� ■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If you want to use your SD card for local storage, please format it before use�...
Page 99 VIVOTEK Click 20110220 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2011/02/20 2011/02/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
Page 100 VIVOTEK Add media Add media Click to open the media setting window� You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
Page 101 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20101213_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings�...
Page 102 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. ■ File name prefix Enter the text that will be appended to the front of the file name. For example: Video_20101213_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings�...
Page 103 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action� When completed, click Save event to enable the settings and click Close to exit Event Settings page�...
Page 104 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt� If you need more information, please contact VIVOTEK technical support� Click to upload a file...
Page 105: Applications > Motion Detection
VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. 2010/12/10 17:08:56 Motion Detection Setting 1: For normal situations Motion Detection Setting 2:...
Page 106 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below�...
Page 107 VIVOTEK NOTE NOTE: ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images� Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting� Sensitivity is a value that expresses the sensitivity to moving objects�...
Page 108: Applications > Di And Do
VIVOTEK Applications > DI and DO Advanced Mode Connect DI or DO devices to the camera's terminal block, the camera will automatically detect the current connection state as pulled-high or pulled-low� You may then define the triggering condition� Digital input: Select High or Low to define the "active state" for the digital input. The Network Camera will report the current status�...
Page 109: Recording > Recording Settings
VIVOTEK Recording > Recording settings Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: NOTE ► Please remember to format your SD card when using it for the first time. Please refer to page 114 for detailed information�...
Page 110 VIVOTEK If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidths and storage space�...
Page 111 VIVOTEK 2� Destination You can select the SD card or network storage (NAS) for the recorded video files. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1� Fill in the information for your server�...
Page 112 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3� Enter a server name� 4� Click Save to complete the settings and click Close to exit the page� ■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording�...
Page 113 VIVOTEK To remove a recording setting from the list, select a recording name from the drop-down list and click Delete� ■ Click Video (Name): Opens the Recording Settings page to modify. ■ Click (Status): The Status will become and stop recording�...
Page 114: Local Storage > Sd Card Management
VIVOTEK Local storage > SD card management Advanced Mode This section explains how to manage the local storage on the Network Camera� Here you can view SD card status, and implement SD card control� SD card staus This column shows the status and reserved space of your SD card� Please remember to format the SD card when using for the first time.
Page 115: Local Storage > Content Management
VIVOTEK Local storage > Content management Advanced Mode This section explains how to manage the content of recorded videos on the Network Camera� Here you can search and view the records and view the searched results� Searching and Viewing the Records This column allows the user to set up search criteria for recorded data�...
Page 116: Search Results
VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked� Click to sort the search results in either direction� Enter a key word to filter the Numbers of entries displayed...
Page 117 VIVOTEK ■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording� You can click again to unlock the selections� For example: Click to switch pages ■...
Page 118: Appendix
VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax� This section specifies the external HTTP-based application programming interface�...
Page 119: General Cgi Url Syntax And Parameters
VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory.
Page 120 VIVOTEK [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be returned.
Page 121: Set Server Parameter Values
(Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n...
Page 122: Available Parameters On The Server
VIVOTEK <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n 7. Available parameters on the server...
Page 123 VIVOTEK everything inside <> A description integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server. text SQLite data type. The value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE).
Page 124 VIVOTEK timezoneindex -489 ~ 529 Indicate timezone and area. -480: GMT-12:00 Eniwetok, Kwajalein -440: GMT-11:00 Midway Island, Samoa -400: GMT-10:00 Hawaii -360: GMT-09:00 Alaska -320: GMT-08:00 Las Vegas, San_Francisco, Vancouver -280: GMT-07:00 Mountain Time, Denver -281: GMT-07:00 Arizona -240: GMT-06:00 Central...
Page 125 VIVOTEK Budapest, Bern 80: GMT 02:00 Athens, Helsinki, Istanbul, Riga 81: GMT 02:00 Cairo 82: GMT 02:00 Lebanon, Minsk 83: GMT 02:00 Israel 120: GMT 03:00 Baghdad, Kuwait, Riyadh, Moscow, St. Petersburg, Nairobi 121: GMT 03:00 Iraq 140: GMT 03:30 Tehran...
Page 126 VIVOTEK Solomon Is., New Caledonia 480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka, Marshall Is. 520: GMT 13:00 Nuku'Alofa daylight_enable <boolean> Enable automatic daylight saving time in time zone. daylight_dstactualmode <boolean> Check if current time is under daylight saving time. (Used internally)
Page 127 VIVOTEK This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results. restoreexceptdst Restore the system <positive parameters to default values integer>...
Page 128 Subgroup of system: info (The fields in this group are unchangeable.) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) modelname string[40] FD8335H Internal model name of the server (eg. IP7139) extendedmodelname string[40] FD8335H ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to “modelname”...
Page 129 VIVOTEK 7.2 status Group: status NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) di_i<0~(ndi-1)> <boolean> 0 => Inactive, normal 1 => Active, triggered (capability.ndi > 0) do_i<0~(ndo-1)> <boolean> 0 => Inactive, normal 1 => Active, triggered (capability.ndo > 0) daynight day, night <product...
Page 130 VIVOTEK 7.4 digital output behavior define Group: do_i<0~(ndo-1)> (capability.ndo > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate open, open Indicate open circuit or grounded closed circuit (inactive status) 7.5 security Group: security NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) privilege_do...
Page 131 VIVOTEK 7.6 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preproces <positive <blank> An 32-bit integer, each bit can be set separately integer> as follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service; Bit 3 => Two way audio and RTSP Streaming service;...
Page 132 VIVOTEK address> dns1 <ip <blank> Primary DNS server. address> dns2 <ip <blank> Secondary DNS server. address> wins1 <ip <blank> Primary WINS server. address> wins2 <ip <blank> Secondary WINS server. address> 7.6.1 802.1x Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0) NAME...
Page 133 VIVOTEK 7.6.2 QOS Subgroup of network: qos_cos (capability.protocol.qos.cos > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS (capability.naudioout > 0) eventalarm...
Page 134 VIVOTEK 7.6.4 FTP Subgroup of network: ftp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 21, 1025~65535 Local ftp server port. 7.6.5 HTTP Subgroup of network: http NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 80, 1025 ~ HTTP port. 65535 alternateport...
Page 135 VIVOTEK 7.6.7 RTSP Subgroup of network: rtsp (capability.protocol.rtsp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 554, 1025 ~ RTSP port. 65535 (capability.protocol.rtsp=1) anonymousviewing <boolean> Enable anoymous streaming viewing. authmode disable, disable RTSP authentication mode. basic, (capability.protocol.rtsp=1) digest s0_accessname <boolean>...
Page 136 VIVOTEK 7.6.8 SIP port Subgroup of network: sip (capability.protocol.sip> 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 1025 ~ 65535 5060 SIP port. 7.6.9 RTP port Subgroup of network: rtp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) videoport 1025 ~ 65535 5556 Video channel port for RTP.
Page 137: Video Input
VIVOTEK 0 => allow 1 => deny ipv4list_i<0~9> Single address: <blank> IPv4 address list. <ip address> Network address: <ip address / network mask> Range address:<start ip address - end ip address> ipv6list_i<0~9> String[44] <blank> IPv6 address list. 7.8 Video input...
Page 138 VIVOTEK Bit 2 => Support pan operation; 0(not support), 1(support) Bit 3 => Support tilt operation; 0(not support), 1(support) Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support) text string[16] <blank>...
Page 139 VIVOTEK ptzstatus <integer> A 32-bit integer, each bit can be set separately as follows: Bit 0 => Support camera control function; 0(not support), 1(support) Bit 1 => Built-in or external camera; 0 (external), 1(built-in) Bit 2 => Support pan operation; 0(not support), 1(support) Bit 3 =>...
Page 140 VIVOTEK 100 is percentage mode. s<0~(m-1)>_mpeg 1~31 Manual video quality level input. 4_qvalue (s<0~(m-1)>_mpeg4_quant = s<0~(m-1)>_mpeg 1~100 Manual video quality level input. 4_qpercent (s<0~(m-1)>_mpeg4_quant = 100) s<0~(m-1)>_mpeg 1000~16000000 4000000 Set bit rate in bps when 4_bitrate choosing cbr in “ratecontrolmode”.
Page 141 VIVOTEK input setting. 1 = worst quality, 5 = best quality. 100 is percentage mode. s<0~(m-1)>_mjpeg 2~97 Manual video quality level input. _qvalue (s<0~(m-1)>_mjpeg_quant = s<0~(m-1)>_mjpeg 1~100 Manual video quality level input. _qpercent (s<0~(m-1)>_mjpeg_quant = 100) s<0~(m-1)>_mjpeg 1~30 Set maximum frame rate in fps _maxframe (for JPEG).
Page 142 VIVOTEK 0 : 2x 1 : 4x 2 : 8x 3 : 16x 4 : 32x 5 : 64x whitebalance auto, manual auto “auto” indicates auto white balance. “manual” indicates keep current value. piris_response P-Iris response time piris_position 0~50 P-Iris position.
Page 143 VIVOTEK 2: high maxgain Max gain: 0 : 2x 1 : 4x 2 : 8x 3 : 16x 4 : 32x 5 : 64x 7.10 IR cut control Group: ircutcontrol (capability.nvideoinprofile > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode...
Page 144 VIVOTEK 7.11 Image setting per channel Group: image_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5~5 Adjust brightness of image according to mode settings. saturation -5~5 Adjust saturation of image according to mode settings. contrast -5~5...
Page 145 VIVOTEK image according to mode settings. profile_i0_gammacurve 0,45,50,60,70,80,90,100 Gamma curve profile_i0_lowlightmode <boolean> Enable/disable low light mode. 7.12 Image setting for preview Group: imagepreview_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5~5 Adjust brightness of image according to mode settings.
Page 146 VIVOTEK 7.13 Exposure window setting per channel Group: exposure_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode auto, custom auto The mode indicates how to decide the exposure. auto: Use full view as the only one exposure window.
Page 147: Motion Detection Settings
VIVOTEK 7.14 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mute 0, 1 Enable audio mute. gain 1,5,9,13,17,21,25, Gain of input. 29,33,37,41,45,49, (audioin_c<0~(n-1)>_source 53,57,61 = linein) s<0~(m-1)>_codectyp aac4, gamr, g711 aac4 Set audio codec type for input.
Page 148 VIVOTEK position. win_i<0~2>_width 0 ~ 320 Width of motion detection window. win_i<0~2>_height 0 ~ 240 Height of motion detection window. win_i<0~2>_objsize 0 ~ 100 Percent of motion detection window. win_i<0~2>_sensitivity 0 ~ 100 Sensitivity of motion detection window. Group: motion_c<0~(n-1)> profile for m profile and n channel product (capability.nmotionprofile > 0)
Page 149 VIVOTEK i<0~(m-1)>_win_i<0~2>_objsize 0 ~ 100 Percent of motion detection window. i<0~(m-1)>_win_i<0~2>_sensitivity 0 ~ 100 Sensitivity of motion detection window. 7.16 Tempering detection settings Group: tampering_c<0~(n-1)> for n channel product (capability.tampering > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean>...
Page 150 VIVOTEK ernameemail the DDNS service provider <provider>_pa string[64] <blank> Your password or key to login to the sswordkey DDNS service provider. <provider>_se string[128] <blank> The server name for safe100. rvername (This field only exists if the provider is customsafe100) 7.18 Express link...
Page 151: System Log
VIVOTEK 7.21 System log Group: syslog NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enableremotelog <boolean> Enable remote log. serverip <IP address> <blank> Log server IP address. serverport 514, Server port used for log. 1025~65535 level Levels used to distinguish the importance of the...
Page 152 Hyperlink of the logo w.vivotek.c logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrigger_s <boolean> Show or hide manual trigger (VI) button in homepage 0 -> Hidden 1 -> Visible...
Page 153: Privacy Mask
VIVOTEK 4: Custom definition. theme_color_font string[7] #ffffff Font color theme_color_configfont string[7] #ffffff Font color of configuration area. theme_color_titlefont string[7] #098bd6 Font color of video title. theme_color_controlbackgroun string[7] #565656 Background color of control area. theme_color_configbackground string[7] #323232 Background color of configuration area.
Page 154 VIVOTEK 7.25 Capability Group: capability NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) api_httpversion <string> 0100a The HTTP API version. bootuptime <positive Server bootup time. integer> Number of IR interfaces. <positive (Recommand to use ir for integer> built-in IR and extir for...
Page 155 VIVOTEK nuart Number of UART interfaces. <positive integer> nvideoinprofile <positive Number of video input integer> profiles. nmotionprofile 0, <positive Number of motion profiles. integer> ptzenabled 0, <positive An 32-bit integer, each bit integer> can be set separately as follows: Bit 0 => Support camera control function;...
Page 156 VIVOTEK lens_focus, len_iris. 0(fields are valid), 1(fields are invalid) evctrlchannel <boolean> Indicate whether to support HTTP tunnel for event/control transfer. joystick <boolean> Indicate whether to support joystick control. storage_dbenabled <boolean> Media files are indexed in database. ptzenabledclient <boolean> Indicate whether to support...
Page 157 VIVOTEK 1 => Progressive CCD 2 => CMOS videoin_resolution <a list of 176x144, Available resolutions list. available 320x240, resolution 640x480, separated by 1280x720, commas> 1280x800 videoin_maxframerate <a list of Available maximum frame available list. maximum frame rate separated by commas>...
Page 158 VIVOTEK httptunnel client. camctrl_privilege <boolean> Indicate whether to support “Manage Privilege” of PTZ control in the Security page. 1: support both /cgi-bin/camctrl/camctrl.cgi /cgi-bin/viewer/camctrl.cgi 0: support only /cgi-bin/viewer/camctrl.cgi uart_httptunnel <boolean> Indicate whether to support HTTP tunnel for UART transfer. transmission_mode Indicate transmission mode...
Page 159 VIVOTEK true, the VVTK product can be upgraded to VVXX. (TCVV<->TCXX is excepted) npreset 0, <positive Number of preset locations integer> eptz 0, <positive A 32-bit integer, each bit integer> can be set separately as follows: Bit 0 => stream 1 supports ePTZ or not.
Page 160: Event Setting
VIVOTEK 7.26 Customized event script Group: event_customtaskfile_i<0~2> PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) name string[41] <blank> Custom script identification of this entry. date string[17] <blank> Date of custom script. time string[17] <blank> Time of custom script. 7.27 Event setting Group: event_i<0~2>...
Page 161 VIVOTEK mdwin <integer> Indicate the source window id of motion detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1 window. For example, to detect the 1 and 3 windows, set mdwin as 5.
Page 162 VIVOTEK action_do_i<0~(ndo-1) 0, 1 Enable or disable trigger digital >_enable output. action_do_i<0~(ndo-1) 1~999 Duration of the digital output trigger >_duration in seconds. action_goto_enable <Boolean> Enable/disable ptz goto preset position on event triggered. action_goto_name string[40] <blank> Specify the preset name that ptz goto on event triggered.
Page 163 VIVOTEK 7.28 Server setting for event action Group: server_i<0~4> PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) Name string[40] NULL Identification of this entry Type email, email Indicate the server type: ftp, “email” = email server http, “ftp” = FTP server “http” = HTTP server “ns”...
Page 164 VIVOTEK 7.29 Media setting for event action Group: media_i<0~4> (media_freespace is used internally.) PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry type snapshot, snapshot Media type to send to the server or systemlog, store on the server.
Page 165 VIVOTEK 7.30 Recording Group: recording_i<0~1> PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. trigger schedule, schedule The event trigger type networkfail schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection.
Page 166 VIVOTEK notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4). bit0 (LSB) = server_i0. bit1 = server_i1. bit2 = server_i2. bit3 = server_i3. bit4 = server_i4. For example, enable server_i0, server_i2, and server_i4 as notification servers;...
Page 167 VIVOTEK dest The destination to store the recorded data. “cf” means local storage (CF or SD card). “0” means the index of the network storage. cffolder string[128] NULL Folder name. adaptive_enable Indicate whether the adaptive recording is enabled adaptive_preevent Indicate when is the adaptive...
Page 168: Region Of Interest
VIVOTEK information. stateorprovincename string[128] Asia State or province name in the certificate information. localityname string[128] Asia The locality name in the certificate information. organizationname string[64] Vivotek.Inc Organization name in the certificate information. unit string[32] Vivotek.Inc Organizational unit name in the certificate information.
Page 169: Eptz Setting
VIVOTEK 7.34 ePTZ setting Group: eptz_c<0~(n-1)> for n channel product. (capability.eptz > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) osdzoom <boolean> Indicates multiple of zoom in is “on-screen display” or not smooth <boolean> Enable the ePTZ "move smoothly" feature tiltspeed...
Page 170 VIVOTEK preset_i<0~19>_size <window size> <blank> Width and height of the preset. (It should be set by ePreset.cgi rather than by setparam.cgi.) 170 - User's Manual...
Page 171: Drive The Digital Output
VIVOTEK 8. Useful Functions 8.1 Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
Page 172 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n 8.3 Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...
Page 173: Capture Single Snapshot
VIVOTEK \r\n do1=1\r\n 8.4 3D Privacy Mask Note: This request requires admin user privilege <SD81X1> You can set privacy mask only at zoom 1x. To go back to zoom 1x directly, please send this cgi command: "/cgi-bin/camctrl/camposition.cgi?setzoom=0" Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&name=<value>&[maskheight=<val...
Page 174: Account Management
VIVOTEK resolution> quality The quality of the image. streamid 0~(m-1) <product The stream number. dependent> The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.
Page 175: Upgrade Firmware
VIVOTEK operator Operator privilege. admin Administrator privilege. Return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.
Page 176 VIVOTEK 8.9 Camera Control (capability.ptzenabled) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] – Focus operation [&iris=<value>] – Iris operation [&auto=<value>] – Auto pan, patrol [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] –...
Page 177 VIVOTEK speedfocus -5 ~ 5 Set the focus speed. speedapp -5 ~ 5 Set the auto pan/patrol speed. auto Auto pan. patrol Auto patrol. stop Stop camera. zoom wide Zoom larger view with current speed. tele Zoom further with current speed.
Page 178 VIVOTEK gaptime 0~32768 The gaptime between two consecutive ptz commands for device. (unit: ms) return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.
Page 179 VIVOTEK auto Auto pan. patrol Auto patrol. stop Stop auto pan/patrol. zoom wide Zoom larger view with current speed. tele Zoom further with current speed. zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control.
Page 180 VIVOTEK 8.11 Recall (capability.ptzenabled) Note: This request requires Viewer privileges. Method: GET Syntax: http://<servername>/cgi-bin/viewer/recall.cgi? recall=<value>[&channel=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION recall Text string less than 30 One of the present positions to recall. characters channel <0~(n-1)> Channel of the video source.
Page 181 VIVOTEK 8.13 Preset Locations (capability.ptzenabled) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>] [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION addpos <Text string less than Add one preset location to the preset list. 30 characters> channel <0~(n-1)> Channel of the video source.
Page 182 VIVOTEK delpos <Text string less than Delete preset location from the preset list. 40 characters> return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path.
Page 183 VIVOTEK 8.16 UART HTTP Tunnel Channel (capability.nuart > 0) Note: This request requires Operator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>] ------------------------------------------------------------------------- GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>] x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/operator/uartchannel.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled pragma : no-cache...
Page 184 VIVOTEK 8.17 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/admin/ ctrlevent.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled...
Page 185 VIVOTEK 8.18 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
Page 186 VIVOTEK 8.20 Senddata (capability.nuart > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/senddata.cgi? [com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>] PARAMETER VALUE DESCRIPTION 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F.
Page 187 VIVOTEK 8.21 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
Page 188 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
Page 189 VIVOTEK label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5 Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
Page 190 VIVOTEK state after duration. it cannot accept new requests. return <return page> Redirect to the page <return page> after the request is completely assigned. The <return page> can be a full URL path or relative path according the current path. If you omit this parameter, it will redirect to an empty page.
Page 191 VIVOTEK 8.23 Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime =<value>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
Page 192 VIVOTEK interger> least. (Used by forcechk) Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal. 415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled.
Page 193 VIVOTEK 2~97 <product (This must be present if mjpeg_quant <product dependent> dependent> is equal to 0, 99) <product dependent> mjpeg_maxframe 1~25, Set maximum frame rate in fps (for 26~30 (only for NTSC or JPEG). 60Hz CMOS) mpeg4_intraperiod 250, 500, 1000, 2000, 3000, 1000 Intra frame period in milliseconds.
Page 194 VIVOTEK dependent> equal to 0, 99) <product dependent> h264_bitrate 1000~8000000 512000 Set bit rate in bps when choosing cbr 1000~4000000 <product in “h264_ratecontrolmode”. <product dependent> dependent> h264_maxframe 1~25, Set maximum frame rate in fps (for 26~30 (only for NTSC or H264).
Page 195: Technical Specifications
Mounting Kits PoE Kits AM-518 MS-POE-IJAF Outdoor dome adapter PoE Injector, 802.3af Compliant All speci cations are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Distributed by: Ver 1.3 VIVOTEK INC. VIVOTEK USA VIVOTEK Europe 6F, No.192, Lien-Cheng Rd., Chung-Ho,...
Page 196: Technology License Notice
VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM�...
Page 197: Electromagnetic Compatibility (Emc)
取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc� cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice� VIVOTEK Inc� makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose�...
