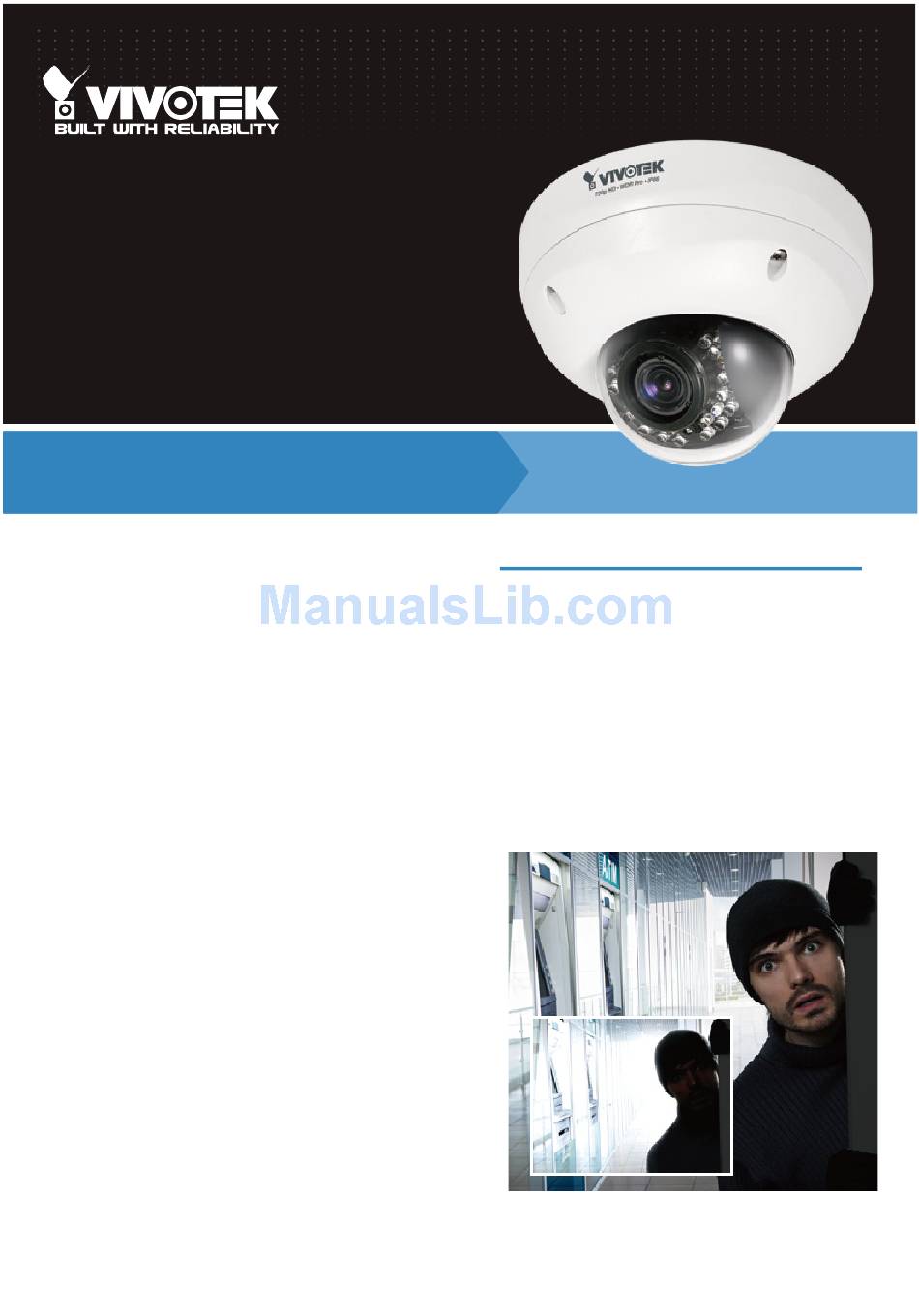

Vivotek FD8335H Specifications

Fixed Dome
Network Camera
FD8335H
720p HD • P-iris • WDR Pro •
Vandal-proof • IP66
VIVOTEK's FD8335H network camera features an HD WDR
CMOS sensor to cope with challenging lighting conditions. The
WDR feature allows the camera to capture both the dark and
bright parts of an image and combines the differences to
generate a highly realistic image representative of the original
s c e n e , e n a b l i n g i t t o p r o v i d e v i d e o q u a l i t y c l o s e t o t h e
capabilities of the human eye. This function enables the
FD8335H to be widely applicable in high contrast environments
such as lobby entrances, parking lots, ATMs, loading areas, and
much more. The P-iris lens controls the iris with extreme
precision; with its built-in stepper motor, it maintains the iris
opening at an optimal level at all times, resulting in superior
image clarity and depth of field as well as image quality.
Incorporating an IR-cut filter that can be removed automatically
at night and built-in IR illuminators with coverage of up to 20
meters, the FD8335H is an outstanding 24-hour surveillance
solution. The vandal-proof and the IP66-rated housing of the
FD8335H enables users to easily build a cost-effective IP
surveillance system without additional accessories. Its metal
vandal-proof housing effectively provides robust protection from
vandalism. Meanwhile, the IP66 integrated housing shields the
camera from dust and water, allowing it to be applied in the
harsh weather conditions of outdoor environments.
Features
● 1-Megapixel CMOS Sensor
● 30 fps @ 1280x800
● 3 ~ 9 mm Vari-focal, P-iris Lens
● Removable IR-cut Filter for Day & Night Function
● Built-in IR Illuminators, Effective up to 20 Meters
● WDR Pro for Unparalleled Visibility in High Contrast
Environments
● Real-time H.264, MPEG-4, and MJPEG Compression
(Triple Codec)
● Vandal-proof IK10-rated and Weather-proof IP66-rated
Housing
● Built-in 802.3af Compliant PoE
● Built-in MicroSD/SDHC Card Slot for On-board Storage
WDR Off WDR Off
