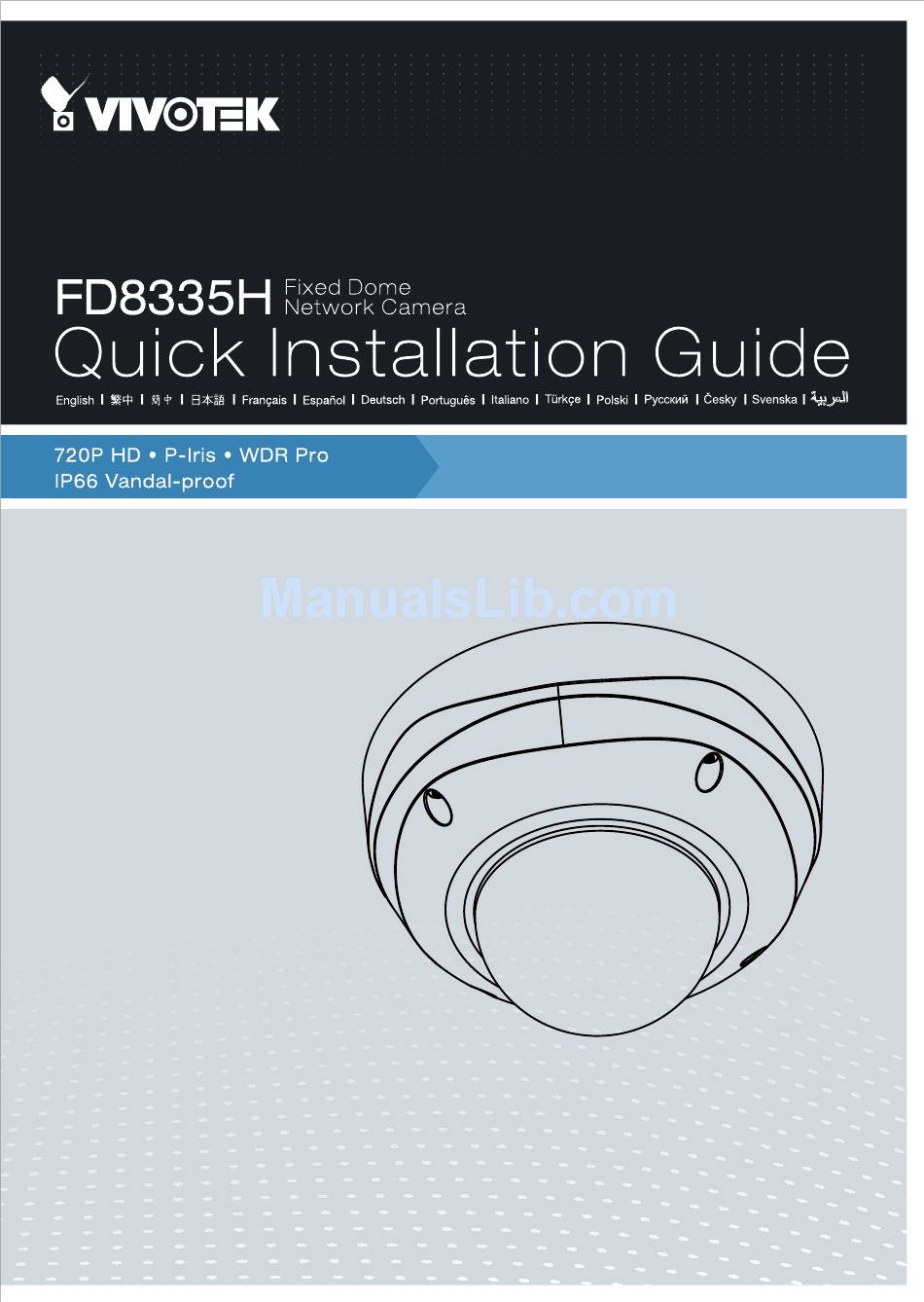

Vivotek FD8335H Quick Installation Manual

Vivotek FD8335H Quick Installation Manual

Fixed dome network camera 720 hd p-iris wdr pro ip66 vandal proof
Hide thumbs Also See for FD8335H:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD8335H and is the answer not in the manual?

Questions and answers

Related Manuals for Vivotek FD8335H

Summary of Contents for Vivotek FD8335H

  • Page 2 Warning Before Installation Power off the Network Camera as Refer to your user's manual for the soon as smoke or unusual odors are operating temperature. detected. Contact your distributor in the event of occurrence. Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces.

  • Page 3: Package Contents

    Package Contents FD8335H Mounting Plate Alignment Sticker / L-type Hex Key Wrench / Moisture Ceiling Hole Template Sticker Absorber / Screws / Hex Nut / Double- sided Tape / AV Cable Quick Installation Guide / Software CD Warranty Card Waterproof Connector & Bushing...

  • Page 4: Physical Description

    Physical Description Inner View Lens IR LEDs (18 units, effective up to 15m) Black Cover Tilt Adjustment Screw Focus Assist Button Micro SD/SDHC Card Slot Reset Jumpers Button Microphone Video Output NTSC Internal 60Hz Audio/Video External Out (green) 50Hz Microphone In General I/O Terminal (pink) Block...

  • Page 5: Hardware Installation

    Record the MAC address under the camera base before installing the camera. Replace the side opening cover with the included side outlet bushing if you want to route cables from the side of camera. The 1/2" protection conduits and tubing are separately purchased.

  • Page 6: Cabling Assembly

    Cabling Assembly Connect power lines and if you have external devices such as sensors and alarms, make the connection from the general I/O terminal block. Pin Definitions AC24V_2 AC24V_1 Top View DI3+ DI2+ DI1+ DO+ (12V) Power and IO cables pass through a waterproof connector. The Ethernet cable should be routed through a rubber seal plug.
  • Page 7 Connecting RJ45 Ethernet Cable RJ45 Cable Dimension (unit: mm) Recommended cable gauge: 24AWG (0.51 mm) Assembling Steps Rubber Seal 1. Drill a hole on the rubber seal Plug plug and insert an Ethernet cable through the opening. 2. Strip part of the sheath from the Ethernet cable.

  • Page 8: Wall Mount

    Wall mount 1. Attach the supplied alignment sticker to the wall. 2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the wall. Then hammer the four supplied plastic anchors into the holes. 3.

  • Page 9: Ceiling Mount

    Ceiling mount 1. Attach the supplied alignment sticker to the ceiling. 2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the ceiling. Then hammer the four supplied plastic anchors into the holes. 3.

  • Page 10: Power Over Ethernet (Poe)

    Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Eth- ernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE...

  • Page 11: Assigning An Ip Address

    “Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the S/N number on the package box label to open a browser management session with the Network Camera.

  • Page 12: Ready To Use

    Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.
  • Page 13 To adjust the zoom factor and focus range 1. Loosen the zoom controller and then adjust zoom factor by moving the controller left and right. Upon completion, tighten the zoom controller screw. 2. Loosen the focus controller and then adjust focus range by moving the controller left and right.
