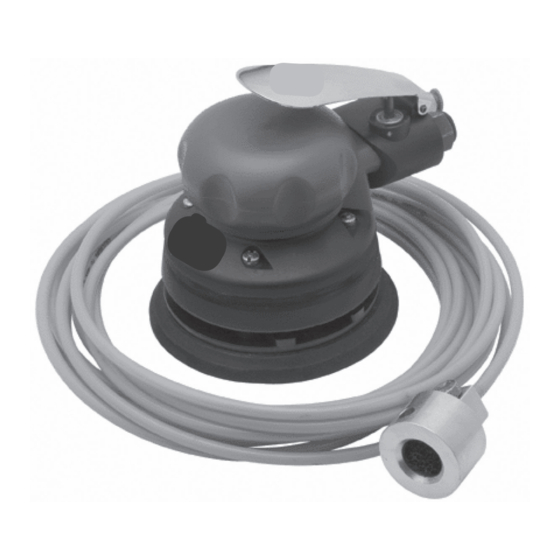

5" Orbital Wet palm
Set up and Operating inStructiOnS
distributed exclusively by Harbor Freight tools
Visit our website at: http://www.harborfreight.com
read this material before using this product.
Failure to do so can result in serious injury.
SaVe tHiS manual.
©
Copyright
2009 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Sander
3491 Mission Oaks Blvd., Camarillo, CA 93011
®
. All rights reserved. No portion of this manual or any artwork
66881
®
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 66881 and is the answer not in the manual?

Questions and answers

Related Manuals for Central Pneumatic 66881

Summary of Contents for Central Pneumatic 66881

  • Page 1 5” Orbital Wet palm Sander 66881 Set up and Operating inStructiOnS ® distributed exclusively by Harbor Freight tools 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our website at: http://www.harborfreight.com read this material before using this product. Failure to do so can result in serious injury.

  • Page 2: Table Of Contents

    Set up ........10 WOrk piece and WOrk area Set up ..........10 general Operating inStructiOnS ......10 uSer-maintenance inStructiOnS ......12 cleaning, maintenance, and lubricatiOn ....... 12 trOubleSHOOting ...... 13 SKU 66881 For technical questions, please call 1-800-444-3353. Page 2...

  • Page 3: Safety Alert Symbol And Signal Words

    Keep bystanders, children, and minor or moderate injury. visitors away while operating the SKU 66881 For technical questions, please call 1-800-444-3353. Page 3...

  • Page 4: Personal Safety

    SKU 66881 For technical questions, please call 1-800-444-3353. Page 4...

  • Page 5: Service

    National pipe thread, tapered exceeding 200 psi. Over pressurizing the tool may chart continued in next column. cause bursting, abnormal operation, SKU 66881 For technical questions, please call 1-800-444-3353. Page 5...

  • Page 6: Specific Safety Instructions

    To avoid injury, keep hands and fin- this type of work. To reduce your gers away from the rotating Pad (26). exposure to these chemicals: work in If both hands are holding the Sander, SKU 66881 For technical questions, please call 1-800-444-3353. Page 6...
  • Page 7 Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, increasing the risk of vibration-related injury. SKU 66881 For technical questions, please call 1-800-444-3353. Page 7...

  • Page 8: Functional Description

    SaFety inFOrmatiOn pressure gauge section at the beginning of this recommended air line components manual including all text under subheadings therein before set up or use of this product. SKU 66881 For technical questions, please call 1-800-444-3353. Page 8...
  • Page 9 The air hose must be long enough to reach the work area with enough extra length to allow free movement while working. Release the Paddle; refer to Opera- tion section for description of con- trols. SKU 66881 For technical questions, please call 1-800-444-3353. Page 9...

  • Page 10: Operating Instructions

    Place the Sander’s Anchor (33) in a container filled with cold, clean water. Work surface must be free of any metal objects. SKU 66881 For technical questions, please call 1-800-444-3353. Page 10...
  • Page 11 Then squeeze the Paddle once again to release any remaining compressed air from the tool. Make sure to store the Sander in a clean, dry, safe location out of reach SKU 66881 For technical questions, please call 1-800-444-3353. Page 11...

  • Page 12: User-Maintenance Instructions

    Other lubricants may damage the mechanism and may be highly flammable, causing an explosion. SKU 66881 For technical questions, please call 1-800-444-3353. Page 12...

  • Page 13: Troubleshooting

    1. Replace sandpaper/ remove adequate 2. Fine grit sandpaper. 2. Use coarser grit sandpaper. material Follow all safety precautions whenever diagnosing or servicing the tool. disconnect air supply before service. SKU 66881 For technical questions, please call 1-800-444-3353. Page 13...

  • Page 14: Parts List

    Paddle Body Cover Hose Compressor Inlet Hose Air Inlet Hose Hose Joint Hose Screw Anchor Pillar Adjuster W-Nozzle Body Strainer Screw Snap Ring Bearing O-Ring Rotor Spring Hose Joint O-Ring SKU 66881 For technical questions, please call 1-800-444-3353. Page 14...

  • Page 15: Assembly Diagram

    If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not avail- able individually as replacement parts. SKU 66881 For technical questions, please call 1-800-444-3353. Page 15...

  • Page 16: Limited 90 Day Warranty

    This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353 SKU 66881 For technical questions, please call 1-800-444-3353. Page 16...
