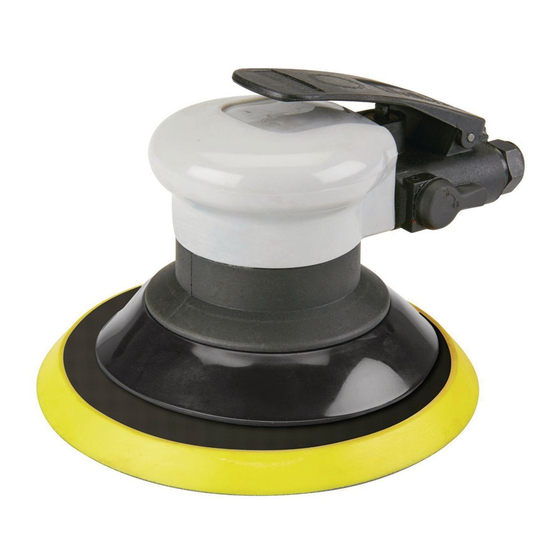

6" COMPOSITE PALM GRIP
RANDOM ORBITAL SANDER
SET uP AND OPERATING INSTRuCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE ThIS MANuAL.
©
Copyright
2008 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
65173
®
. All rights reserved. No portion of this manual or any artwork

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65173 and is the answer not in the manual?

Questions and answers

Related Manuals for Central Pneumatic 65173

Summary of Contents for Central Pneumatic 65173

  • Page 1 6" COMPOSITE PALM GRIP RANDOM ORBITAL SANDER 65173 SET uP AND OPERATING INSTRuCTIONS Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury. SAVE ThIS MANuAL. © ® Copyright 2008 by Harbor Freight Tools .

  • Page 2: Table Of Contents

    OPERATING INSTRuCTIONS ..10 TOOL SET uP ........10 WORk PIECE AND WORk AREA SET uP ..........10 GENERAL OPERATING INSTRuCTIONS ......11 uSER-MAINTENANCE INSTRuCTIONS ......12 CLEANING, MAINTENANCE, AND LuBRICATION ....... 12 SKU 65173 For technical questions, please call 1-800-444-3353. Page 2...

  • Page 3: Signal Words

    Keep bystanders, children, and minor or moderate injury. visitors away while operating the SKU 65173 For technical questions, please call 1-800-444-3353. Page 3...

  • Page 4: Personal Safety

    SKU 65173 For technical questions, please call 1-800-444-3353. Page 4...

  • Page 5: Service

    Chart continued in next column. pressure or within the rated pressure range as marked on the tool. Always verify prior to using the tool that the SKU 65173 For technical questions, please call 1-800-444-3353. Page 5...

  • Page 6: Specific Safety Instructions

    Anyone using vibrating tools regu- particles. (California Health & Safety larly or for an extended period should SKU 65173 For technical questions, please call 1-800-444-3353. Page 6...
  • Page 7 Let the tool do the work. To reduce vibration, maintain tool as explained in this manual. If abnormal vibration occurs, stop immediately. SAVE ThESE INSTRuCTIONS. SKU 65173 For technical questions, please call 1-800-444-3353. Page 7...

  • Page 8: Functional Description

    Incorporate an in-line oiler, shut-off Remove this plug before set up. valve, regulator with pressure gauge, and filter for best service, as shown in SKU 65173 For technical questions, please call 1-800-444-3353. Page 8...
  • Page 9 Close the in-line safety valve be- tween the compressor and the tool. Turn on the air compressor according to the manufacturer’s directions and SKU 65173 For technical questions, please call 1-800-444-3353. Page 9...

  • Page 10: Operating Instructions

    Make sure air source is set to a maxi- mum of 90 PSI. Work Piece and Work Area Set up Designate a work area that is clean and well-lit. The work area must not SKU 65173 For technical questions, please call 1-800-444-3353. Page 10...

  • Page 11: General Operating Instructions

    Do not allow free rotating at high speed to avoid possible injury or damage to the tool. Do not touch the rotating part with hand or body while operating. SKU 65173 For technical questions, please call 1-800-444-3353. Page 11...

  • Page 12: User-Maintenance Instructions

    Backing Pad off. Clean out the inner workings of the sander inside the Housing (1) with a vacuum or a brush. Replace and secure the Backing Pad. SKU 65173 For technical questions, please call 1-800-444-3353. Page 12...

  • Page 13: Contents Troubleshooting

    3. Damaged valve or housing. 3. Replace damaged components. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect air supply before service. SKU 65173 For technical questions, please call 1-800-444-3353. Page 13...

  • Page 14: Safety Alert Symbol And Accessory List

    REPAIRS TO THE ORIGINAL PRODUCT OR O-Ring REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF Shaft Head REPLACEMENT PARTS THERETO. Bearing Washer Snap Ring Pad Retainer Washer Backing Pad Wrench SKU 65173 For technical questions, please call 1-800-444-3353. Page 14...

  • Page 15: Assembly Diagram

    Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not avail- able individually as replacement parts. SKU 65173 For technical questions, please call 1-800-444-3353. Page 15...
  • Page 16 This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353 SKU 65173 For technical questions, please call 1-800-444-3353. Page 16...
