Boss Audio Systems 755DBI User Manual page 7

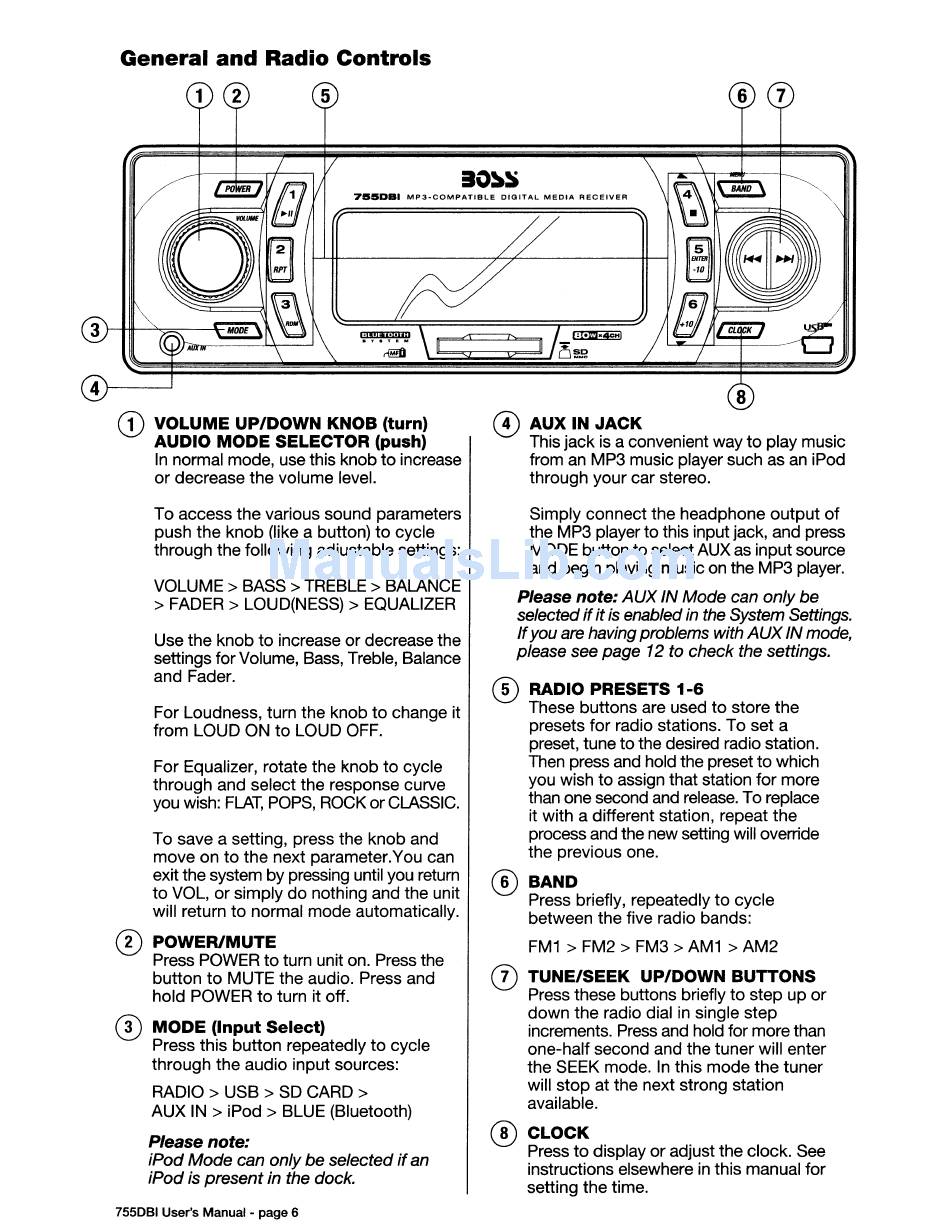

General and Radio Controls
BO~S
8
o
AUXINJACK
This jack is a convenient way to play music
from an MP3 music player such as an iPod
through your car stereo.
71SSDBI
MP3·COMPATISLE DIGITAL MEDIA RECEIVER
CD
VOLUME UP/DOWN KNOB (turn)
AUDIO MODE SELECTOR (push)
In normal mode, use this knob to increase
or decrease the volume level.
Simply connect the headphone output of
the MP3 player to this input jack, and press
MODE button to select AUX as input source
and begin playing music on the MP3 player.
Please note: AUX IN Mode can only be
selected if it is enabled in the System Settings.
Ifyou are having problems with AUX IN mode,
please see page 12 to check the settings.
®
RADIO PRESETS 1·6
These buttons are used to store the
presets for radio stations. To set a
preset, tune to the desired radio station.
Then press and hold the preset to which
you wish to assign that station for more
than one second and release. To replace
it with a different station, repeat the
process and the new setting will override
the previous one.
®
BAND
Press briefly, repeatedly to cycle
between the five radio bands:
FM1>FM2>FM3>AM1>AM2
CD
TUNE/SEEK UP/DOWN BUTTONS
Press these buttons briefly to step up or
down the radio dial in single step
increments. Press and hold for more than
one-half second and the tuner will enter
the SEEK mode. In this mode the tuner
will stop at the next strong station
available.
®
®
To access the various sound parameters
push the knob (like a button) to cycle
through the following adjustable settings:
VOLUME> BASS> TREBLE> BALANCE
> FADER> LOUD(NESS) > EQUALIZER
Use the knob to increase or decrease the
settings for Volume, Bass, Treble, Balance
and Fader.
For Loudness, turn the knob to change it
from LOUD ON to LOUD OFF.
For Equalizer, rotate the knob to cycle
through and select the response curve
you wish: FLAT, POPS, ROCK or CLASSIC.
To save a setting, press the knob and
move on to the next parameter.You can
exit the system by pressing until you return
to VOL, or simply do nothing and the unit
will return to normal mode automatically.
POWER/MUTE
Press POWER to turn unit on. Press the
button to MUTE the audio. Press and
hold POWER to turn it off.
MODE (Input Select)
Press this button repeatedly to cycle
through the audio input sources:
RADIO> USB> SD CARD>
AUX IN > iPod > BLUE (Bluetooth)
Please note:
iPod Mode can only be selected if an
iPod is present in the dock.
®
CLOCK
Press to display or adjust the clock. See
instructions elsewhere in this manual for
setting the time.
755081 User's Manual - page 6
