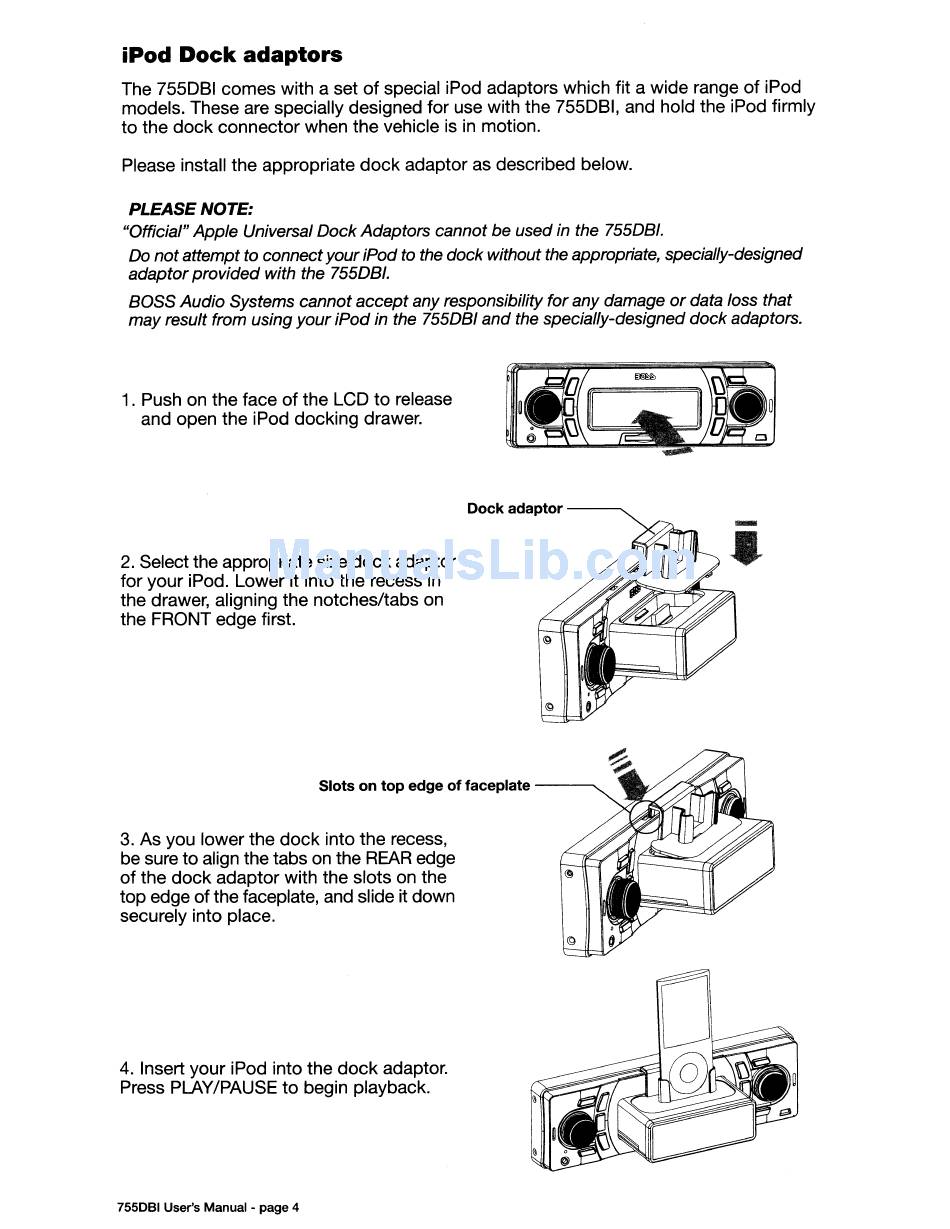

iPod Dock adaptors
The 755081 comes with a set of special iPod adaptors which fit a wide range of iPod
models. These are specially designed for use with the 755081, and hold the iPod firmly
to the dock connector when the vehicle is in motion.
Please install the appropriate dock adaptor as described below.
PLEASE NOTE:
"Official" Apple Universal Dock Adaptors cannot be used in the 7550BI.
Do
not attempt to connect your iPod to the dock without the appropriate, specially-designed
adaptor provided with the 7550BI.
BOSS Audio Systems cannot accept any responsibility for any damage or data loss that
may result from using your iPod in the 7550BI and the specially-designed dock adaptors.
1. Push on the face of the LCD to release
and open the iPod docking drawer.
Dock adaptor ---...
2. Select the appropriate size dock adaptor
for your iPod. Lower it into the recess in
the drawer, aligning the notches/tabs on
the FRONT edge first.
Slots on top edge of faceplate ------.....
3. As you lower the dock into the recess,
be sure to align the tabs on the REAR edge
of the dock adaptor with the slots on the
top edge of the faceplate, and slide it down
securely into place.
-
4. Insert your iPod into the dock adaptor.
Press PLAY/PAUSE to begin playback.
755081 User's Manual - page 4
