Troubleshooting - Band-it Ultra-Lok UL9010 Operating Instructions Manual

Troubleshooting

6
30
2 Places
23 4 Places
29
Troubleshooting
1. Lock slips down in buckle: Verify tightness of blade mounting screws. If lock on clamp is still not adequate,
reduce tension on tool by setting torque control knob to a lower number or reduce speed of the drill. (See "Setting up
proper tension")
2. Drill makes loud, rapid clicking noise: Make sure hammer drill setting is off and indicator is pointing to drill
symbol. (Hammer symbol on selector knob pointing to back).
3. Drill makes whining noise when clamp gets tight: The drill is equipped with its own internal safety clutch. If this
clutch disengages usually above torque setting 6, reduce torque setting and lubricate tension screw. Do not confuse
this clutch with the coupling between drill and tool.
4. Safety clutch between drill and tool releases prematurely: Make sure tool is fully seated on drill and safety
clutch is fully engaged with tip of tension screw. (Loosen clamping screw and re-tighten while pressing tool into drill).
See page 4, if problem still remains, replace tension screw (BAND-IT # M00987).
Note: To prevent safety clutch wear, do not over-use. When tensioning clamp, let drill switch go as tension block
nears its end of travel. Reverse drill and send tension block all the way forward for a second pull on the band.
5. If tool does not cut off on initial setting:
Step 1: Pull trigger of tool after engaging cutter blade.
Step 2: Increase torque setting slightly, and repeat tensioning band and engaging of cutter blade.
Step 3: Repeat steps 1 and 2 until band cuts.
BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-0307 USA
Ph: 1-800-525-0758
Fax: 1-800-624-3925
4 Places
22
4 Places
www.BAND-IT-IDEX.com
Tension Block Tension Block
2 Places
20
ASSY ASSY
19
Page 7 of 14
UL9010
Ultra-Lok
6
4
Head Unit

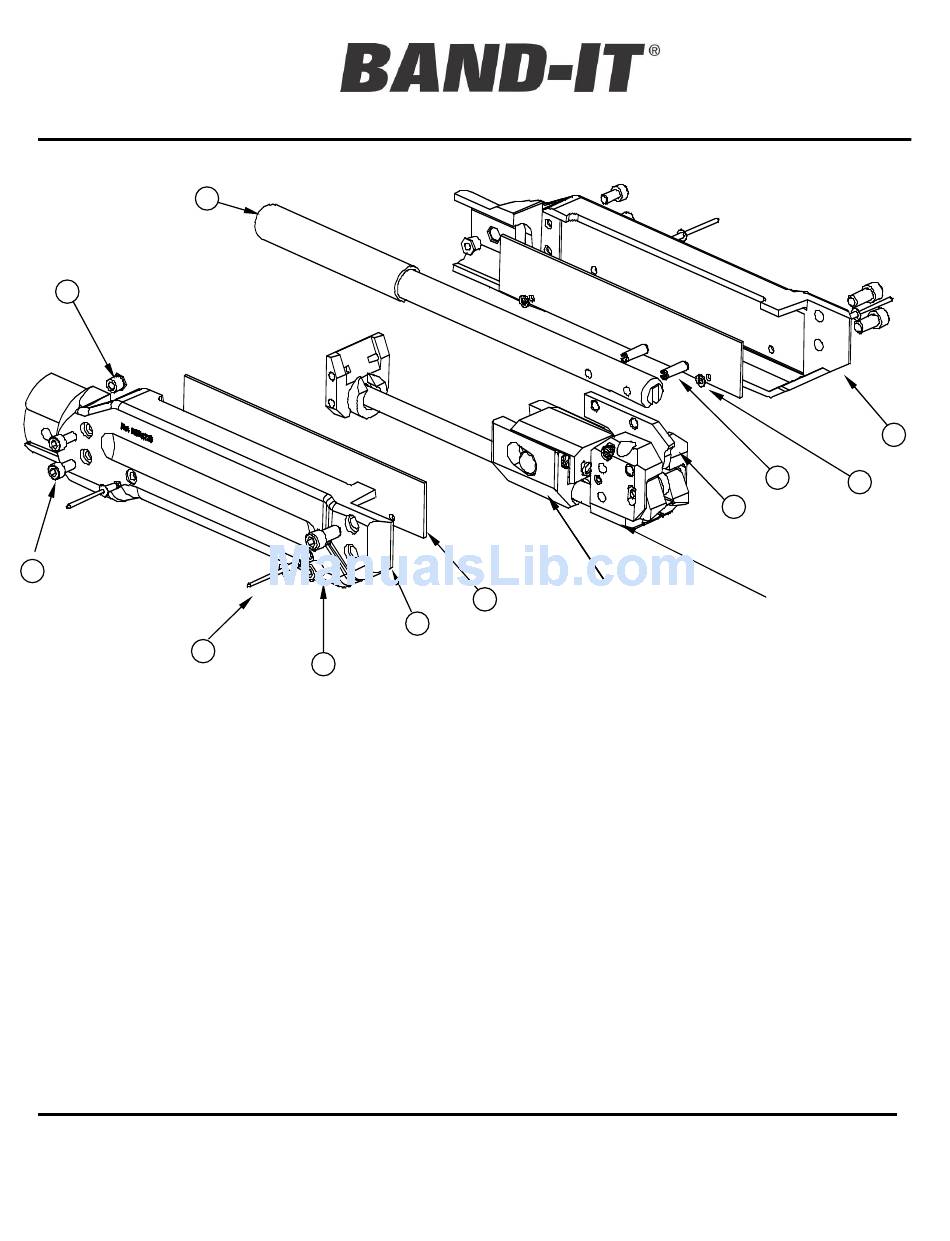

See page 6 for parts list See page 6 for parts list
