Band-it T30069 Instruction Manual

Center punch tool
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Instruction
Manual
Introduction:

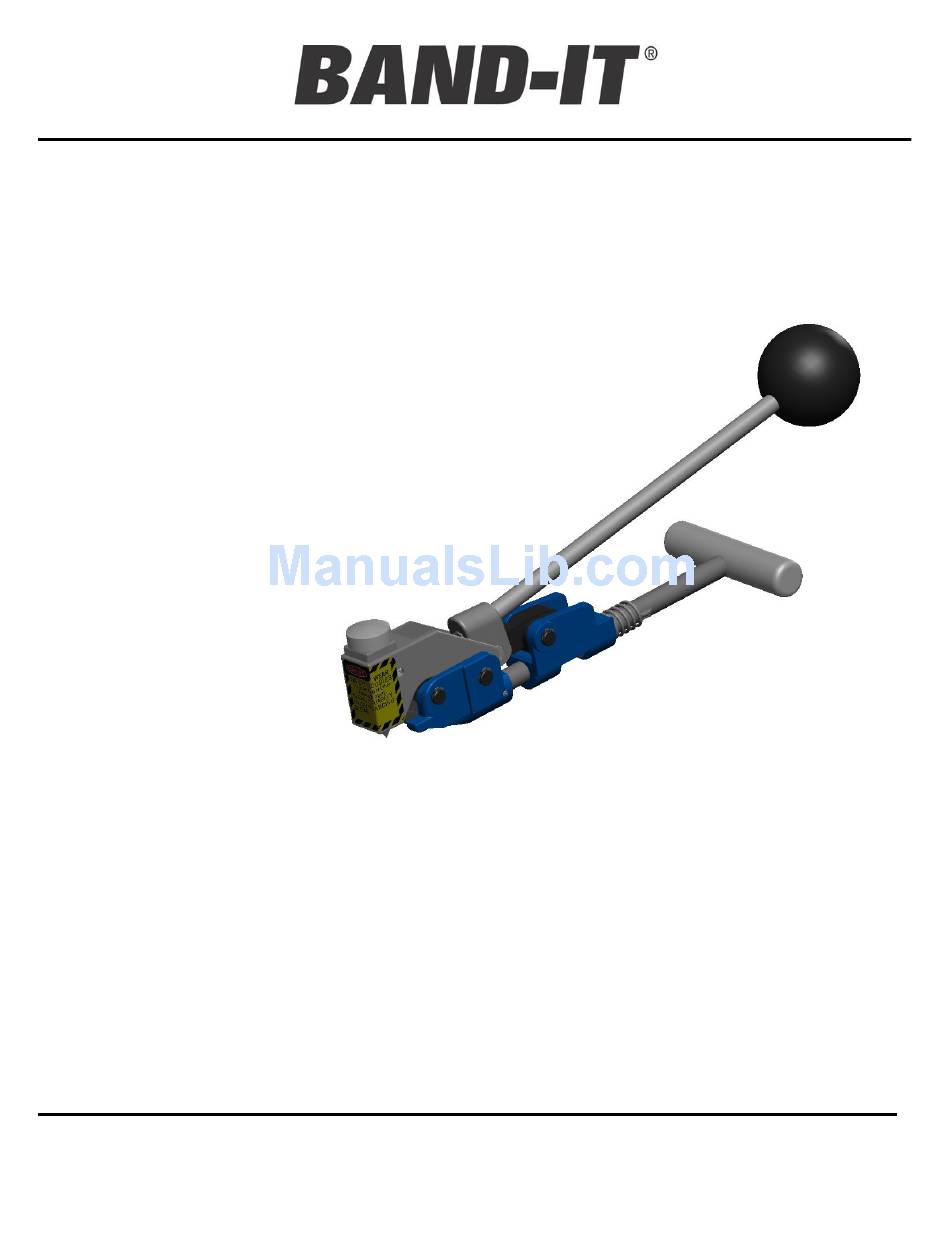

The T30069 Center Punch Tool installs BAND-IT 3/8" and 5/8", 201 Stainless
Steel and Galvanized Carbon Steel clamps.
Table of Contents:
1. Introduction & Safety Practices
5. 3/8" Adapter & Warranty
Safety Practices:
1. Read this manual and become familiar with the tool before use.
2. Protective eyewear should be worn during use.
3. Wear appropriate gloves for handling steel.
4. When applying clamps, care should be taken to insure fingers are not in contact with
the clamp during installation.
5. Never attempt to clamp objects which have the potential to burst, shatter or
otherwise cause bodily harm.
6. Do not use tool on live electrical sources.
BAND-IT IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-0307 USA
P: 1-800-525-0758
F: 1-800-624-3925
www.BAND-IT-IDEX.com
Page 1 of 5
T30069
CP Hand Tool
Document # P15087 rev. J
© Copyright
BAND-IT IDEX, Inc. 2013
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T30069 and is the answer not in the manual?

Questions and answers

Related Manuals for Band-it T30069

Summary of Contents for Band-it T30069

  • Page 1 Instruction T30069 Manual CP Hand Tool Introduction: The T30069 Center Punch Tool installs BAND-IT 3/8" and 5/8", 201 Stainless Steel and Galvanized Carbon Steel clamps. Table of Contents: 1. Introduction & Safety Practices 2. Operating Instructions 3. Tool Assembly 4. Repair Parts List 5.

  • Page 2: Operating Instructions

    Push tension handle all the way forward. Insert tightening clamp. BAND-IT Center Punch clamp tail and push all the Note: Do not lift tension handle too high as it may open up way into tool. buckle pusher, resulting in improper clamp application.

  • Page 3: Tool Assembly

    Replace the punch and reassemble in reversed manner. BAND-IT IDEX, Inc. Document # P15087 rev. J A Unit of IDEX Corporation www.BAND-IT-IDEX.com © Copyright 4799 Dahlia Street BAND-IT IDEX, Inc. 2013 Denver, CO 80216-0307 USA All rights reserved Page 3 of 5 P: 1-800-525-0758 F: 1-800-624-3925...
  • Page 4 T32290 RETAINING RING X 3 AND HOLDING DOG T27988 TENSION HANDLE ASSEMBLY T28687 SLIDE BAR AND TENSION HANDLE ASSEMBLY PART NUMBERS - T30069 (NOT AVAILABLE FOR INDIVIDUAL PURCHASE) PART NO. DESCRIPTION COMPRESSION SPRING, 5/8” DIA. A04987 SPRING PIN, 1/8” DIA.
  • Page 5 CP Hand Tool 1. To convert T30069 center punch tool, rotate head back to expose buckle pusher and nose of tool. 2. Press down on the lobe at the rear of the buckle pusher to raise the front portion for insertion of adapter between the buckle pusher and the nose.
