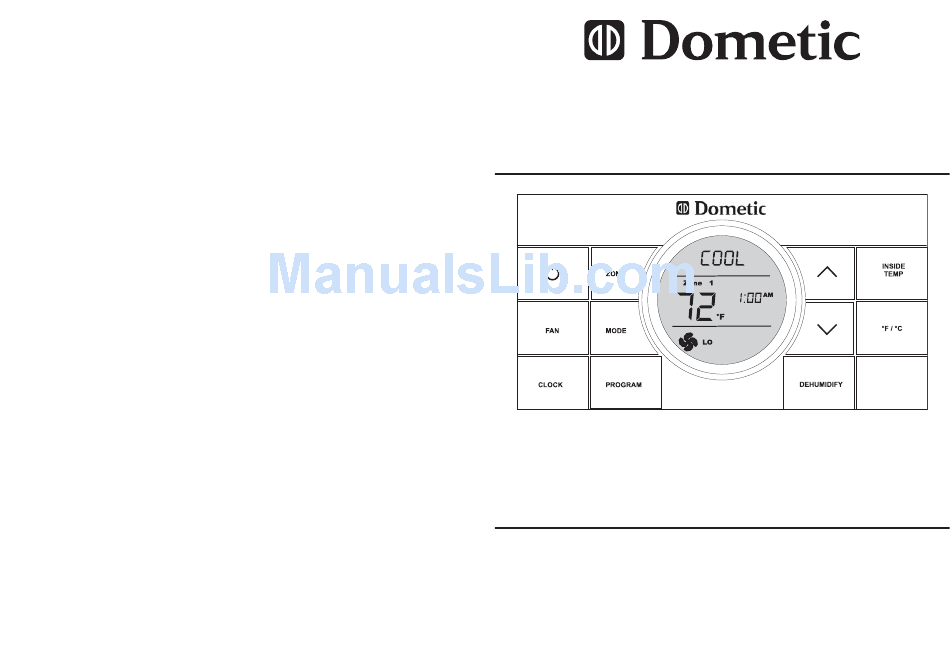

COMFORT CONTROL CENTER 2 THERMOSTAT

OPERATING INSTRUCTIONS

PROGRAMMABLE THERMOSTAT
MODEL
3314081.XXX WITH DEHUMIDIFY
3314080.XXX WITH OUT DEHUMIDIFY
USA
CANADA
For Service Center
SERVICE OFFICE
Dometic, LLC
Assistance Call:
Dometic, LLC
46 Zatonski, Unit 3
800-544-4881
2320 Industrial Parkway
Brantford, ON N3T 5L8
Elkhart, IN 46516
CANADA
REVISION
Form No. 3314149.018 10/11
574-294-2511
519-720-9578
(Replaces 3314149.000)
3314149.018
(French 3314169.016)
©2011 Dometic, LLC
LaGrange, IN 46761

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3314081.XXX and is the answer not in the manual?

Questions and answers

Summary of Contents for Dometic 3314081.XXX

  • Page 1: Operating Instructions

    COMFORT CONTROL CENTER 2 THERMOSTAT OPERATING INSTRUCTIONS PROGRAMMABLE THERMOSTAT MODEL 3314081.XXX WITH DEHUMIDIFY 3314080.XXX WITH OUT DEHUMIDIFY CANADA For Service Center SERVICE OFFICE Dometic, LLC Assistance Call: Dometic, LLC 46 Zatonski, Unit 3 800-544-4881 2320 Industrial Parkway Brantford, ON N3T 5L8...
  • Page 2: Table Of Contents

    (hereinafter referred to as the CCC 2 thermostat) has been designed for ease of opera- tion and for many years of reliable service. Dometic, LLC reserves the right to modify appearances and specifi cations without notice. TABLE OF CONTENTS INTRODUCTION ............................2 DOCUMENT SYMBOLS ..........................
  • Page 3: Document Symbols

    GENERAL INFORMATION .......................... 20 Reduce Heat Gain ........................20 Disclaimer ..........................20 MAINTENANCE ............................21 Air Filter ........................... 21 Dometic CCC 2 Thermostat ....................21 SERVICE ..............................21 DOCUMENT SYMBOLS Indicates additional information that is not related to personal injury. Indicates step-by-step instructions.
  • Page 4: Factory Preset Settings

    CCC 2 thermostat will require a system reset. For system reset procedure, see main heading, “System Reset Procedure” on page (20). Clean the CCC 2 thermostat with a moist soft cloth. Your Dometic CCC 2 thermostat has been pre-programmed. Review settings below and adjust the settings to your personal comfort level. SERVICE...
  • Page 5: Quick Reference To Control Buttons

    Error Code For a more permanent solution to high heat gain, accessories like Dometic outdoor patio and window awnings will reduce heat gain by removing the direct sun. They also add a nice area to enjoy company during the cool of the evening.
  • Page 6: Programming & Operations

    PROGRAMMING & OPERATIONS SPECIAL FEATURES N. Power Interruption A. ON/OFF In the event the power to the air conditioner or control is interrupted, the system will To turn ON the CCC 2 thermostat when the back light is OFF, fi rst press any button restart with the previous set points once power is restored.
  • Page 7: Temperature Format °F / °C

    AGS relay will open and the generator will shut-down. K. Load Shed The Dometic CCC 2 thermostat has provisions for Load Shedding. The AC pow- D. Inside Temperature er module board shall provide the 12 Vdc source for the Load Shed signal. This...
  • Page 8: Zone Selection

    I. Stage Select - Dual Compressor Air Conditioner/Heat Pump (Select Models) The Dometic CCC 2 thermostat will operate an air conditioner/heat pump unit with two compressors. On dual basement air conditioner/heat pump units, a single pow- er module board is used to control the operation of two compressors in one air conditioner/heat pump.
  • Page 9: Fan Speed

    °F (13 °C). F. CANbus Interface The CANbus interface is designed to communicate between the Dometic CCC 2 thermostat and a CAN (Controller Area Network) protocol generator. Refer to the CANbus installation instructions for more information on installation and operation...
  • Page 10: Dehumidify Setting (Select Models)

    PROGRAMMING & OPERATIONS SPECIAL FEATURES When program “1” or “2” is operating, the “PROG 1” or “PROG 2” icon will be dis- I. Dehumidify Setting (Select Models) played in the LCD. The zone will continue to operate in the programmed setting until To set the dehumidify set-point, the system will need to be in a mode other the program is manually cancelled.
  • Page 11: Hp" - Heat Pump Mode

    D. Program “1” & “2” MED: The fan operates continuously at medium speed. The compressor cycles ON The Dometic CCC 2 thermostat can store two operating programs. Each program and OFF. can be set on individual zones with different mode and time settings for each zone.
  • Page 12: Fan" - Fan Mode

     and  buttons. The LED will display the selected option. Zones are established at the time of the installation of your Dometic CCC 2 thermo- stat. A zone is an area of cooling/heating which is controlled independently by the In the FURN / AQUA mode the system will cycle the RV’s furnace/aqua ON and...
