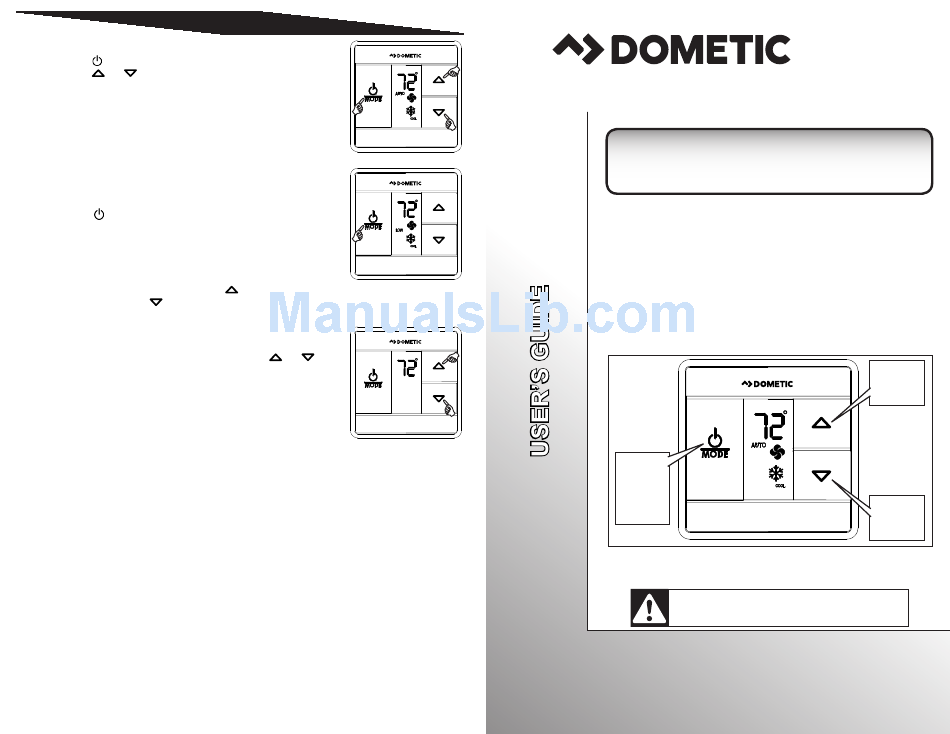

CAPACITIVE TOUCH THERMOSTAT USER'S GUIDE

Fan Mode Setting

Press the
/ Mode button until the fan mode is active.
Press the
or
button to cycle through the fan speed
options Low, High, and Auto.

Mode of Operation

A mode is an operation that can be performed by the CT
Thermostat.
/ Mode button to cycle through the avail-
Press the
able modes. All CT Thermostats have Cool and Furnace
modes. Select models will have an additional mode, ei-
ther Heat Pump or Heat Strip. The active mode will dis-
play on the LCD.
To change the set-point, press the
the set point and the
button to decrease the set-point.

Inside Temperature

To display the Inside Temperature, the CT Thermostat
must be in the OFF Mode. Press either the
ton to display the Inside Temperature.

Special Features

• Auto Fan
See Operating Instructions for more Information on this special feature.
• LCD Error Code
When the system determines that one of the faults listed below has occurred an error
code will be displayed in the LCD.

Error Codes:

E1 Loss of communication between CT Thermostat and module board. LCD will cy-
cle between E1 and previous mode setting. System will shut down.
E2 Open circuit or out of range Indoor Temperature Sensor. Heating and cooling
operation will be locked out. Fan operation can continue to operate.
E3 Shorted Indoor Temperature Sensor. Heating and cooling operation will be locked
out. Fan operation can continue to operate.
E4 Open circuit or out of range Outdoor Temperature Sensor (select models). Heat
pump operation will be locked out. Air Conditioner, Fan, and Furnace mode of
operation can continue to operate.
E5 Open circuit or out of range Freeze Sensor. Air conditioner mode of operation will
be locked out, but displays the last temperature set-point.
In the unlikely event you experience a system failure, refer to the "SERVICE" section
of the Operating Instructions furnished with your unit.
button to increase
or
but-
CAPACITIVE TOUCH THERMOSTAT

Capacitive Touch Thermostat Quick Start-Up

The basic steps for operating your Air Conditioner/Heat Pump/Heat Strip (hereinafter referred to
as "unit") with the Capacitive Touch Thermostat (hereinafter referred to as "CT Thermostat") are
described in this User's Guide. For more detailed information on modes of operation and special
features, refer to the Operating Instructions Manual.

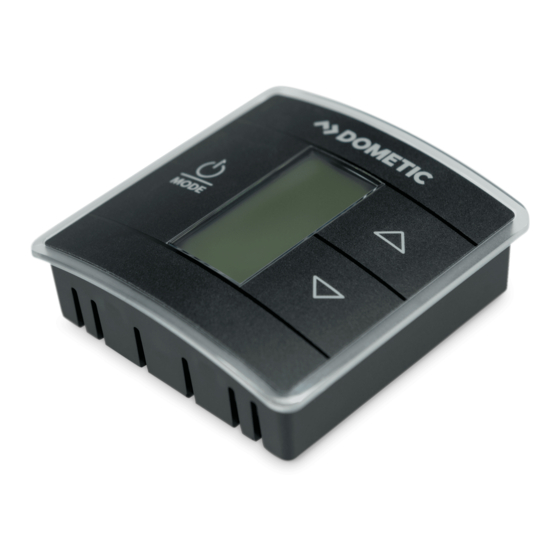

Control Button Quick Reference

Press To
Power On,
Off, And
Toggle
Between
Modes of
Operation
Read these instructions carefully. These
instructions MUST stay with this product.
REVISION A
USA
Form No. 3316462.000 08/16
SERVICE OFFICE
(French 3316463.000_A)
Dometic Corporation
©2016 Dometic Corporation
1120 North Main Street
Elkhart, IN 46514
LaGrange, IN 46761
Press To
Increase
Temperature
Set-Point
Press To
Decrease
Temperature
Set-Point
CANADA
Service Center &
Dometic Corporation
Dealer Locations
46 Zatonski, Unit 3
Please Visit:
Brantford, ON N3T 5L8
www.eDometic.com
