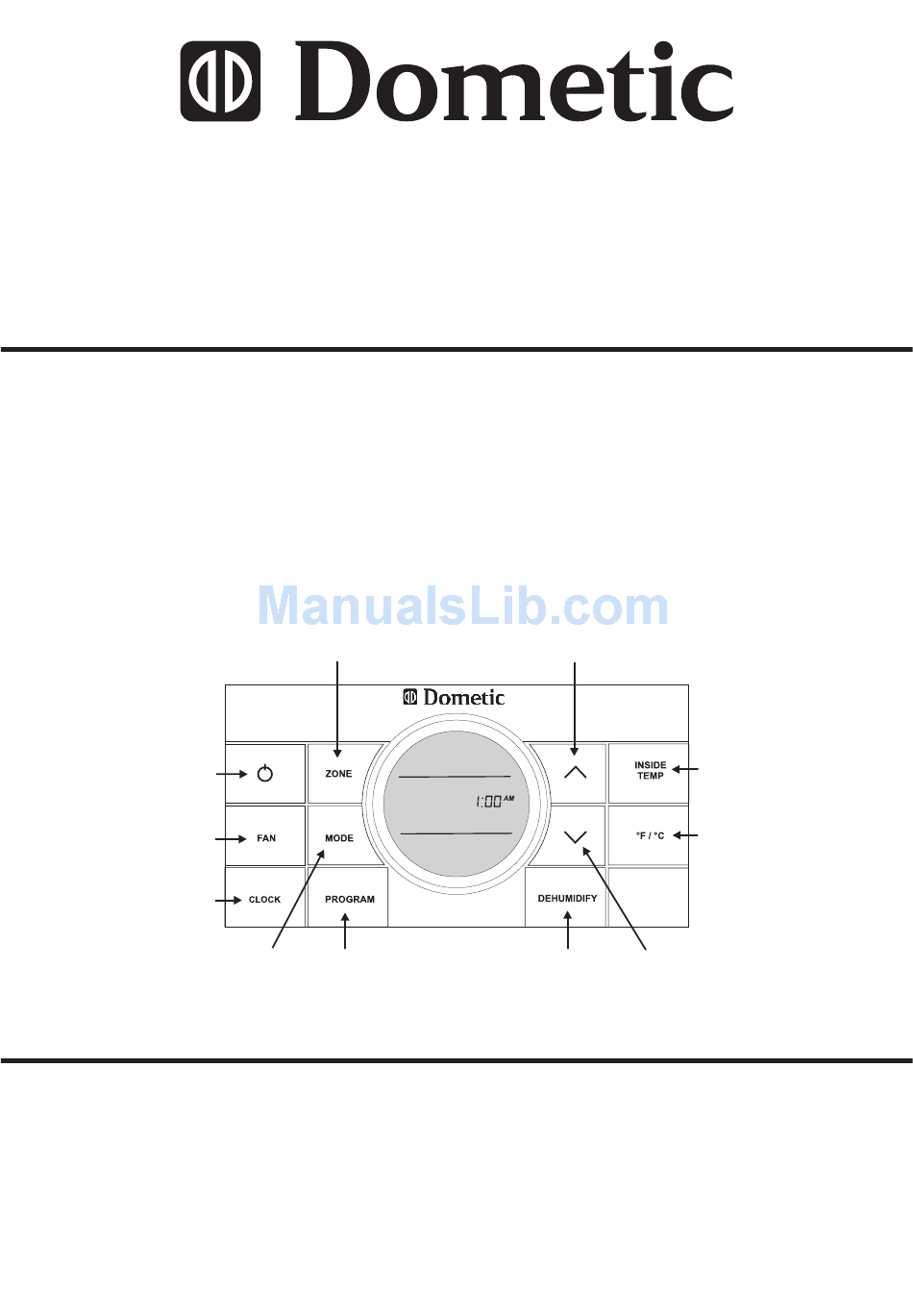

Comfort Control Center 2 Thermostat
Dometic Comfort Control Center 2 Thermostat Quick Start-Up
The basic steps for operating your Air Conditioner, Heat Pump or Dehumidifier (herein
after referred to as the "unit"), are described in this User's Guide. For more detailed
information on modes of operation and special features refer to the Operating Instruc-
tions Manual.
Press to select
On and OFF
Press to select fan
speed
Press to set
clock
Press to
select mode
USA
SERVICE OFFICE
Dometic, LLC
2320 Industrial Parkway
Elkhart, IN 46516
574-294-2511
User's Guide

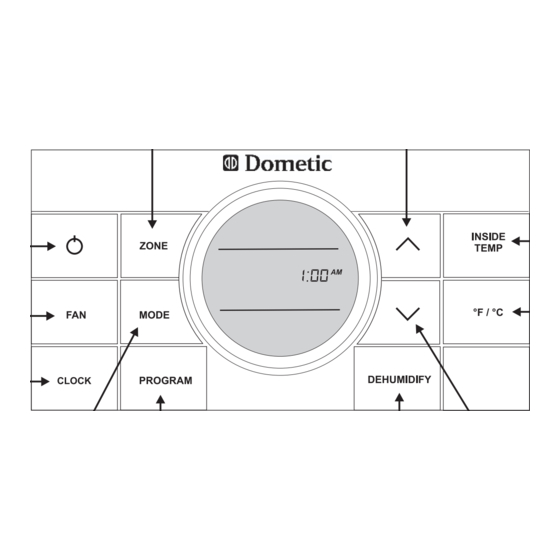

Quick reference to control buttons
Press to select zone
Press to select
program 1 or 2
46 Zatonski, Unit 3
Brantford, ON N3T 5L8
Press to increase temperature
or humidity set-point
Press to display
relative humidity set-
point (Select Models)
CANADA
Dometic, LLC
CANADA
519-720-9578
3314150.016
Press to display
inside temperature
Press to select
temperature format
Press to decrease
temperature or
humidity set-point
For Service Center
Assistance Call:
800-544-4881
REVISION
Form No. 3314150.016 10/11
(Replaces 3314150.000)
(French 3314170.014)
©2011 Dometic, LLC
LaGrange, IN 46761
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dometic CCC 2
Summary of Contents for Dometic CCC 2
- Page 1 Comfort Control Center 2 Thermostat User’s Guide Dometic Comfort Control Center 2 Thermostat Quick Start-Up The basic steps for operating your Air Conditioner, Heat Pump or Dehumidifier (herein after referred to as the “unit”), are described in this User’s Guide. For more detailed information on modes of operation and special features refer to the Operating Instruc- tions Manual.
- Page 2 1. To turn ON the CCC 2 thermostat when the back light is off, first press any button to wake up the CCC 2 thermostat. Then press and release the ON/OFF button. 2. Press the MODE button to cycle through the mode options. A mode is...
- Page 3 7. Press and hold the INSIDE TEMP button and the LCD will display the current inside temperature recorded at the CCC 2 Thermostat (or at the optional remote indoor temperature sensor) instead of the temperature set-point. The LCD will also display “IN”...
- Page 4 DIP switches E1 Loss of communication between the are both set to the ON position in one CCC 2 thermostat and all system zone. Heat pump, heat strip, air con- power module boards. System will ditioner, and dehumidify operation shut down.
