Summary of Contents for Stanley IW16 Series

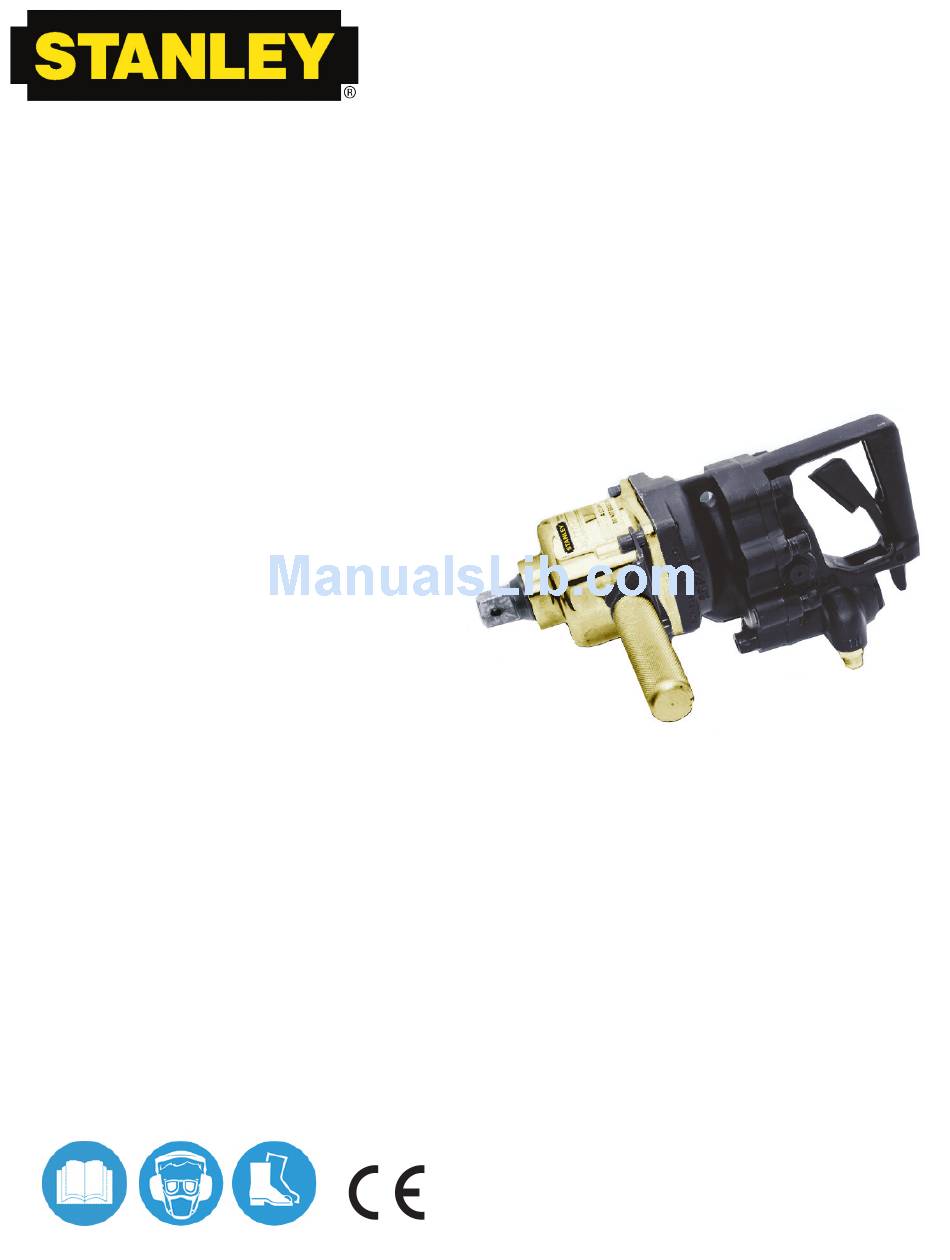

- Page 1 IW16 HYDRAULIC IMPACT WRENCH afety peratiOn and aintenance USer ManUaL © 2010 Stanley Black & Decker, Inc. New Britain, CT 06053 U.S.A. 66174 12/2010 Ver 5...
-
Page 2: Declaration Of Conformity
Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA... -
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest authorized and certified dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative. -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and mainte- nance personnel. 4 ► IW16 User Manual... -
Page 5: Safety Precautions
Do not operate a damaged, improperly adjusted, or the space provided in this manual. incompletely assembled impact wrench. The model IW16 Hydraulic Impact Wrench will provide • Never wear loose clothing that can get entangled in safe and dependable service if operated in accordance the working parts of the tool. -
Page 6: Tool Stickers & Tags
Model No. 26-45 LPM / 7-12 GPM IW16 140 BAR / 2000 PSI 08153 IW16 NAME TAG (US & CE) D A N G E R D A N G E R FAILURE TO USE HYDRAULIC HOSE LABELED AND CERTI- DO NOT LIFT OR CARRY TOOL BY THE HOSES. -
Page 7: Hose Types
HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic Tools. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HEADER B HOSE RECOMMENDATIONS 8 ► IW16 User Manual... -
Page 9: Htma Requirements
When choosing hydraulic fluid, the expected oil temperature extremes that will be experienced in service determine the most suitable temperature viscosity characteristics. Hydraulic fluids with a viscosity index over 140 will meet the requirements over a wide range of operating temperatures. *SSU = Saybolt Seconds Universal IW16 User Manual ◄ 9... -
Page 10: Wrench Torque Information
Allowable bolt torque is limited by both bolt thread di- ameter and grade of steel in the bolt. The IW16 Impact During normal operation it is common to see some Wrench is recommended for use on the following bolt grease leakage from around the anvil during hard use. -
Page 11: Wrench Operation
Remove, clean, grease and assemble the impact mech- impacting for other bolts of the same length and anism as described in the IW16 Service Manual. thread size. EXTENSION HANDLE 4. Squeeze the trigger to activate the wrench. -
Page 12: Equipment Protection & Care
This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a mini- mum working pressure rating of 2500 psi/172 bar. 12 ► IW16 User Manual... -
Page 13: Troubleshooting
Oil leaks at reversing spool. Damaged O-rings. Replace as required. Check Service Manual to avoid cutting O-rings on cross holes in the spool bore. Wrong hydraulic fluid. Circuit too hot. Refer to Operation section for correct fluid/circuit specifications. IW16 User Manual ◄ 13... -
Page 14: Specifications
Declared vibration emission value in accordance with EN 12096 Measured vibration emission value: a 49 m/sec² Uncertainty: K 5.2 m/sec² Values determined according to ISO 8662-7 14 ► IW16 User Manual... -
Page 15: Accessories
1-inch Squre Drive #70 Torx ..........................26456 1-inch Square Drive 8-Point Deep × 1-1/4 inch ....................26529 1-inch Square Drive 4-Point Deep × 1 inch .......................27710 Socket Sets Socket Set, Includes 6 Sockets .........................33230 (25211, 25216, 25217, 25218, 26456, 27710) IW16 User Manual ◄ 15... -
Page 16: Iw16 Parts Illustration
IW16 PARTS ILLUSTRATION CAUTION Make sure the correct capscrew is used in the correct location 16 ► IW16 User Manual... -
Page 17: Iw16 Extension Handle Illustration
IF ALL EIGHT CAPSCREWS (ITEMS 24 & 66 FROM MAIN PARTS ILLUSTRATION PAGE) ARE REMOVED FROM THE VALVE HANDLE, ALL MUST BE CLEANED, INSTALLED WITH 242 LOCTITE® AND RE-TORQUED TO 55 FT LB. TORQUE TO 90 ft lb IW16 User Manual ◄ 17... -
Page 18: Iw16 Parts List
RETAINER RING 23134 STANDARD MECHANISM (INCL ITEMS 48-53) 00016 O-RING 24757 UNDERWATER IMPACT MECHANISM 00717 O-RING 09602 SEAL KIT 07995 INSERT 08147 THRUST BEARING RACE 08148 THRUST NEEDLE BEARING 70734, Upright Handle Assy (see page 16). 18 ► IW16 User Manual... - Page 20 Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, Oregon 503-659-5660 / Fax 503-652-1780 www.stanleyhydraulic.com IMPORTANT To fill out a Product Warranty Recording form, and for information on your warranty, visit Stanleyhydraulic.com and select the Warranty tab. (NOTE: The warranty recording form must be submitted to validate the warranty).
