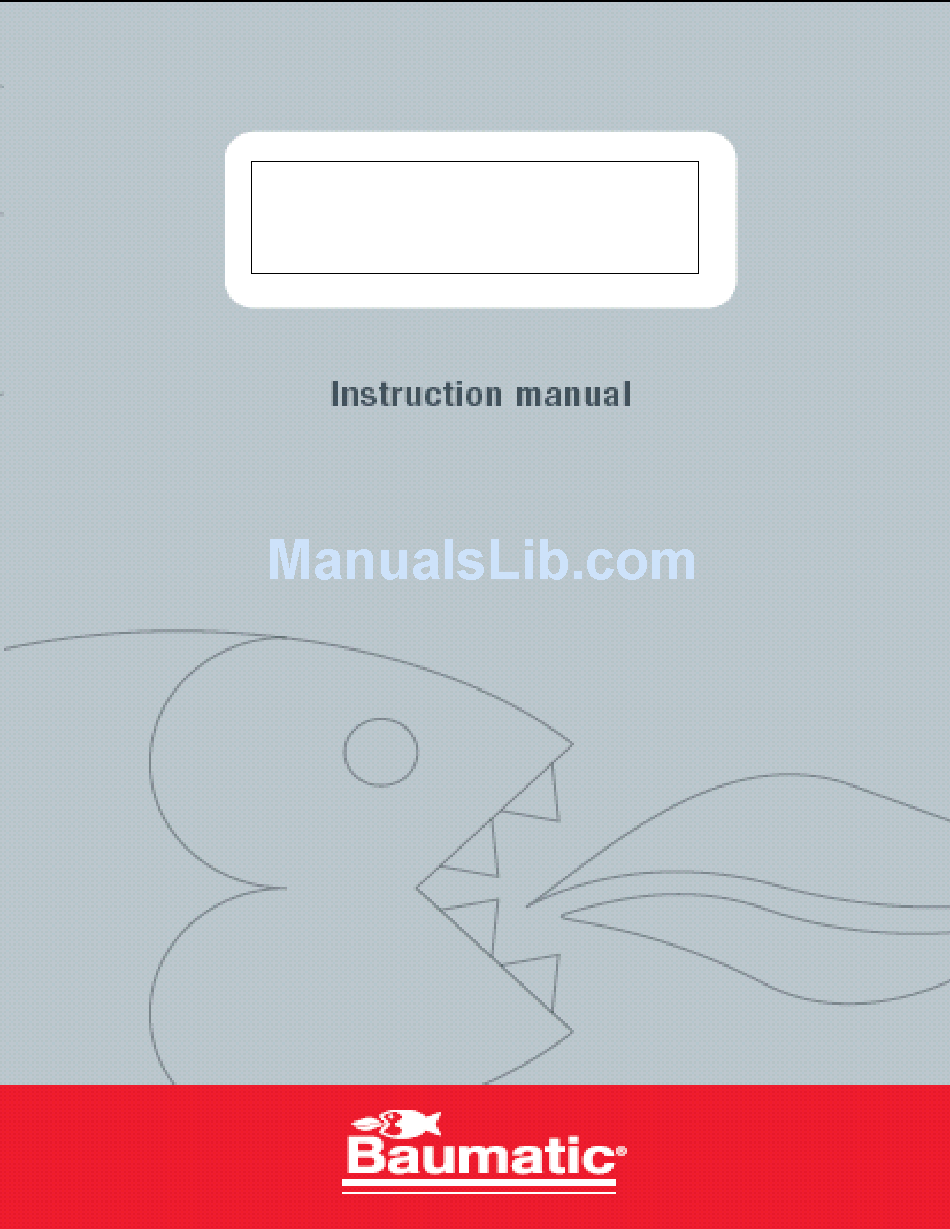

  • Page 1 BV13A Built under freezer...
  • Page 2 USER MANUAL FOR YOUR BAUMATIC BV13A Built under freezer NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference. for you or any person not familiar with the operation of the appliance.

  • Page 3: Table Of Contents

    Contents Environmental note Important safety information 5 – 6 Specifications of your freezer Description of the appliance Using your Baumatic freezer Before switching on 8 - 9 During first use Turning on the appliance and setting the thermostat 9-10 Control Panel...

  • Page 4: Environmental Note

    Environmental note Note : Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance.

  • Page 5: Important Safety Information

    Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
  • Page 6 Child safety o Packaging material should be kept away from children. o Children should not be allowed to touch the controls or play with the appliance. General safety o Do not pull on the power supply cable to remove the plug from your mains supply socket.

  • Page 7: Specifications Of Your Freezer

    Specifications of your freezer Congratulations on purchasing a Baumatic freezer. o Fast freeze switch o Fast freeze indicator light o Temperature rise warning light o Adjustable thermostat o 3 Freezer drawers o Chiller section o Reversible door o Adjustable feet...

  • Page 8: Description Of The Appliance

    Using your Baumatic freezer Before switching on o Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic’s installation instructions. o After delivery, wait for eight hours before connecting the appliance to your mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle.

  • Page 9: During First Use

    During first use o When you first switch on the appliance, the compressor will run continuously for approximately 24 hours or until the freezer reaches a cool enough temperature. o During this period of time, you should try not to open the door frequently or place a large amount of food within the appliance.

  • Page 10: Control Panel

    o The freezer can cool down to -18 degrees centigrade and lower. o IMPORTANT: The ambient temperature of the room, the temperature of food and the amount of food that has been placed in the appliance and how often the door is opened, will all affect the temperature being maintained by the appliance.

  • Page 11: The Freezer Compartment

    freezer compartment The freezer compartment is suitable for storing and freezing food. o The freezer compartment temperature must have already reached -18 degrees centigrade (or lower) before you attempt to store food that is already frozen or freezing fresh food. o The freezer compartment is only able to freeze a certain quantity of food at one time.

  • Page 12: Tips On Freezing

    o Do not allow fresh food to touch items that are already fro zen. o After 24 hours you should check that the fresh food is satisfactorily frozen. If it is then the thermostat should be turned down to its normal setting (between <3>...

  • Page 13: Freezing With Super Freeze

    Freezing with Super Freeze o Slide the Super Freeze switch to the left and the freezer will start to run continuously at its maximum setting. o The orange Super Freeze light will come on when the Super Freeze setting has been switched on. o There is no need to adjust the thermostat knob.

  • Page 14: Cleaning And Maintenance

    Cleaning and maintenance WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it. o The freezer should be cleaned periodically, using a solution of bicarbonate of soda and lukewarm water.
  • Page 15 o The day before you defrost, turn the thermostat dial to position <7>, this will make sure that the food contained in the freezer is frozen properly. o Whilst defrosting the appliance, the food should be removed from the freezer and wrapped in several layers of paper and stored in a cool place.

  • Page 16: Installation

    Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the freezer.

  • Page 17: Positioning

    Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. Your appliance may not function correctly if the ambient temperature falls outside of the following ranges.

  • Page 18: Adjusting The Height And Levelling Off Your Freezer

    Adjusting the height and levelling off your freezer 2) Place the freezer into the aperture. The height and level of the appliance should then be adjusted so it sits properly under the worktop. o Locate the 4 rotating, levelling feet on each corner of the appliance.

  • Page 19: Installing Your Freezer

    Installing your freezer If you need the appliance door to open from the other side, then please reverse the door before commencing the installation process. (See “Reversing the door section”). Tools required:- o Tape measure o Sharp pencil o Small flat bladed screwdriver o Spanner o Bradawl o Drill...
  • Page 20 5) Measure the distance between the two screw holes on the top of the freezer door. 6) Draw a line that is the length of that measurement (D) on the rear of the furniture door. This line should be drawn at the point that you marked in step 4.
  • Page 21 8) Using the screws provided, secure the front brackets to the inside of the furniture door on the holes that you have just drilled. IMPORTANT: These screws must be securely tightened. 9) Tighten the upper retaining bolts to the top of the appliance door.
  • Page 22 11) Rehang the furniture door and make the same adjustments that you made in step 9. o Tighten the retaining nuts at the top of the appliance door. o Secure the bottom of the furniture door to the appliance door, using the two fixing brackets, tightening screws into the two holes that you made in step 10.

  • Page 23: Adjusting The Plinth/Kickboard

    Adjusting the plinth/kickboard When the appliance has been fitted, you may decide to attach a plinth or kickboard to match your existing kitchen units. o Remove the grid on the base of the freezer by releasing the fastenings just inside of the grill on each side. Then pull the grid towards you.
  • Page 24 2) With the door closed, remove the screws on the outside of the hinges. o You should start with the top hinge first. 3) Carefully open the hinges away from the appliance d oor. 4) Remove the door from the main body of the appliance.
  • Page 25 7) Turn the hinge over and place it on the diagonally opposite corner of the cabinet. o Securely screw it into place. 8) Repeat steps 5 - 7 on the remaining hinge (i.e. remove it and attach it to the diagonally opposite corner). o Replace the cabinet blanking plates.

  • Page 26: Troubleshooting

    Troubleshooting IMPORTANT: If your freezer appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. My freezer does not appear to be working/there is no power to my appliance. o Check that the plug is fully inserted into the power socket. o Check that there is power to your mains supply (e.g.
  • Page 27 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...

  • Page 28: Contact Details

    Czech Republic Baumatic CR spol s.r.o. Amperova 495 United Kingdom 46215, Librec Baumatic Ltd., Czech Republic Baumatic Buildings, 6 Bennet Road, +420 800 185 263 Reading, Berkshire RG2 0QX www.baumatic.cz United Kingdom Slovak Republic Sales Telephone Baumatic Slovakia, s.r.o. (0118) 933 6900...
