Uniden UH076SX-NB Owner's Manual
Uhf-cb radio
Hide thumbs
Also See for UH076SX-NB:
- Owner's manual (29 pages) ,
- Owner's manual (32 pages) ,
- Manual (10 pages)
Related Manuals for Uniden UH076SX-NB
Summary of Contents for Uniden UH076SX-NB

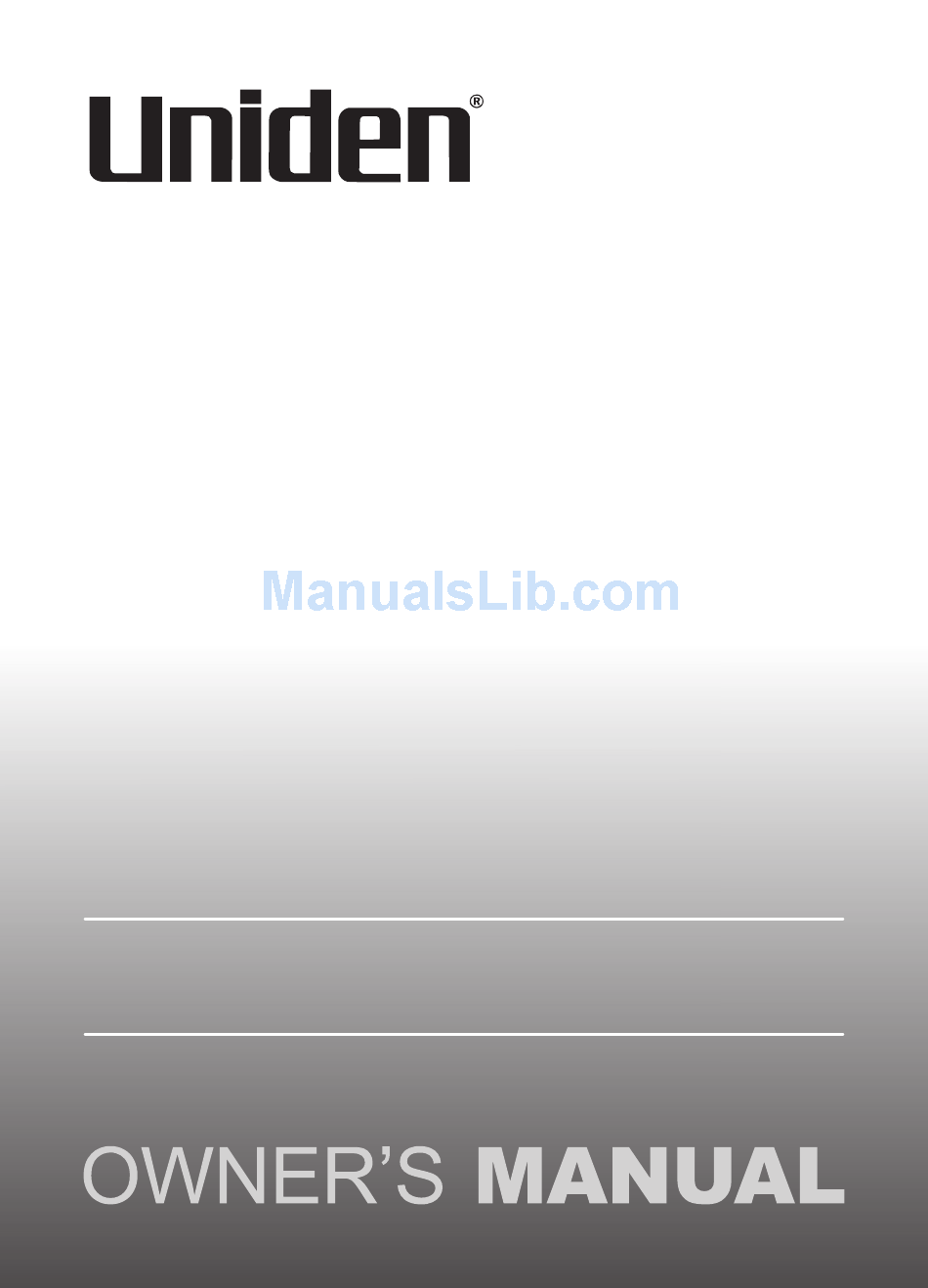

- Page 1 UH076SX-NB UH076SX-2NB-TP UHF-CB Radio For more exciting new products please visit our website: Australia: www.uniden.com.au New Zealand: www.uniden.co.nz...
- Page 2 Being defined as having no ingress of water when immersed at 1 metre for 30 minutes. The UH076SX-NB will only meet this rating if fully assembled and all rubber seals and bungs are well maintained and correctly fitted. This means that the speaker microphone bung is inserted, and the battery pack and antenna are attached and securely fastened.
-
Page 3: Table Of Contents
Contents Introduction Features Included in your Package Controls and Indicators Getting Started Mounting the Drop-in Charger (UH076SX-NB Only) Connect Drop-in Charger with AC Adaptor Attaching the Antenna Attaching the Battery Pack Attaching the Beltclip Charging the Battery Pack Battery Level Display... -
Page 4: Features
This hand held UHF-CB radio will give you consistent, outstanding performance in virtually all conditions and situations. To ensure that you get the most from the UH076SX-NB features, please read this operating guide carefully before using the unit. -
Page 5: Included In Your Package
External Speaker Drop-in Charger Mounting Screws Mic (SM-078) (DT075A) Belt Clip and Lithium Battery Owner’s Manual Wrist Strap (BP075) If any of these items are missing from the box, contact your place of purchase, immediately. NOTE UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 6: Optional Accessories
Owner’s Manual Hang Up Bracket x2 (CK 078) If any of these items are missing from the box, contact your place of purchase, immediately. NOTE Optional Accessories • VOX Headset • Heavy Duty Speaker Mic UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 7: Controls And Indicators
Channel Numbers 15 Open Scan/Group Scan CTCSS (os/gs)/VOX 16 Channel Up Button ( Roger Beep 17 Duplex Key (dup)/ Battery Level Indicator CTCSS Key (ctcss) Key Lock 18 Channel Down Button ( Memory 19 Speaker Receive UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 8: Getting Started
Getting Started Mounting the Drop-in Charger (UH076SX-NB Only) 1. Mount the drop-in charger to either a table or wall. Table: Attach the drop-in charger using the mounting screws and washers. Wall: Insert the two mounting screws into the wall keeping the same space as the holes on the charger. -
Page 9: Connect Drop-In Charger With Ac Adaptor
NOTE below 0º C (32º F) or above 45º C (113º F) Input Voltage (Cigarette Lead Charger): +12VDC to+24VDC. Attaching the Antenna Attach the antenna to the UH076SX-NB. Be sure the antenna is firmly seated. UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 10: Attaching The Battery Pack
It will only fit in one way. 2. Snap the battery release clip until it clicks. Be sure the battery pack fits tightly against the UH076SX-NB body. Avoid exposing the Lithium Ion battery, attached or unattached to the radio, in direct sunshine, heated cars, or in areas with temperatures below –20°C (–4°F) or above... -
Page 11: Charging The Battery Pack
• The charger won’t overcharge the battery pack. When charging is completed, the charge LED is no longer illuminated. • Do not transmit when the UH076SX-NB is in the drop-in charger! • You can monitor incoming calls while the UH076SX-NB is in the drop-in charger. -
Page 12: Battery Level Display
Getting Started Battery Level Display The BATTERY icon in the top right hand corner of the screen indicates the UH076SX-NB current battery voltage level at all times. The battery level is displayed in 4 levels. LEVEL 4 LEVEL 3 Battery 100% full Battery approx. -
Page 13: Connecting The Spkr/Mic
Secure the front and back pieces of the Hang-up Bracket using the supplied binding screws. Locate a suitable mounting position. Apply high quality Double-Sided tape onto the flat area of the Hang-up Bracket back piece and then press firmly to the mounting position. UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 14: Operation
Your radio emits a beep each time-one of the keys (except for the PTT or mon) are pressed. To turn OFF this beep: Press and hold while turning on the radio. To turn ON this beep: Press and hold while turning on the radio. UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 15: Roger Beep
For your reference a list of the available channels, corresponding frequencies and guidelines for their use and selection is printed on page 26. For Australia, Channels 05 NOTE and 35 are reserved for Emergency Calls. UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 16: Squelch
The squelch is used to eliminate any annoying background noise when there are no signals present. Make sure to first select a channel not in use before setting the squelch in your UH076SX-NB UHF-CB radio. Make sure to first select a channel not in use before setting the NOTE squelch in your UH076SX UHF-CB radio. -
Page 17: To Transmit And Receive
Operation To Transmit and Receive The UH076SX-NB uses the UHF-CB Channels. For your reference a list of the available channels and corresponding frequencies is printed on p.27 - p.28. 1. The maximum RF transmit power of UH076SX-NB is 5 Watts. -
Page 18: Using A Repeater Channel
Repeater station and then re-transmitted at the same time on another channel. Your UH076SX-NB is designed with duplex capability on Channels 1 to 8 and Channels 41 to 48. When any of these channels are set to operate in... -
Page 19: To Operate Uh076Sx-Nb In Duplex Mode
Check with your local retailer for available repeaters. NOTE Scanning The UH076SX-NB has two types of scanning; Open Scanning (OS) and Group Scanning (GS). Scanning allows you to search for active channels programmed in the OS or GS memory. To initiate scanning;... -
Page 20: Group Scan (Gs) Mode
Operation If SCAN is deactivated while in an active channel, the UH076SX-NB will stay on that active channel. If no other channels are active, the UH076SX-NB will reinstate the NOTE starting channel. Group Scan (GS) Mode Allows you to monitor a Priority Channel while scanning. -
Page 21: Programming Scan Channels
(scanning pauses). Drop-out Delay While scanning, the UH076SX-NB stops at a busy channel and receives a signal. When the received signal is over, the unit will wait for 3 seconds for the return of the signal, otherwise, the radio resumes scanning. -
Page 22: Advanced Features
2. Press and hold to change to CTCSS scan mode. 3. When a signal is sensed on a CTCSS CH, the UH076SX-NB stops for about 400 msecs (decode time) to decode the CTCSS code. If there is no code or the receive code does not match the one programmed on the unit, the unit resumes scanning. -
Page 23: Power Save
Operation VOX feature will not work without the VOX Headset Microphone. The built in mic of UH076SX-NB is temporarily disabled when VOX feature is working, however accidental NOTE pressing of will cause the unit to transmit briefly. To activate VOX 1. -
Page 24: Keypad Lock
2 sec. A two tone beep will be heard and the receiver circuit will stay open letting in both the noise & weak signals. • Display shows MON and BUSY icons. • To return to normal receive mode press UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 25: Ctcss Codes And Frequencies
71.9 141.3 74.4 146.2 77.0 151.4 79.7 156.7 82.5 162.2 85.4 167.9 88.5 173.8 91.5 179.9 94.8 186.2 97.4 192.8 100.0 203.5 103.5 210.7 107.2 218.1 110.9 225.7 114.8 223.6 118.8 241.8 123.0 250.3 127.3 UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 26: Uhf-Cb Channel Guidelines
The above situations are not a fault of the radio but a symptom of mixed wideband and narrowband radios in current use. It is expected that as older wideband radios are phased out this issue will be eliminated. UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... -
Page 27: Uhf-Cb Channels And Frequencies
477.300 (CH36) 477.050 476.575 477.325 (CH37) 477.075 476.600 477.350 (CH38) 477.100 476.625 477.125 476.650 477.150 476.675 477.175 476.700 477.200 476.725 477.225 476.750 477.250 476.775 477.275 476.800 477.300 476.825 477.325 476.850 477.350 476.875 477.375 476.900 477.400 UNIDEN UH076SX-NB Handheld UHF-CB Transceiver... - Page 28 477.0625 476.5875 477.3375 (CH 77) 477.0875 476.6125 477.3625 (CH 78) 477.1125 476.6375 477.1375 476.6625 477.1625 476.6875 477.1875 476.7125 477.2125 476.7375 477.2375 476.7625 477.2625 476.7875 477.2875 476.8125 477.3125 476.8375 477.3375 476.8625 477.3625 476.8875 477.3875 476.9125 477.4125 UNIDEN UH076SX-NB Handheld UHF-CB Transceiver...
-
Page 29: Warranty
Terms of Warranty: Uniden Aust/NZ warrants to the original retail purchaser only that the UH076SX-NB (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below. - Page 30 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the addresses shown below. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 31 UNIDEN UH076SX-NB Handheld UHF-CB Transceiver...
- Page 32 THANK YOU FOR BUYING A UNIDEN PRODUCT. © 2013 Uniden Australia Pty Limited. Uniden New Zealand Ltd. Printed in Vietnam. U01UT955ZZZ(0)
