PREPARATION
Getting Started
Congratulations on your purchase of the Phase
Linear MP1311 Mobile AM/FM/CD/MP3/WMA
Receiver. It's a good idea to read all of the
instructions before beginning the installation.
We recommend having your Phase Linear
MP1311 installed by a reputable installation
shop.
Contents
Installation Instructions.............................. 3
Wiring ........................................................ 6
Operating Instructions ............................... 7
Tuner Operation ...................................... 10
CD Player Operation ............................... 12
MP3/WMA Operation .............................. 14
Remote Control ....................................... 18
Care and Maintenance ............................ 19
Troubleshooting....................................... 20
Specifications .......................................... 21
Installation Requirements
This unit is designed for installation in cars,
trucks and vans with an existing radio opening.
In many cases, a special installation kit will be
required to mount the radio to the dashboard.
These kits are available at electronics supply
stores and car stereo specialty shops. Always
check the kit application before purchasing to
make sure the kit works with your vehicle. If you
need a kit but cannot locate one, call our
customer support line at 1-800-323-4815.
(U.S.A. and Canada only.)
Tools and Supplies
The following tools and supplies are needed to
install the radio.
• Torx type, flathead and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screwdriver,
socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16-18 gauge speaker wire
Speaker Requirements
Only connect speakers rated with a load
impedance of 4 ohms. Speakers with a load
impedance of less than 4 ohms could damage
the unit.
2

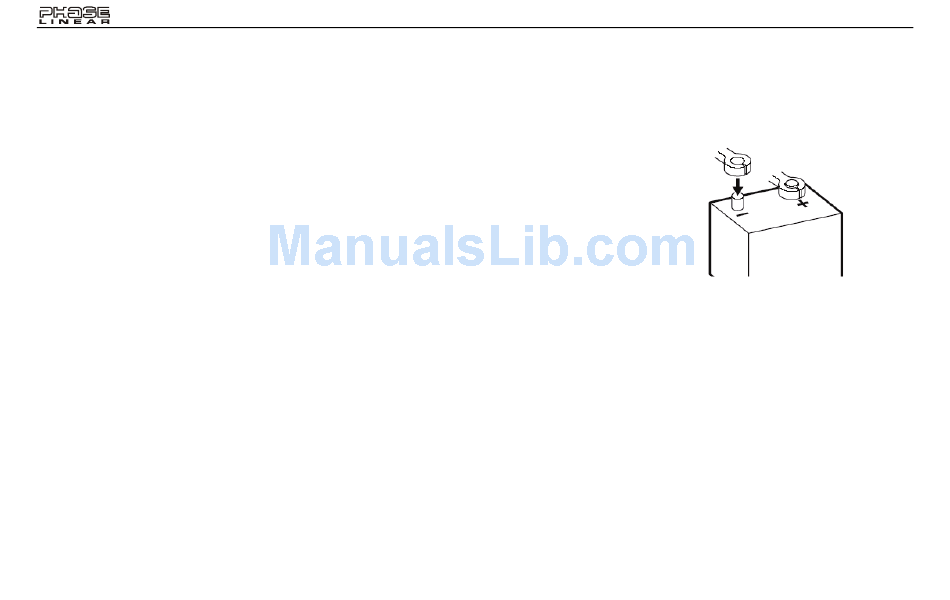

Disconnect Battery
Before you begin, disconnect the battery
negative terminal.
Toll-Free Installation Assistance
If you require assistance, contact Technical
Support at 1-800-323-4815 from 8:30 a.m. to
7:00 p.m. EST Monday through Friday and from
9:00 a.m. to 5:00 p.m. EST on Saturday.
(U.S.A. and Canada only.)
