Summary of Contents for Anritsu MG3681A

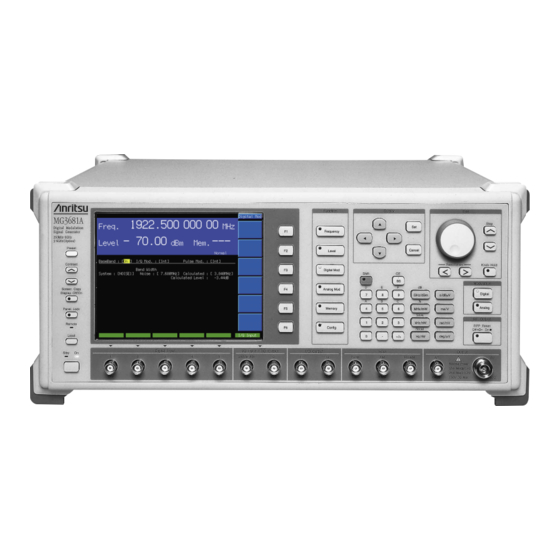

- Page 1 MU368060A AWGN Unit (For MG3681A Digital Modulation Signal Generator) Supports IMT2000 System Receiver Test...
- Page 2 MG3681A. • Configuration of Communication System Software and Expansion Unit Communication system W-CDMA (3GPP) CDMA2000 The expansion unit is installed in the MG3681A Digital Modulation Signal Generator mainframe. Applicable software —— Expansion units Expansion unit MU368060A AWGN Unit...
-
Page 3: Application Examples
3GPP Recommended Dynamic Range and Interference Tests This test does not require a separate signal generator for both interfering signal and AWGN. W-CDMA wanted signal generator MG3681A Digital Modulation Signal Generator MU368040A CDMA Modulation Unit MX368041B W-CDMA Software Interfering signal and AWGN generator... -
Page 4: Specifications
: –30.0 to –20.0 dB (resolution: 0.2 dB), –19.9 to – 8.0 dB (resolution: 0.1 dB) 1: AWGN internal addition function can be used only at uplink when the MU368040A and MX368041B are both installed in the MG3681A. 2: Set a chip rate of x 1.5 or x 2 at AWGN internal addition Ordering Information Please specify the model/order number, name, and quantity when ordering.
