- Page 1 Installation and operating instructions WASHER-DRYER Downloaded from www.Manualslib.com manuals search engine...
-
Page 2: Table Of Contents
Contents General safety information ............3 Operating instructions Environmental protection/economy tips ........4 Your new washer-dryer ............... 5 Before washing for the first time ..........7 Preparing and sorting the laundry ..........7 Detergents and Care Products........... 9 Programmes.................11 Washing and drying options ..........13... -
Page 3: General Safety Information
– Remove the transport safety bolts and keep them in a safe place. time – Do not operate the washer-dryer if it has any visible damage. If you are in any doubt, please consult our after-sales service or your retailer. -
Page 4: Environmental Protection/Economy Tips
– Separate out the various waste materials of the packaging and take them to the nearest collection point. – Always fill the washer-dryer with the maximum load for the relevant programme. – Wash normally soiled laundry without a prewash. -
Page 5: Your New Washer-Dryer

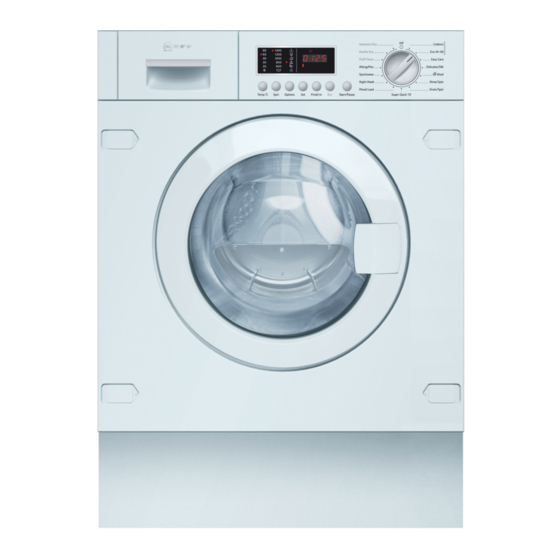

Your new washer-dryer The washer-dryer can be used Description of the in 3 ways –> page 15: washer-dryer – washing only – drying only – successive washing and drying. The successive wash-dry programme automatically shifts from the wash cycle to the dry cycle without further intervention. -
Page 6: Control Panel
Washing and drying options –> page 13 Programme selector –> page 11 – p (Temperature): individual adjustment of the washing For switching the washer-dryer on and temperature. off and for selecting the programme, can – B (Spin speed): individual adjustment of the spin be turned in both directions. -
Page 7: Before Washing For The First Time
At the end of the programme, turn the programme selector to Off. Open the door. Leave the door open to allow the inside of the washer-dryer to dry. Preparing and sorting the laundry – Wash white laundry separately from coloureds. - Page 8 Risk of explosion. items that have been treated with cleaning agents containing solvents, e.g. stain remover or, must be carefully rinsed out before they are loaded into the washer-dryer, otherwise there is the risk of an explosion. Unfold the laundry and place it loosely in the drum. Load a mixture of small and large items.
-
Page 9: Detergents And Care Products
Detergents and Care Products The detergent drawer is divided into three compartments Detergent drawer Compartment I : detergent for pre-wash. Compartment II : detergent for main wash, Compartment i : Liquid additives, such as starch or fabric softener. Additives are automatically dispensed during the final rinse cycle. –... - Page 10 Normally soiled laundry Measuring washing powder Set the programme. Do not select (Pre-wash) –> page 13. Add all the detergent, according to the manufacturer's instructions, to compartment II of the detergent drawer. Heavily soiled laundry Set the programme. ...
-
Page 11: Programmes
Programmes The programme selector is used to set the washing and drying Programme selector programmes. The time remaining until the end of the programme and the Beladungsmenge (Load) are shown on the display panel. Cottons (Cottons/Coloureds) Washing programmes* Suitable for hard-wearing fabrics, heat-resistant fabrics made from cotton or linen. -
Page 12: Drying Programmes
This programme is designed to clean the drying cycle of any fluff deposits. The time at which the programme needs to be run is automatically determined by the washer-dryer and is indicated by the symbol on the display panel. The symbol remains lit until the programme has been successfully completed. -
Page 13: Washing And Drying Options
Washing and drying options The temperature can be adjusted individually for each programme. Temperature p button To adjust it, press the p (Temperature) button repeatedly until the required temperature is displayed. The spin speed can be individually adjusted for each programme. Spin speed button B To set the spin speed, press the B (Spin) button repeatedly until the required spin speed is displayed. - Page 14 The drying programmes –> page 12 can be individually adapted by (Drying) button selecting the drying options. – Press the 5 (Drying) button repeatedly until the required drying option is shown on the display panel. – To deactivate, press the 5 (Drying) button repeatedly until shown on the display.
-
Page 15: Washing And Drying
Washing and drying Turn the programme selector to the desired programme, Washing only e.g. D Cottons (Cottons/Coloureds) 60°C. – The display panel alternately shows 2 (Remaining time) and the recommended load in kg. The % symbol flashes. If necessary, adjust the temperature and the spin speed and select any options for your individualised programme, –>... -
Page 16: End Of The Programme
Turn the programme selector to $ (Off). Remove the washing from the drum. Leave the door open to allow the inside of the washer-dryer to dry out. Turn off the tap (not necessary on models with Aqua-Stop). -
Page 17: Cleaning And Care
You must disconnect the appliance from the mains first. Never clean the washer-dryer with a water jet. Risk of explosion. Never clean the washer-dryer with solvents. Risk of scalding Hot washing water must be cooled before Draining. Wipe with a soft, damp cloth. -
Page 18: Drain Pump
Place the kick panel in the 4 clip-in slots and secure to the housing using the lock pins. If no water runs into the washer-dryer, or only an insufficient amount, you Filter in the water must first reduce the water pressure in the supply hose: ... -
Page 19: What To Do If
If repairs are needed, or if you cannot rectify a fault yourself with the help of the following table: Set the programme selector to $ (Off). Disconnect the washer-dryer from the power supply. Turn off the tap. Call the after-sales service –> page 22. - Page 20 Clean the filter in the water supply hose blocked. –> page 18. The water supply hose is pinched or Check the water inlet hose. kinked. The washer-dryer is not correctly Level the washer-dryer –> page 25. Intense vibrations during levelled. spinning. The transport safety bolts have not Remove the transport safety bolts been removed.
- Page 21 The A (Start/Pause) button was Press the button again to restart the Programme terminated selected accidentally. programme. unexpectedly. No fault "Thermo spin", which is for energy-effi- Spinning during drying cient drying, starts after a drying time of approx. 10 minutes. The laundry clings to the sides of the Loosen up the laundry by hand;...
-
Page 22: After-Sales Service
After-sales service Before you call the after-sales service, please check whether you can cor- rect the fault yourself –> page 19. You will be charged if a technician is called out, even during the warranty period. You can find information about your nearest after-sales service here or in the After-sales service directory (depending on the model). -
Page 23: Installation Instructions
The washer-dryer is very heavy. Take care when lifting it. Safety information Do not operate the washer-dryer if it has any visible damage. If you are in any doubt, please consult our after-sales service or your retailer. Do not install the washer-dryer outdoors or in areas exposed to frost. - Page 24 Insert the protective bolts to prevent damage to the washer- covers. dryer. – Appliance stability is essential to ensure that the washer-dryer does not Positioning and “creep” during spin cycles. – The installation area must be firm, clean and level.
- Page 25 – All four appliance feet must stand firmly on the ground. – The washer-dryer must not wobble. – Check the levelness of the washer-dryer with a spirit level and correct if necessary. – The washer-dryer must not rest against the sides of the installation recess.
-
Page 26: Water Connection
To prevent leaks or water damage, you must observe the instructions in Water connection this section. If in doubt, have a technician connect the appliance. The water supply and Drain hoses can be routed to the left of right, depending on installation conditions. Do not use a used inlet hose. -
Page 27: Electrical Connection
Do not plug in or unplug the mains plug with wet hands. Only pull the mains plug out by the plug itself. Once the washer-dryer has been installed in a kitchen unit, it can be Fitting the door hinges concealed with a door. If you wish to do this, you must fit the hinges supplied to the washer-dryer. -
Page 28: Table Of Programmes
Table of programmes Observe the information on care labels, fabric type and load quantity. In order to select the most suitable programme for the laundry, observe the information on the labels that are attached to most items. Type of laundry Options* Drying Programmes*... -
Page 29: Consumption Rates
Consumption rates Washing Programme Load Power*** Water*** Programme duration*** D Cottons (Cottons/Col- 0.8 kWh 60 l 1:52 h oureds) 40 °C D Cottons (Cottons/Col- 6 kg 2.1 kWh 65 l 2:22 h oureds) 90 °C y Cottons Eco 60 °C** 1,02 kWh 45 l 2:10 h... -
Page 30: Index
Index Care information Descaling ......... 18 Easy-iron -Drying .........8 Detergent ........9 -Display panel ......6 -Washing ......7 -Liquid detergent insert . 9, 10 Electrical connection ....27 Liquid detergent insert ..10 Care product .......9 Emergency release ....21 Childproof lock ......16 Detergent drawer End of the programme .....16 -Display panel ......6... - Page 31 Hazard information ....3 Positioning Temperature Hazard warnings -Washer-dryer ....24 -Button .........6 -Indicator lamp ....6 -Detergent ......9 Power ........29 Time-controlled drying Housing Pre-wash -Drying options ....14 -Cleaning ......17 -Display panel ..... 6 -Programme ....... 13 Transport safety bolts ....24 Programme -Cancelling ......
- Page 32 Constructa-Neff Vertriebs-GmbH Carl-Wery-Straße 34 D-81739 München v6540x0eu 12.2010 9000529496 Downloaded from www.Manualslib.com manuals search engine...
