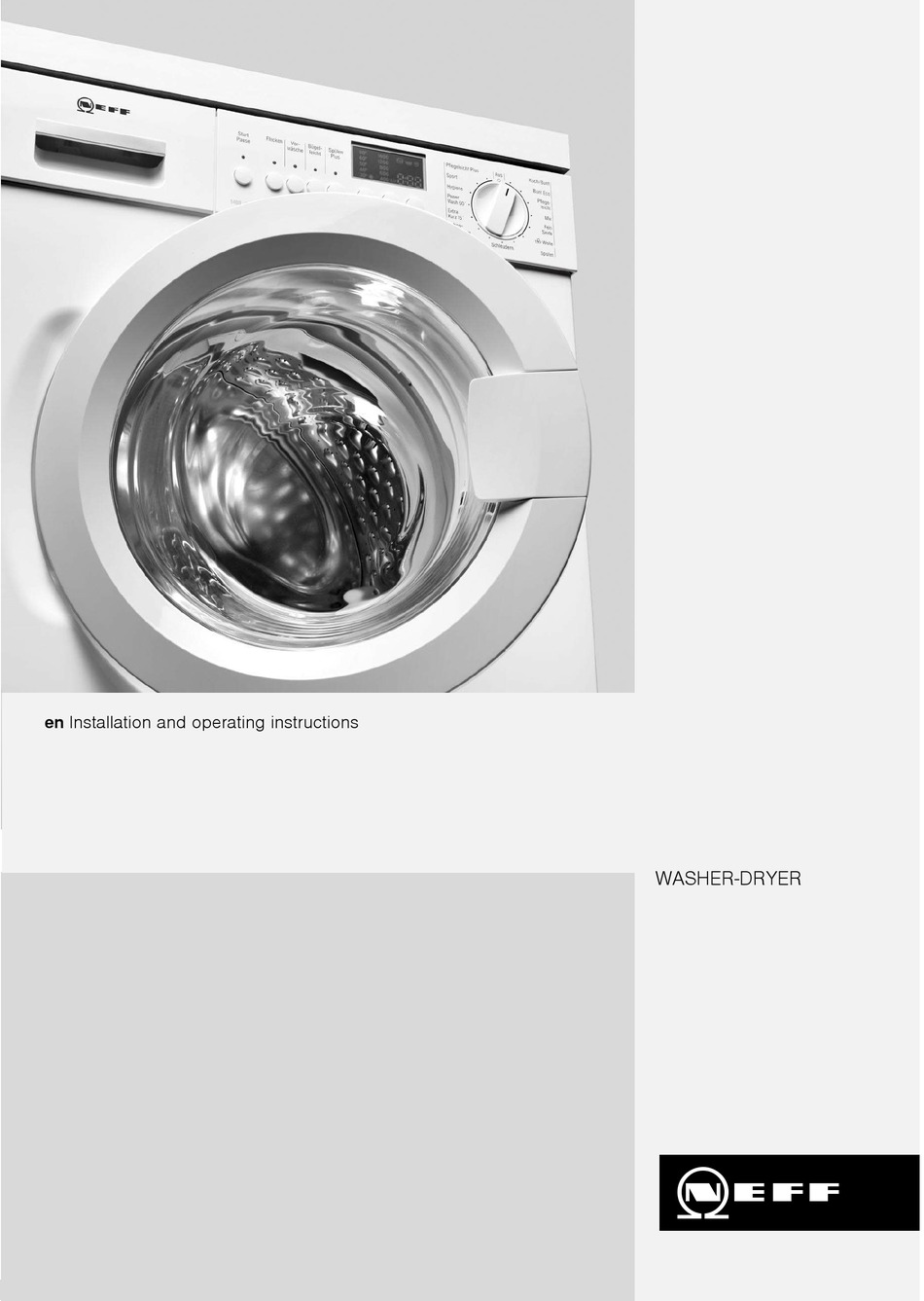

Please read the Installation and operating instructions and all the other information supplied and handle the appliance accordingly. Keep all documents in a safe place for future reference, or to pass on to the next owner. For further information and a selection of our products, visit our website:...
– Remove the transport safety bolts and keep them in a safe place. time – Do not operate the washer-dryer if it has any visible damage. If you are in any doubt, please consult our after-sales service or your retailer.
– Measure the detergent according to the manufacturer's instructions and in line with the local water hardness. – If the laundry is subsequently dried in a tumble drier, select the spin speed according to the tumble drier manufacturer's instructions...
→ page 26. The water hose must be open. A safety device prevents the door from being opened during operation. Door Before opening Make sure that there is no water in the drum and that the drum is not moving.
– Set: activation/deactivation of the selected directions. Do not adjust the washing options. programme selector while washing/ – 3 (Finished in time) : delays the start of the drying is in progress. programme. – 5 (Drying): setting the drying time.
Before washing for the first time The washer-dryer was tested before leaving the factory. To remove any water that may be left over from the test, do not load any laundry the first time that you run a wash programme.
Pull out the detergent drawer as far as the stop. Press on the zone labelled PUSH and take out the detergent drawer. Pull the insert in compartment II forwards as far as the stop and push it down.
Page 10
After folding down the liquid detergent insert, add the liquid detergent to compartment II of the detergent drawer. Use the scale on the liquid detergent insert as a guide for the dosage of liquid detergent. If compartment II is used for washing powder, the liquid detergent insert...
– Whites 60 °C to 90 °C. Synthetics = Washing programme for less hard-wearing fabrics made from cotton, linen, synthetic fibres or blended fabrics. It is advisable to sort the laundry by colour. Delicates 8 Gentle programme for delicate, washable fabrics, e.g. silk, satin, synthetics or blended fabrics (e.g.
Page 12
' + B Rinse + Spin An additional rinse cycle with a final spin. If the laundry is to be removed dripping wet, set the spin speed to $ (Rinse stop) before starting the programme → page 13.
press the Menu button repeatedly until the required washing option is selected (indicator lamp flashes). Set button Press the Set button to switch the washing option on or off (indicator lamp is lit/not lit). If you press and hold the Menu button, the appliance scrolls through all the washing options.
Page 14
– To deactivate, press the 5 (Drying) button repeatedly until shown on the display panel. Drying option Time-controlled The required drying time can be set to between 2:40 and 0:00 by repeatedly pressing drying the 5 (Drying) button. Press A (Start/Pause) to start the selected programme.
– Observe the maximum load, Programme table → page 28. Press the A (Start/Pause) button. – 2 (Remaining time) is shown on the display panel and the 5 and f symbols light up. – The drying programme starts. Successive washing and drying.
Page 16
The maximum spin speed depends on the selected wash programme. If you do not wish to spin the laundry: Set the spin speed to $ (Rinse hold) . The water is drained, but the washer-dryer does not spin the laundry. The programme is ended when appears in the display field.
Detergent drawer Pull out the detergent drawer as far as the stop. Press on the zone labelled PUSH and take out the detergent drawer. Clean the detergent drawer guide in the washer-dryer. Remove the fabric softener compartment insert.
– Make sure that the impeller can turn freely. Replace the pump cover and screw firmly in place. Place the kick panel in the 4 clip-in slots and secure to the housing using the lock pins. If no water runs into the washer-dryer, or only an insufficient amount, you...
Risk of electric shock. Repairs must only be carried out by customer services or authorised technicians. If repairs are needed, or if you cannot rectify a fault yourself with the help of the following table: Set the program selector to O (Off).
Page 20
The spin speed together. properly. is automatically reduced for safety reasons. Uncleaned areas worse than expected. Select a suitable programme, e.g. a Washing results not programme with prewash. Pretreat satisfactory. stains if necessary. Too little or incorrect detergent used.
Page 21
Power failure. Unlock the door mechanically. In order to unlock the door mechanically in the event of a power failure, you will Emergency unlock. have to: turn the programme selector to Off and unplug the mains plug from the socket.
(FD) of the appliance. Enter the number of your appliance here. You can find this information on the rating plate in the frame of the door. Please help us to avoid unnecessary call-outs by quoting the product and production numbers.
The washer-dryer is very heavy. Take care when lifting it. Safety information Do not operate the washer-dryer if it has any visible damage. If you are in any doubt, please consult our after-sales service or your retailer. Do not install the washer-dryer outdoors or in areas exposed to frost.
Page 24
Insert the protective dryer. covers. – Appliance stability is essential to ensure that the washer dryer does not Positioning and “creep” during spin cycles. levelling – The installation area must be firm, clean and level.
Page 25
– All four appliance feet must stand firmly on the ground. – The washer-dryer must not wobble. – Check the levelness of the washer-dryer with a spirit level and correct if necessary. – The washer-dryer must not rest against the sides of the installation recess.
The water supply and drain hoses can be routed to the left of right, depending on installation conditions. Do not use a used inlet hose. Only use the inlet hose supplied or one which was purchased from an authorised specialist retailer.
Only pull the mains plug out by the plug itself. Once the washer-dryer has been installed in a kitchen unit, it can be Fitting the door hinges concealed with a door. If you wish to do this, you must fit the hinges supplied to the washer-dryer. to the washer-dryer...
Table of programmes Observe the information on care labels, fabric type and load quantity. Type of laundry Options* Drying Programmes* °C max. ˆ ‰ Cottons D; 30-90 6 kg/ Hard-wearing fabrics, heat-resistant fabrics made of 4 kg** cotton or linen.
**Programme setting for testing in accordance with currently applicable EN60456 standard. Note on comparative tests: For testing the test programmes, wash the specified load using the maximum spin speed with the "intensive" option selected. As a short programme for coloureds, select the Synthetics 40 °C programme with the maximum spin speed.
