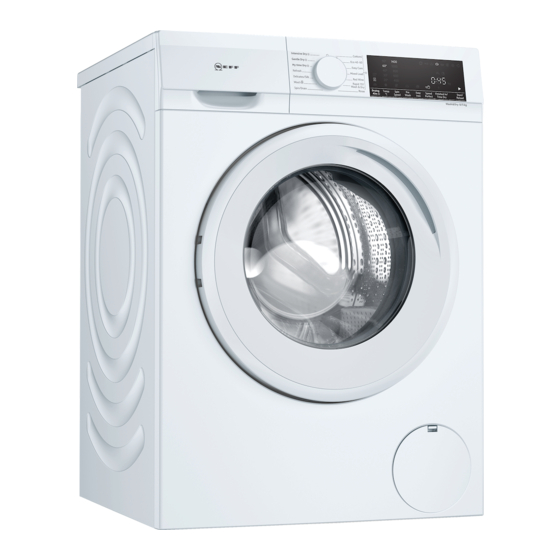

- Page 1 WASHER DRYER en Instruction Manual and Installation Instructions VNA341U8GB...
- Page 2 Your new washer dryer Display rules : Warning! You have chosen a Neff washer dryer. This combination of symbol and signal Please take a few minutes to read and word indicates a possibly dangerous become familiar with the advantages of situation.
-
Page 3: Table Of Contents
Contents e n I n s t r u c t i o n M a n u a l a n d I n s t a l l a t i o n I n s t r u c t i o n s Intended use. -
Page 4: Intended Use
Intended use Cleaning and maintenance . . . 41 Intended use Appliance housing/control panel . . . 42 Drum ......42 This appliance is intended for private ■... -
Page 5: Safety Instructions
Safety instructions Do not allow children to Safety instructions ■ clean or maintain this appliance unsupervised. T he following safety information Keep children under 3 years S a f e t y i n s t r u c t i o n s and warnings are provided to ■... -
Page 6: Installation
Safety instructions The appliance must not be Warning ■ supplied through an external Risk of poisoning! switching device, such as a Detergents and care products timer, or connected to a may result in poisoning if circuit that is regularly consumed. switched on and off by a If accidentally swallowed, seek utility. - Page 7 Safety instructions If you take hold of any of the Warning ■ appliance's protruding parts Risk of electric shock/fire/ (e.g. the appliance door) in material damage/damage to order to lift or move it, these the appliance! parts may break off and If the appliance's mains cable is cause injury.
-
Page 8: Operation
Safety instructions The appliance is secured for Caution! ■ transportation by transport Material damage/damage to locking devices. If the the appliance transport locking devices are If the water pressure is too ■ not removed before the high or too low, the appliance is operated, this appliance may not be able to may result in damage to the... - Page 9 Safety instructions Do not use the appliance if During the last part of the ■ ■ industrial chemicals have drying cycle, the laundry in been used to clean the the drum is not heated laundry. (cooling cycle). This is to ensure that it remains at a Warning temperature at which it will...
- Page 10 Safety instructions If you reach into the drum Caution! ■ while it is still rotating, you Material damage/damage to risk injuring your hands. the appliance Wait until the drum has If the amount of laundry in ■ stopped rotating. the appliance exceeds its maximum load capacity, it Warning may not be able to operate...
-
Page 11: Cleaning/Maintenance
Safety instructions Cleaning/Maintenance Warning Risk of poisoning! Warning Poisonous fumes may be given Risk of death! off by cleaning agents that The appliance is powered by contain solvents, e.g. cleaning electricity. There is a risk of solvent. electric shock if you come into Do not use cleaning agents that contact with live components. -
Page 12: Environmental Protection
Environmental protection Caution! Save energy and conserve Material damage/damage to resources the appliance If you follow these instructions, your Cleaning agents and agents for appliance will use less electricity and pretreating laundry (e.g. stain less water. removers, prewash sprays, etc.) Choose programmes with low may cause damage if they temperatures and longer wash times... -
Page 13: Energy Saving Mode
Positioning and connecting Washing with prewash increases the ■ programme duration and increases energy and water consumption. The appliance has a continuous automatic load adjustment function. Depending on the type of fabric and ■ load capacity, the continuous automatic load adjustment function optimally adjusts the water consumption and programme duration. -
Page 14: Safety Instructions
Positioning and connecting In addition, a hose clamp (24 - 40 mm Notes diameter, available from specialist In addition to the safety information ■ retailers) is required to connect the listed here, the local water and water outlet hose to a siphon. electricity supplier may have special requirements. -
Page 15: Removing The Transport Locks
Positioning and connecting Take the hoses out of the holders. Notes Recess width of 60 cm required. ■ Only install the appliance ■ underneath a continuous worktop that is securely connected to adjacent cabinets. Removing the transport locks Caution! Damage to the appliance The appliance is secured for Unscrew and remove all four ■... -
Page 16: Removing The Support Struts
Positioning and connecting Fit the covers. Hose and cable lengths Connection on left side Lock the covers firmly in place by applying pressure to the snap-in hooks. ( ~ 105 cm 0 ~ 145 cm 8 ~ 95 cm @ 60 cm ~ 100 cm Connection on right side Removing the support struts Unscrew and remove all screws in... -
Page 17: Water Inlet
Positioning and connecting Water inlet Connection Connect the water supply hose to Warning the water tap (¾" = 26.4 mm) and to Risk of death! the appliance: There is a risk of electric shock if you – Model: Standard touch live components. Do not immerse the Aqua-Stop safety valve* in water (it contains an electric valve). -
Page 18: Water Outlet
Positioning and connecting Open the water tap carefully, Connection checking the leak tightness of the Drainage into a siphon connection points. The screw ■ The connection point must be connection is under mains water secured using a hose clamp with a pressure. -
Page 19: Alignment
Positioning and connecting The plastic pipe is not Tighten the lock nut against the Note: standard accessory, available from housing. specialist dealers. In doing so, hold the foot tight and do not adjust its height. The lock nuts on all four appliance Alignment feet must be screwed tightly against the housing. -
Page 20: Before Washing For The First Time
Positioning and connecting No multiple plugs/couplings or When the programme ends, turn the ■ extension cables are used. programme selector to Û (Off). If an earth-leakage circuit breaker is Your appliance is now ready for use. ■ used, only a type which displays this symbol is used: z. - Page 21 Positioning and connecting c) Clip the hoses securely in the holders. Insert all four sleeves. Before switching on the appliance again: Notes The support struts must be ■ removed. ~ "Removing the support struts" on page 16 The transport braces must be ■...
-
Page 22: Getting To Know The Appliance
Getting to know the appliance Getting to know the appliance A ppliance G e t t i n g t o k n o w t h e a p p l i a n c e Detergent drawer Control panel Loading door Service flap... -
Page 23: Control Panel
Getting to know the appliance Control panel Programme default settings can be changed. Overview of all programme default settings ~ Page 34 Additional programme settings can be selected. Overview of all additional programme settings ~ Page 35 Start/ Reload button for starting, interrupting, (e.g. -
Page 24: Display Panel
Getting to know the appliance Display panel Additional programme settings Programme default settings Display Setting Drying Aim A ¾/»/Ø Display Setting Description PreWash Ž - 90° °C Temp. Temperature that Easy Iron can be set in °C æ SpeedPerfect Ž = cold 2 - 1400* Spin Speed Spin speed in rpm Status indicators for the programme... -
Page 25: Laundry
Laundry Sorting laundry Laundry Sort your laundry according to the care P reparing laundry for washing instructions and manufacturer's L a u n d r y information on the care labels, depending on: Protecting your laundry and appliance Type of fabric/fibre ■... -
Page 26: Preparing Laundry For Drying
Laundry Preparing laundry for drying Starching To ensure an even drying result, Laundry should not be treated Note: Note: sort the laundry according to the: with fabric softener. Type of fabric ■ Switch on the appliance. Care symbols which are indicated on ■... -
Page 27: Detergents And Care Products
Detergents and care products Detergents and care products Y ou can protect your appliance and D e t e r g e n t s a n d c a r e p r o d u c t s your laundry by selecting and using the correct detergents and care products. -
Page 28: Detergent Recommendation
Detergents and care products Detergent recommendation This information is intended to help you to choose the right detergent for your items. Fabrics Detergent Programme Temperature Heat-resistant white fab- Standard detergent with optical Cottons From cold up to 90 °C rics made from cotton or brighteners linen Coloured fabrics made... -
Page 29: Overview Of Programmes
Overview of programmes Overview of programmes S electable programme O v e r v i e w o f p r o g r a m m e s Programme/Type of laundry Options/Information Name of the programme Max. load for washing/ Max. - Page 30 Overview of programmes Programme/Type of laundry Options/Information Eco 40-60 8,0 kg/5,0 kg Suitable for washing normally soiled cotton,linen and mixed fab- ric textiles, and drying it to be immediately stored in a cupboard. 400 - 1400 rpm Notes PreWash, Easy Iron Textiles which are washable based on the laundry symbol ■...
- Page 31 Overview of programmes Programme/Type of laundry Options/Information Rapid 15' / Wash & Dry 2,0 kg/1,0 kg For small amount lightly soiled garments made of cotton, linen, Ž - 40 °C synthetic or blended fabrics. Approx. 15 mins for washing. If 400 - 1000 rpm drying function is selected, it’s followed by another approx.
- Page 32 Overview of programmes Programme/Type of laundry Options/Information Refresh -/1,0 kg Odor removal and wrinkle reduction program, suitable for wool, linen, suits, etc. which do not need frequent washing. Notes It is recommended to hang the clothing in a ventilated envi- ■...
-
Page 33: Drying Table
Overview of programmes Drying table Estimated drying time (min) Recommended drying programme Drying load Ø (IronDry) » (Cup- ¾ (Cup- (kg) boardDry) boardDry+) 0.5-2.0 40-70 40-90 60-100 Intensive Dry A 2.0-3.0 70-90 90-120 100-130 3.0-5.0 90-130 120-210 130-240 0.5-1.5 20-50 30-60 70-120 Gentle Dry A... -
Page 34: Programme Default Settings
Programme default settings Finished in/ Time Dry Programme default Before starting the programme, you settings can preselect the programme end ("Finish in" time) in 0.5h (h = hour) Y ou can change the default settings for increments (between “minimum P r o g r a m m e d e f a u l t s e t t i n g s selected programmes. -
Page 35: Additional Programme Settings35
Additional programme settings Ø (IronDry): For delicate laundry. Additional programme Fabrics suitable for ironing (iron fabrics in order to avoid creasing). Garments settings can be additionally hung up to dry. You can find possible additional N ote: The drying process would proceed A d d i t i o n a l p r o g r a m m e s e t t i n g s programme settings in the overview;... -
Page 36: Speedperfect
Operating the appliance SpeedPerfect Turn the water tap on. Washing in a shorter time while achieving a washing result that is consistent with the normal performance. Touch SpeedPerfect to activate or deactivate this additional programme setting. With the SpeedPerfect Note: additional programme setting activated, the maximum load of washing will be Open the appliance door. -
Page 37: Placing Laundry Into The Drum
Operating the appliance Placing laundry into the drum Dosing and adding detergent and care products Open the door, place laundry in the drum, make sure that no items of Caution! laundry are trapped between the door Damage to the appliance and the rubber seal, and close the door. -
Page 38: Starting The Programme
Operating the appliance Pour in detergent and/or cleaning Pull out the detergent drawer. Press product. down the insert and fully remove the drawer. Dispenser I Detergent for pretreat and clothing disinfectant. (only for Slide the measuring aid forwards, the appliance with pretreat and fold it down and click it into place. -
Page 39: Childproof Lock
Operating the appliance Childproof lock Notes Do not leave the door open for too ■ You can lock the appliance to prevent long when adding laundry as water the settings you have set from being from the laundry may leak out. changed inadvertently. -
Page 40: Programme End
Appliance settings Programme end Wipe the rubber seal dry. ■ “Ÿš lights up on the display and À and Õ displays are off. If you have selected 2, the water is only drained after rinse process, no spin cycle. Notes If •©£... -
Page 41: Sensors
Sensors Activate setting mode: Sensors Set the programme selector to position 1. The appliance is switched U nbalanced load detection S e n s o r s system Touch and hold the Spin Speed button and, at the same time, turn The automatic unbalanced load the programme selector clockwise to detection system detects imbalances... -
Page 42: Appliance Housing/Control Panel
Cleaning and maintenance Appliance housing/control Emptying the detergent draw, panel cleaning the detergent drawer and its housing Remove the detergent residue ■ immediately. If the appliance contains detergent or Wipe the housing and the control fabric softener residues: ■ panel with a soft, damp cloth. Pull out the detergent drawer. -
Page 43: Drain Pump Is Blocked
Cleaning and maintenance Fit the insert and lock it in place Open the service flap. (push the cylinder onto the guide pin). Take the drain hose out of the retainer. Push in the detergent drawer. Remove the sealing cap and pour the water out into a suitable container. -
Page 44: The Drain Hose At The Siphon Is Blocked
Cleaning and maintenance Refit and screw on the pump cover. Re-attach the drain hose and secure The handle must be in a vertical the connection point using the hose position. clamp. Filter in the water supply is blocked Release water pressure in the supply hose: Turn off the water tap. -
Page 45: Faults And What To Do About Them
Faults and what to do about them Clean the filter with a small brush. Warning Risk of injury! Reaching into the drum while it is still turning may cause hand injuries. Do not reach into the drum when it is turning. -
Page 46: Information On The Display Panel
Faults and what to do about them Information on the display panel Display Cause/Remedy Flashes fast + signal: The door was opened and the water level is too high. Õ ■ Close the door, continue the programme with Start/ Reload button or select Drain. -
Page 47: Faults And What To Do About Them
Faults and what to do about them Display Cause/Remedy H:32 The unbalanced load detection system has interrupted the spin cycle because the alternating with laundry is unevenly distributed. Distribute small and large items of laundry evenly in the drum. “Ÿš when programme is finished Other displays... - Page 48 Faults and what to do about them Faults Cause/Remedy The water is not draining. Drain pipe or water drain hose is blocked. Clean the drain pipe and the ■ water drain hose. Drain pipe or water drain hose is caught or jammed. Ensure that the drain ■...
- Page 49 Faults and what to do about them Faults Cause/Remedy The spin cycle runs sev- Not a fault – the unbalanced load detection system is adjusting an imbalance. eral times. The programme is taking Not a fault – the unbalanced load detection system is adjusting an imbal- ■...
- Page 50 Faults and what to do about them Faults Cause/Remedy Creasing. Creasing occurs when you have exceeded the maximum load or selected ■ the wrong program for the type of fabric. All the required information can be found in the programme overview table. Remove clothes immediately after drying;...
-
Page 51: Customer Service
Customer Service If you contact Customer Service, you Customer Service will require the product number (E-Nr.) and the production number (FD) of your I f you have any queries on use, are appliance. C u s t o m e r S e r v i c e unable to rectify faults on the appliance The contact details for Customer yourself or if your appliance needs to be... -
Page 52: Consumption Values
Consumption values Consumption values T he following information is provided in accordance with the EU-Ecodesign- C o n s u m p t i o n v a l u e s Regulation. The values given for programs other than the Eco 40-60 are indicative only and were determined in accordance with the applicable standard EN60456 and EN62512. -
Page 53: Technical Data
Technical data Technical data Aqua-Stop warranty D imensions: O nly for appliances with Aqua-Stop T e c h n i c a l d a t a A q u a - S t o p w a r r a n t y 84,8 cm x 59,8 cm x 59,0 cm In addition to warranty claims against (height x width x depth) - Page 56 Repair order and advice in the event of faults 0344 892 8989 Calls charged at local or mobile rate. 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute. You can find the contact information for all countries in the attached after-sales service directory: *9001550935* 9001550935...
