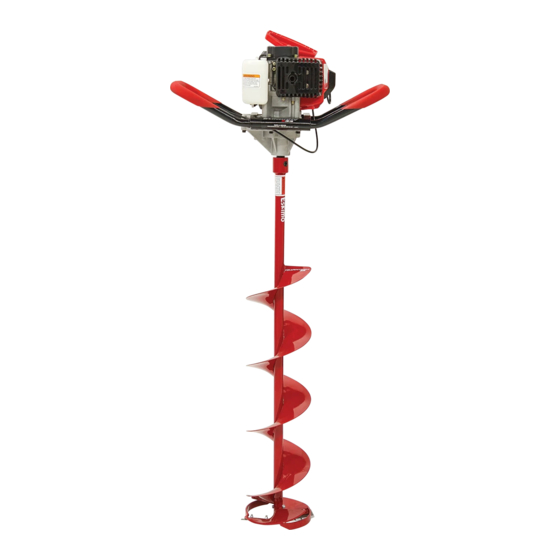

33cc power ice auger, 43cc power ice auger, 51cc + 71cc power ice auger
Hide thumbs

Advertisement

Table of Contents

Operator's Manual
Original Operating Instructions
STINGRAY
™
33cc POWER ICE AUGER
MAKO
™
43cc POWER ICE AUGER
SHARK
™
51cc + 71cc
POWER ICE AUGER
MAKO
SHARK
STINGRAY
™
™
™
43cc POWER ICE AUGER
51cc + 71cc POWER ICE AUGER
33cc POWER ICE AUGER
GAS/OIL
RATIO
50:1
15961
ECN # 9830
Rev. 1 04/08/2013
Get parts online at
© Copyright 2013 Ardisam, Inc.
www.GetEskimo.com
All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STINGRAY and is the answer not in the manual?

Questions and answers

Related Manuals for Eskimo STINGRAY

Summary of Contents for Eskimo STINGRAY

  • Page 1 Operator's Manual Original Operating Instructions STINGRAY ™ 33cc POWER ICE AUGER MAKO ™ 43cc POWER ICE AUGER SHARK ™ 51cc + 71cc POWER ICE AUGER MAKO SHARK STINGRAY ™ ™ ™ 43cc POWER ICE AUGER 51cc + 71cc POWER ICE AUGER...

  • Page 2: Table Of Contents

    INTRODUCTION Thank you for purchasing an Eskimo® Power Ice Auger from Ardisam, Inc. We have worked to ensure that this ice auger meets high standards for usability and durability. With proper care, your ice auger will provide you many years of service. Please take the time to read this manual carefully to learn how to correctly operate and maintain your ice auger.
  • Page 3 • Carefully follow all assembly instructions. • Maintain the unit according to directions and schedule CAUTION INDICATES YOU CAN BE HURT OR YOUR included in this Eskimo operator’s manual. EQUIPMENT DAMAGED IF THE SAFETY INSTRUC TIONS THAT FOLLOW THIS SIGNAL WORD ARE NOT • Ensure that anyone who uses the unit is familiar with and OBEYED.

  • Page 4: Important Safety Precautions

    BON MONOXIDE CAN CAUSE NAUSEA, FAINTING OR • The auger should not rotate when the engine is idling. If DEATH, IN ADDITION TO DROWSINESS, DIZZINESS it does rotate when engine is idling, contact an Eskimo- AND CONFUSION. authorized service center for instructions.
  • Page 5 Operator's Manual ESKIMO Power Ice Auger ® • Never operate the engine without the mu er guard in • Always run the engine with fuel cap properly installed on place. the engine. • Never smoke while re lling engine fuel tank.

  • Page 6: Pre-Operation

    Operator's Manual ESKIMO Power Ice Auger ® (SERVICE, continued from page 5) IMPORTANT When servicing or repairing the engine, do not tip the engine THIS ENGINE USES A GAS/OIL MIXTURE. DO NOT RUN ON over or up unless speci cally instructed to do so in this manual.

  • Page 7: Operation

    The A-weighted sound power level emitted has been measured at 106.5 dB L The total vibra- AVOID INJURY! ALWAYS HANDLE FUEL IN A WELL tion value for Stingray™ power ice auger was measured at VENTILATED AREA, OUTDOORS, AWAY FROM FLAMES 31.3 m/s OR SPARKS.

  • Page 8: Auger Maintenance

    Operator's Manual ESKIMO Power Ice Auger ® (Cold Engine Start, continued from page 7) CAUTION 2. Prime unit until primer tube is lled with gas. AVOID INJURY! DO NOT ATTEMPT TO START THE EN GINE USING STARTING FLUID. NOTE: When using the primer bulb, allow the bulb to return completely to its original position between pushes.

  • Page 9: Air Filter

    Operator's Manual ESKIMO Power Ice Auger ® a maintenance schedule, routine inspection procedures, and CAUTION simple maintenance procedures using basic hand tools. Other service tasks that are more difficult, or require special AVOID INJURY! TO AVOID INJURY OR DEATH, NEVER tools, are best handled by professionals and are normally SIPHON FUEL BY MOUTH.

  • Page 10: Service, Troubleshooting And Repair

    Operator's Manual ESKIMO Power Ice Auger ® TRANSPORTING YOUR ICE AUGER CAUTION 1. Never transport engine inside an enclosed space or vehicle. AVOID INJURY! AUGER BLADES AND POINT ARE EX Fuel or fuel vapors may ignite causing serious injury or death.

  • Page 11: Troubleshooting

    Operator's Manual ESKIMO Power Ice Auger ® ORDERING REPAIR PARTS Parts may be obtained from the store where your auger was purchased or direct from the factory. To order from the factory, call, e-mail, or order online at www.geteskimo.com: Eskimo®...
  • Page 12 PRODUCT WARRANTY: 2 YEAR LIMITED WARRANTY Ardisam, Inc., warrants the listed ESKIMO® power augers under a two-year limited warranty to be free from defects in materials or workmanship or both for a period not exceeding twenty-four consecutive months from the date of original purchase by the rst retail consumer or commercial end user.

  • Page 13: Warranty

    Operator's Manual ESKIMO Power Ice Auger ® FEDERAL EMISSION CONTROL WARRANTY nearest you, call our free number: STATEMENT Ardisam Authorized Warranty Service Facility: 800-345-6007 YOUR WARRANTY RIGHTS AND OBLIGATIONS The United States Environmental Protection Agency (EPA), to- IMPORTANT NOTE: This warranty statement explains your gether with Ardisam, Inc.
  • Page 14 Operator's Manual ESKIMO Power Ice Auger ® respective authority, and Ardisam’s ECS Warranty obligations. (2) Free from defects in materials and workmanship which, at (9) Unapproved, add-on, modi ed, counterfeit and/or “grey any time during the ECS Warranty Period, may cause a warranted market”...
