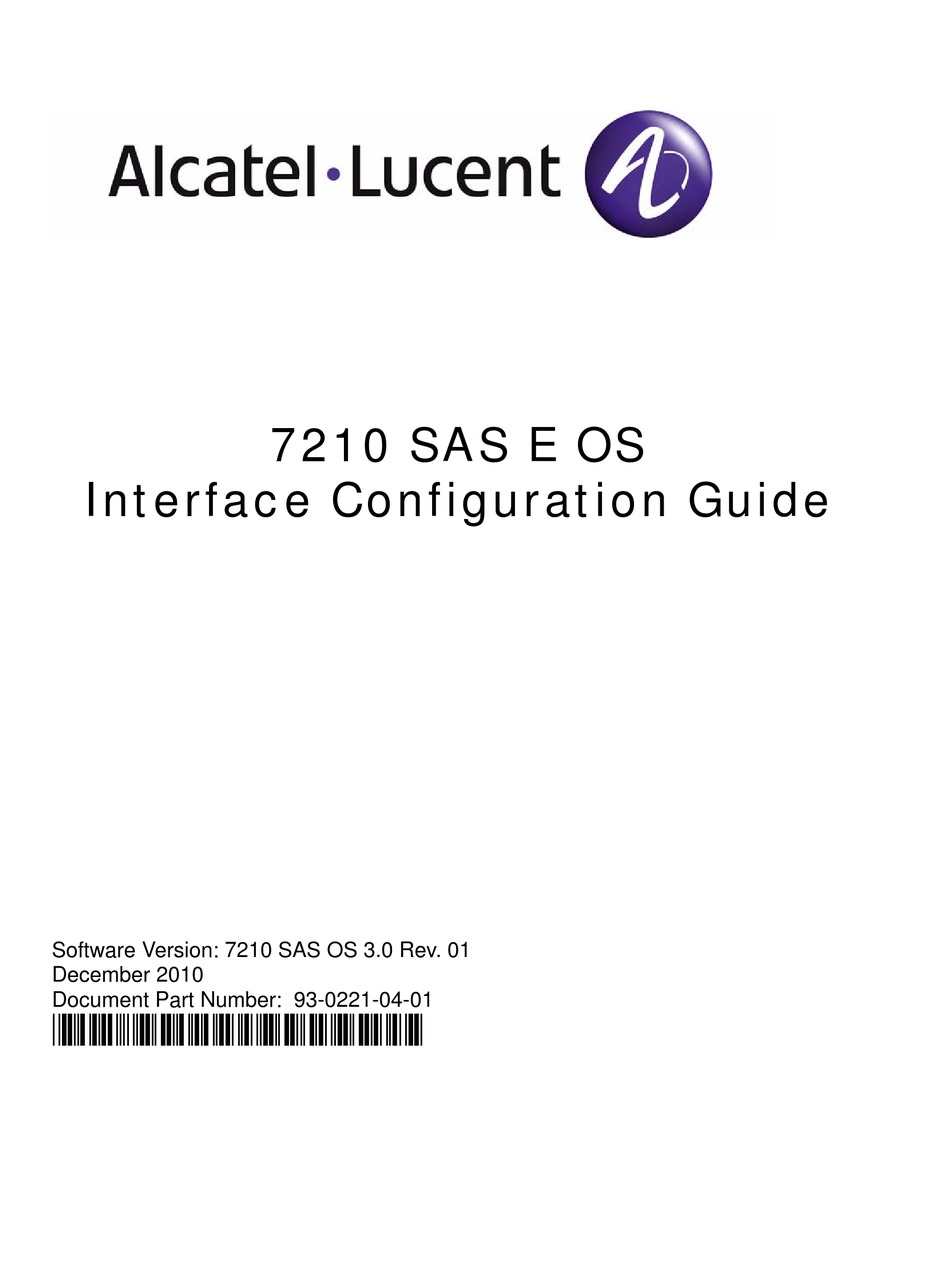

7210 SAS E OS
Interface Configuration Guide
Software Version: 7210 SAS OS 3.0 Rev. 01
December 2010
Document Part Number: 93-0221-04-01
*93-0221-04-01*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7210 SAS E OS and is the answer not in the manual?

Questions and answers

Related Manuals for Alcatel-Lucent 7210 SAS E OS

Summary of Contents for Alcatel-Lucent 7210 SAS E OS

  • Page 1 7210 SAS E OS Interface Configuration Guide Software Version: 7210 SAS OS 3.0 Rev. 01 December 2010 Document Part Number: 93-0221-04-01 *93-0221-04-01*...
  • Page 2 This document is protected by copyright. Except as specifically permitted herein, no portion of the provided information can be reproduced in any form, or by any means, without prior written permission from Alcatel-Lucent. Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Getting Started ............... .13 Alcatel-Lucent 7210 SAS E-Series Router Configuration Process.......13 7210 SAS-Series Interfaces Configuration Overview .
  • Page 4 Table of Contents Modifying a Card Type .............56 Deleting a Card .
  • Page 5 IST OF ABLES Getting Started Table 1: Configuration Process ............13 7210 SAS-Series Interfaces Table 2: Real-Time DDM Information .
  • Page 6 List of Tables Page 6 7210 SAS E Interface Configuration Guide...
  • Page 7 IST OF IGURES 7210 SAS-Series Interfaces Figure 1: LLDP Internal Architecture for a Network Node ........24 Figure 2: Generic Customer Use Case For LLDP .
  • Page 8 List of Figures Page 8 7210 SAS E Interface Configuration Guide...

  • Page 9: Preface

    Preface About This Guide This guide describes system concepts and provides configuration examples to provision input/ output and ports This document is organized into functional chapters and provides concepts and descriptions of the implementation flow, as well as Command Line Interface (CLI) syntax and command usage. Audience This manual is intended for network administrators who are responsible for configuring the 7210 SAS-Series routers.
  • Page 10 Preface List of Technical Publications The 7210-SAS E OS documentation set is composed of the following books: • 7210-SAS E OS Basic System Configuration Guide This guide describes basic system configurations and operations. • 7210-SAS E OS System Management Guide This guide describes system security and access configurations as well as event logging and accounting logs.

  • Page 11: Technical Support

    If you purchased a service agreement for your 7210 SAS E-series router and related products from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased an Alcatel-Lucent service agreement, contact your welcome center: Web: http://www1.alcatel-lucent.com/comps/pages/carrier_support.jhtml...
  • Page 12 Preface Page 12 7210 SAS E Interface Configuration Guide...

  • Page 13: Getting Started

    ETTING TARTED In This Chapter This chapter provides process flow information to configure cards and ports. Alcatel-Lucent 7210 SAS E-Series Router Configuration Process Table 1 lists the tasks necessary to provision input/output control and ports. This guide is presented in an overall logical configuration flow. Each section describes a software area and provides CLI syntax and command usage to configure parameters for a functional area.

  • Page 14: Getting Started

    Getting Started Page 14 7210 SAS E Interface Configuration Guide...

  • Page 15: 7210 Sas-Series Interfaces

    7210 SAS-Series Interfaces In This Chapter This chapter provides information about configuring chassis slots, cards, and ports. Topics in this chapter include: • Configuration Overview on page 16 → Chassis Slots and Cards on page 16 → Digital Diagnostics Monitoring on page 17 →...

  • Page 16: Configuration Overview

    Configuration Overview Configuration Overview The term “auto equipped” is used in the context of IOM and MDA cards that are fixed in the chassis. These are always inserted or equipped on booting. These cards may not be physically differentiated externally. The term “auto provision”...

  • Page 17: Digital Diagnostics Monitoring

    Interface Configuration Digital Diagnostics Monitoring Some Alcatel-Lucent SFPs, XFPs, and the MSA DWDM transponder have Digital Diagnostics Monitoring (DDM) capability where the transceiver module maintains information about its working status in device registers including: • Temperature • Supply voltage •...

  • Page 18: Table 2: Real-Time Ddm Information

    Digital Diagnostics Monitoring Supported real-time DDM features are summarized in Table Table 2: Real-Time DDM Information Parameter User Units SFP/XFP MSA DWDM Units Temperature Celsius Supported Supported Supported Supply Volts µV Supported Supported Not supported Voltage TX Bias µA Supported Supported Supported Current...

  • Page 19: Table 3: Ddm Alarms And Warnings

    Interface Configuration Table 3: DDM Alarms and Warnings Parameter SFP/XFP Units Required? MSA DWDM Temperature - High Alarm - Low Alarm - High Warning - Low Warning Supply Voltage µV - High Alarm - Low Alarm - High Warning - Low Warning TX Bias Current µA - High Alarm...

  • Page 20: Alcatel-Lucent Sfps And Xfps

    6.0. Non-DDM and DDM-supported SFPs are distinguished by a specific ICS value. For Alcatel-Lucent SFPs that do not indicate DDM support in the ICS value, DDM data is available although the accuracy of the information has not been validated or verified.

  • Page 21: Ports

    QinQ is supported on access uplink ports. These ports are similar to network mode ports configured in the Alcatel-Lucent’s 7750 SR,7710 SR, and 7450 ESS service routers, and in some aspects, like ingress QoS policies apply per port for access uplink ports.

  • Page 22: Lag Features

    LAG Features LAG Features • LAG on page 28 • 802.1x Network Access Control on page 35 Page 22 7210 SAS E Interface Configuration Guide...

  • Page 23: Link Layer Discovery Protocol (Lldp)

    Interface Configuration Link Layer Discovery Protocol (LLDP) The IEEE 802.1ab Link Layer Discovery Protocol (LLDP) standard defines protocol and management elements suitable for advertising information to stations attached to the same IEEE 802 LAN. The protocol facilitates the identification of stations connected by IEEE 802 LANs or MANs, their points of interconnection, and access points for management protocols.

  • Page 24: Figure 1: Lldp Internal Architecture For A Network Node

    LAG Features Organizationally Organizationally Defined Local Device Defined Remote Device LLDP MIB Extension LLDP MIB Extensions PTOPO MIB (Optional) (Optional) (Optional) Entity MIB (Optional) LLDP Local System LLDP Remote Systems Interface MIB (Optional) Other MIBs (Optional) LLDP Frames LLDP Agent LLDP/LSAP Local Device Information Remote Device Information...

  • Page 25: Figure 2: Generic Customer Use Case For Lldp

    Interface Configuration MPLS/Native ETH SG/R Core SG/R QinQ DSLAMs Ethernet Links - FE/GE/10GE Figure 2: Generic Customer Use Case For LLDP 7210 SAS E Interface Configuration Guide Page 25...

  • Page 26: Lldp Protocol Features

    LAG Features LLDP Protocol Features The IEEE 802.1ab Link Layer Discovery Protocol (LLDP) is a uni-directional protocol that uses the MAC layer to transmit specific information related to the capabilities and status of the local device. The LLDP can send as well as receive information from a remote device stored in the related MIB(s).
  • Page 27 Interface Configuration information. The receiving LLDP agent discards all information related to the sending LLDP agent after the time interval indicated in the TTL field is complete. Note: A TTL value of zero can be used to signal that the sending LLDP port has initiated a port shutdown procedure.

  • Page 28: Lag

    Packet sequencing must be maintained for any given session. The hashing algorithm deployed by Alcatel-Lucent routers is based on the type of traffic transported to ensure that all traffic in a flow remains in sequence while providing effective load sharing across the links in the LAG.

  • Page 29: Configuring Lags

    Interface Configuration Configuring LAGs LAG configuration guidelines include: • A maximum of 6 LAGS, 2 ports in each, can be configured on the 7210 SAS-Series. • Ports can be added or removed from the LAG while the LAG and its ports (other than the port being removed) remain operational.

  • Page 30: Lag Hashing

    LAG. Different types of hashing algorithms can be employed depending whether better loadspreading or consistent per service forwarding is required. The Alcatel-Lucent implementation supports per flow hashing used to achieve uniform loadspreading and per service hashing designed to provide consistent per service forwarding. The following sub-sections describe these two hashing algorithms.
  • Page 31 Interface Configuration • VPLS multicast, broadcast and unknown unicast traffic transmitted on a LAG SAP is hashed based on MAC source, destination address and port of entry. • VLL traffic transmitted on a LAG SAP is hashed based on MAC source and destination address and port of entry.

  • Page 32: Lag And Qos Policies

    LAG and QoS Policies In the 7210 SAS E, an ingress QoS policy is applied to the aggregate traffic that enters the traffic through all the ports of the system. For example, if an ingress policy is configured with a policier of PIR 100Mb, for a SAP configured on a LAG with two ports, then the policer limits the traffic entering the system through the two ports to a maximum of 100Mb.

  • Page 33: Port Link Damping

    Interface Configuration Port Link Damping Hold time controls enable port link damping timers that reduce the number of link transitions reported to upper layer protocols. The 7210 SAS OS port link damping feature guards against excessive port transitions. Any initial port transition is immediately advertised to upper layer protocols, but any subsequent port transitions are not advertised to upper layer protocols until a configured timer has expired.

  • Page 34: Multi-Chassis Lag

    Multi-Chassis LAG This section describes the Multi-Chassis LAG (MC-LAG) concept. MC-LAG is an extension of a LAG concept that provides node-level redundancy in addition to link-level redundancy provided by “regular LAG”. Typically, MC-LAG is deployed in a network-wide scenario providing redundant connection between different end points.

  • Page 35: G.8032 Protected Ethernet Rings

    Services Guide. 802.1x Network Access Control The Alcatel-Lucent 7210 SAS supports network access control of client devices (PCs, STBs, etc.) on an Ethernet network using the IEEE. 802.1x standard. 802.1x is known as Extensible Authentication Protocol (EAP) over a LAN network or EAPOL.
  • Page 36 802.1x Basics • The supplicant — This is the end-user device that requests access to the network. • The authenticator — Controls access to the network. Both the supplicant and the authenticator are referred to as Port Authentication Entities (PAEs). •...
  • Page 37 Interface Configuration 802.1x Timers The 802.1x authentication procedure is controlled by a number of configurable timers and scalars. There are two separate sets, one for the EAPOL message exchange and one for the RADIUS message exchange. EAPOL timers: • — Indicates how many seconds the Authenticator will listen for an EAP- transit-period Response/ID frame.
  • Page 38 802.1x Configuration and Limitations Configuration of 802.1x network access control on the router consists of two parts: • Generic parameters, which are configured under config>security>dot1x • Port-specific parameters, which are configured under config>port>ethernet>dot1x 801.x authentication: • Provides access to the port for any device, even if only a single client has been authenticated.

  • Page 39: 802.3Ah Oam

    Interface Configuration 802.3ah OAM 802.3ah Clause 57 (EFM OAM) defines the Operations, Administration, and Maintenance (OAM) sub-layer, which provides mechanisms useful for monitoring link operation such as remote fault indication and remote loopback control. In general, OAM provides network operators the ability to monitor the health of the network and quickly determine the location of failing links or fault conditions.

  • Page 40: Oam Events

    802.3ah OAM OAM Events EFM OAM defines a set of events that may impact link operation. The following events are supported: • Critical link events (defined in 802.3ah clause 57.2.10.1) → Link fault: the PHY has determined a fault has occurred in the receive direction of the local DTE.

  • Page 41: Remote Loopback

    Interface Configuration Remote Loopback EFM OAM provides a link-layer frame loopback mode that can be remotely controlled. To initiate remote loopback, the local EFM OAM client sends a loopback control OAM PDU by enabling the OAM remote-loopback command. After receiving the loopback control OAM PDU, the remote OAM client puts the remote port into local loopback mode.

  • Page 42: Mtu Configuration Guidelines

    802.3ah OAM MTU Configuration Guidelines Observe the following general rules when planning your physical MTU configurations: The 7210 SAS must contend with MTU limitations at many service points. The physical (access and access uplink) port, MTU values must be individually defined. •...

  • Page 43: Table 5: Mtu Configuration Example Values

    Interface Configuration Modifying MTU Defaults MTU parameters can be modified on the port level. • The port-level MTU parameters configure the maximum payload MTU size for an Ethernet port that is part of a multilink bundle or LAG. The default MTU values should be modified to ensure that packets are not dropped due to frame size limitations.

  • Page 44: Table 6: Mtu Configuration Example Values

    802.3ah OAM Instead, if ALA-A uses a dot1p-preserve SAP on port 1/1/1, then port 1/1/1 MTU must be set to 1518 to be able to accept a 1514-byte service frame (see Table 6 for MTU default values). Each of the access uplink port’s MTU must be set to at least 1522 as well. Finally, the MTU of ALA-B’s SAP (access port 1/1/2) must be at least 1518, as it uses Dot1q encapsulation.

  • Page 45: Deploying Preprovisioned Components

    Interface Configuration Deploying Preprovisioned Components Cards and MDAs are auto-provisioned by the system and does not need to be provisioned by the user. 7210 SAS E Interface Configuration Guide Page 45...

  • Page 46: Configuration Notes

    Configuration Notes Configuration Notes The following information describes provisioning caveats: • Ports can be provisioned without provisioning slot, card and MDA type, since these are auto-provisioned. Page 46 7210 SAS E Interface Configuration Guide...

  • Page 47: Configuring Physical Ports With Cli

    Interface Configuration Configuring Physical Ports with CLI This section provides information to configure cards, MDAs, and ports. Topics in this section include: • Preprovisioning Guidelines on page 48 → Predefining Entities on page 48 → Preprovisioning a Port on page 49 •...

  • Page 48: Preprovisioning Guidelines

    Preprovisioning Guidelines Preprovisioning Guidelines 7210 SAS routers have a console port to connect terminals to the router. The 7210 SAS does not support a management port. Configure parameters from a system console connected to a console port, using Telnet to access a 7210 SAS remotely or SSH to open a secure shell connection.

  • Page 49: Preprovisioning A Port

    Interface Configuration Preprovisioning a Port Some recommendations to configure a port include: • Ethernet → Configure an access port for customer facing traffic on which services are configured. An encapsulation type may be specified in order to distinguish services on the port or channel.

  • Page 50: Basic Configuration

    Basic Configuration Basic Configuration The most basic configuration must have the following: • Identify chassis slot. • Specify line card type (must be an allowed card type). • Identify MDA slot. • Specify MDA type (must be an allowed MDA type). •...

  • Page 51: Common Configuration Tasks

    Interface Configuration Common Configuration Tasks The following sections are basic system tasks that must be performed. • Configuring Ports on page 52 → Configuring Ethernet Port Parameters on page 52 • Configuring LAG Parameters on page 54 • Service Management Tasks on page 55 7210 SAS E Interface Configuration Guide Page 51...

  • Page 52: Configuring Ports

    Configuring Ports Configuring Ports The following example displays the default port pool configurations. *A:card-1>config>port# info detail ---------------------------------------------- description "10/100/Gig Ethernet SFP" access egress pool default resv-cbs default slope-policy "default" exit exit uplink egress pool default resv-cbs default slope-policy "default" exit exit exit exit...

  • Page 53: Ethernet Access Port

    Interface Configuration no shutdown ---------------------------------------------------- A:ALA-B>config>port# Ethernet Access Port Services are configured on access ports used for customer-facing traffic. If a Service Access Port (SAP) is to be configured on a port, it must be configured as access mode or access uplink mode. When a port is configured for access mode, the appropriate encapsulation type can be specified to distinguish the services on the port.

  • Page 54: Configuring Lag Parameters

    Configuring Ports Configuring LAG Parameters LAG configurations should include at least two ports. Other considerations include: • A maximum of two ports can be included in a LAG. All ports in the LAG must share the same characteristics (speed, duplex, hold-timer, etc.). The port characteristics are inherited from the primary port.

  • Page 55: Service Management Tasks

    Interface Configuration Service Management Tasks This section discusses basic procedures of the following service management tasks: • Modifying a Card Type on page 56 • Deleting a Card on page 57 • Deleting Port Parameters on page 57 To change an MDA type already provisioned for a specific slot/card, first you must shut down the slot/MDA/port configuration and then delete the MDA from the configuration.

  • Page 56: Modifying A Card Type

    Service Management Tasks Modifying a Card Type The modify operation cannot be performed on an IOM card that is auto equipped and auto provisioned during bootup and is fixed. Page 56 7210 SAS E Interface Configuration Guide...

  • Page 57: Deleting A Card

    Interface Configuration Deleting a Card The delete operation cannot be performed on an IOM card that is auto equipped and auto provisioned during bootup and is fixed. Deleting Port Parameters Use the following CLI syntax to delete a port provisioned for a specific card: CLI Syntax: config>port port-id shutdown no port port-id...
  • Page 58 Service Management Tasks Page 58 7210 SAS E Interface Configuration Guide...

  • Page 59: Card, Mda, And Port Command Reference

    Command Reference Card, MDA, and Port Command Reference Command Hierarchies Card and MDA Configuration Commands • Hardware Commands on page 60 → Card Commands on page 60 → MDA Commands on page 60 • Port Configuration Commands on page 61 •...
  • Page 60 Card, MDA, and Port Command Reference Hardware Commands —Card Commands config — [no] card slot-number — card-type card-type MDA Commands — [no] mda-slot — mda-type mda-type — no mda-type — [no] shutdown — [no] shutdown Page 60 7210 SAS E Interface Configuration Guide...
  • Page 61 Command Reference Port Configuration Commands config — port —Port Configuration Commands — no port — access — egress — [no] pool [name] — slope-policy name — no slope-policy — uplink — egress — [no] pool [name] — slope-policy name — no slope-policy —...
  • Page 62 Card, MDA, and Port Command Reference Ethernet Commands config — [no] port {port-id} — ethernet — access — accounting-policy acct-policy-id — no accounting-policy — [no] collect-stats — egress — policy-id — no — uplink — accounting-policy acct-policy-id — no accounting-policy —...
  • Page 63 Command Reference — no encap-type — hold-time {[up hold-time up] [down hold-time down]} — no hold-time — lldp — dest-mac {nearest-bridge | nearest-non-tpmr | nearest-customer} — admin-status {rx | tx | tx-rx | disabled} — [no] notification — tx-mgmt-address [system] —...
  • Page 64 Card, MDA, and Port Command Reference LAG Commands config —LAG Commands — [no] [lag-id] — description long-description-string — no description — encap-type {dot1q | null} — no encap-type — hold-time down hold-down-time — no hold-time — lacp [mode] [administrative-key admin-key] —...
  • Page 65 Command Reference Ethernet Ring Commands config — eth-ring ring-id — no eth-ring — description long-description-string — no description — guard-time time — revert-time time — ccm-hold-time {down down-timeout | up-timeout} — [no] rpl-node <owner | nbr> — node-id timeout — path {a | b} <portid>...
  • Page 66 Card, MDA, and Port Command Reference Show Commands show — chassis [environment] [power-supply] — card [slot-number] [detail] — card state — pools mda-id[/port][access-app [pool-name | service service-id]] — pools mda-id[/port] [access-uplink-app [pool-name]] — [lag-id] [detail] [statistics] — lag-id associations — port port-id [count] [detail] —...
  • Page 67 Command Reference Monitor Commands Monitor — port port-id [port-id...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] [multiclass] Clear Commands clear — lag-id statistics — port port-id statistics Debug Commands debug — [lag-id lag-id port port-id] [all] — [lag-id lag-id port port-id] [sm] [pkt] [cfg] [red] [iom-upd] [port-state] [timers] [sel-logic] —...
  • Page 68 Card, MDA, and Port Command Reference Page 68 7210 SAS E Interface Configuration Guide...
  • Page 69 Interface Configuration Configuration Commands • Generic Commands on page 69 • Card Commands on page 71 • Interface QoS Commands on page 73 • General Port Commands on page 75 • Ethernet Port Commands on page 78 • 802.1x Port Commands on page 86 •...
  • Page 70 Generic Commands Description This command administratively disables an entity. When disabled, an entity does not change, reset, or remove any configuration settings or statistics. The operational state of the entity is disabled as well as the operational state of any entities contained within.
  • Page 71 Interface Configuration Card Commands card Syntax card slot-number Context config Description This mandatory command enables access to the chassis card Input/Output Module (IOM), slot, and MDA CLI context. The no form of this command cannot be used on fixed IOM and MDA cards that are auto equipped and auto provisioned.
  • Page 72 MDA Commands MDA Commands Syntax mda mda-slot no mda mda-slot Context config>card Description This mandatory command enables access to a card’s MDA CLI context to configure MDAs. Default No MDA slots are configured by default. Parameters mda-slot — The MDA slot number to be configured. Fixed ports on the panel of the chassis belong to MDA 1.
  • Page 73 Interface Configuration Interface QoS Commands access Syntax access Context config>card>mda config>port Description This command enables the access context to configure egress and ingress pool policy parameters. uplink Syntax uplink Context config>port>access Description This command enables the network context to configure egress pool policy parameters. egress Syntax egress...
  • Page 74 Interface QoS Commands slope-policy Syntax slope-policy name no slope-policy Context config>port>access>egress>pool config>port>access uplink>egress>pool Description This command specifies an existing slope policy which defines high and low priority RED slope parameters. The policy is defined in the config>qos>slope-policy context. Syntax qos policy-id no qos Context config>port>ethernet>access>egress...
  • Page 75 Interface Configuration General Port Commands port Syntax port no port Context config Description This command enables access to the context to configure ports. Before a port can be configured, the chassis slot must be provisioned with a valid card type and the MDA parameter must be provisioned with a valid MDA type.
  • Page 76 General Port Commands The no form of this command restores the default. Default access — Configures the Ethernet port for transport access use. Parameters access — Configures the Ethernet port as service access. access uplink — Configures the Ethernet port for transport access uplink use. Syntax mac ieee-address no mac...
  • Page 77 Interface Configuration Type Mode Encap Type Default (Bytes) 10/100, Gig Access null 1514 10/100, Gig Access dot1q 1518 10/100, Gig Access q-in-q 1522 10/100 or 100FX Ethernet Network null 1514 10/100 or 100FX Ethernet Network dot1q 1518 Parameters mtu-bytes — Sets the maximum allowable size of the MTU, expressed as an integer. Values 512 —...

  • Page 78: Ethernet Port Commands

    Ethernet Port Commands Ethernet Port Commands ethernet Syntax ethernet Context config>port Description This command enables access to the context to configureaccess parameters. This context can only be used when configuring Ethernet LAN ports on an appropriate MDA. mode Syntax mode {access | network | hybrid} no mode Context config>port>ethernet...
  • Page 79 Interface Configuration access — for TDM channel or SONET paths Parameters access — Configures the Ethernet port, TDM channel or SONET path as service access. network — Configures the Ethernet port, TDM channel or SONET path for transport network use. access Syntax access...
  • Page 80 Ethernet Port Commands When autonegotiation is enabled on a port, the link attempts to automatically negotiate the link speed and duplex parameters. If autonegotiation is enabled, the configured duplex and speed parameters are ignored. When autonegotiation is disabled on a port, the port does not attempt to autonegotiate and will only operate at the speed and duplex settings configured for the port.
  • Page 81 Interface Configuration accept-remote-loopback Syntax [no] accept-remote-loopback Context config>port>ethernet>efm-oam Description This command enables reactions to loopback control OAM PDUs from peers. The no form of this command disables reactions to loopback control OAM PDUs. Default no accept-remote-loopback mode Syntax mode {active | passive} Context config>port>ethernet>efm-oam Description...
  • Page 82 Ethernet Port Commands tunneling Syntax [no] tunneling Context config>port>ethernet>efm-oam Description This command enables EFM OAM PDU tunneling. Enabling tunneling will allow a port mode Epipe SAP to pass OAM frames through the pipe to the far end. The no form of the command disables tunneling. Default no tunneling egress-rate...
  • Page 83 Interface Configuration null — Ingress frames will not use any tags to delineate a service. As a result, only one service can be configured on a port with a null encapsulation type. hold-time Syntax hold-time {[up hold-time up] [down hold-time down]} no hold-time Context config>port>ethernet...
  • Page 84 Ethernet Port Commands Default 0x8100 Description 0x0600..0xffff — Specifies QinQ etype values. Values 1536 — 65535, in hexadecimal or decimal notation. Ensure that the values do not match any of the IEEE reserved ethertype values such as 0x8a88, 0x9100, and 0x9200.
  • Page 85 Interface Configuration Description This command associates a counter with the specified queue and counts the number of packets forwarded through the queue. The no form of the command stops the counter and disassociates the counter from the queue. Before issuing the no form of the command, ensure all accounting policies using the counter and associated with the port are removed from the configuration.
  • Page 86 802.1x Port Commands 802.1x Port Commands max-auth-req Syntax max-auth-req max-auth-request Context config>port>ethernet>dot1x Description This command configures the maximum number of times that the 7210 SAS will send an access request RADIUS message to the RADIUS server. If a reply is not received from the RADIUS server after the specified number attempts, the 802.1x authentication procedure is considered to have failed.
  • Page 87 Interface Configuration quiet-period Syntax quiet-period seconds no quiet-period Context config>port>ethernet>dot1x Description This command configures the period between two authentication sessions during which no EAPOL frames are sent by the 7210 SAS. The no form of this command returns the value to the default. Default Parameters seconds —...
  • Page 88 802.1x Port Commands re-auth-period Syntax re-auth-period seconds no re-auth-period Context config>port>ethernet>dot1x Description This command configures the period after which re-authentication is performed. This value is only relevant if re-authentication is enabled. The no form of this command returns the value to the default. Default 3600 Parameters...
  • Page 89 Interface Configuration supplicant-timeout Syntax supplicant-timeout seconds no supplicant-timeout Context config>port>ethernet>dot1x Description This command configures the period during which the 7210 SAS waits for a client to respond to its EAPOL messages. When the supplicant-timeout expires, the 802.1x authentication session is considered to have failed.
  • Page 90 802.1x Port Commands dot1x Syntax dot1x Context config>port>ethernet Description This command enables access to the context to configure port-specific 802.1x authentication attributes. This context can only be used when configuring a Fast Ethernet, gigabit or 10Gig EthernetFast Ethernet, gigabit or 10Gig EthernetFast Ethernet or gigabit Ethernet LAN ports on an appropriate MDA.
  • Page 91 Interface Configuration LLDP Port Commands lldp Syntax lldp Context config>port>ethernet Description This command enables the context to configure Link Layer Discovery Protocol (LLDP) parameters on the specified port. dest-mac Syntax dest-mac {bridge-mac} Context config>port>ethernet>lldp Description This command configures destination MAC address parameters. Parameters bridge-mac —...
  • Page 92 LLDP Port Commands notification Syntax [no] notification Context config>port>ethernet>lldp>dstmac Description This command enables LLDP notifications. The no form of the command disables LLDP notifications. tx-mgmt-address Syntax tx-mgmt-address [system] no tx-mgmt-address Context config>port>ethernet>lldp>dstmac Description This command specifies which management address to transmit. The no form of the command resets value to the default.
  • Page 93 Interface Configuration Access Uplink Port Commands uplink Syntax uplink Context config>port>access Description This command enables the context to configure access uplink egress port parameters. accounting-policy Syntax accounting-policy policy-id no accounting-policy Context config>port>ethernet>access>uplink config>port>ethernet>access Description This command configures an accounting policy that can apply to an interface. An accounting policy must be configured before it can be associated to an interface.
  • Page 94 Access Uplink Port Commands collect-stats Syntax [no] collect-stats Context config>port>ethernet>access>uplink config>port>ethernet>access Description This command enables the collection of accounting and statistical data for the network interface. When applying accounting policies, the data, by default, is collected in the appropriate records and written to the designated billing file.
  • Page 95 Interface Configuration line-impedance Syntax line-impedance {75 | 100 | 120} Context config>port>tdm Description This command configures the line impedance of a port. Line impedance is set on a per-port basis and ports on the same card can have different values. Before changing the line impedance of a port, the port must be shut down.

  • Page 96: Lag Commands

    LAG Commands LAG Commands Syntax [no] lag [lag-id] Context config Description This command creates the context for configuring Link Aggregation Group (LAG) attributes. A LAG can be used to group upto two ports into one logical link. The aggregation of multiple physical links allows for load sharing and offers seamless redundancy.
  • Page 97 Interface Configuration encap-type Syntax encap-type {dot1q | null} no encap-type Context config>lag Description This command configures the encapsulation method used to distinguish customer traffic on a LAG. The encapsulation type is configurable on a LAG port. The LAG port and the port member encapsulation types must match when adding a port member.
  • Page 98 LAG Commands lacp Syntax lacp [mode] [administrative-key admin-key] no lacp Context config>lag Description This command specifies the LACP mode for aggregated Ethernet interfaces only. This command enables the LACP protocol. Per the IEEE 802.3ax standard (formerly 802.3ad), the Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link...
  • Page 99 Interface Configuration lacp-xmit-stdby Syntax [no] lacp-xmit-stdby Context config>lag Description This command enables LACP message transmission on standby links. The no form of this command disables LACP message transmission. This command should be disabled for compatibility when using active/standby groups. This forces a timeout of the standby links by the peer.
  • Page 100 LAG Commands between active and standby links in case no links are usable for a short time, especially in case a subgroup consists of one member. Values 1 — 8 identifies a LAG subgroup. The auto-iom subgroup is defined based on the IOM (all ports of the same IOM are assigned to the same subgroup).
  • Page 101 Interface Configuration Eth Ring Commands eth-ring Syntax eth-ring ring-id no eth-ring Context config Description This command configures a G.8032 protected Ethernet ring. G.8032 Rings may be configured as major rings with two paths (a&b). The no form of this command deletes the Ethernet ring specified by the ring-id. Default no eth-ring Parameters...
  • Page 102 Eth Ring Commands Parameters value — Specifies the guard-time. Values 1-20 deciseconds revert-time Syntax revert-time time no revert-time Context config>eth-ring This command configures the revert time for an Eth-Ring. It ranges from 60 seconds to 720 second by 1 second intervals. The no form of this command this command means non-revertive mode and revert time essentially is 0 meaning the revert timers are not set.
  • Page 103 Interface Configuration Syntax up up-timeout Context config>eth-ring>ccm-hold-time This command specifies the timer, which controls the delay between detecting that ring path is up and reporting it to the G.8032 protection module. If a non-zero value is configured, the CPM will wait for the time specified in the value parameter before reporting it to the G.8032 protection module.
  • Page 104 Eth Ring Commands path Syntax path {a | b} <portid> raps-tag <qtag [.qtag]> [no] path {a | b} Context config>eth-ring Description This command assigns the ring (major or sub-ring) path to a port and defines the Ring APS tag. Rings typically have two paths a and b. The no form of this command removes the path a or b.
  • Page 105 Interface Configuration eth-cfm Syntax eth-cfm Context config>eth-ring>path Description This command enables the context to configure ETH-CFM parameters. Syntax [no] mep mep-id domain md-index association ma-index Context config>eth-ring>path>eth-cfm Description This command provisions an 802.1ag maintenance endpoint (MEP). The no form of the command reverts to the default values. Parameters mep-id —...
  • Page 106 Eth Ring Commands Parameters priority — Specifies the priority of CCM and LTM messages. Values 0 — 7 eth-test-enable Syntax [no] eth-test-enable Context config>eth-ring>path>eth-cfm>mep Description This command enables eth-test functionality on MEP. For this test to work, operators need to configure ETH-test parameters on both sender and receiver nodes.
  • Page 107 Interface Configuration Values 0 — 11840 mac-address Syntax mac-address mac-address no mac-address Context config>eth-ring>path>eth-cfm>mep Description This command specifies the MAC address of the MEP. The no form of this command reverts the MAC address of the MEP back to that of the port (if the MEP is on a SAP) or the bridge (if the MEP is on a spoke SDP).
  • Page 108 Eth Ring Commands shutdown Syntax [no] shutdown Context config>eth-ring>path config>eth-ring Description This command administratively enables/disables the path. The no form of this command disables/enables the path. Default shutdown split-horizon-group Syntax split-horizon-group group-name no split-horizon-group Context config>lag config>port Description This command associates a split horizon group to which this port or LAG belongs. For LAGs, all the member ports of the LAG are added to the split horizon group.
  • Page 109 Interface Configuration The no form of the command removes the split horizon group. The user can remove a split horizon group only when there are no ports or LAGs associated with this split horizon group. Default none Parameters name-string — Creates the name of the split horizon group up to 32 characters in length. The string must be composed of printable, 7-bit ASCII characters.
  • Page 110 Eth Ring Commands Page 110 7210 SAS E Interface Configuration Guide...
  • Page 111 Interface Configuration Show Commands Hardware Commands chassis Syntax chassis [environment] [power-supply] Context show Description This command displays general chassis status information. Parameters environment — Displays chassis environmental status information. Default Displays all chassis information. power-supply — Displays chassis power supply status information. Default Displays all chassis information.
  • Page 112 Hardware Commands Label Description (Continued) Critical LED The current state of the Critical LED in this chassis. state Major LED state The current state of the Major LED in this chassis. Minor LED state The current state of the Minor LED in this chassis. Base MAC address The base chassis Ethernet MAC address.
  • Page 113 Interface Configuration Label Description (Continued) Power supply The ID for each power supply installed in the chassis. number AC power Within range — AC voltage is within range. Out of range — AC voltage is out of range. DC power Within range —...
  • Page 114 Hardware Commands Number of fans Fan tray number Status : up Speed : half speed ------------------------------------------------------------------------------- Power Supply Information Number of power supplies Power supply number Configured power supply type : dc Status : failed DC power : out of range Input power : out of range Output power...
  • Page 115 Interface Configuration Speed : half speed ------------------------------------------------------------------------------- Power Supply Information Number of power supplies Power supply number Configured power supply type : dc Status : up DC power : within range Input power : within range Output power : within range Power supply number Configured power supply type : dc...
  • Page 116 Hardware Commands card Syntax card [slot-number] [detail] card state Context show Description This command displays card information. If no command line parameters are specified, a card summary for all cards is displayed. Parameters slot-number — Displays information for the specified card slot. Default Displays all cards.
  • Page 117 Interface Configuration Label Description (Continued) Admin State Up — The card is administratively up. Down — The card is administratively down. Operational Up — The card is operationally up. State provisioned — There is no card in the slot but it has been pre- configured.
  • Page 118 Hardware Commands Label Description (Continued) Temperature Internal chassis temperature. Temperature The value above which the internal temperature must rise in order to threshold indicate that the temperature is critical. Software boot The version of the boot image. version Software version The software version number.
  • Page 119 Interface Configuration Label Description (Continued) The date and time of the most recent config file save. Config file last saved active — The card is acting as the primary (active) CPM in a CPM card status redundant system. standby — The card is acting as the standby (secondary) CPM in a redundant system.
  • Page 120 Hardware Commands Label Description (Continued) The value above which the internal temperature must rise in order to Temperature indicate that the temperature is critical. threshold Software boot The version of the boot image. version The total amount of memory. Memory capacity Syntax mda [ ]] [detail]...
  • Page 121 Interface Configuration MDA Detailed Output — The following table describes detailed MDA output fields. Label Description Slot The chassis slot number. Slot The MDA slot number. Provisioned Pro- The provisioned MDA type. visioned-type Equipped Mda- The MDA type that is physically inserted into this slot in this chassis. type Admin State Up —...
  • Page 122 Hardware Commands Label Description (Continued) Down — The MDA is operationally down. Time of last The date and time the most recent boot occurred. boot Current alarm Displays the alarm conditions for the specific MDA. state Base MAC address The base chassis Ethernet MAC address. Special purpose MAC addresses used by the system software are constructed as offsets from this base address.
  • Page 123 Interface Configuration Context show Description This command displays pool information. Parameters mda-id[/port] — Displays the pool information of the specified MDA. access-app pool-name — Displays the pool information of the specified QoS policy. Values access-ingress, access-egress service service-id — Displays pool information for the specified service. Values 1 —...
  • Page 124 Hardware Commands Dumping concise pool information for all ports in the MDA: *A:card-1>config# show pools 1/1 =============================================================================== Type App. Pool Name Actual ResvCBS PoolSize Admin ResvCBS ------------------------------------------------------------------------------- Port 1/1/1 Acc-Egr default Port 1/1/1 AUp-Egr default Port 1/1/2 Acc-Egr default Port 1/1/2 AUp-Egr default Port...
  • Page 125 Interface Configuration The following output displays egress pool information for the access port: *A:card-1>config# show pools 1/1/5 access-egress =============================================================================== Pool Information =============================================================================== Port : 1/1/5 Application : Acc-Egr Pool Name : default Resv CBS : Sum ------------------------------------------------------------------------------- Utilization State Start-Threshold ------------------------------------------------------------------------------- High-Slope Down...
  • Page 126 Hardware Commands The following output displays tegress pool information for an access uplink port: *A:card-1>config# show pools 1/1/1 access-uplink-egress =============================================================================== Pool Information =============================================================================== Port : 1/1/1 Application : AUp-Egr Pool Name : default Resv CBS : Sum ------------------------------------------------------------------------------- Utilization State Start-Threshold ------------------------------------------------------------------------------- High-Slope...

  • Page 127: Port Show Commands

    Interface Configuration Port Show Commands port Syntax port port-id [count] [detail] port port-id description port port-id associations port port-id ethernet [efm-oam | detail] port port-id dot1x [detail] port port-id vport [vport-name] associations port [A1] [detail] [statistics] [description] Context show Description This command displays port information.

  • Page 128: General Port Output Fields

    Port Show Commands General Port Output Fields Label Description Port ID The port ID configured or displayed in the slot/mda/port format. Admin State Up — The administrative state is up. Down — The administrative state is down. Phy Link Yes — A physical link is present. No —...
  • Page 129 Interface Configuration Label Description (Continued) MDI — Indicates that the Ethernet interface is of type MDI (Media Dependent Interface). MDX — Indicates that the Ethernet interface is of type MDX (Media Dependent Interface with crossovers). Sample Output A:SR12# show port 3/1/1 atm cp ================================================================= ATM Connection Profiles, Port 3/1/1 =================================================================...
  • Page 130 Port Show Commands Dropped Cells (CLP=0+1) Tagged Cells ======================================================================== A:SR12# show port 3/1/1 atm cp 5 ========================================================================ATM Connec- tion Profile ========================================================================Port Id : 3/1/1 Connection Profile : 5 Owner : SAP Endpoint Type : CP Ing. Td Idx Egr. Td Idx ======================================================================== A:SR12# show port 3/1/1 atm cp 5 detail ========================================================================ATM Connec-...
  • Page 131 Interface Configuration ======================================================================== ======================================================================== ATM OAM Statistics ======================================================================== Input Output ------------------------------------------------------------------------ Loopback CRC-10 Errors Other ======================================================================== *B:Dut-A# show port 2/1/4 atm cp ================================================================= ATM Connection Profiles, Port 2/1/4 ================================================================= Owner Type Ing.TD Egr.TD ----------------------------------------------------------------- ================================================================= *B:Dut-A# show port 2/1/4 atm cp 10 ======================================================================== ATM Connec- tion Profile ======================================================================== Port Id...

  • Page 132: Entering Port Ranges

    Port Show Commands Link-level : Ethernet Config Speed : 100 mbps Admin State : up Oper Duplex : full Oper State : down - Standby in LAG 10 Config Duplex : full Physical Link : Yes : 1514 Single Fiber Mode : No IfIndex : 35717120...
  • Page 133 Interface Configuration Label Description (Continued) Duplex Full — The link is set to full duplex mode. Half — The link is set to half duplex mode. Hold time up The link up dampening time in seconds. The port link dampening timer value which reduces the number of link transitions reported to upper layer protocols.
  • Page 134 Port Show Commands Label Description (Continued) Collect Stats Enabled — The collection of accounting and statistical data for the network Ethernet port is enabled. When applying accounting policies the data by default will be collected in the appropriate records and written to the designated billing file.
  • Page 135 Interface Configuration Label Description (Continued) Errors Input/ For packet-oriented interfaces, the number of inbound packets that Output contained errors preventing them from being deliverable to a higher- layer protocol. For character-oriented or fixed-length interfaces, the number of inbound transmission units that contained errors preventing them from being deliverable to a higher-layer protocol.
  • Page 136 Port Show Commands Label Description (Continued) Tx DUS/DNU Whether the QL value is forcibly set to QL-DUS/QL-DNU. Rx Quality Level Indicates which QL value has been received from the interface. Tx Quality Level Indicates which QL value is being transmitted out of the interface. SSM Code Type Indicates the SSM code type in use on the port.

  • Page 137: Detailed Port Output Fields

    Interface Configuration Detailed Port Output — The following table describes detailed port output fields. Detailed Port Output Fields Label Description Description A text description of the port. Interface The port ID displayed in the slot/mda/port format. Speed The speed of the interface. Link-level Ethernet —...
  • Page 138 Port Show Commands Label Description (Continued) dot1q — Ingress frames carry 802.1Q tags where each tag signifies a different service. Active Alarms The number of alarms outstanding on this port. Auto-negotiate True — The link attempts to automatically negotiate the link speed and duplex parameters.
  • Page 139 Interface Configuration Label Description (Continued) Multicast Pack- The number of packets, delivered by this sub-layer to a higher (sub-) ets Input/Output layer, which were addressed to a multicast address at this sub-layer. For a MAC layer protocol, this includes both Group and Functional addresses.
  • Page 140 Port Show Commands Configured Mode : access Encap Type : QinQ Dot1Q Ethertype : 0x8100 QinQ Ethertype : 0x8100 Net. Egr. Queue Pol: default Access Egr. Qos *: n/a Egr. Sched. Pol : default Network Qos Pol Auto-negotiate : limited MDI/MDX : MDI Accounting Policy...
  • Page 141 Interface Configuration Physical Link : Yes : 1522 IfIndex : 36143104 Hold time up : 0 seconds Last State Change : 03/19/2001 21:21:07 Hold time down : 0 seconds Last Cleared Time : N/A Configured Mode : access Encap Type : QinQ Dot1Q Ethertype : 0x8100...
  • Page 142 Port Show Commands Unknown Proto Discards =============================================================================== Ethernet-like Medium Statistics =============================================================================== Alignment Errors : Sngl Collisions FCS Errors Mult Collisions SQE Test Errors Late Collisions Excess Collisns Too long Frames Int MAC Tx Errs Symbol Errors Int MAC Rx Errs =============================================================================== Meter Statistics ===============================================================================...

  • Page 143: Ethernet Output Fields

    Interface Configuration =============================================================================== Traffic Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Octets Packets Errors =============================================================================== Ethernet Statistics =============================================================================== Broadcast Pckts Drop Events 0 Pckts CRC/Align Errors : Undersize Pckts Fragments Oversize Pckts Jabbers Collisions Octets Packets Packets of 64 Octets Packets of 65 to 127 Octets Packets of 128 to 255 Octets Packets of 256 to 511 Octets Packets of 512 to 1023 Octets...
  • Page 144 Port Show Commands Ethernet Output — The following table describes Ethernet output fields. Label Description Broadcast Pckts The number of packets, delivered by this sub-layer to a higher (sub-) layer, which were addressed to a broadcast address at this sub-layer. The total number of packets that higher-level protocols requested be transmitted, and which were addressed to a multicast address at this sub-layer, including those that were discarded or not sent.
  • Page 145 Interface Configuration Label Description (Continued) Jabbers The total number of packets received that were longer than 1518 octets (excluding framing bits, but including FCS octets), and had either a bad Frame Check Sequence (FCS) with an integral number of octets (FCS Error) or a bad FCS with a non-integral number of octets (Align- ment Error).

  • Page 146: Ethernet-Like Medium Statistics Output Fields

    Port Show Commands Ethernet-like Medium Statistics Output — The following table describes Ethernet-like Ethernet-Like Medium Statistics Output Fields medium statistics output fields. Label Description Alignment Errors The total number of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets, inclusive, but had either a bad Frame Check Sequence (FCS) with an integral number of octets (FCS Error) or a bad FCS with a non-integral number of octets.
  • Page 147 Interface Configuration Ethernet-like Medium Statistics — the following table describe Ethernet-like Medium Statistics field.. Label Description Alignment Errors The total number of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets, inclusive, but that had either a bad Frame Check Sequence (FCS) with an integral number of octets (FCS Error) or a bad FCS with a non-inte- gral number of octets.
  • Page 148 Port Show Commands Label Description Oversize Pckts The total number of packets received that were longer than 1518 octets (excluding framing bits, but including FCS octets) but were otherwise well formed. Collisions The best estimate of the total number of collisions on this Ethernet seg- ment.
  • Page 149 Interface Configuration Label Description Broadcast pack- The number of packets, delivered by this sub-layer to a higher (sub-) ets input/output layer,which were not addressed to a unicast or multicast address at this sub-layer. The total number of packets that higher-level protocols requested be transmitted, and which were not addressed to a unicast or multicast address at this sub-layer, including those that were discarded or not sent.

  • Page 150: Port Associations Output Fields

    Port Show Commands Port Associations Output — The following table describes port associations output fields. Port Associations Output Fields Label Description Svc ID The service identifier. Name The name of the IP interface. Encap Value The dot1q or qinq encapsulation value on the port for this IP interface Sample Output A:ALA-1# show port 1/1/6 associations ==============================================================================...
  • Page 151 Interface Configuration Label Description (Continued) The size of the largest packet that can be sent/received on the Ethernet physical interface, specified in octets. IfIndex The interface’s index number that reflects its initialization sequence. Hold time up The link-up dampening time in seconds. The port link dampening timer value that reduces the number of link transitions reported to upper layer protocols.
  • Page 152 Port Show Commands Label Description (Continued) Traffic Statis- Octets input/output – the total number of octets received and tics transmitted on the port Packets input/output – the number of packets, delivered by this sub-layer to a higher (sub-) layer, which were not addressed to a multicast or broadcast address at this sublayer.
  • Page 153 Interface Configuration Egr. Sched. Pol : default Access Egr. Qos *: n/a Egr. Sched. Pol : default Auto-negotiate : true MDI/MDX : MDI Accounting Policy : None Collect-stats : Disabled Egress Rate : Default Max Burst : Default Split Horizon Group: (Not Specified) Down-when-looped : N/A Keep-alive...
  • Page 154 Port Show Commands =============================================================================== =============================================================================== Ethernet-like Medium Statistics =============================================================================== Alignment Errors : Sngl Collisions FCS Errors Mult Collisions SQE Test Errors Late Collisions Excess Collisns Too long Frames Int MAC Tx Errs Symbol Errors Int MAC Rx Errs =============================================================================== lldp Syntax lldp [nearest-bridge|nearest-non-tpmr|nearest-customer] [remote-info] [detail] Context...
  • Page 155 Interface Configuration Index 1 (system) : Disabled Address : Not Configured Port 1/1/3 Bridge nearest-customer ------------------------------------------------------------------------------- Admin State : rxOnly Notifications : Disabled Transmit TLVs : None Management Address Transmit Configuration: Index 1 (system) : Disabled Address : Not Configured =============================================================================== *A:7210-SAS# *A:7210-SAS# show port 1/1/3 ethernet lldp nearest-bridge detail...
  • Page 156 : 10/100/Gig Ethernet SFP System Name : Dut-B System Description : TiMOS-B-0.0.I927 both/i386 ALCATEL SAS-M 7210 Copyright (c) 2000-2010 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Wed Dec 1 22:23:12 IST 2010 by builder in /builder/0.0/panos/main...
  • Page 157 Interface Configuration System Name : Dut-G System Description : TiMOS-B-8.0.R5 both/i386 ALCATEL SR 7750 Copyright (c) 2000-2010 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Tue Sep 28 18:24:07 PDT 2010 by builder in /rel8.0/b1/R5/panos/main...
  • Page 158 LAG Commands LAG Commands Syntax lag [lag-id] [detail] [statistics] lag lag-id associations Context show Description This command displays Link Aggregation Group (LAG) information. If no command line options are specified, a summary listing of all LAGs is displayed. Parameters lag-id — Displays only information on the specified LAG ID. Default Display information for all LAG IDs.
  • Page 159 Interface Configuration Lag-id Port-Threshold Up-Link-Count MC Act/Stdby ------------------------------------------------------------------------------- down active down standby down standby down ------------------------------------------------------------------------------- Total Lag-ids: 5 Single Chassis: 2 MC Act: 1 MC Stdby: 2 =============================================================================== A:ALA-48>config# show lag *A:stu-1>config>service>epipe# show lag 1 detail =============================================================================== LAG Details =============================================================================== ------------------------------------------------------------------------------- Details...
  • Page 160 LAG Commands Label Description (Continued) Hold-Time Down The timer, in tenths of seconds, which controls the delay between detecting that a LAG is down and reporting it to the higher levels. LACP Enabled — LACP is enabled. Down — LACP is disabled. LACP Transmit LACP timeout signalled to peer.
  • Page 161 Interface Configuration Label Description (Continued) Slave-to-partner Configured enabled/disabled. Port-id Displays the member port ID. Displays the member port administrative state. Active/stdby Indicates that the member port is selected as the active or standby link. Indicates that the member port operational state. Primary Indicates that the member port is the primary port of the LAG.
  • Page 162 LAG Commands 1/1/10 partner No No Yes Yes Yes Yes Yes Yes =============================================================================== *A:ALA-48>show# lag 1 detail =============================================================================== LAG Details =============================================================================== Description: ------------------------------------------------------------------------------- Details ------------------------------------------------------------------------------- Lag-id Mode : access : up : down Thres. Exceeded Cnt : 0 Port Threshold Thres.
  • Page 163 Interface Configuration LAG Statistics Output — The following table describes detailed LAG statistics output fields. LAG Statistics Output Label Description Fields The LAG or multi-link trunk (MLT) that the port is assigned to. LAG ID Port ID The port ID configured or displayed in the slot/mda/port format. The number of incoming bytes for the LAG on a per-port basis.
  • Page 164 LAG Commands LAG Associations Output — The following table describes LAG associations output fields. Label Description The service associated with the LAG. Service ID The name of the IP interface. Name The values of the port for the IP interface. Encap Val Sample Output A:ALA-1# show lag 5 associations...
  • Page 165 Interface Configuration ------------------------------------------------------------------------------- 1/1/1 active 1/1/2 standby down ------------------------------------------------------------------------------- Port-id Role Dist Aggr Timeout Activity ------------------------------------------------------------------------------- 1/1/1 actor 1/1/1 partner 1/1/2 actor 1/1/2 partner =============================================================================== *A:pc5# 7210 SAS E Interface Configuration Guide Page 165...
  • Page 166 Port Monitor Commands Port Monitor Commands port Syntax port port-id [port-id...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] [multiclass] Context monitor Description This command enables port traffic monitoring. The specified port(s) statistical information displays at the configured interval until the configured count is reached. The first screen displays the current statistics related to the specified port(s).
  • Page 167 Interface Configuration ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets Packets...
  • Page 168 Port Monitor Commands Clear Commands Syntax lag lag-id statistics Context clear Description This command clears statistics for the specified LAG ID. Parameters lag-id — The LAG ID to clear statistics. statistics — Specifies to clear statistics for the specified LAG ID. port Syntax port port-id statistics...
  • Page 169 Interface Configuration Debug Commands Syntax lag [lag-id lag-id [port port-id]] [all] lag [lag-id lag-id [port port-id]] [sm] [pkt] [cfg] [red] [iom-upd] [port-state] [timers] [sel- logic] no lag [lag-id lag-id] Context debug Description This command enables debugging for LAG. Parameters lag-id — Specifies the link aggregation group ID. port-id —...
  • Page 170 Port Monitor Commands Page 170 7210 SAS E Interface Configuration Guide...

  • Page 171: Standards And Protocol Support

    Standards and Protocol Support Standards Compliance RFC 854 Telnet RFC 2571 SNMP-FRAMEWORKMIB RFC 1519 CIDR RFC 2572 SNMP-MPD-MIB IEEE 802.1d Bridging RFC 1812 Requirements for IPv4 RFC 2573 SNMP-TARGET-&- IEEE 802.1p/Q VLAN Tagging Routers NOTIFICATION-MIB IEEE 802.1w Rapid Spanning Tree RFC 2347 TFTP option Extension RFC 2574 SNMP-USER-BASED- Protocol...
  • Page 172 Standards and Protocols TIMETRA-PORT-MIB.mib TIMETRA-QOS-MIB.mib TIMETRA-SAS-ALARM-INPUT- MIB.mib TIMETRA-SAS-IEEE8021-CFM- MIB.mib TIMETRA-SAS-GLOBAL-MIB.mib TIMETRA-SAS-PORT-MIB.mib TIMETRA-SAS-QOS-MIB.mib TIMETRA-SAS-SYSTEM-MIB.mib TIMETRA-SCHEDULER-MIB.mib TIMETRA-SECURITY-MIB.mib TIMETRA-SERV-MIB.mib TIMETRA-SYSTEM-MIB.mib TIMETRA-TC-MIB.mib TIMETRA-VRTR-MIB.mib Page 172 Standards and Protocols...

  • Page 173: Index

    NDEX UMERICS 802.1x 802.3ah OAM hashing access uplink overview Card, MDA, Port guidelines overview port link damping chassis slots and cards configuring MTU configuration guidelines command reference preprovisioning hashing chassis slots and cards configuring LAG features basic management tasks multi-chassis LAG port Ethernet access port...
  • Page 174 Index Page 174 7210-SAS E Interface Configuration Guide...

Table of Contents
