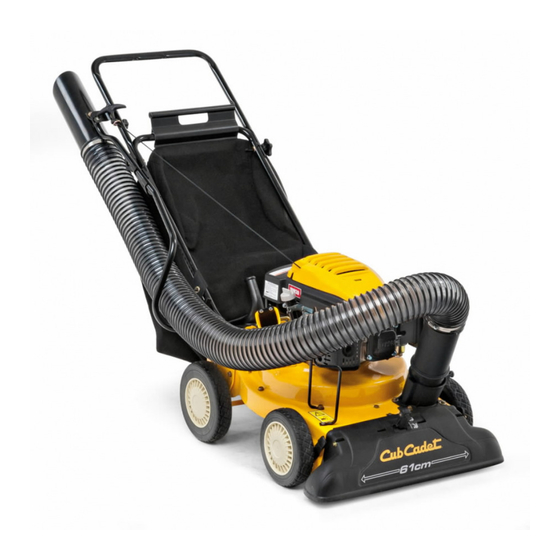

MTD Rover CSV 060 Operator's Manual

Yard vacuum/chipper/shredder with vacuum/hose
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
O
'
M
peratOr
s
anual
Yard Vacuum/Chipper/Shredder with Vacuum/Hose
Model CSV 060
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Form No. 769-08276
(July 23, 2012)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rover CSV 060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTD Rover CSV 060

Summary of Contents for MTD Rover CSV 060

  • Page 1 READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-08276...

  • Page 2: Table Of Contents

    Visit us on the web at www.mtdproducts..com See How-to Maintenance and Parts Installation Videos at www.mtdparts.com/KnowledgeCenter ◊ Call a Customer Support Representative at 1300 951 594 ◊ Write to MTD Products Australia Pty Ltd. • P.O. Box 376 • Dandenong. Vic. • 3175...

  • Page 3: Safe Operation Practices

    Important Safe Operation Practices WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
  • Page 4 Safe Handling of Gasoline: If the impeller strikes a foreign object or if your machine should start making an unusual noise or vibration, To avoid personal injury or property damage use extreme care immediately shut the engine off. Allow the impeller to in handling gasoline.
  • Page 5 Maintenance & Storage Do not modify engine Never tamper with safety devices. Check their proper To avoid serious injury or death, do not modify engine in any operation regularly. way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds.
  • Page 6 Safety Symbols This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbol Description READ THE OPERATOR’S MANUAL(S) Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate WARNING—...

  • Page 7: Assembly & Set-Up

    Assembly & Set-Up Contents of Carton • One Chipper/Shredder Vacuum • One Operator’s Manual • One Engine Operator’s Manual • One Upper and Lower Handle • One Hose Assembly • One Safety Glasses • One Bag • One Bottle of Oil •...
  • Page 8 Loosen the wing nut that secures the rope guide to the Pull spring loaded pin out on the base and align pin with right side of upper handle. the first hole (closest to the end of the tube) in the hose adapter.
  • Page 9 Adjustments Grasp bag handle with one hand and slide locking rod on Nozzle Height mounting bracket with other hand toward engine. Use the end of mounting bracket as leverage when sliding the The nozzle can be adjusted to any six positions, ranging from locking rod.

  • Page 10: Controls & Features

    Controls and Features Recoil Starter Hose Handle Hose Assembly Hose Extension Chipper Chute Nozzle/Hose Vac Lever Nozzle Nozzle Height Adjustment Lever Hose Assembly WARNING: The operation of any chipper shredder can result in foreign objects being thrown into the Used as an alternative to the nozzle to vacuum yard waste such eyes, which can damage your eyes severely.

  • Page 11: Operation

    Operation Starting & Stopping Engine Twist the two buttons on the back of the bag to unlock and empty contents. See Figure 5-2. Hold bag handle and bag Refer to the Engine Operator’s manual packed with your chipper/ clip while emptying the contents. shredder vacuum for instructions on starting and stopping the engine.
  • Page 12 Using The Nozzle Vacuum Using The Hose Assembly Yard waste such as leaves and pine needles can be vacuumed Place nozzle/hose vac lever in the bottom position on the up through the nozzle for shredding. After material has been nozzle to redirect vacuum to the hose assembly. See Figure shredded by the flail blades on the impeller assembly, it will be 5-4.

  • Page 13: Maintenance & Adjustment

    Maintenance & Adjustments Maintenance Equipment Care • Clean the chipper/shredder vacuum thoroughly after each General Recommendations use. • Always observe safety rules when performing any • Wash bag periodically with water. Allow to dry thoroughly maintenance. in shade. • The warranty on this chipper/shredder vacuum does not •...
  • Page 14 Removing the Flail Screen If the discharge area becomes clogged, remove the flail screen and clean area as follows: Stop the engine. Make certain the chipper/shredder vacuum has come to a complete stop. Before unclogging the discharge chute, disconnect and ground the spark plug wire to retaining post.

  • Page 15: Service

    Service Blade Care Front Support Brace/ WARNING: Before performing any type of Lock Nut maintenance on the machine, wait for all parts to Bell Pivot Arm stop moving and disconnect the spark plug wire. Washer Assembly Failure to follow this instruction could result in personal injury or property damage.
  • Page 16 Carefully tilt and support the unit up to provide access The nuts on the flat head cap screws can be reached underneath to the nozzle mounting hardware and impeller. from underneath using a 1/2-inch socket, universal, and Remove the three shoulder bolts securing the black plastic extension.

  • Page 17: Troubleshooting

    Troubleshooting Problem Cause Remedy Engine Fails to start 1. Throttle lever (if equipped) not in correct 1. Move throttle lever to FAST or START starting position. position. 2. Engine switch (if equipped) in OFF position. 2. Move engine switch to ON position. 3.

  • Page 18: Replacement Parts

    Replacement Parts Component Part Number and Description BS-799876 Spark Plug BS-491588S Air Filter Cartridge BS-493537S † Pre-Cleaner BS-799585 Fuel Cap BS-298090S † Fuel Filter 664-04040 981-0490 Chipper Blade 719-0329 Flail Blade (2 total) 734-04033 Wheel † If Equipped...
  • Page 19 Notes...

  • Page 20: Warranty

    For domestic use, this warranty will apply for a period of 2 years from date of purchase. Warranty for commercial or industrial use is 90days from the date of purchase. In the event of dispute, MTD Products Australia Pty Ltd will determine whether the machine was used for domestic, or commercial or industrial use.
