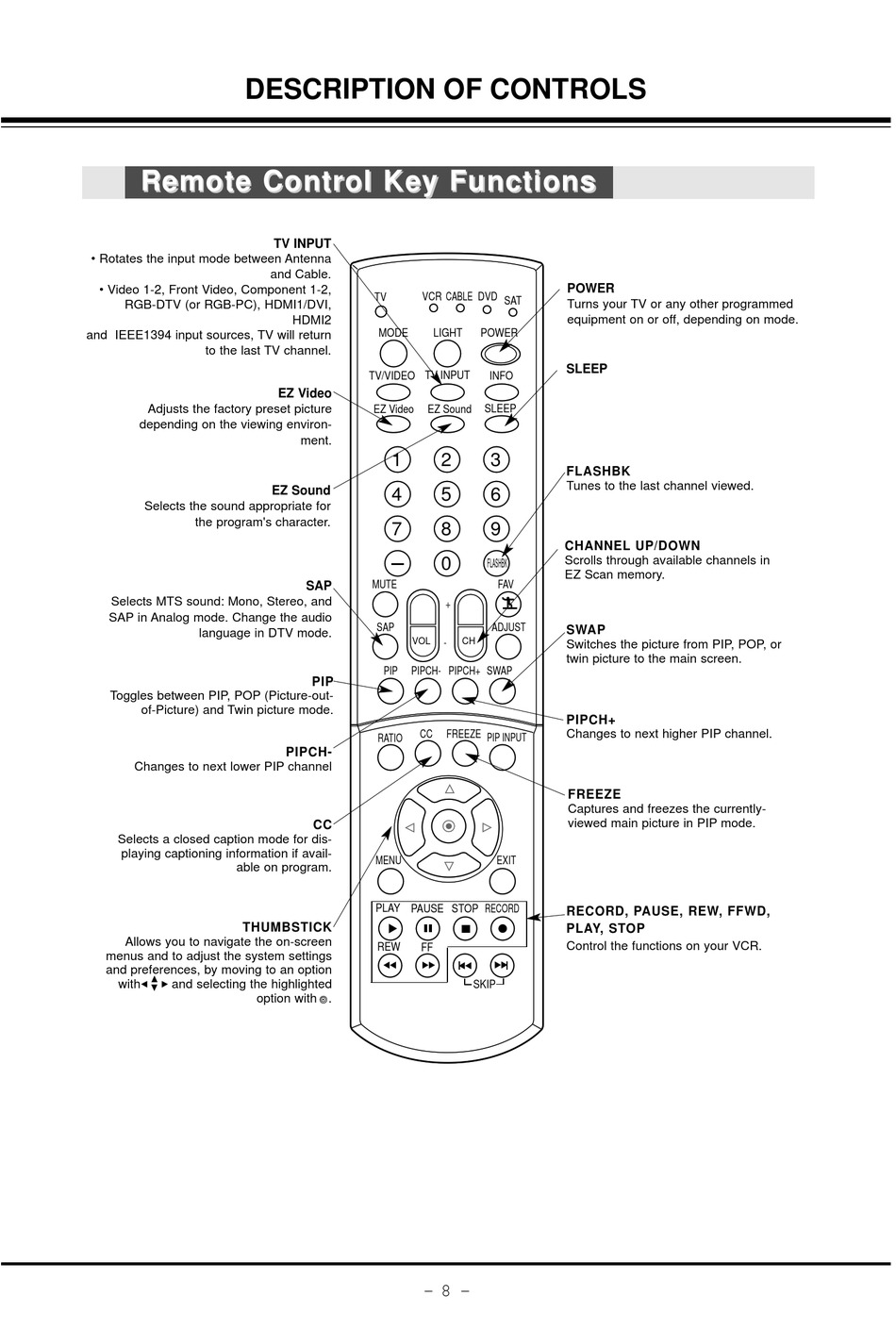

DESCRIPTION OF CONTROLS
Remote Control Key Functions
Remote Control Key Functions
• Rotates the input mode between Antenna
• Video 1-2, Front Video, Component 1-2,
RGB-DTV (or RGB-PC), HDMI1/DVI,
and IEEE1394 input sources, TV will return
to the last TV channel.
Adjusts the factory preset picture
depending on the viewing environ-
Selects the sound appropriate for
the program's character.
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
Toggles between PIP, POP (Picture-out-
of-Picture) and Twin picture mode.
Changes to next lower PIP channel
Selects a closed caption mode for dis-
playing captioning information if avail-
able on program.
THUMBSTICK
Allows you to navigate the on-screen
menus and to adjust the system settings
and preferences, by moving to an option
D
with and selecting the highlighted
F G
E
TV INPUT
and Cable.
VCR CABLE DVD SAT
TV
HDMI2
MODE
TV/VIDEO TV INPUT
EZ Video
EZ Video
ment.
1
EZ Sound
4
7
MUTE
SAP
SAP
VOL
PIP PIPCH- PIPCH+
PIP
CC
RATIO
PIPCH-
CC
MENU
PLAY PAUSE
REW FF
option with .
- 8 -
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
LIGHT POWER
SLEEP
INFO
EZ Sound SLEEP
2 3
FLASHBK
Tunes to the last channel viewed.
5 6
8 9
CHANNEL UP/DOWN
Scrolls through available channels in
0
FLASHBK
EZ Scan memory.
FAV
+
ADJUST
SWAP
CH
-
Switches the picture from PIP, POP, or
twin picture to the main screen.
SWAP
PIPCH+
Changes to next higher PIP channel.
FREEZE PIP INPUT
FREEZE
Captures and freezes the currently-
viewed main picture in PIP mode.
EXIT
STOP RECORD
RECORD, PAUSE, REW, FFWD,
PLAY, STOP
Control the functions on your VCR.
SKIP
