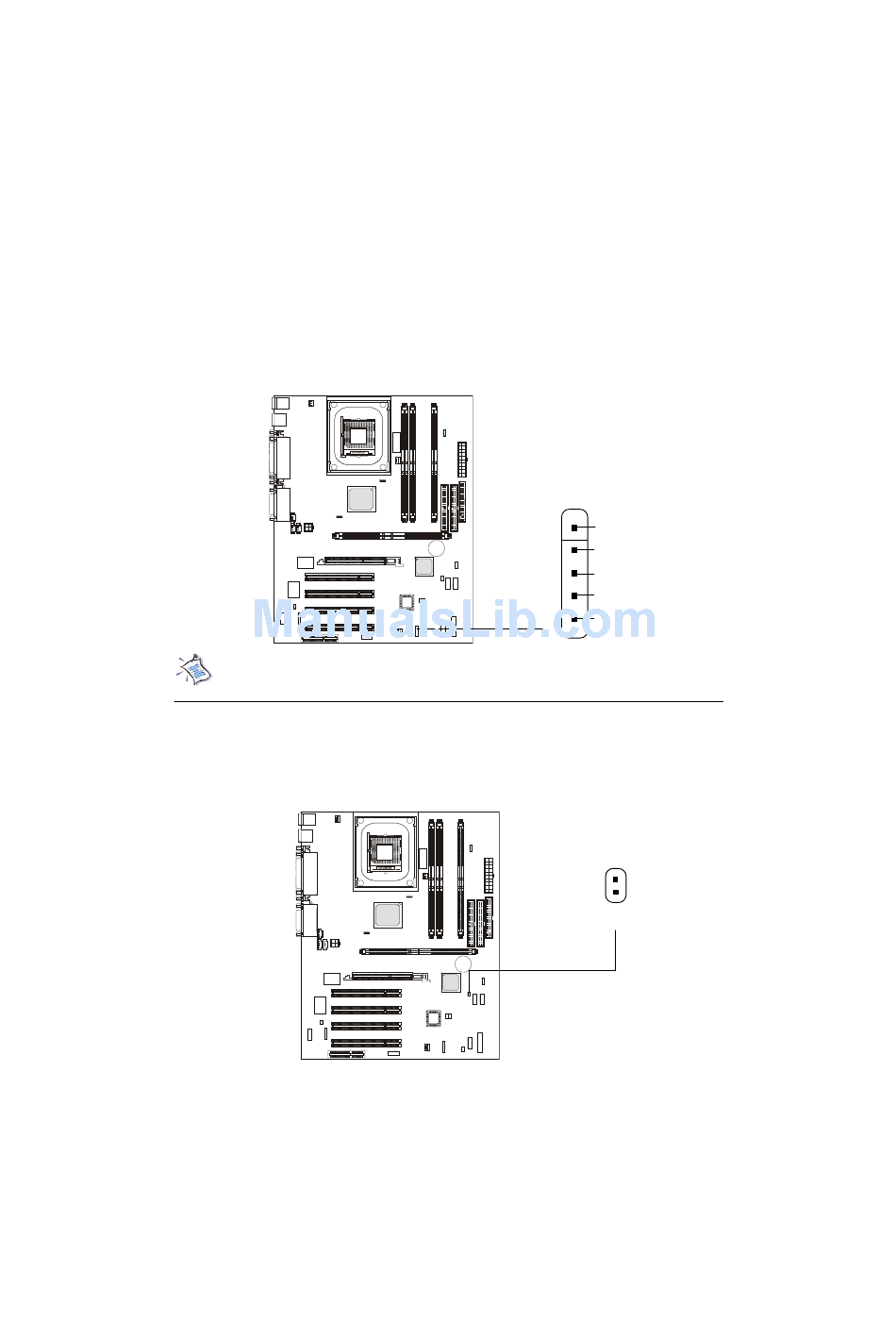

Wake On Ring Connector: JMDM1
This connector allows you to connect to a modem card with Wake On
Ring function. The connector will power up the system when a signal is re-
ceived through the modem card.
Note: Modem wake-up signal is active "low".
Power Saving Switch Connector: JGS1
Attach a power saving switch to this connector. Pressing the switch
once will have the system enter the sleep/suspend state. Press any key to wake
up the system.
NC
1
GND
MDM_WAKEUP
NC
5VSB
JMDM1
JGS1
2-18
