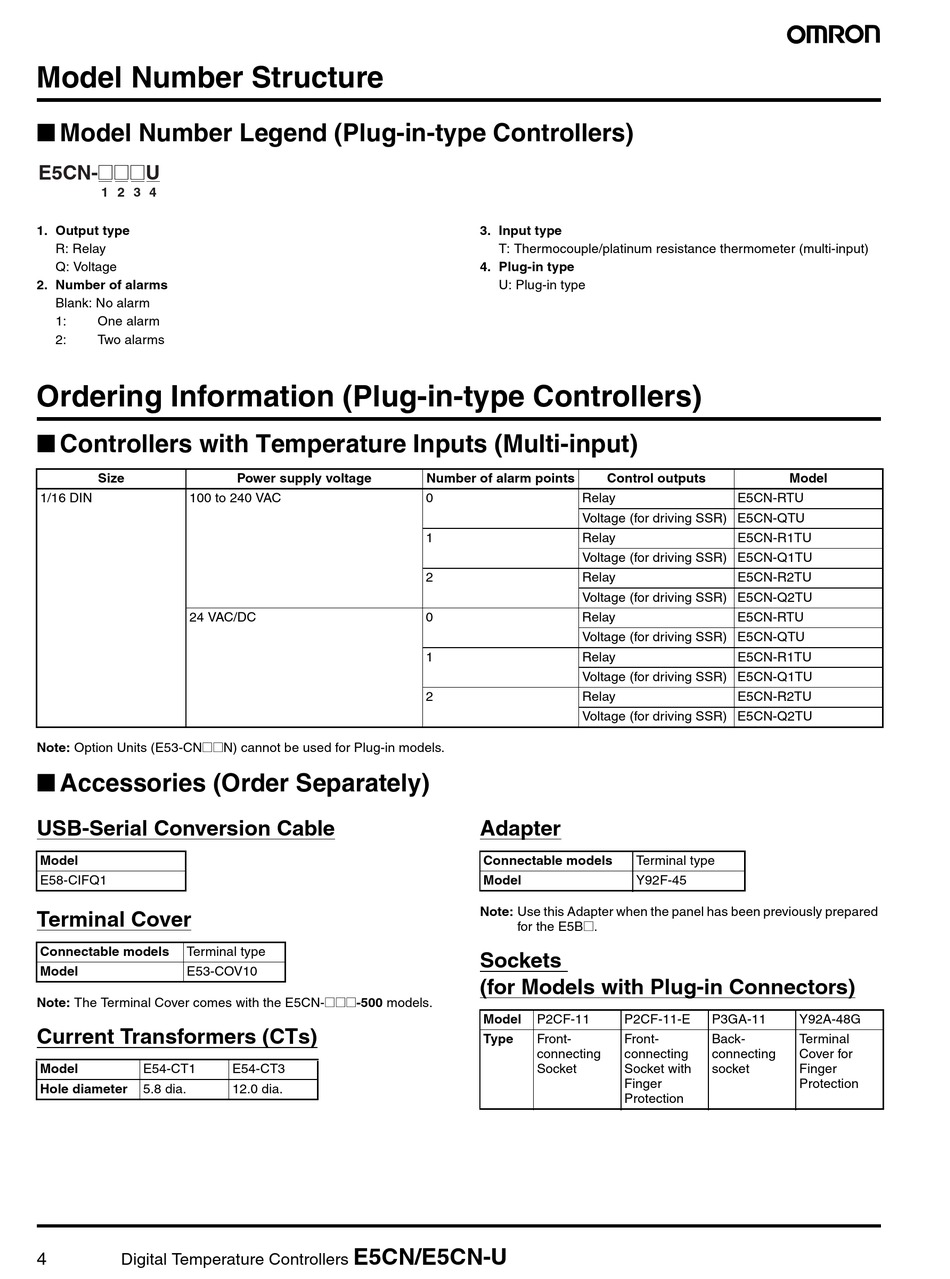

Ordering Information (Plug-In-Type Controllers) - Omron E5CN Features

Model Number Structure
■ Model Number Legend (Plug-in-type Controllers)
E5CN-@@@U
1 2 3 4
1. Output type
R: Relay
Q: Voltage
2. Number of alarms
Blank: No alarm
1: One alarm
2: Two alarms

Ordering Information (Plug-in-type Controllers)

■ Controllers with Temperature Inputs (Multi-input)
Size
1/16 DIN 100 to 240 VAC
24 VAC/DC
Note: Option Units (E53-CN@@N) cannot be used for Plug-in models.
■ Accessories (Order Separately)
USB-Serial Conversion Cable
Model
E58-CIFQ1
Terminal Cover
Connectable models Terminal type
Model E53-COV10
Note: The Terminal Cover comes with the E5CN-@@@-500 models.
Current Transformers (CTs)
Model E54-CT1
Hole diameter 5.8 dia.
4
Digital Temperature Controllers
Power supply voltage
E54-CT3
12.0 dia.
E5CN/E5CN-U
3. Input type
T: Thermocouple/platinum resistance thermometer (multi-input)
4. Plug-in type
U: Plug-in type
Number of alarm points
0 Relay
Voltage (for driving SSR) E5CN-QTU
1 Relay
Voltage (for driving SSR) E5CN-Q1TU
2 Relay
Voltage (for driving SSR) E5CN-Q2TU
0 Relay
Voltage (for driving SSR) E5CN-QTU
1 Relay
Voltage (for driving SSR) E5CN-Q1TU
2 Relay
Voltage (for driving SSR) E5CN-Q2TU
Adapter
Connectable models
Model
Note: Use this Adapter when the panel has been previously prepared
for the E5B@.
Sockets
(for Models with Plug-in Connectors)
Model P2CF-11
Type Front-
connecting
Socket
Control outputs
E5CN-RTU
E5CN-R1TU
E5CN-R2TU
E5CN-RTU
E5CN-R1TU
E5CN-R2TU
Terminal type
Y92F-45
P2CF-11-E P3GA-11
Front- Back-
connecting connecting
Socket with socket
Finger
Protection
Model
Y92A-48G
Terminal
Cover for
Finger
Protection
