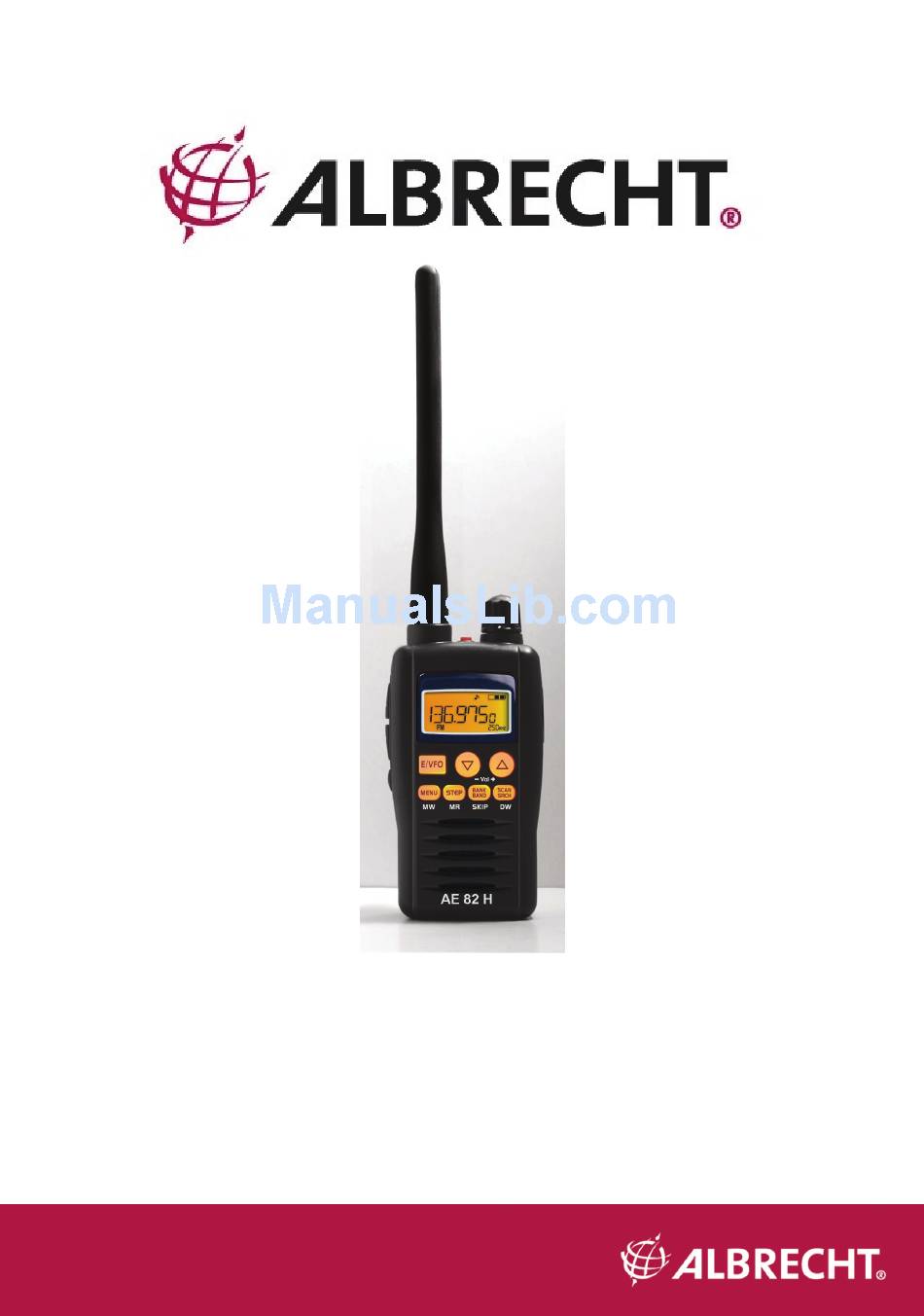

  • Page 1 AE 82 H / AE 82 H BT Scanning Receiver...

  • Page 2: Table Of Contents

    CONTENTS CAUTIONS................. ABOUT AE 8 H/BT MODELS ..........SUPPLIED EQUIPMENT ..............INSTALLING THE BATTERIES ............INSTALLING THE ANTENNA ............CONTROLS ..................Power On/Off Lock Button............Antenna................Squelch Up/Down Keys ............Function Key ................Enter/VFO Keys ..............Menu/MW Keys ..............Step/MR Keys ................ Bank/Band&Skip Key ............
  • Page 3 SELECTING FREQUENCIES ............. Mode Selection ..............Frequency Step Selection............FREQUENCY BANDS..............FREQUENCY SEARCH..............Selected Band Search ............. Full Band Search ..............Dual Watch ................MEMORY BANKS ................STORING FREQUENCIES INTO THE MEMORIES ......RECALLING FREQUENCIES FROM THE MEMORIES ......CHANNEL SCAN ................Selected Bank Scan ..............

  • Page 4: Cautions

    Avoid storing the receiver in temperatures below -107C to +607C Never try to charge Alkaline batteries or any dry cells. ABOUT AE 82 H/BT MODELS We offer two models of your scanner receivers. AE 8 H is the basic version and AE 8 H-BT additionally includes the Bluetooth compatible operation.

  • Page 5: Supplied Equipment

    SUPPLIED EQUIPMENT • Scanner Receiver • Antenna • Belt Clip INSTALLING THE BATTERIES Battery installation is made more convenient when the belt clip is removed. To do this, release the spring clip securing the belt clip to radio and slide the belt clip downward and away from the radio body.

  • Page 6: Controls

    CONTROLS Power On/Off Lock Button Scan / Search&DW Keys Antenna Up / Down Keys Charger Jack Squelch Up/Down Keys LCD Display Function Key Enter/VFO Keys Earphone Jack Progamming Jack Menu/MW Keys Step/MR Keys Control Knob Lanyard Slot Bank/Band&Skip Keys INSTRUCTION MANUAL AE 8 H/BT...

  • Page 7: Power On/Off Lock Button

    Power On/Off Lock Button Turns the receiver on and off. Also locks the keypad. Antenna Provides reception of signals. Squelch Up/Down Keys Opens and closes the squelch. Function Key Enables extended keypad control functions. Enter/VFO Keys Confirms selections and selects the VFO mode. Menu/MW Key Provides access to setup menus and also access to write memories.

  • Page 8: Extended Keypad Controls

    EXTENDED KEYPAD CONTROLS Extended Function Keys FUNCTION DESCRIPTION Allows storage of frequencies into the Manual Write Memory storage. Allows reading of the frequencies from the Memory Read stored memories. Used to Skip channels when Scanning or Skip Skip frequencies when Searching. Activates or Deactivates the Dual Watch Dual Watch function.

  • Page 9: General Operation

    GENERAL OPERATION Turning the unit On or Off Press and hold the RED Button on the top of the unit to turn the unit Press and hold the RED Button again to turn the unit OFF. Key Lock Briefl y press the RED Button on the top of the unit to turn the Key Lock ON.

  • Page 10: Control Knob

    Control Knob The Control knob is used to change the current display option. In VFO mode, rotate the Control knob to change the displayed fre- quency at the selected frequency steps. Rotate clockwise to increase the frequency and counter clockwise to decrease the frequency. In Menu mode, rotate the Control knob to change the selected setting.

  • Page 11: Frequency Bands

    n Frequency Step Selection By default, the receiver automatically selects the frequency Steps most commonly used for each band (see the Frequency Band chart for the default Steps for each band). To select a different step : 1) In VFO mode press STEP. ) The following frequency steps are available for your selection.

  • Page 12: Frequency Search

    FREQUENCY SEARCH n Selected Band Search Use the Search function to locate active frequencies in one or more bands 1) Press the E/VFO key to select VFO Mode. (Note: the receiver automatically selects the VFO mode when it is turned on). ) Press the BAND key to select the required Band.

  • Page 13: Full Band Search

    n Full Band Search The Full Search function searches the entire scanner frequency range for signals. Press the E/VFO key to select VFO Mode. (Note: the receiver automatically selects the VFO mode when it is turned on). Set the Squelch level using the Squelch porq keys so that the noise just disappears.

  • Page 14: Memory Banks

    4) Enter the second frequency using the Control knob. 5) The Dual watch begins automatically. If a signal is received, the receiver will remain on the active frequency for the duration of the ‘Busy Timer’ setting in the Menu setup. If the ‘Busy Timer’ is set to Busy the receiver will stay on the active frequency. 6) To stay on an active frequency indefinitely or to stop the Dual Watch function press Func DW again.

  • Page 15: Recalling Frequencies From The Memories

    RECALLING FREQUENCIES FROM THE MEMORIES 1) Press the E/VFO key to select VFO Mode. ) Press Func MR. The receiver will enter the Memory Read mode. 3) To step through the memory banks press the BANK BAND key. Memory banks are numbered 0 to 9. 4) Select the required channel using the control knob.

  • Page 16: Dual Watch

    Note: If a signal is received, the receiver will remain on the active channel for the dura- tion of the ‘Busy Timer’ setting in the Menu setup. If the ‘Busy timer’ is set to Busy the receiver will stay on the active channel for as long as the signal is present. To change the bank while scanning, briefly press BANK/BAND key.

  • Page 17: Vfo Mode

    -15kHz, OFF Bluetooth ON, OFF Activates or deactivates the Bluetooth compat- Compatible ible operation. Operation NOTE: Bluetooth compatible function works with AE 82 H-BT model only. n Memory Read Mode FUNCTION MEANING DESCRIPTION CH CLr Channel Clear Erases the selected channel.

  • Page 18: Bluetooth Compatible Operation

    BLUETOOTH COMPATIBLE OPERATION (ONLY FOR AE 82 H-BT MODEL) To activate the paring between your receiver and your headset or any other external Bluetooth equipment ; 1) Pressing E/VFO, turn on your receiver. On the LCD, pairing ( ) is displayed.

  • Page 19: Specifications

    SPECIFICATIONS n General - Frequency coverage: 66-174 MHz - Number of memory channels : 00 Units - Frequency resolution : 5, 6.5, 8.33 *,10, 1.5, 15, 0, 5, 30, 50, 100, 500KHz & Auto. *8.33kHz step works in 108-135.99MHz range only. - Operation temperature range : -107C to +607C - Reference frequency stability : 6 ppm 7C (-107C to +607C) - Power supply requirement : AAA x 4 Ni-MH or ALKALINE...
