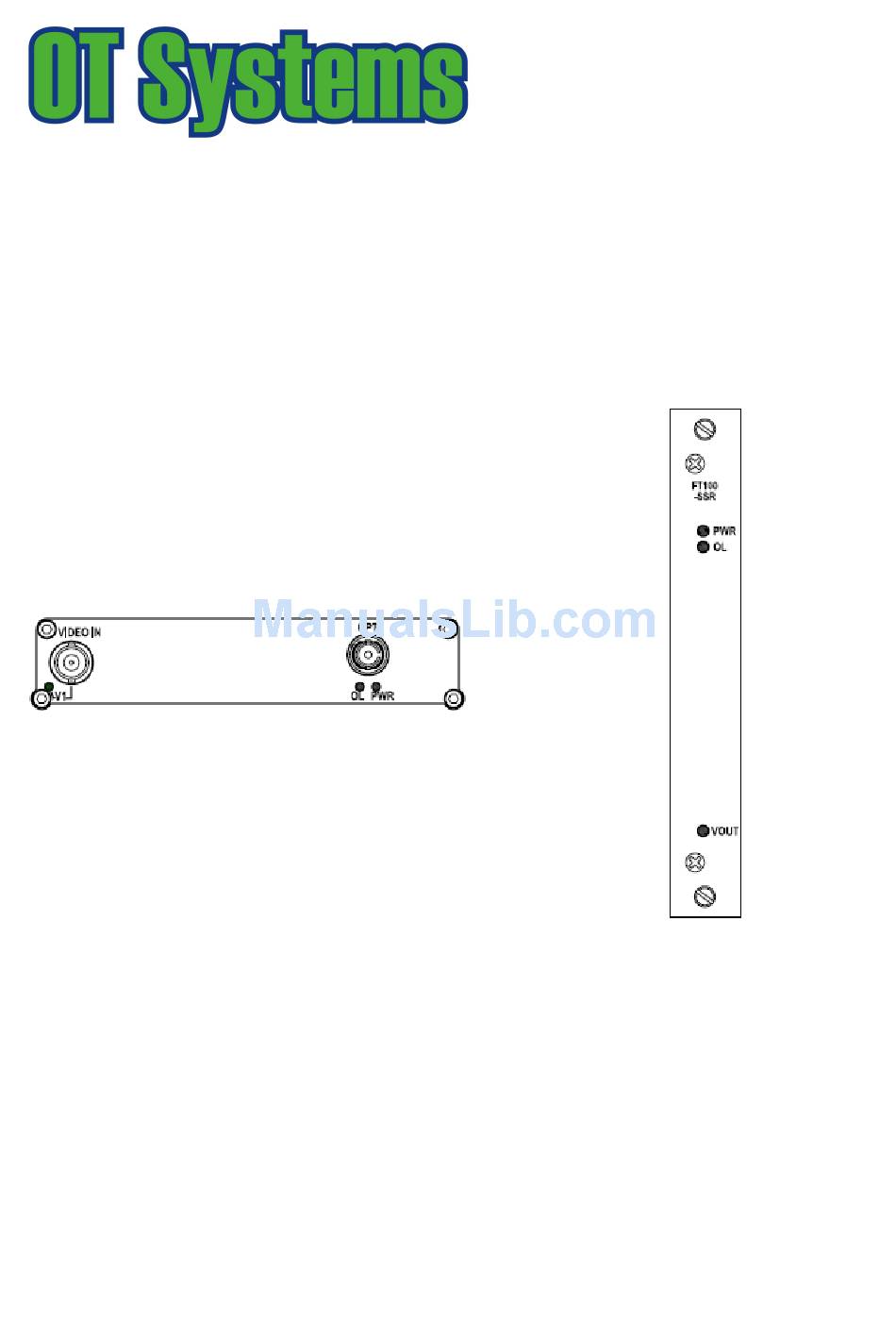

Page 1: Installation And Operation Manual
All Digital Fiber Optic Manufacturing Specialists Installation and Operation Manual FT100 Series 10-bit Digital Series 1-ch Video Fiber Optic Converter OT Systems Ltd., 2009 Rev 1.1... - Page 2 FT100 Series Installation & Operation Manual Models covered in this manual Standalone Units Card Modules Single-Mode Transmitters Single-Mode Transmitters FT100-SSTSA FT100-SST FT100-SSTLSA FT100-SSTL Single-Mode Receivers Single-Mode Receivers FT100-SSRSA FT100-SSR FT100-SSRLSA FT100-SSRL Multi-Mode Transmitter Multi-Mode Transmitter FT100-SMTSA FT100-SMT Multi-Mode Receiver Multi-Mode Receiver...
-
Page 3: Table Of Contents
FT100 Series Installation & Operation Manual Table of Contents SAFETY INSTRUCTIONS..................3 PRODUCT OVERVIEW ..................4 Introduction ....................... 4 Models selection table ..................5 INSTALLATION ....................... 6 General ......................6 Standalone unit installation ................6 Card module installation ................... 7 CABLE CONNECTIONS &... -
Page 4: Safety Instructions
FT100 Series Installation & Operation Manual (1) Safety Instructions Please be familiar with all information in this manual prior to installation and operation. Note 1: The products described each contains a Class 1 laser or LED fiber optic emitter. The following safety precautions apply. -
Page 5: Product Overview
FT-PA/12V, which can be powered by a local residential power supply outlet. The FT100 Series units are also available as plug-in cards installed in 19” rack-mount chassis deployed in small, medium to large systems. Each plug-in card occupies one slot space inside the rack-mount chassis. -
Page 6: Models Selection Table
FT100 Series Installation & Operation Manual 2.2 Models selection table Installation Models Descriptions Remarks requirements FT100-SSTSA Single-mode 1-Ch. Video Transmitter Horizontally or FT-PA/12V Standalone Unit vertically external FT100-SSTLSA Single-mode Long-haul 1-Ch. Video wall-mounted power Standalone adaptor is Transmitter Standalone Unit... -
Page 7: Installation
FT-PA/12V powered by a local residential power supply outlet. The FT100 Series card modules are housed inside the FT-C18 rack-mount chassis (Fig. 3.2) with an included power supply unit. The whole chassis is powered by a local residential power supply outlet. -
Page 8: Card Module Installation
FT100 Series Installation & Operation Manual 3.3 Card module installation Insert the card module into the FT-C18 chassis along the top and bottom card guides of an empty slot and push the card into the multi-pin socket at the rear firmly. - Page 9 FT100 Series Installation & Operation Manual Standalone Transmitter Card Module Receiver Fig 4.2 Standalone unit to Card Module connection diagram Card Module Transmitter Card Module Receiver Fig 4.3 Card Module to Card Module connection diagram www.ot-systems.com...
-
Page 10: Ground Connection
FT100 Series Installation & Operation Manual 4.2 Ground connection For enhanced safety precautions to reduce the risks of human hazards and physical damages caused by lightning and other power surges, in addition to the incorporation of the surge protective devices into the products, a screw is provided on the Standalone cabinets (Fig. -
Page 11: Operational Guides
FT100 Series Installation & Operation Manual (5) Operational Guides 5.1 FT100 Series Transmitter LED Indicators Indicator Color Description Lit when power is supplied to the Transmitter. Yellow Lit when optical signal from receiver to transmitter is active.* VIDEO IN / VIN Green Lit when video signal is fed into the VIDEO IN connector. -
Page 12: Specifications
FT100 Series Installation & Operation Manual (6) Specifications MODELS* FT100-SST(R)SA FT100-SST(R)LSA FT100-SMT(R)SA FT100-SST(R) FT100-SST(R)L FT100-SMT(R) PARAMETERS (Single-Mode) (Single-Mode) (Multi-Mode) OPTICAL No. of Fiber / Connector 1 / ST (or FC) 1 / ST (or FC) 1 / ST (or FC) -
Page 13: Drawings
Fig. 7.1 Dimensional drawings of Standalone unit (mm) (8) Warranty Information All OT Systems products are subject to limited life-time warranty offered by the company in normal circumstances. Please refer to the OT Systems Products Warranty Statement for details. Access to the statement is available in our company website at www.ot-systems.com.
