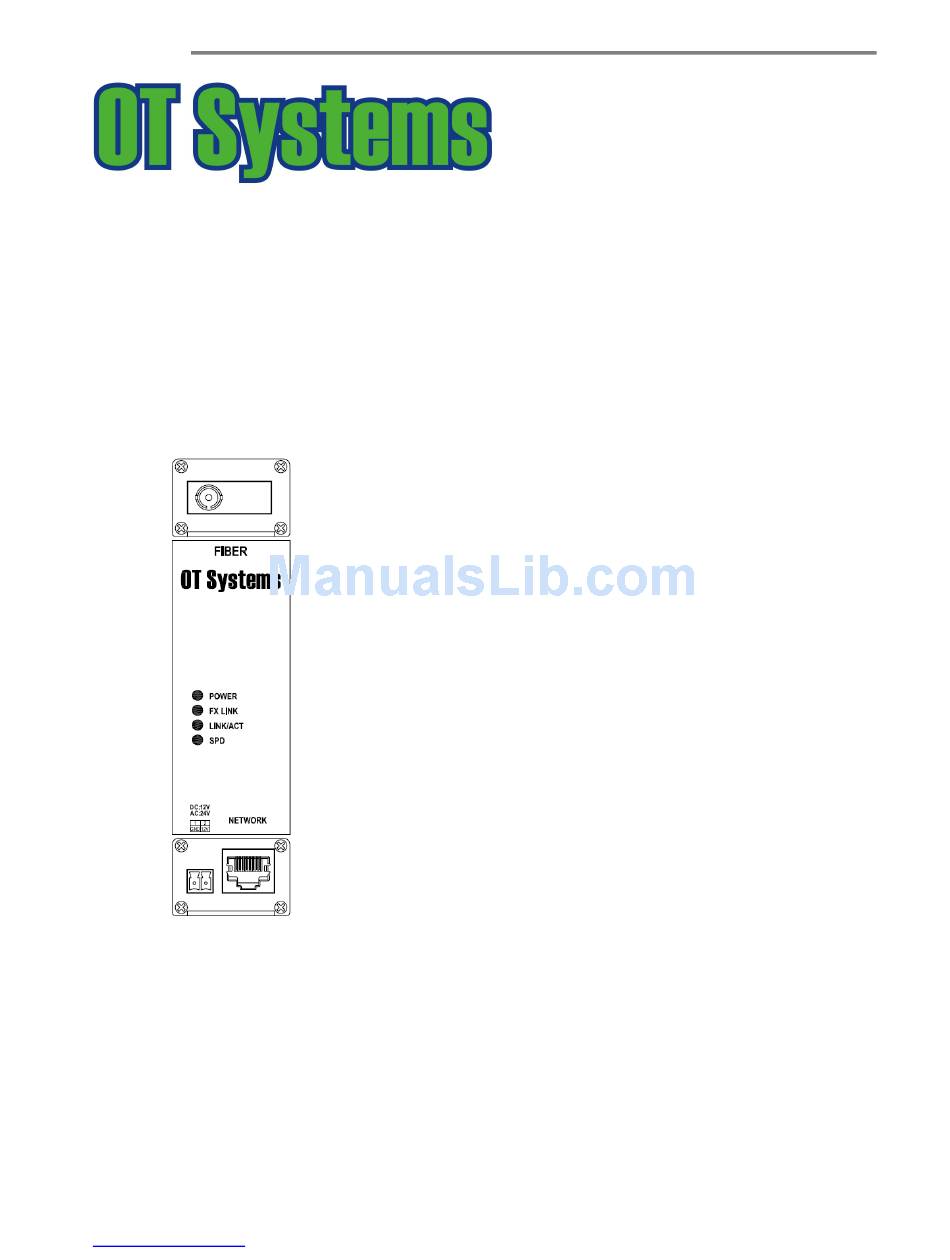

Page 1: Installation And Operation Manual
ET1111 Series Installation & Operation Manual All Digital Fiber Optic Manufacturing Specialists Installation and Operation Manual ET1111 Series Media Converter Series Industrial 10/100BASE-TX to 100BASE-FX Ethernet Media Converter OT Systems Ltd., 2011 Rev 1.0 www.ot-systems.com... - Page 2 ET1111 Series Installation & Operation Manual Models covered in this manual Micro Type Wall-Mount Fiber connector in SC Fiber connector in ST Multi-Mode (2-Fiber) Multi-Mode (2-Fiber) ET1111-A-MT ET1111-G-MT Single-Mode (2-Fiber) Single-Mode (2-Fiber) ET1111-B-MT ET1111-H-MT Multi-Mode (1-Fiber) Multi-Mode (1-Fiber) ET1111-C-MT ET1111-I-MT...
-
Page 3: Table Of Contents
ET1111 Series Installation & Operation Manual Table of Contents TABLE OF CONTENTS ....................1 SAFETY INSTRUCTIONS..................2 PRODUCT OVERVIEW ..................3 Introduction ...................... 3 Products Highlights ..................3 Models selection table ..................4 INSTALLATION ...................... 5 General ......................5 Package Contents ................... 5 Selecting a site for the Media Converter ............ -
Page 4: Safety Instructions
ET1111 Series Installation & Operation Manual (1) Safety Instructions Please be familiar with all information in this manual prior to installation and operation. Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following safety precautions apply. -
Page 5: Product Overview
(2) Product Overview 2.1 Introduction OT Systems' ET1111 media converter offers an easy and affordable solution for network managers to connect 10/100 Fast Ethernet from UTP to fiber optic cabling. The media converter series uses a high performance auto-sensing exchange chip for full functionality of transfer and exchange, guaranteeing the safety and stability of data transfer. -
Page 6: Models Selection Table
ET1111 Series Installation & Operation Manual 2.3 Models selection table Descriptions Models Links Max. Fiber Options Wavelengths Mounting Budget Distance ET1111-A-MT Multimode/2-fiber/SC 1310nm 14dB ET1111-B-MT Singlemode/2-fiber/SC 1310nm 21dB 20Km ET1111-C-MT Multimode/WDM 1-fiber/SC TX:1310nm/RX1550nm 21dB ET1111-D-MT Multimode/WDM 1-fiber/SC TX:1550nm/RX1310nm 21dB ET1111-E-MT... -
Page 7: Installation
(3) Installation 3.1 General All OT Systems products are thoroughly inspected, tested and securely packaged before delivery to ensure a stable, intact and trouble-free service. Please check the equipment upon receipt for any visible damage which may have been caused during shipping. -
Page 8: Selecting A Site For The Media Converter
ET1111 Series Installation & Operation Manual 3.3 Selecting a site for the Media Converter As with any electric device, you should place the Media Converter where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: The ambient temperature should be between -10 to +60 degrees Celsius. -
Page 9: Installation- Wall Mount
ET1111 Series Installation & Operation Manual 3.5 Installation- Wall Mount (a) Top view (b) Side view Fig. 3.2 Dimension of Micro type units • Installation: Mount the Micro type unit onto a fixture, or camera housings, e.g. a plank, (either on the wall or on a flat surface) with at least 2 screws piercing through the holes on the mounting frame to secure it in position. -
Page 10: Cable Connections & Setup Procedures
ET1111 Series Installation & Operation Manual (4) Cable Connections & Setup Procedures 4.1 System cable connections Signal Cable Type Connector For details, Type please refer to Optical Single-mode or Multi-mode fiber SC or ST Connector Section 4.2.2 Ethernet Twisted-pair Cable RJ45 Connector Section 4.2.1 10BASE-T: UTP/STP Cat3, 4, 5... -
Page 11: Connecting To Your Network
ET1111 Series Installation & Operation Manual 4.2 Connecting to Your Network 4.2.1 Cable Type & Length It is necessary to follow the cable specifications below when connecting the Media Converter to your network. Use appropriate cables that meet your speed and cabling requirements. - Page 12 ET1111 Series Installation & Operation Manual 4.2.4 The 100Base-FX Connectors The 100Base-FX Connections The fiber port pinouts The TX (transmit) port of device I is connected to the RX (receive) port of device II, and the RX (receive) port of device I to the TX (transmit) port of device II. X value: A for Multimode fiber B for Singlemode fiber...
-
Page 13: Operational Guides
ET1111 Series Installation & Operation Manual (5) Operational Guides 5.1 LEDs Status State Indication Green Power on. Power off. FX LINK Green 100Base-FX Green 100Base-TX 10Base-TX LINK/ Steady A valid network connection established Flashing Transmitting or receiving data. ACT Stands for Activity. 5.2 Signal and Power Ports FIBER - SC or ST Optical Connector(s) for 100BASE-FX fiber cable connection. -
Page 14: Specifications
ET1111 Series Installation & Operation Manual (6) Specifications Ethernet IEEE 802.3 10BASE-T Standards IEEE 802.3u 100BASE-TX/FX IEEE 802.3x Address table size 2048MAC addresses Processing Type Store-and-Forward Half-duplex and IEEE802.3x Full-duplex flow control Forward and Filter Rate 10Base-T 10 / 20Mbps half / full-duplex 100Base-TX/FX 100 / 200Mbps half / full-duplex Cabling... - Page 15 ET1111 Series Installation & Operation Manual LED Indicators Power Power Status 10/100 TX (Per Port) Link/Activity, Speed 100FX (Per Port) Link/Activity Dimensions 36.2mm (W) × 117mm (D) × 24.5mm (H) Net Weight 0.12Kg (0.22kg including PA) Casing Aluminum case Mounting Options Wall-Mount Environmental -10°...
-
Page 16: Drawings
(8) Warranty Information All ET-Series products are subject to a three-year warranty offered by the company in normal circumstances. Please refer to the OT Systems Products Warranty Statement for details. Access to the statement is available in our company website at www.ot-systems.com. -
Page 17: Contact Information
ET1111 Series Installation & Operation Manual (9) Contact Information APAC Operation EMEA Operation AMERICAS Operation Address Address Address Unit 1023, 10/F, J. Slovackio str. 4, River Heights Business Park Landmark North LT-11107, Vilnius 5375 US Highway 34 39 Lung Sum Avenue, Lithuania Oswego, IL 60543 Sheung Shui, N.T.,... -
Page 18: Connector Pinouts
ET1111 Series Installation & Operation Manual Appendix A 1. Connector Pinouts RJ45 Connector (Male) 2. TIA/EIA-568 Cabling T568A T568B RJ45 10Base-T Signal 10Base-T Signal Pin # Wire Diagram Wire Color Wire Diagram Wire Color 100Base-TX Signal 100Base-TX Signal White/Green Transmit+ White/Orange Transmit+ Green Transmit-...
