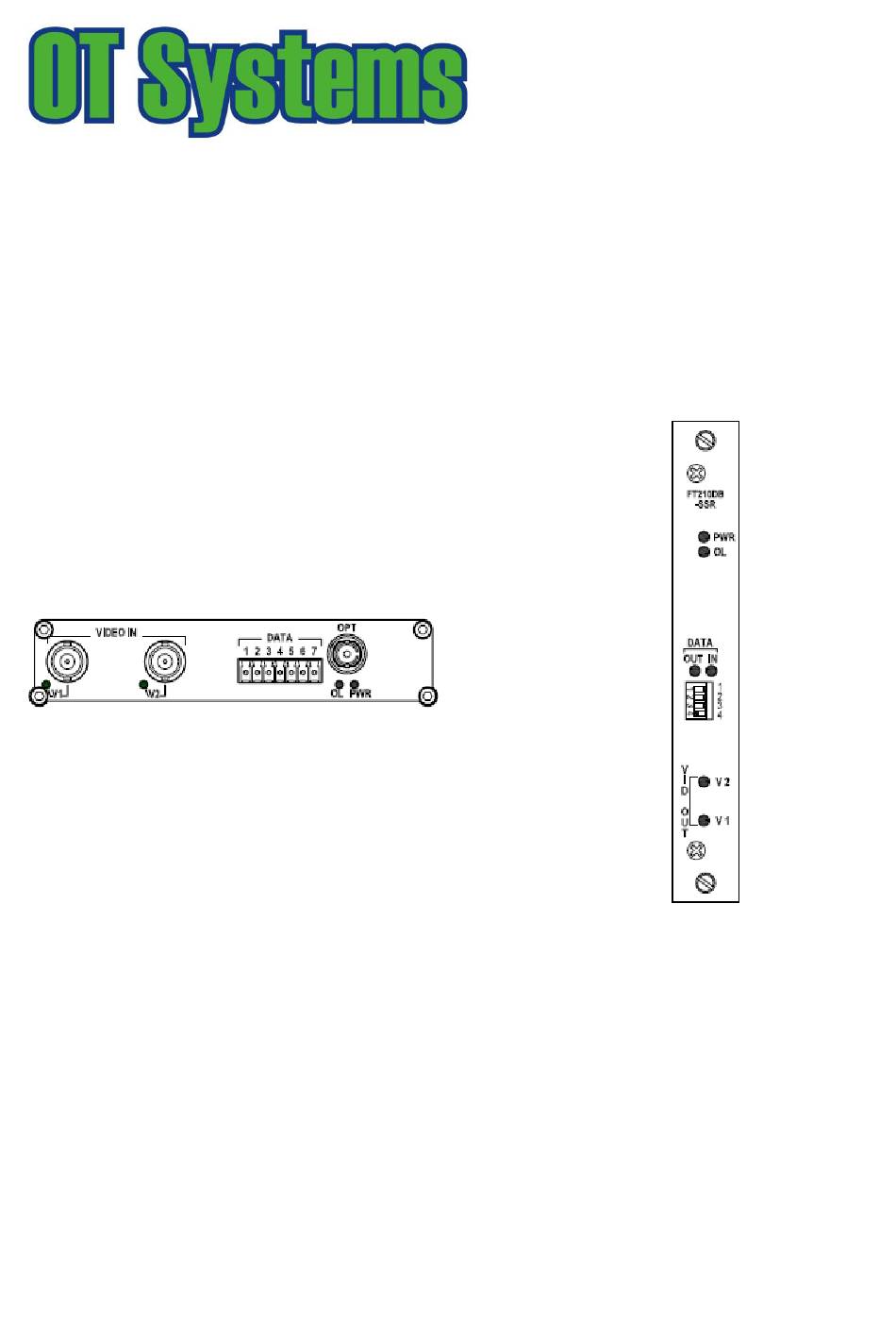

- Page 1 All Digital Fiber Optic Manufacturing Specialists Installation and Operation Manual FT210DB Series 10-bit Digital Series 2-ch Video with 1 Bi-directional Data Fiber Optic Converter OT Systems Ltd., 2009 Rev 1.1...
- Page 2 FT210DB Series Installation & Operation Manual Models covered in this manual Standalone Units Card Modules Single-Mode Transmitters Single-Mode Transmitters FT210DB-SSTSA FT210DB-SST FT210DB-SSTLSA FT210DB-SSTL Single-Mode Receivers Single-Mode Receivers FT210DB-SSRSA FT210DB-SSR FT210DB-SSRLSA FT210DB-SSRL Multi-Mode Transmitter Multi-Mode Transmitter FT210DB-SMTSA FT210DB-SMT Multi-Mode Receiver Multi-Mode Receiver...
-
Page 3: Table Of Contents
FT210DB Series Installation & Operation Manual Table of Contents SAFETY INSTRUCTIONS ..................3 PRODUCT OVERVIEW ..................4 Introduction....................4 Models selection table ................... 5 INSTALLATION ....................6 General ......................6 Standalone unit installation ................6 Card module installation ................7 CABLE CONNECTIONS &... -
Page 4: Safety Instructions
FT210DB Series Installation & Operation Manual (1) Safety Instructions Please be familiar with all information in this manual prior to installation and operation. Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following safety precautions apply. -
Page 5: Product Overview
FT-PA/12V, which can be powered by local 110/220V power. The FT210DB Series units are also available as plug-in card modules installed in a 19” rack-mount chassis. Each plug-in card occupies one slot in the rack-mount chassis. The rack mount chassis has to be ordered separately, and comes with its own power supply for powering the installed card modules. -
Page 6: Models Selection Table
FT210DB Series Installation & Operation Manual 2.2 Models selection table Installation Models Descriptions Remarks requirements FT210DB-SSTSA Single-mode 2-Ch. Video Transmitter Horizontally or FT-PA/12V & 1 Data Transceiver Standalone Unit vertically external wall-mounted power FT210DB-SSTLSA Single-mode Long-haul 2-Ch. Video Transmitter & 1 Data Transceiver... -
Page 7: Installation
Please check the equipment upon receipt for any visible damage which may have been caused during shipping. The FT210DB Series standalone units (Fig. 3.1) can be either horizontally or vertically wall-mounted, or mounted on any fixture. The Standalone unit works with an external power supply FT-PA/12V powered by local 110/220V power. -
Page 8: Card Module Installation
FT210DB Series Installation & Operation Manual 3.3 Card module installation Insert the card module into the FT-C18 chassis along the top and bottom card guides of an empty slot and push the card into the multi-pin socket at the rear firmly. Secure with the provided thumb screws. - Page 9 FT210DB Series Installation & Operation Manual Standalone Transmitter Card Module Receiver Fig 4.2 Standalone unit to Card Module connection diagram Card Module Transmitter Card Module Receiver Fig 4.3 Card Module to Card Module connection diagram www.ot-systems.com...
-
Page 10: Data Port Assignment And Pin Connections
FT210DB Series Installation & Operation Manual 4.2 Data port assignment and pin connections For data input and output connections, please note the following pin assignment: Pin Assignment (Screw Terminal Block) Data format RS422/485 (4-Wire) IN(+) IN(-) OUT(+) OUT(-) RS485 (2-Wire) -
Page 11: Dip Switch Setting Procedures
FT210DB Series Installation & Operation Manual RS232 Data communication connection diagram: Transmitter End Receiver End User’s Equipment User’s Equipment DATA PORT DATA PORT (7-PIN) (7-PIN) 1 N/A 1 N/A 2 N/A 2 N/A 3 N/A 3 N/A 4 N/A 4 N/A... - Page 12 FT210DB Series Installation & Operation Manual Dip switch settings for various types of data transmissions Function / Switch No. Sw. 3 Sw. 4 RS485 (2-Wire) RS422/485 (4-Wire)* RS232 * Factory setting [RS422/485 (4-Wire)] Dip switch settings for line terminations Line Output Termination Line Input Termination Function / Switch No.
-
Page 13: Ground Connection
FT210DB Series Installation & Operation Manual 4.4 Ground connection For enhanced safety to reduce the risks of electrical shock and physical damage, caused by lightning and other power surges, as well as a connection to the surge suppresion devices in the product, a screw terminal is provided on the Standalone cabinets (Fig. -
Page 14: Operational Guides
FT210DB Series Installation & Operation Manual (5) Operational Guides 5.1 FT210DB Series Transmitter LED Indicators Indicator Color Description Lit when power is supplied to the Transmitter. Yellow Lit when optical signal from receiver to transmitter is active. Green VIDEO IN / Lit when video signals are fed into the VIDEO IN connectors. -
Page 15: Specifications
FT210DB Series Installation & Operation Manual (6) Specifications MODELS* FT210DB-SST(R)SA FT210DB-SST(R)LSA FT210DB-SMT(R)SA FT210DB-SST(R) FT210DB-SST(R)L FT210DB-SMT(R) PARAMETERS (Single-Mode) (Single-Mode) (Multi-Mode) OPTICAL No. of Fiber / Connector 1 / ST (or FC) 1 / ST (or FC) 1 / ST (or FC) -
Page 16: Drawings
Fig. 7.1 Dimensional drawings of Standalone unit (mm) (8) Warranty Information All OT Systems products are subject to a limited life-time warranty offered by the company in normal circumstances. Please refer to the OT Systems Products Warranty Statement for details. Access to the statement is available in our company website at www.ot-systems.com.
