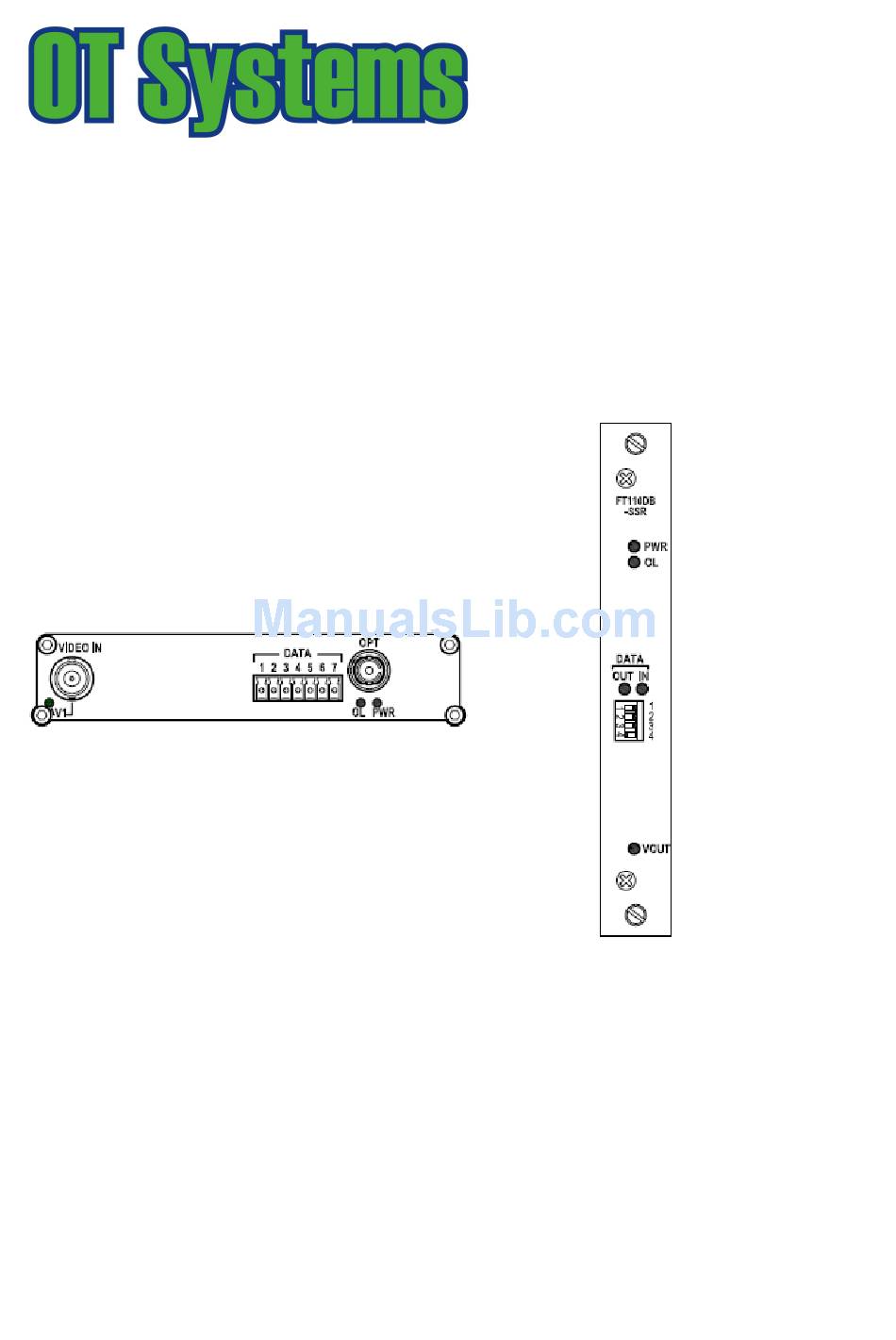

All Digital Fiber Optic Manufacturing Specialists Installation and Operation Manual FT110DB Series 10-bit Digital Series 1-ch Video with 1 Bi-directional Data Fiber Optic Converter OT Systems Ltd., 2009 Rev 1.1... - Page 2 FT110DB Series Installation & Operation Manual Models covered in this manual Standalone Units Card Modules Single-Mode Transmitters Single-Mode Transmitters FT110DB-SSTSA FT110DB-SST FT110DB-SSTLSA FT110DB-SSTL Single-Mode Receivers Single-Mode Receivers FT110DB-SSRSA FT110DB-SSR FT110DB-SSRLSA FT110DB-SSRL Multi-Mode Transmitter Multi-Mode Transmitter FT110DB-SMTSA FT110DB-SMT Multi-Mode Receiver Multi-Mode Receiver...
-
Page 3: Table Of Contents
FT110DB Series Installation & Operation Manual Table of Contents SAFETY INSTRUCTIONS..................3 PRODUCT OVERVIEW ..................4 Introduction ....................... 4 Models selection table ..................5 INSTALLATION ....................... 6 General ......................6 Standalone unit installation ................6 Card module installation ................... 7 CABLE CONNECTIONS &... -
Page 4: Safety Instructions
FT110DB Series Installation & Operation Manual (1) Safety Instructions Please be familiar with all information in this manual prior to installation and operation. Note 1: The products described each contains a Class 1 laser or LED fiber optic emitter. The following safety precautions apply. -
Page 5: Product Overview
FT-PA/12V, which can be powered by a local residential power supply outlet. The FT110DB Series units are also available as plug-in cards installed in 19” rack-mount chassis deployed in small, medium to large systems. Each plug-in card occupies one slot space inside the rack-mount chassis. -
Page 6: Models Selection Table
FT110DB Series Installation & Operation Manual 2.2 Models selection table Installation Models Descriptions Remarks requirements FT110DB-SSTSA Single-mode 1-Ch. Video Transmitter Horizontally or FT-PA/12V & 1 Data Transceiver Standalone Unit vertically external FT110DB-SSTLSA Single-mode Long-haul 1-Ch. Video wall-mounted power Standalone adaptor is Transmitter &... -
Page 7: Installation
The FT110DB Series standalone units (Fig. 3.1) can be either horizontally or vertically wall-mounted, or mounted on any fixtures, etc. The Standalone unit works with an external power adaptor FT-PA/12V powered by a local residential power supply outlet. -
Page 8: Card Module Installation
FT110DB Series Installation & Operation Manual 3.3 Card module installation Insert the card module into the FT-C18 chassis along the top and bottom card guides of an empty slot and push the card into the multi-pin socket at the rear firmly. - Page 9 FT110DB Series Installation & Operation Manual Standalone Transmitter Card Module Receiver Fig 4.2 Standalone unit to Card Module connection diagram Card Module Transmitter Card Module Receiver Fig 4.3 Card Module to Card Module connection diagram www.ot-systems.com...
-
Page 10: Data Port Assignment And Pin Connections
FT110DB Series Installation & Operation Manual 4.2 Data port assignment and pin connections For data input and output connections, please note the following pin assignment: Pin Assignment (Screw Terminal Block) Data format RS422/485 (4-Wire) IN(+) IN(-) OUT(+) OUT(-) RS485 (2-Wire) -
Page 11: Dip Switch Setting Procedures
Selections must be made by setting the dip switches (Fig. 4.5) through the access on the front panel. (a) Dip switches on FT110DB Series Standalone unit (b) Dip switches on FT110DB Series Card Module Fig. 4.5 Location of Dip Switches... - Page 12 FT110DB Series Installation & Operation Manual Dip switch settings for various types of data transmissions Function / Switch No. Sw. 3 Sw. 4 RS485 (2-Wire) RS422/485 (4-Wire)* RS232 * Factory setting [RS422/485 (4-Wire)] Dip switch settings for line terminations Line Output Termination Line Input Termination Function / Switch No.
-
Page 13: Ground Connection
FT110DB Series Installation & Operation Manual 4.4 Ground connection For enhanced safety precautions to reduce the risks of human hazards and physical damages caused by lightning and other power surges, in addition to the incorporation of the surge protective devices into the products, a screw is provided on the Standalone cabinets (Fig. -
Page 14: Operational Guides
FT110DB Series Installation & Operation Manual (5) Operational Guides 5.1 FT110DB Series Transmitter LED Indicators Indicator Color Description Lit when power is supplied to the Transmitter. Yellow Lit when optical signal from receiver to transmitter is active. VIDEO IN / Lit when video signal is fed into the VIDEO IN connector. -
Page 15: Specifications
FT110DB Series Installation & Operation Manual (6) Specifications MODELS* FT110DB-SST(R)SA FT110DB-SST(R)LSA FT110DB-SMT(R)SA FT110DB-SST(R) FT110DB-SST(R)L FT110DB-SMT(R) PARAMETERS (Single-Mode) (Single-Mode) (Multi-Mode) OPTICAL No. of Fiber / Connector 1 / ST (or FC) 1 / ST (or FC) 1 / ST (or FC) -
Page 16: Drawings
Fig. 7.1 Dimensional drawings of Standalone unit (mm) (8) Warranty Information All OT Systems products are subject to limited life-time warranty offered by the company in normal circumstances. Please refer to the OT Systems Products Warranty Statement for details. Access to the statement is available in our company website at www.ot-systems.com.
