Summary of Contents for Atlantic PLM 12KE-410

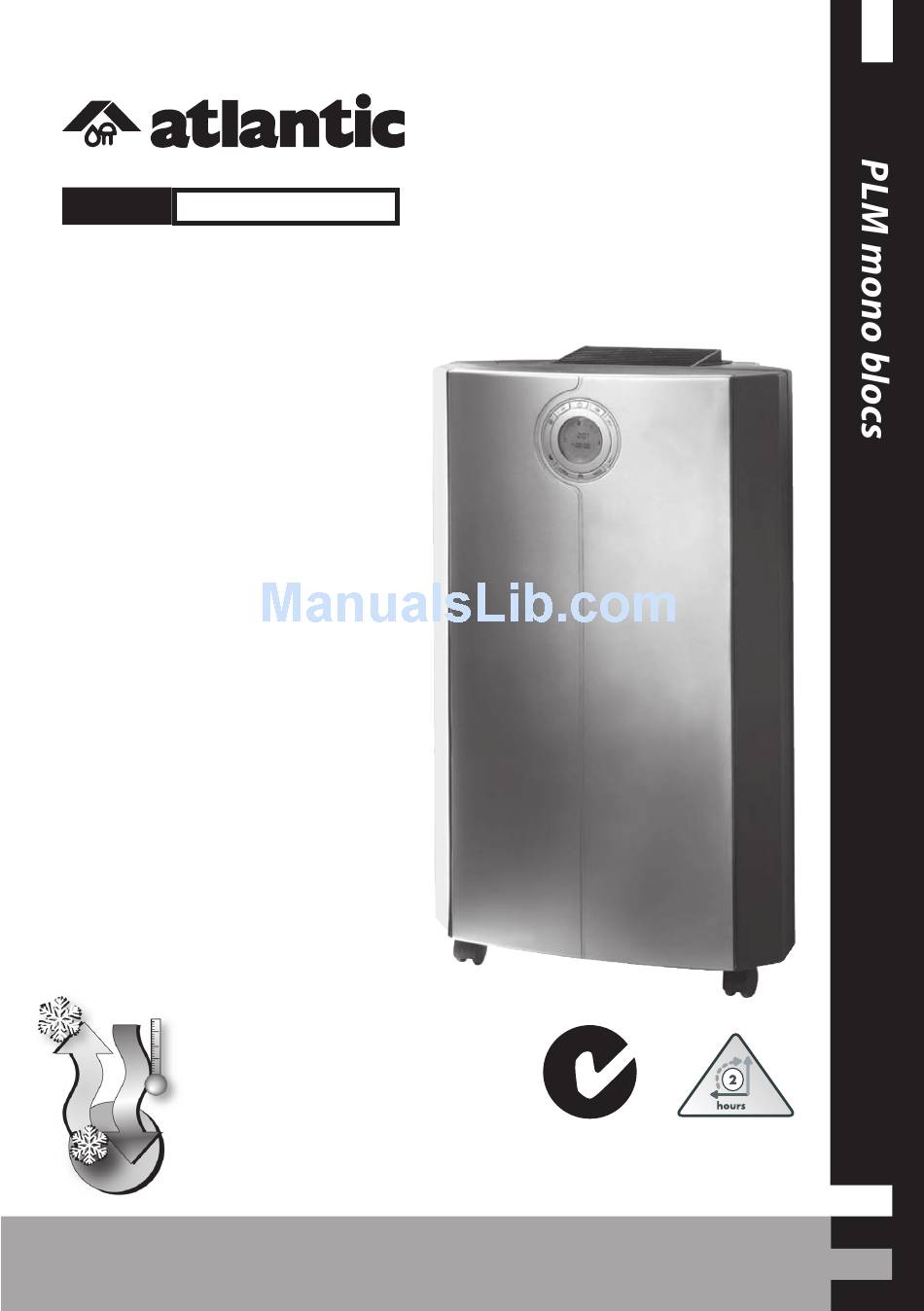

- Page 1 ENGLISH INSTRUCTION MANUAL 9KE-410 /12KE-410 /15KE-410 PLUS HEATER VERSIONS...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT • The unit is designed for indoor operation. • Rating: This unit must be connected to a 220-240 V / 50 Hz earthed outlet. • The installation must be in accordance with regulations of the country where the unit is used. - Page 4 PARTS Air outlet Filter holder Control panel Air inlet Carrying handle Exhaust air outlet Cable storage Water stopper / Caster drainage point wheels Water container Exhaust hose Remote control Air filter Slide bar Telescopic slide bar connector Controls Display ON/OFF COOLING HEAT (for models with heater only) DOWN...
-
Page 5: Installation
INSTALLATION WARNING! Before using the air conditioner it should be left in an upright position for at least 2 hours. This unit can easily be moved from one room to another. In doing so keep this in mind: – Ensure that the unit is positioned upright, on a level surface and 50 cm away from obstacles. –... - Page 6 Setting the temperature If you want to change the set temperature press to set the temperature. The 2 digit display will indicate the set temperature. Note: Reaching the set temperature depends on the room and outdoor climatic conditions. Mode switch Press the button successively until the icon representing the desired mode is appearing (=>...
- Page 7 Programming the timer for OFF - when the unit is RUNNING. • Perform the standard steps as described above. The circular time scale will be on between the present time to the OFF programmed time. The flashing bar on the time scale indicates the real time and moves a segment ahead every 30 minutes until it reaches the OFF timer time, then the black segments in the circular time scale will disappear.
-
Page 8: Air Filter
Selected models have the 3M™ High Air Flow filter as standard. However, if you require to add this to your model, or wish to purchase a replacement, call Atlantic for details. NOTE! The active carbon filter and the 3M™ High Air Flow filter are delivered in a plastic packaging. -
Page 9: Remote Control
filters at the beginning of the new season. The old filters can be disposed in the ‘Non-biological garbage container’. • Replacement filter packages are available directly from Atlantic. • To run the unit without active carbon filter and/or 3M™ High Air Flow filter does not do any harm to the air conditioner. -
Page 10: Troubleshooting
CLEANING WARNING! First of all switch off the unit and remove the plug from the wall socket. Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol, detergents or other cleansing solutions. Clean the screen filter regularly with a vacuum cleaner. See also “air filter” section. NOTE! Never use the air conditioner without the screen filter. -
Page 11: Technical Data
filters at the beginning of the new seasons. The old filters can be disposed of in the ‘Non-biological rubbish container’. • Replacement filter packages are available from Atlantic. Put the unit in Fan Only mode for a few hours to ensure that the inside becomes completely dry. -
Page 12: Your Guarantee
All replacement parts or units will be new or reconditioned Parts or units, which are replaced, become the property of Atlantic Australasia Atlantic Australasia disclaims any liability for incidental or consequential damages The warranty applies for the use of the product in Australia and New Zealand.
