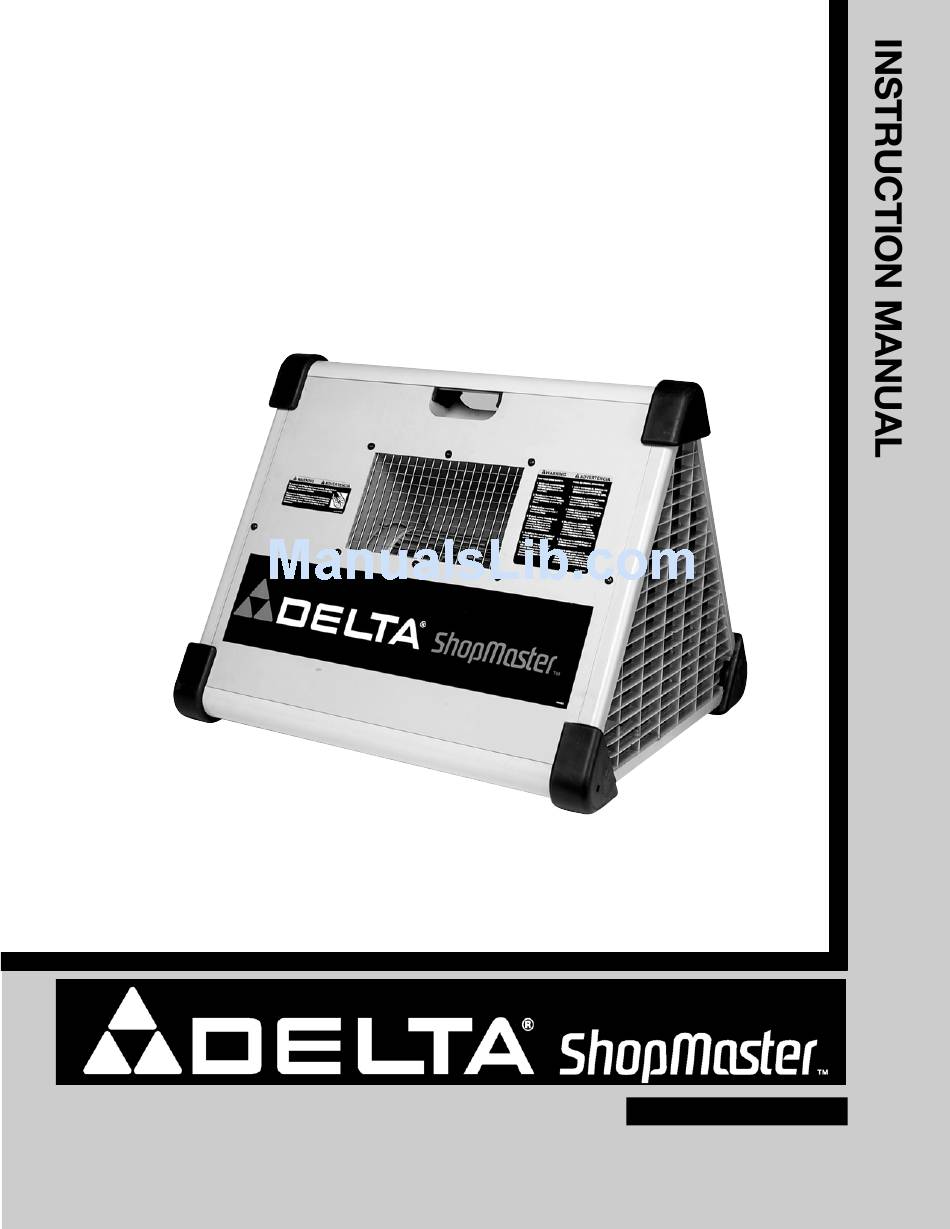

Triangle Air Cleaner
and Work Light
(Model AP100)
PART NO. A05733 - 06-22-05
Copyright © 2005 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 15
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta AP-100
Summary of Contents for Delta AP-100
- Page 1 Triangle Air Cleaner and Work Light (Model AP100) PART NO. A05733 - 06-22-05 Copyright © 2005 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 15 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582).
-
Page 2: Table Of Contents
NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery and we have advised you. -
Page 3: Safety Guidelines
SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information. Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. -
Page 4: General Safety Rules
Damage to the machine and/or injury may result. water. 13. USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommended by Delta may cause damage to the machine or injury to the user. -
Page 5: Additional Specific Safety Rules
ADDITIONAL SPECIFIC SAFETY RULES FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY. DO NOT USE THIS UNIT TO FILTER 6. SUPPORT THIS UNIT or securely clamp it to the METAL DUST. Combining wood and work surface when it is used in a portable metal dust can create an explosion or application to eliminate potential injury and/or fire hazard. -
Page 6: Power Connections
POWER CONNECTIONS A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-prong grounding type plugs and matching receptacle which will accept the machine’s plug. -
Page 7: Functional Description
FUNCTIONAL DESCRIPTION FOREWORD The Delta ShopMaster™ air purifier provides all the benefits of clean air along with lighting and portability with a 120 volt induction motor, two-stage air filtration and two integrated fluorescent bulbs, and hanging capabilities. With 450 CFM (cubic feet per minute) capacity, a coarse pre-filter and five micron inner filter, the AP100 significantly reduces wood dust to eliminate health and cleaning concerns. -
Page 8: Carton Contents
CARTON CONTENTS Fig. 2 1. Air Cleaner 2. Pull Cords (2) 3. 5/16-18x1½" Eye-Bolts (2) 4. 5/16-18 Flange Nuts (2) UNPACKING AND CLEANING Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from all unpainted surfaces. - Page 9 FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. PULL CORDS 1. Insert the cord (A) Fig. 3, into the pull cord catch (B). 2.
-
Page 10: Operation
When suspending the air cleaner from the ceiling or other overhead support, use steel s-hooks that are a minimum of 1/4". NOTE: Thread all lag hooks at least 1-1/2" into the supporting structural members. KEEP A MINIMUM OF SEVEN FEET BETWEEN BOTTOM OF AIR CLEANER AND THE FLOOR SURFACE. -
Page 11: Troubleshooting
TROUBLESHOOTING For assistance with your machine, visit our website at www.deltamachinery.com for a list of service centers or call the DELTA Machinery help line at 1-800-223-7278 (In Canada call 1-800-463-3582). MAINTENANCE CHANGING AND... - Page 12 4. Remove the three spring clips (D) Fig. 11. 5. Remove the bag filter (E) Fig. 11. 6. Remove the pre-filter (F) Fig. 12. 7. The filters (E) Fig. 11 and (F) Fig. 12, can be replaced or cleaned depending on their condition. The filters can be cleaned in one of two methods: a shop-vac can be used to remove the dust, or compressed air can be used Fig.
-
Page 13: Service
SERVICE PARTS, SERVICE OR WARRANTY ASSISTANCE All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network • of Porter-Cable Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582). -
Page 14: Warranty
Two Year Limited New Product Warranty Delta will repair or replace, at its expense and at its option, any new Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection. -
Page 15: Español
Fax: (519) 767-4131 Fax: (604) 420-3522 Fax: (514) 336-3505 The following are trademarks of PORTER-CABLE • DELTA (Las siguientes son marcas registradas de PORTER-CABLE • DELTA S.A.) (Les marques suivantes sont des marques de fabriquant de la PORTER-CABLE • DELTA): Auto-Set ®...
