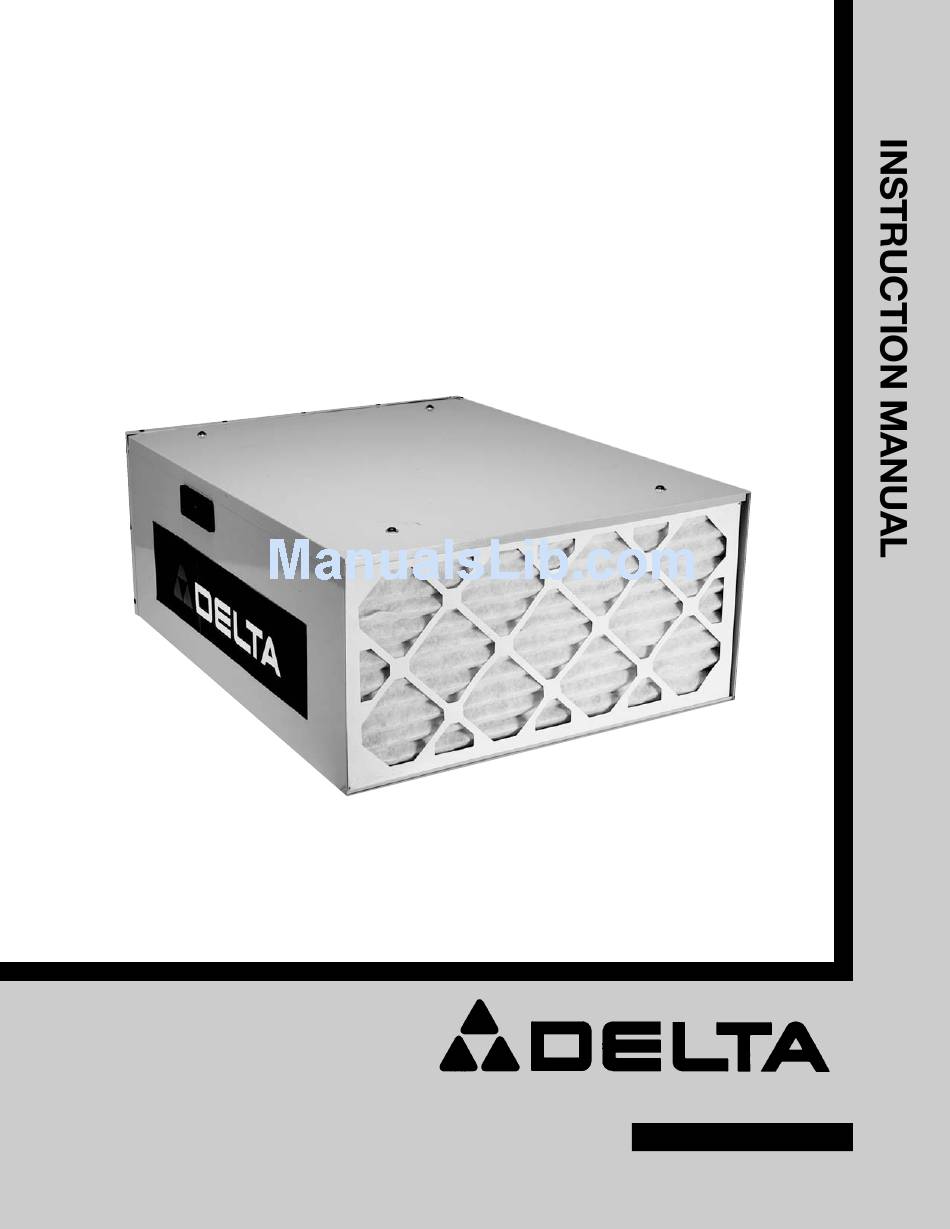

Page 1: Air Cleaner
Air Cleaner 50-868 PART NO. 410-09-651-0004 - 09-23-02 Copyright © 2002 Delta Machinery To learn more about DELTA MACHINERY visit our website at: www.deltamachinery.com. ESPAÑOL: PÁGINA 11 For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582). please call In Canada call... -
Page 2: General Safety Rules
WARNING: DUST GENERATED BY CERTAIN WOODS AND WOOD PRODUCTS CAN BE HAZ- ARDOUS TO YOUR HEALTH. DO NOT USE THIS UNIT TO DISSIPATE FUMES OR SMOKE. This air cleaner is intended for use where only dry airborne dust is present. Its use should be limited to non-explosive, non-metallic atmospheres. -
Page 3: Power Connections
13. DO NOT ATTEMPT TO REMOVE OR REPLACE THE FILTER(S) WHILE THE UNIT IS RUNNING. Make certain that the unit is disconnected from the power source. 14. MAINTAIN THE UNIT IN TOP CONDITION. Keep filters clean for optimum performance. Follow all instructions for changing and cleaning filters. -
Page 4: Extension Cords
This Air Cleaner will filter the air in a room measuring 20’ x 20’ x 8’ either 13, 16, or 18 times an hour, depending on the setting. If desired, multiple units can be used to filter larger areas. The Air Cleaner is maintenance free. -
Page 5: Carton Contents
ASSEMBLY INSTRUCTIONS Determine whether the Air Cleaner will be used on the floor, on a bench, or hanging from an overhead support. If the Air Cleaner will be used as a mobile unit, proceed to “USING THE AIR CLEANER ON A BENCH OR FLOOR SURFACE”... -
Page 6: Using The Air Cleaner On A Bench Or Floor Surface
2. The air cleaner cabinet has convenient lifting handles located on either side (one of which is shown at (A) in Fig. 4. To avoid damage to the air filters, carry the air cleaner with the filters positioned away from your body. - Page 7 DO NOT use rope, cable or power cord to suspend the unit from the ceiling. Use chain rated for a minimum of a 150 lb. working load. IMPORTANT: When determining a location to mount the unit, the air cleaner will operate more efficiently when the air flow is unrestricted.
-
Page 8: Using The Remote Control
Fig. 7A. 1. NOTE: The air cleaner may produce a slight odor for the first few hours of operation due to the protective coating which is applied to internal components. This odor will dissipate and should be disregarded. IMPORTANT: Never operate the air cleaner without air filters in place. -
Page 9: Maintenance
NOTE: The air flow arrow on the outer filter must point inward toward the rear of the air cleaner. Location of the air flow arrow is shown at fig. 10. -
Page 10: Parts, Service Or Warranty Assistance
PARTS, SERVICE OR WARRANTY ASSISTANCE All Delta Machines and accessories are manufactured to high quality standards and are serviced by a net- • work of Porter-Cable Delta Factory Service Centers and Delta Authorized Service Stations. To obtain addi- tional information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582). - Page 11 PORTER-CABLE (CENTROS DE SERVICIO DE PORTER-CABLE Parts and Repair Service for Porter-Cable (Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable ARIZONA ILLINOIS Tempe 85282 (Phoenix) Addison 60101 (Chicago) 2400 West Southern Avenue 400 South Rohlwing Rd. Suite 105 Phone: (630) 424-8805 Phone: (602) 437-1200...
