Page 1: Air Cleaner

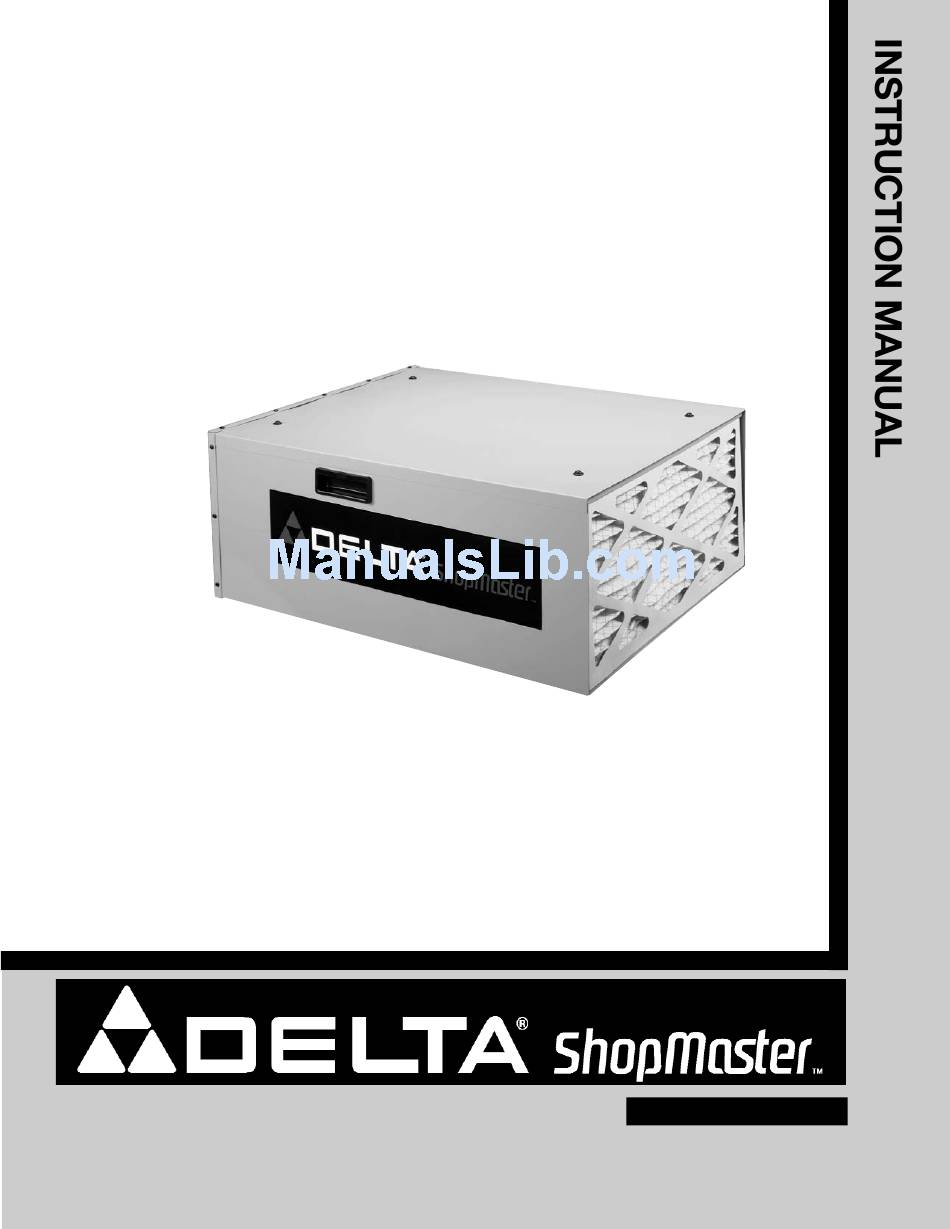

Air Cleaner (Model AP200) PART NO. 906565 - 07-18-02 Copyright © 2002 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 13 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582). please call... -
Page 2: General Safety Rules
If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product. - Page 3 WARNING: DUST GENERATED BY CERTAIN WOODS AND WOOD PRODUCTS CAN BE HAZARDOUS TO YOUR HEALTH. WARNING: DO NOT USE THIS UNIT TO DISSIPATE FUMES OR SMOKE. This air cleaner is intended for use where only dry airborne dust is present. Its use should be limited to non-explosive, non-metallic atmospheres.
-
Page 4: Motor Specifications
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3- prong grounding type plugs and matching receptacle which will accept the machine’s plug. -
Page 5: Extension Cords
This Air Cleaner will filter the air in a room measuring 20’ x 20’ x 8’ sixteen times an hour. If desired, multiple units can be used to filter larger areas. - Page 6 AIR CLEANER PARTS Fig. 2 1 - Air cleaner 2 - Four 5/16-18x1½" eye-bolts 3 - Four 5/16-18 flange nuts 4 - Four rubber feet...
-
Page 7: Using The Air Cleaner On A Bench Or Floor Surface
The Air Cleaner requires very little assembly; therefore, determine in which position the Air Cleaner will be used - on the floor, bench or overhead. If the Air Cleaner will be used as a mobile unit, proceed to “USING THE AIR CLEANER ON A BENCH OR FLOOR SURFACE”... - Page 8 5. Fig. 6, illustrates the four eye-bolts (F) attached to top of air cleaner. NOTE: To adjust the height of the air cleaner, loosen flange nuts (E) Fig. 5, and rotate eye- bolts as necessary. Eye-bolts must be threaded at least eight complete turns into tapped hole in air cleaner.
- Page 9 1. NOTE: The air cleaner may produce a slight odor for the first couple hours of operation due to the protective coating which is applied to internal components. This odor will dissipate and should be disregarded.
-
Page 10: Maintenance
5. Fig. 16, illustrates the air cleaner being used in a floor sanding application. 6. Fig. 17, illustrates the air cleaner suspended from wooden ceiling supports for overhead operation. WARNING: Keep a minimum of seven feet between bottom of air cleaner and the floor surface. - Page 11 6. Install both filters in the reverse order in which they were removed. NOTE: Make certain the AIR FLOW ARROW on each filter is pointing inward toward the rear of the air cleaner, as illustrated in Fig. 19.
-
Page 12: Parts, Service Or Warranty Assistance
1-800-223-7278 (In Canada call 1-800-463-3582). Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection.
