Summary of Contents for Bissell 44M3P SERIES

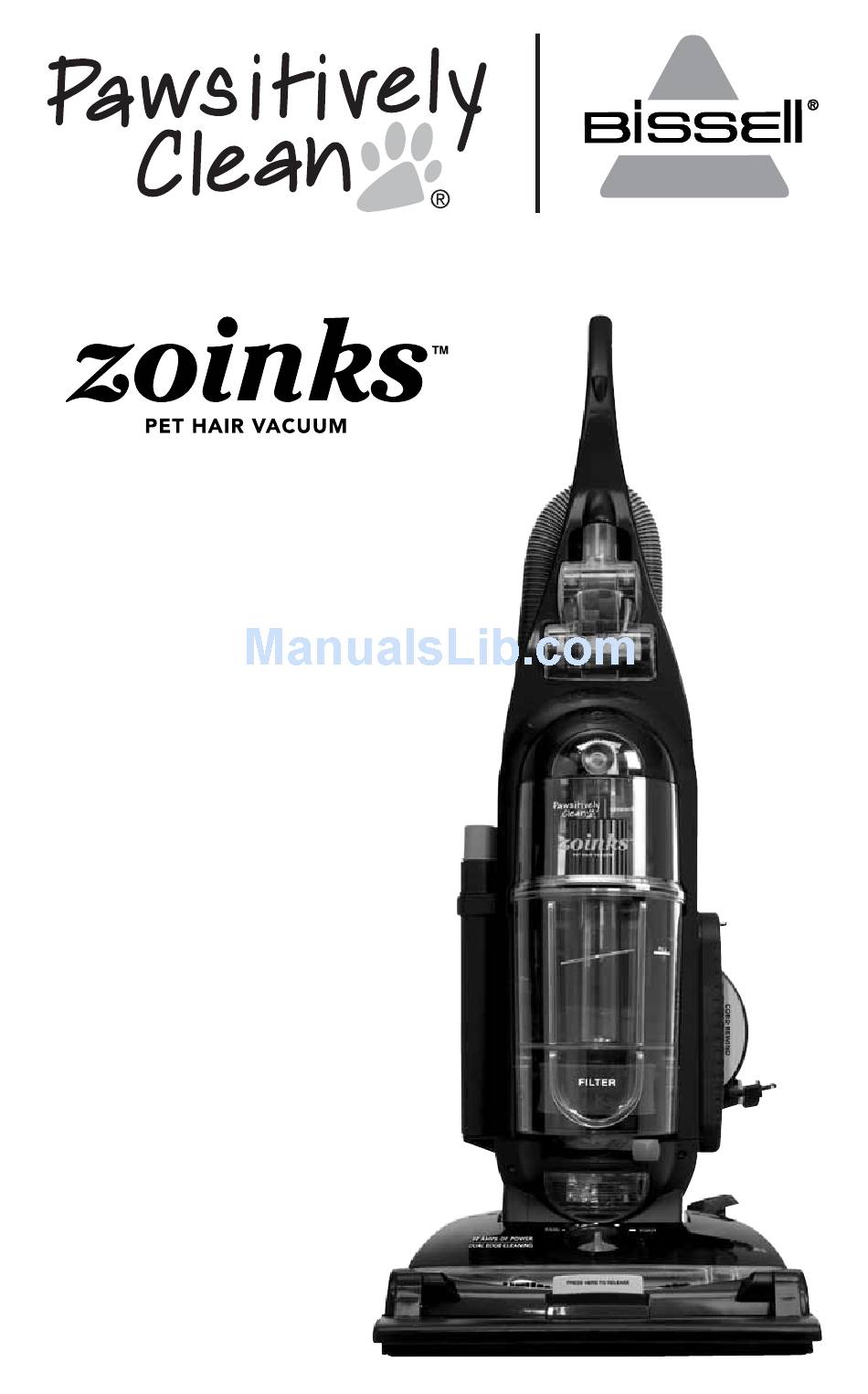

- Page 1 USER'S GUIDE 44M3P SERIES Thank You Safety instructions Product view Assembly Operations 10-15 Maintenance and care 16-17 Troubleshooting Replacement parts Accessories Warranty Product registration Consumer services...
- Page 2 My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your Zoinks Pet Hair vacuum.
-
Page 3: Important Safety Instructions
MPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic Keep hair, loose clothing, fingers, and ■ precautions should be observed, including all parts of body away from openings the following: and moving parts. Read all Turn off all controls before plugging or ■... -
Page 4: Product View
roduct view Stretch Hose Hose Clip TurboEraser ™ Quick Reach ® Handle Clean Filter Carrying Indicator Handle Crevice Tool Combination Dusting Brush/ Extension Upholstery Tool Wand Dirt Filter Container Cord Rewind Filter Cup Hose Lock'n Wand Automatic Seal™ Lever Cord Rewind Headlight Handle Hose... -
Page 5: Attach Vacuum Hose And Tools
ssembly the only tool you’ll need to assemble your vacuum cleaner is a Phillips head screwdriver. attach handle to vacuum 1. Locate the vacuum handle and remove the screw packet taped to the handle. 2. Stand the vacuum upright and slide the base of the handle firmly into the grooves at the top of the vacuum body. -
Page 6: Handle Position
perations automatic power cord rewind your vacuum is equipped with an automatic cord rewind. When facing the unit the power cord is located on the right of the vacuum. gently pull out the power cord, watching for the yellow line. stop pulling the power cord once the yellow line is visible. -
Page 7: Height Adjustment
perations Height adjustment there are five height settings available for various floor surfaces. turn the dial on the foot of the cleaner to the desired setting. lowest setting – For low pile carpet or bare floors. To pick up debris it Tip: may be necessary to move up one setting. - Page 8 perations clean filter indicator the clean filter indicator tells you when airflow in the vacuum is reduced due to dirty filters or a clog in the hose. the indi- cator will remain green until the airflow is reduced. at that time, it begins to change to red.
-
Page 9: Special Tools
perations special tools NOTICE: your Pawsitively clean vacuum is not only a powerful carpet and rug vacuum The floor brush will continue cleaner, it’s also a versatile above floor to rotate while you use your vacuum cleaner when you select one of vacuum for above floor the special tools. -
Page 10: Maintenance And Care
aintenance and care to maintain maximum cleaning perfor- mance, the following maintenance steps WaRning: must be performed: 1. Empty the dirt container when the dirt To reduce the risk of reaches the “Full” line on the side. electric shock, turn power switch OFF and disconnect 2. -
Page 11: Cleaning The Pre-Motor Filter
aintenance and care cleaning the inner & outer circular filters 1. Turn power OFF. Unplug the cleaner from electrical outlet. 2. Remove the dirt container as described in the previous section. Grasp the filter cup located at the bottom of the dirt container, lift up and out. -
Page 12: Replacing The Post-Motor Filter
aintenance and care Replacing the post-motor filter Remove 1. Turn power OFF Open Filter Door 2. Unplug the vacuum from electrical outlet. 3. The post-motor filter assists in the filtration process to return clean air to the room. It is located behind the door on the side of the vacuum. -
Page 13: Replace Drive Belt
aintenance and care Replace drive belt 1. Turn power off. Unplug cleaner from electrical outlet. 2. With rotating floor brush removed from vacuum cleaner (steps 1-4 of Check rotat- ing floor brush and drive belt), grasp old drive belt and remove from motor pulley. Discard old drive belt. - Page 14 aintenance and care Maintaining Pet turboeraser™ the Pet turboeraser should be checked regularly for clogs or debris wrapping around the brush. 1. Turn power OFF. 2. Unplug the vacuum from electrical outlet. 3. If a clog is present or debris is visible, unscrew the two screws on the back of the TurboEraser to remove the faceplate and clear any obstructions.
-
Page 15: Replace Light Bulb
12 and inspect the air passageway for obstructions Replace light bulb use only bissell Replacement bulbs in your Pawsitively clean vacuum. 1. Turn power OFF. 2. Unplug cleaner from electrical outlet. 3. Using a flat screwdriver, table knife or... -
Page 16: Troubleshooting
Power cord not plugged in 1. Check electrical plug Blown fuse/tripped breaker 2. Check/replace fuse or reset breaker Damaged cord 3. Refer to a BISSELL authorized service center for repair or replacement Vacuum cleaner won't pick up dirt Possible causes Remedies Incorrect height adjustment 1. -
Page 17: Replacement Parts
Pawsitively clean product. Please do not return this product to the store. for any questions or concerns, bissell is happy to be of service. contact us directly at 1-800-237-7691. eplacement parts - Item Part No. -
Page 18: A Ccessories Parts
ccessories parts - Item Part No. Part Name 203-7529 Pet TurboEraser ™ 203-1063 Crevice Tool 203-1059 Combination Dusting/Upholstery Brush 203-1084 Extension Wand 203-1368 Pet Contour Tool ® 36G4-A Yowza! Pet Grooming Vacuum Tool ® www.pawsitivelycleanpet.com 8 0 0 . 2 3 7 . 7 6 9 1... -
Page 19: Limited Three Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Homecare, Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for three years any defective or malfunctioning part. - Page 20 Registering is quick, easy and offers you benefits over the lifetime of your product. You’ll receive: bissell Rewards Points Automatically earn points for discounts and free shipping on future bissell.com purchases. faster service Supplying your information now saves you time should you need to contact us with questions regarding your product.
