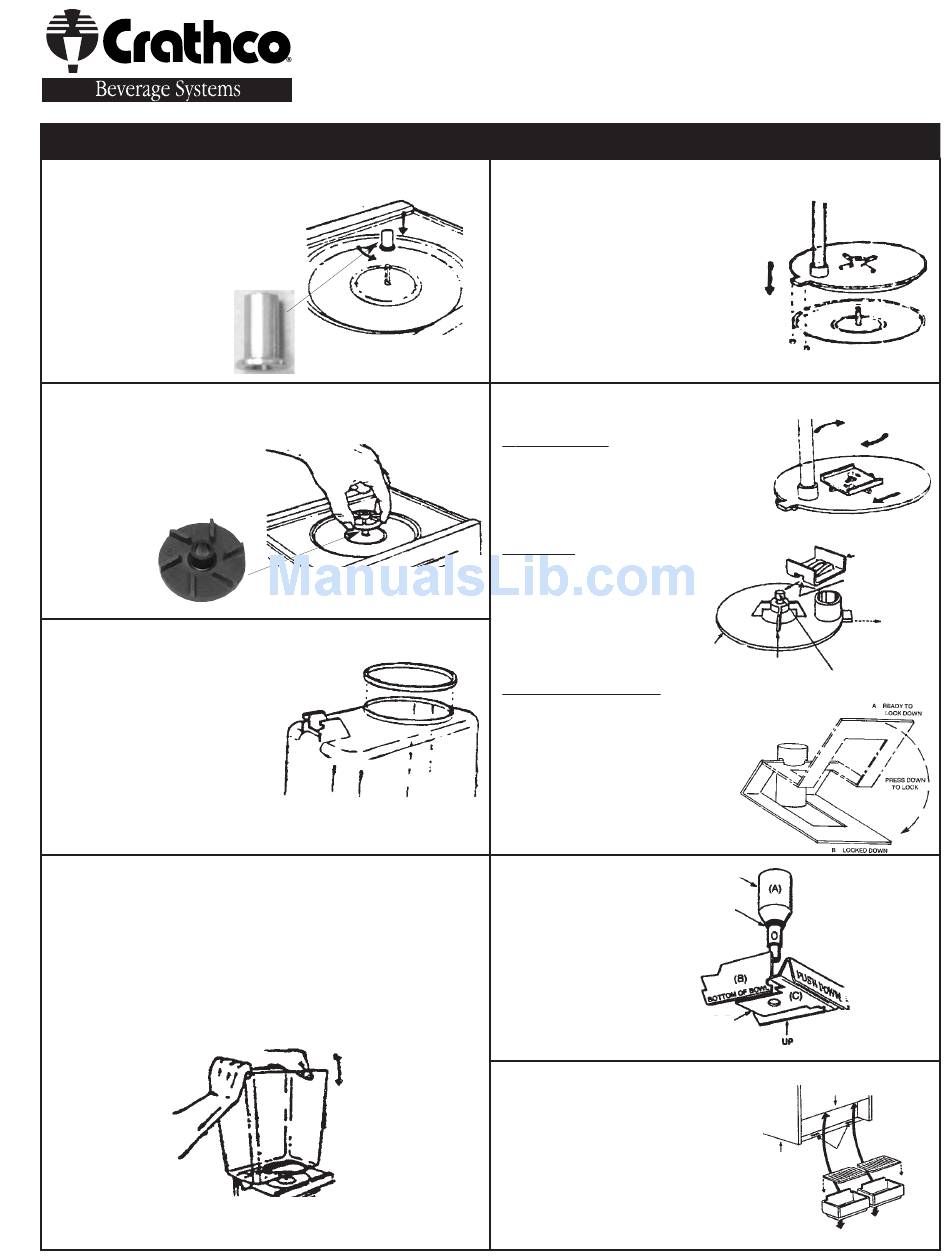

Crathco Operator's Manual

PLACE BEARING SLEEVE ON
1
GUIDE PIN
Note flat sides on outside of
guide pin and on inside of
bearing sleeve.
Line flat sides up until bearing
sleeve slides down over
guide pin and rests
on the cooling plate.
PLACE IMPELLER OVER
2
BEARING SLEEVE.
Put impeller over bearing
sleeve with fin side up.
PLACE BOWL GASKET ON BOWL
3
Turn bowl upside down and place
bowl gasket over the neck of the
bowl. Moisten gasket with water or
or thin film of lubricant.
NOTE: On D112 units place bowl
gasket around cooling dome.
PUT BOWL ON BASE
4
Place the neck of the bowl over center of the cooling
plate and with a back and forth downward motion, push bowl
down into place.
NOTE: On D112 units, place bowl over the gasket and cooling
dome with the neck of the bowl centered on the cooling dome.
Bearing Sleeve
Impeller
Crathco

Assembly

PLACE PUMP COVER OVER GUIDE PIN
5
Place the pump cover over the guide pin
with the spray tube toward the front.
Note that the tab on the front of the pump
cover fits between the 2 locator buttons
or ridges on the bowl. Mini units - bent
part of spray tube faces front of bowl.
NOTE: Use agitator cover in
place of pump cover and spray tube for
fresh juice, drinks that foam (iced tea or
dairy products), or heavy viscous drinks.
INSTALL LOCKDOWN WASHER OR CLAMPS
6
Standard Units:
• Place lockdown washer over guide pin.
• Push lockdown washer down and
into locking keyway.
• Turn lockdown washer clockwise to
lock into place.
Mini Units:
• Place lockdown washer
over guide pin.
• Push lockdown washer
down and into locking
keyway.
• Slide into locked
position.
D112 Superbowl Units:
• Insert each lockdown clamp
in a lockdown pin and snap
down into place.
(Lock down 2 clamps closest to
the front of the bowl first.)
7
ASSEMBLE VALVE
AND HANDLE
Place handle (C) in the
two V-cuts in the front of
the handle bracket (B) and
push handle back.
From inside bowl, lower
the valve (A) through the
outlet hole, and through
the hole in the handle.
Release handle.
8
REPLACE DRIP PAN(S)
Place cover/grid on drip pan.
Place top edge of drip pan up
under lip on front panel.
Lower each drip pan so that the
tab goes down into the tab slot
and locks pan in place.
Regular units proceed to step 15.
Whipper units proceed to step 9.
Beverage Dispensers
®
Operator Manual
PUMP COVER
CROSS RIBS
1. HOLD HANDLE IN "V"
VALVE
NOTCHES & LIFT REAR
OF HANDLE UP.
O-RING
2. FROM INSIDE THE
BOWL, LOWER THE
VALVE THROUGH
OUTLET HOLE, AND
THROUGH HOLE IN
THE HANDLE.
HANDLE
3. RELEASE HANDLE
BASEPLATE
LOCKDOWN
WASHER
LOCKING KEYWAY
3/8" TAB
"FRONT" OF
DISPENSER
(TOWARD VALVE AT
FRONT OF BOWL)
HEAD OF GUIDE PIN
FRONT PANEL LIP
TAB
SLOTS
