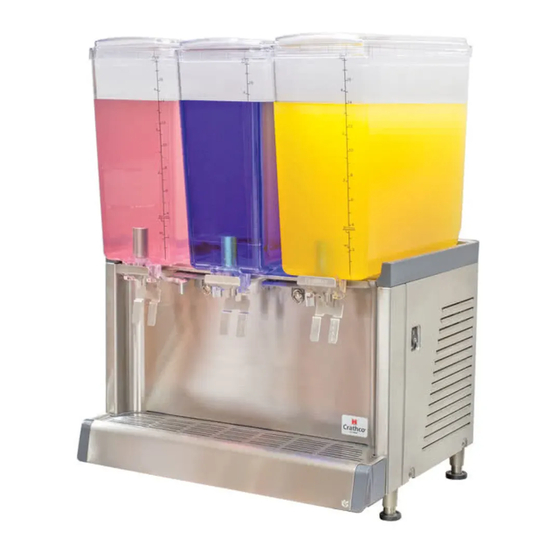

Crathco Simplicity CS-3L-16 Operator's Manual

Hide thumbs

Quick Links

Crathco

Activate your warranty now at

http://gmcw.com/warranty-registration

Model CS-2E-16

Model CS-3L-16

(cULus certification applies only to

United States and Canada models.)

Safety Information........................2

Specifications.................................3

Installation and Set-Up.................4

Product Preparation & Use...........7

Thank you for purchasing this quality cold beverage dispenser. For your safety and the safety of

others, read all warnings and the operator's manual before installing or using the product. Properly

instruct all operators. Keep training records. For future reference, record serial number here:

Grindmaster-Cecilware

4003 Collins Lane, Louisville, KY 40245 USA

Phone: 502.425.4776 Toll Free: 800.695.4500

Fax: 502.425.4664

Web: gmcw.com Email: info@gmcw.com

Printed in Thailand

Simplicity

Cold Beverage Dispensers

Operator Manual

Bubbler

™

Daily Cleaning ...............................8

Troubleshooting..........................11

Basic Machine Parts ....................14

Grindmaster-Cecilware provides the industry's

BEST warranty. Visit gmcw.com for warranty

terms and conditions.

Model CS-2D-16

0617 Form # CC-330-04

Part # 390-00003

Need help?

Do you have a question about the Simplicity CS-3L-16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Crathco Simplicity CS-3L-16

Page 1: Table Of Contents
Operator Manual Simplicity Bubbler ™ Crathco Cold Beverage Dispensers ® Activate your warranty now at http://gmcw.com/warranty-registration Model CS-2D-16 Model CS-2E-16 Model CS-3L-16 (cULus certification applies only to United States and Canada models.) Table of Contents Safety Information......2 Daily Cleaning .......8 Specifications.........3...
Page 2: Safety Information
Observe machine voltage conﬁguration. Do not apply improper voltage to machine or damage to machine will occur. Do not use extension cord. Do not operate the appliance below 1.7°C (35°F) or above 40°C (104°F). Clean and sanitize unit before ﬁrst use. Crathco ® Simplicity Bubbler...
Page 3: Specifications
80 cm x 52 cm x 45 cm CS-3L-22-S (3) 4.75 gallon (18L) bowls, 31.3” x 20.5” x 17.75” 230V / 50/60 HZ / 4A NSF, CE spray model. 80 cm x 52 cm x 45 cm Crathco ® Simplicity Bubbler...
Page 4: Installation And Set-Up
2. Children should be supervised to ensure that they do not play with the appliance. 3. This appliance is only to be installed in locations where it can be overseen by trained personnel. Crathco ® Simplicity Bubbler...
Page 5 Machine must be OFF. bowl. Place drip tray cover on drip tray. Install drip tray. Install handle. Flip out support bracket for drip tray. Turn power “on”. Mix product in clean container. Install bowl cover. Fill bowl with product. Crathco ® Simplicity Bubbler...
Page 6 Install handle. Flip out support bracket Install drip tray and cover. Install spray tube to fit for drip tray. with Pump cover. Mix product in clean container. Install bowl cover. Turn power “on”. Fill bowl with product. Crathco ® Simplicity Bubbler...
Page 7: Product Preparation & Use
3. Install lid and turn on main power switch. 4. 25~30° C (77~86° F) ambient temperature is suitable for the operation. 5. This machine maintains beverage temperature of 1~5° C (34~41° F). 6. The dispenser is not for dispensing potentially hazardous beverage. Crathco ® Simplicity Bubbler...
Page 8: Daily Cleaning
Rotate support brackets for drip tray. NOTICE/ AVIS/ AVISO: FRAGILE! Press release latch on front of the Remove bowl cover. Do not drop. machine before removing the bowl. Remove bowl gasket. Remove mixing impeller. Remove valve with seal. Crathco ® Simplicity Bubbler...
Page 9 AVOID LEAKS DUE TO SEALED SURFACE BEING DAMAGED. NOTICE/ AVIS/ AVISO: The appliance is not suitable for installation in an area where a water jet could be used. The appliance must not be cleaned by water jet. Crathco ® Simplicity Bubbler...
Page 10 Daily Cleaning (cont.) Daily Sanitizing Crathco ® Simplicity Bubbler...
Page 11: Troubleshooting
.75mm surface is (0.03 inch) worn. thick. Impeller and/or axle worn? Replace worn parts. Pump motor magnet needs adjustment? See routine maintenance. ( Call for service. Impeller installed correctly? Crathco ® Simplicity Bubbler...
Page 12 No product agitation? pump motor? See previous page. ( Call for service. Compressor does not operate; Faulty thermostat or improper fan does not operate. setting? Faulty fan motor? ( Call for service. ( Call for service. Crathco ® Simplicity Bubbler...
Page 13 2. When freezing occurs, the appliance must be powered off. 3. Access to the service area is restricted to persons having knowledge and practical experience of the appliance, in particular as far as safety and hygiene are concerned. Crathco ® Simplicity Bubbler...
Page 14: Basic Machine Parts
Basic Machine Parts CS-2E, CS-1D Crathco ® Simplicity Bubbler...
Page 15 Pump Cover (spray model) 210-00128 210-00128 210-00128 210-00128 210-00128 210-00128 Impeller,Magnetic Over Mold (spray model) 210-00255 210-00255 210-00255 210-00255 210-00255 210-00255 Valve, Dispense 99463 99463 99463 99463 99463 99463 Seal, Valve 99380 99380 99380 99380 99380 99380 Crathco ® Simplicity Bubbler...
Page 16 Basic Machine Parts (continued) CS-3L Crathco ® Simplicity Bubbler...
Page 17 Bowl Cover, 18 Liters, Tall 210-00495 210-00495 Valve, Dispense 99463 99463 Seal, Valve 99380 99380 Spray Tube 210-00410 210-00410 Pump Cover 210-00409 210-00409 Impeller,Magnetic Over Mold (spray model) 210-00255 210-00255 Push Handle (Cup Activated) 200-00063 200-00063 Crathco ® Simplicity Bubbler...
Page 18 Basic Machine Parts (continued) CS-4E, CS-2D, CS-3D Crathco ® Simplicity Bubbler...
Page 19 210-00276 210-00276 210-00276 210-00276 210-00276 Pump Cover (Spray model) 210-00128 210-00128 210-00128 210-00128 210-00128 210-00128 Impeller,Magnetic Over Mold (Spray model) 210-00255 210-00255 210-00255 210-00255 210-00255 210-00255 Push Handle (Cup Activated) 200-00063 200-00063 200-00063 200-00063 200-00063 200-00063 Crathco ® Simplicity Bubbler...
Page 20 (Recommended attaching spacer shown. during cleaning of unit during closing or during opening). Total attachment time is 15 minutes. Crathco ® Simplicity Bubbler...
Page 21 Place the two units back into location, side spacer’s legs should be contacting the other Bubbler and then evenly space the two units from the units on either side. Repeat the same process for the other rear corner of the product. Crathco ® Simplicity Bubbler...
Page 22 Crathco ® Simplicity Bubbler...
Page 23 Crathco ® Simplicity Bubbler...
Page 24 If you still need help, call Grindmaster-Cecilware Technical Service Department, (502) 425-4776 or (800) 695-4500 (USA & Canada only) (Monday through Friday 8 AM - 6 PM EST). Please have the model and serial number ready so that accurate information can be given. Prior authorization must be obtained from Grindmaster-Cecilware for all warranty claims.
