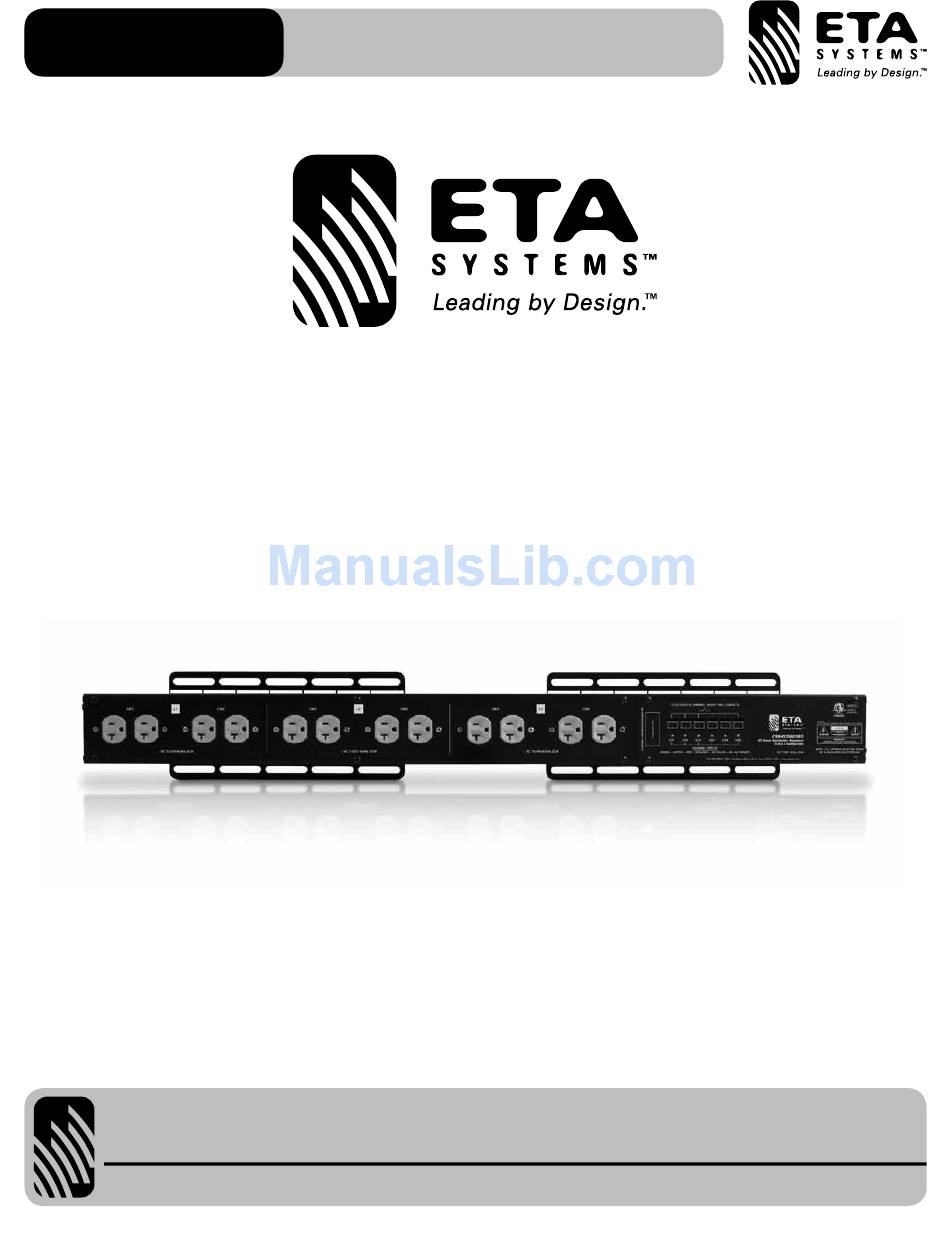

ETA-ECM2063
AC Power Distribution Sequencer
ETA-ECM2063
AC Power Distribution Sequencer
Raceway System
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800-321-6699 • Fax: 800-996-3821
– 1 –
ETAsys.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETA-ECM2063 and is the answer not in the manual?

Questions and answers

Related Manuals for ETA Systems ETA-ECM2063

Summary of Contents for ETA Systems ETA-ECM2063

  • Page 1 ETA-ECM2063 AC Power Distribution Sequencer ETA-ECM2063 AC Power Distribution Sequencer Raceway System 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 1 – ETAsys.com Specifications are subject to change without notice.

  • Page 2: Table Of Contents

    Key Features ............................5 Applications ............................5 Raceway AC Inlet Knockouts ........................6 Raceway Mounting Rails ........................6 Configuring the ETA-ECM2063 ......................7 Wiring the AC Mains ..........................8 Specifications ............................13 Warranty ..............................16 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

  • Page 3: Important Safety Instructions

    ETA-ECM2063 AC Power Distribution Sequencer IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 4 WARNING – WHEN THE DEVICE IS IN USE • To prevent electric shock, do not remove the product cover as there are high voltage components inside. Refer all servicing to ETA Systems. • Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact ETA Systems. Do not to attempt to continue operation with the product as this may cause fire or electric shock: • Smoke or strange smell coming from the unit. •...

  • Page 5: Introduction

    The ETA-ECM2063 accepts up to three separate 20A 120VAC lines, allowing for up to a total of 60A to be divided throughout the system.

  • Page 6: Raceway Ac Inlet Knockouts

    RACEWAY AC INLET KNOCKOUTS The ETA-ECM2063 can support up to three AC conduit inlets at each end. There are three knockouts on both the top and the bottom of the raceway. Each inlet supports a double knockout size supporting standard USA electrical fittings of ⁄...

  • Page 7: Configuring The Eta-Ecm2063

    There are four different load distribution combinations for the ETA-ECM2063. The ETA-ECM2063 has 6 channels that are divided into three load circuits. This is to allow up to three separate 20A 120VAC mains lines to be applied to the ETA-ECM2063. It is not required to apply three circuits;...

  • Page 8: Wiring The Ac Mains

    ETA-ECM2063 AC Power Distribution Sequencer WIRING THE AC MAINS Below are four configurations for load distribution. After following the wiring diagram place the label of the Internal Wiring Configuration on the panel box. Note: All electrical wiring must be done by a certified electrician. Follow the steps below for wiring the AC mains. Accessing the Internal Wiring 1. Locate the Control Input Panel.
  • Page 9 ETA-ECM2063 AC Power Distribution Sequencer ETA-ECM2063 Load Wiring Option #1 - L1, L2, L3 = 20A In this load/current wiring configuration all 3 load sections (Channels 1 – 6) are connected to a single 20A AC Mains feed. Note: All electrical wiring must be done by a certified electrician.
  • Page 10 AC Power Distribution Sequencer ETA-ECM2063 Load Wiring Option #2 - L1 & L2 = 20A, L3 = 20A In this load/current wiring configuration the load sections L1 & L2 (Channels 1,2,3, & 4) are connected to a single 20A AC Mains feed and load section L3 (Channels 5 &...
  • Page 11 AC Power Distribution Sequencer ETA-ECM2063 Load Wiring Option #3 - L1 = 20A, L2 & L3 = 20A In this load/current wiring configuration the load section L1 (Channels 1 & 2) is connected to a single 20A AC Mains feed and load sections L2 &...
  • Page 12 AC Power Distribution Sequencer ETA-ECM2063 Load Wiring Option #4 - L1 = 20A, L2 = 20A, L3 = 20A In this load/current wiring configuration the load section L1 (Channels 1 & 2) is connected to a single 20A AC Mains feed, load section L2 (Channels 3 &...

  • Page 13: Specifications

    ETA-ECM2063 AC Power Distribution Sequencer SPECIFICATIONS Type Electrical AC Power Distribution RoHS Compliant Safety Listing ETL (UL60065 Standard) Front Panel Number of Channels AC Outlets 12 NEMA 5-20, Switched Connectors Qty 6, 2 Position Phoenix Euro Block Style 3.5mm Spacing Remote Trigger Hard Switch Contact Closure Indicators Incoming AC (Red), Active (Green) AC Mains Interconnect Screw Terminal Block Technical Data Voltage 120V AC, 60Hz...
  • Page 14 ETA-ECM2063 AC Power Distribution Sequencer NOTES: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 14 – ETAsys.com Specifications are subject to change without notice.
  • Page 15 ETA-ECM2063 AC Power Distribution Sequencer NOTES: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 15 – ETAsys.com Specifications are subject to change without notice.

  • Page 16: Warranty

    This warranty shall extend from the date of purchase for a period of one year. Additionally, fuses and lamps carry no warranty. ETA Systems will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
