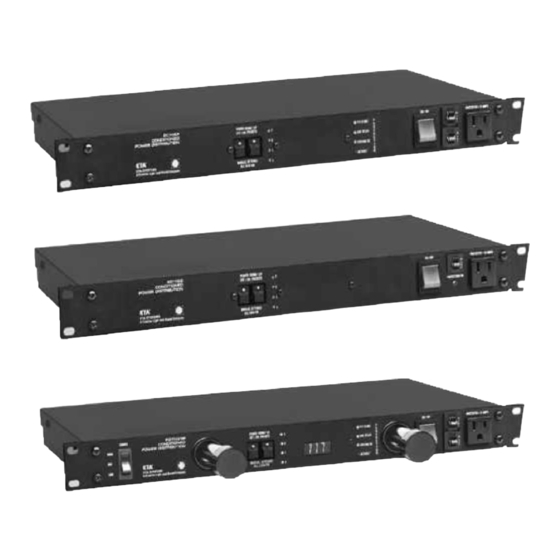

ETA Systems PD11SP Owner's Manual

Conditioned power distribution sequential power up / power down

Hide thumbs Also See for PD11SP:

Owner's manual (8 pages)

Specification sheet (2 pages)

page of 13

/ 13
Bookmarks

Quick Links

Download this manual

OWNER'S MANUAL

CONDITIONED POWER DISTRIBUTION

SEQUENTIAL POWER UP / POWER DOWN

1450 Lakeside Drive• Waukegan, Illinois 60085 USA

330-677-4424 • 800-321-6699 • Fax: 330-677-4471

http://www.etasys.com E-mail eta@etasys.com

Need help?

Do you have a question about the PD11SP and is the answer not in the manual?

Questions and answers

Summary of Contents for ETA Systems PD11SP

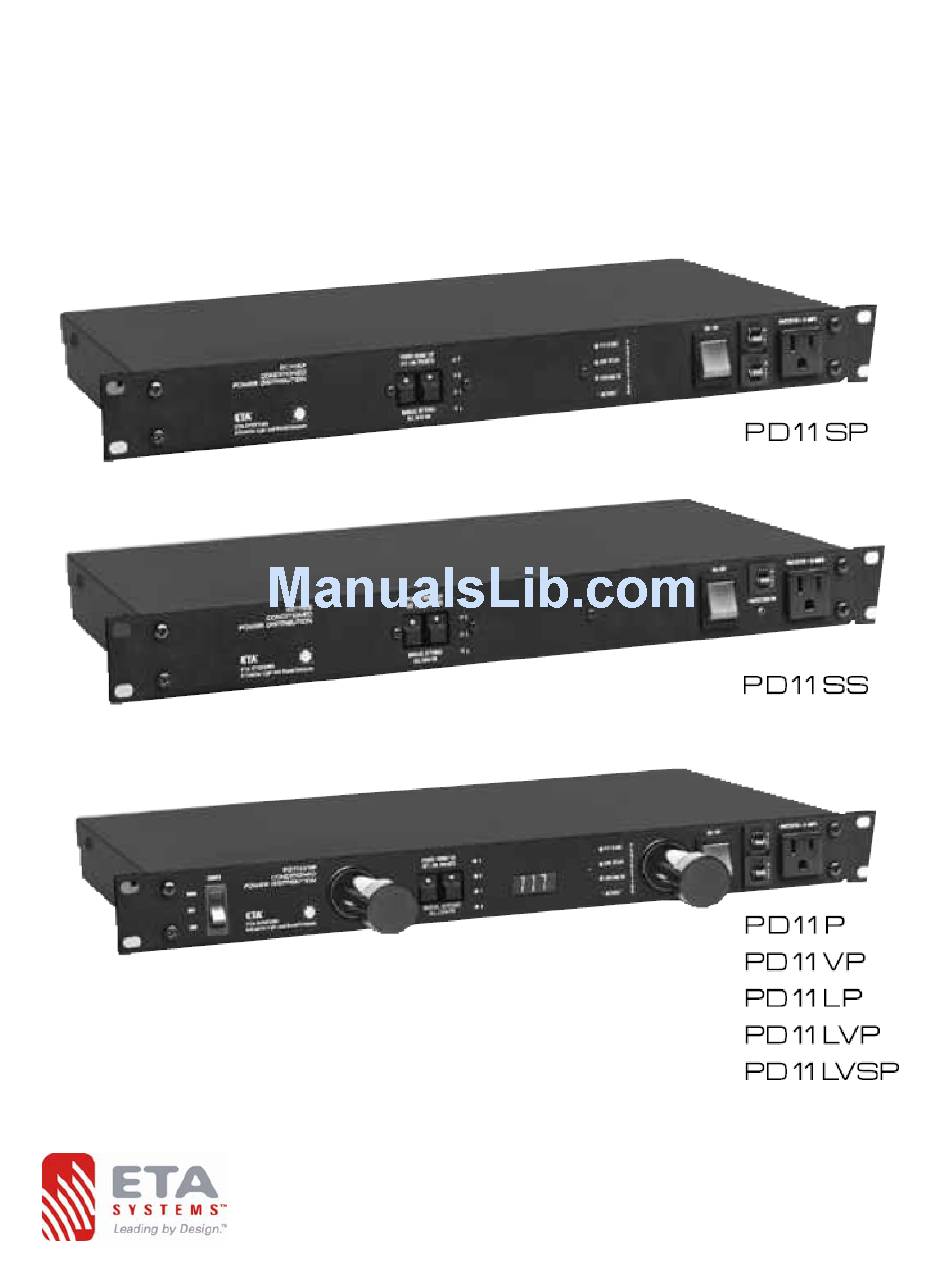

Page 1 CONDITIONED POWER DISTRIBUTION SEQUENTIAL POWER UP / POWER DOWN 1450 Lakeside Drive• Waukegan, Illinois 60085 USA 330-677-4424 • 800-321-6699 • Fax: 330-677-4471 http://www.etasys.com E-mail eta@etasys.com All designs and specifications are subject to change without notice. Copyright © 2006 ETA Systems. 6MAN-021...
Page 2 PD11SP units are shipped with the ability to be linked or daisy chained. All linked units function as slaves; however, slaves can be set to specific time delays. Any number of units can be linked together with a distance of up to 1000 feet between each location (see Fig.
Page 3 The PD11SS is a sequential four step/stage power up/down conditioned power distribution unit. It is designed to protect electronic equipment that requires a time-delayed start-up, particularly when high in-rush current can potentially damage audio, video, or computer equipment at power up. PD11SS Features: •...
Page 5 PD11P, PD11VP, PD11LP, PD11LVP Features: • Light Switch (PD11LP/LVP/LVSP) activates rack illumination; choice of HI or LOW intensity • Light Tubes (PD11LP/LVP/LVSP) illuminates up to 25 rack spaces • 4 dual 20 amp U-grounded switched outlets per unit • 1 dual 15 amp U-grounded "always on" and protected outlet •...
Page 6 Programming Time Delays switched outlets on the rear of the unit. The PD11SP, PD11SS and PD11LVSP come from the factory set to a 1-second delay for each of the four A. The “1st Stage” and “2nd Stage” L.E.D.’s outlets to turn on.
Page 7 Using a set of relay contacts that are normally open instead of a switch you can control the PD11SS, PD11SP AND PD11LVSP units with a relay. When you apply power to the relay the channels will sequence ON, and when you disconnect power from the relay the channels will sequence OFF. This allows you to interface a PD11SS, PD11SP AND PD11LVSP unit with other equipment that has dry (normally open) relay contacts (see Figure 2).
Page 8 Call 1-800-321-6699 for an ETA Full Line Brochure. 1450 Lakeside Drive• Waukegan, Illinois 60085 USA 330-677-4424 • 800-321-6699 • Fax: 330-677-4471 http://www.etasys.com E-mail eta@etasys.com All designs and specifications are subject to change without notice. Copyright © 2006 ETA Systems. 6MAN-021...
Page 9 Addendum NOTE: The following pages are added as an addendum to the ETA manual. For most reli- able performance of ETA Systems sequencing products, it is recommended that you use one of the cable types illustrated in the following pages. When installing any cabling in a plenum...
Page 10 8489 Non-Paired - Audio, Control and Instrumentation Cable For more information please call 1-800-Belden1 See Put-ups and Colors Related Documents : No. 1.pdf Description: 18 AWG stranded (19x30) tinned copper conductors, conductors cabled, PVC insulation, PVC jacket. PHYSICAL CHARACTERISTICS: CONDUCTOR: Number of Conductors Total Number of Conductors Stranding...
Page 11 8489 Non-Paired - Audio, Control and Instrumentation Cable Operating Temperature Range -20°C To +60°C UL Temperature Rating 60°C (UL AWM Style 2598) Bulk Cable Weight 44.1 lbs/1000 ft. Max. Recommended Pulling Tension 83 lbs. Min. Bend Radius (Install) 2.6 in. APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE: APPLICABLE STANDARDS: NEC/(UL) Specification...
Page 12 8489 Non-Paired - Audio, Control and Instrumentation Cable © Copyright 2006 Belden, Inc All Rights Reserved. Although Belden ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.
Page 13: Communication & Control
COMMUNICATION & CONTROL UL TYPE CM MULTICONDUCTOR, UNSHIELDED UL AWM 2509, CSA CMG FT 4 PVC/PVC RoHS COMPLIANT, 300 VOLT HARACTERISTICS OPERATING TEMPERATURE: –20°C to 80°C – AWM 75°C – CM VOLTAGE RATING: 300 Volt – CM 150 Volt – CL2 80°C 300V - UL 2509 - NEC TYPE CM 18 AWG 16/30...

This manual is also suitable for:

Pd11ss Pd11p Pd11vp Pd11lp Pd11lvp Pd11lvsp
