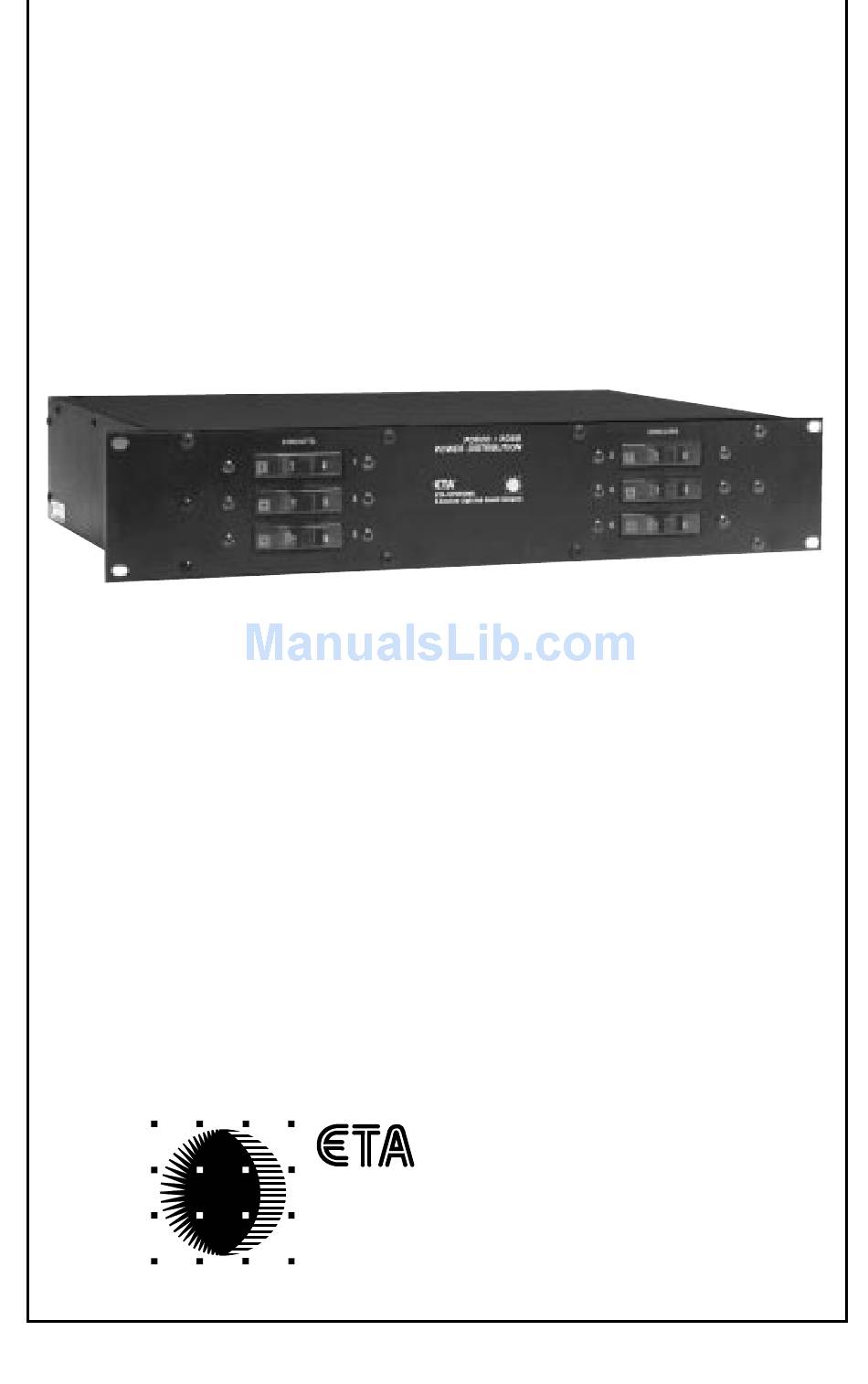

- Page 1 OWNER’S MANUAL PD620 PD620-6R PD66 © SYSTEMS A Creative Light & Sound Company 1532 Enterprise Parkway, Twinsburg, OH 44087 USA 330-425-3388 • 800-321-6699 • Fax: 330-425-9700 http://www.etasys.com E-mail eta@etasys.com...
- Page 2 HIGH AMP POWER DISTRIBUTION ETA’s High Amperage Power Distribution is the professional system de- signed for power hook-up of sound and lighting equipment. PD620 / PD66 PD620 BACK PD66 BACK WARNING: Do not remove cover. No user serviceable parts inside.
- Page 3 (3Ø WYE 120/208V hook-up), OR *70 amps per leg (two legs) (1Ø 120/240V hook-up <internal configuration>). The PD620 can provide up to 120 amps total, 40 amps per leg (three legs) (3Ø WYE 120/208V hook-up), OR *60 amps per leg (two legs) (1Ø 120/240V hook-up <internal configuration>).
- Page 4 L3-L1 = 240V L1-N = 120V L1-N = 120V L1-N-L2 = 1Ø L2-N = 120V L2-N = 120V L3-N = 120V *L3-N = 208V Ø = PHASE symbol * DO NOT connect this leg to the PD66 or the PD620...
- Page 5 INPUT POWER CONNECTION FOR 120/208V 3-PHASE WIRING (120/208V 3Ø WYE SYSTEM) INPUT TERMINAL BLOCK INPUT POWER CONNECTION FOR 120/240V SINGLE PHASE WIRING (2 LEGS OF 120/240V 3Ø DELTA SYSTEM) INPUT TERMINAL BLOCK 120/240 1Ø WIRING • Move unit red wire from terminal block L3 terminal to L1 terminal (L1 will now contain three red wires) •...
- Page 6 PD66 (140 Amp Total) PD620 (120 Amp Total) Breaker Outlet Breaker Outlet No. 1 20 amp No. 1 (2) NEMA 5-20R No. 1 20 amp No. 1 (1) NEMA 5-20R (Duplex Receptacle) (Duplex Receptacle) No. 2 20 amp No. 2 (2) NEMA 5-20R No.
- Page 7 SYSTEMS A Creative Light & Sound Company 1532 Enterprise Parkway, Twinsburg, OH 44087 USA 330-425-3388 • 800-321-6699 • Fax: 330-425-9700 http://www.etasys.com E-mail eta@etasys.com All designs and specifications are subject to change without notice. Copyright © 1999 ETA Systems. 12/99 6MAN-028...
